Model Maytag ABB2522FEW2 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

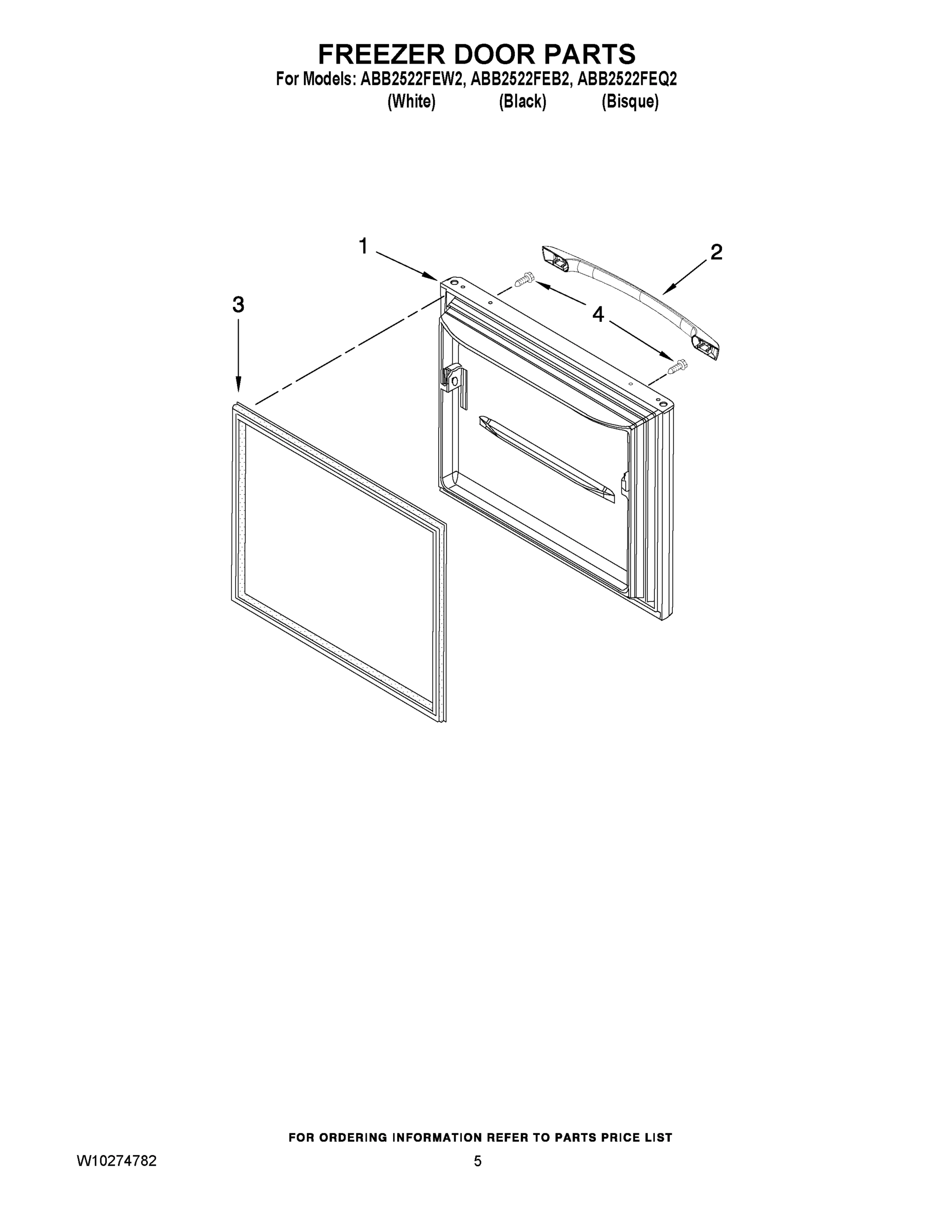

03 - FREEZER DOOR PARTS

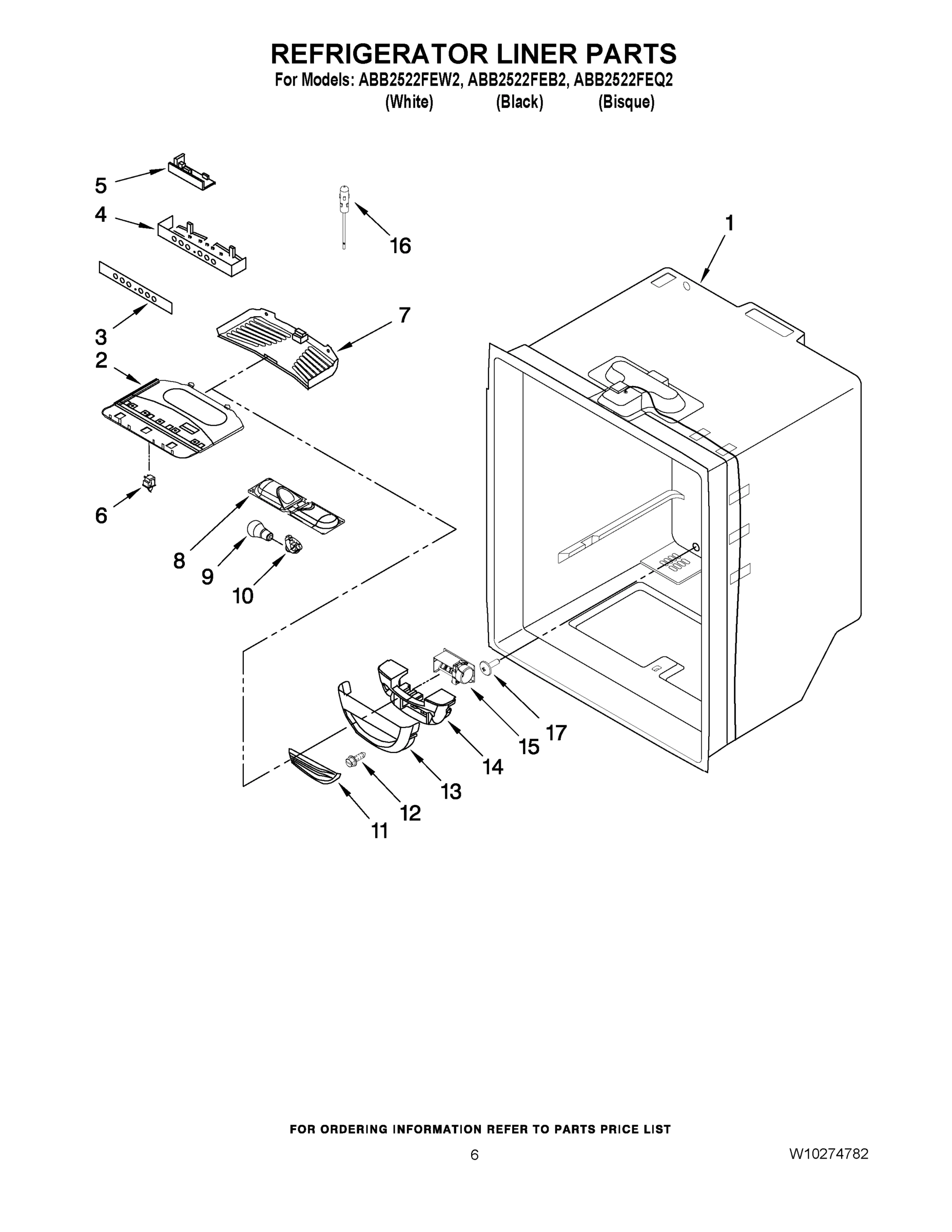

04 - REFRIGERATOR LINER PARTS

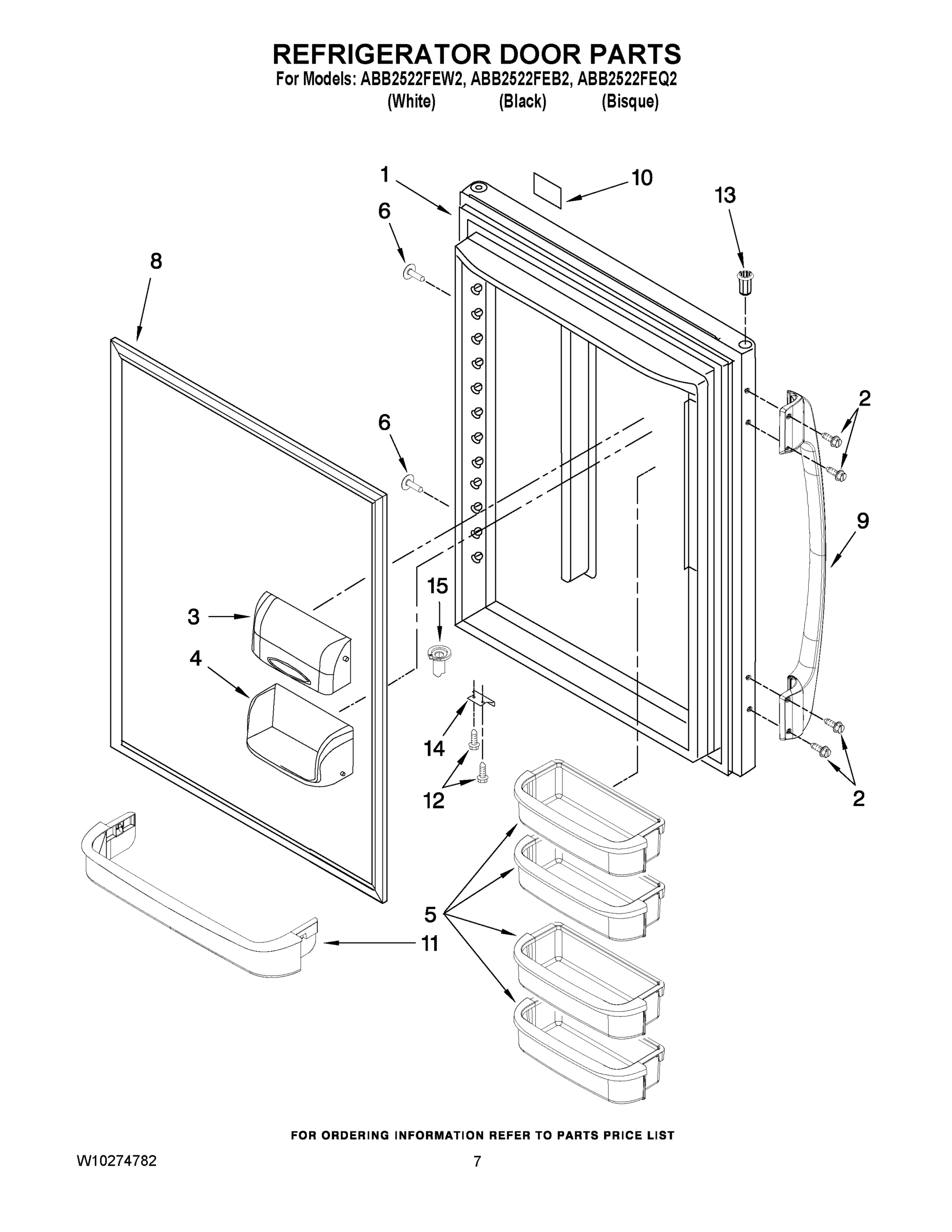

05 - REFRIGERATOR DOOR PARTS
06 - UNIT PARTS

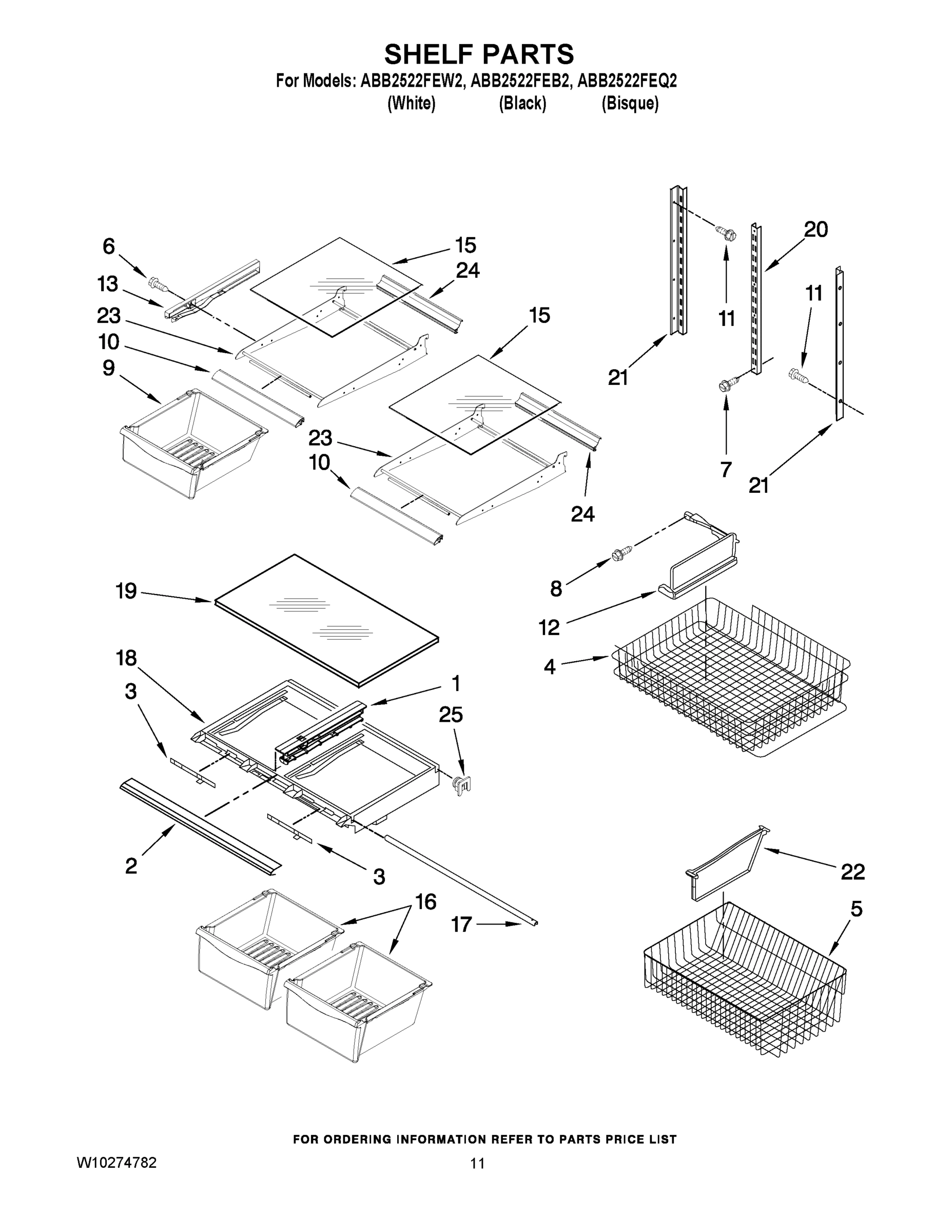

07 - SHELF PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag ABB2522FEW2 REFRIGERATOR
1
MAY 13092203BQ MAY 13092203BQ Contact Us For Availability
1
MAY 13092203QQ MAY 13092203QQ Contact Us For Availability
1
MAY 13092203WQ MAY 13092203WQ Contact Us For Availability
1
MAY 12658531BQ MAY 12658531BQ Contact Us For Availability
1
MAY 12658531CQ MAY 12658531CQ Contact Us For Availability
1
REFRIGERATOR DOOR (W/LINER) (WHITE) MAY 12658531WQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY 12796401 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
HANDLE (BLACK) MAY W10179169 Contact Us For Availability
2
HANDLE (BISQUE) MAY W10179170 Contact Us For Availability
2
HANDLE (WHITE) MAY W10179171 Contact Us For Availability
2
MODULE, LIGHT MAY 12806301 Contact Us For Availability
2
Screw MAY 12992802 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231344 MAY W10231344 Contact Us For Availability
3
MAY M0310731 MAY M0310731 Contact Us For Availability
3
DOOR GASKET, MAGNETIC (WHITE) MAY W10164040 Contact Us For Availability
3
DOOR GASKET, MAGNETIC (BLACK) MAY W10164041 Contact Us For Availability
3
MAY 12816501 MAY 12816501 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12530805SP MAY 12530805SP Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
HOUSING MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12896403 MAY 12896403 Contact Us For Availability
5
ROLLER ASSEMBLY (RIGHT SIDE) MAY W10212381 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT SIDE) MAY W10212382 Contact Us For Availability
5
SHAFT MAY 12812902WD Contact Us For Availability
5
MAY 12868513 MAY 12868513 Contact Us For Availability
5
BUCKET, RC (MEDIUM-2) MAY 12557204 Contact Us For Availability
5
BUCKET, RC (LARGE-2) MAY 12557206 Contact Us For Availability
5
MAY 13016003 MAY 13016003 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12991103 MAY 12991103 Contact Us For Availability
6
MAY 12991104 MAY 12991104 Contact Us For Availability
6
Screw,Handle Hole (Black) MAY 12991105 Contact Us For Availability
6
MAY W10217746 MAY W10217746 Contact Us For Availability
6
MAY 12990302 MAY 12990302 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10224241 MAY W10224241 Contact Us For Availability
7
MAY 12990515 MAY 12990515 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
DOOR GASKET, MAGNETIC (WHITE) MAY W10164038 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (BLACK) MAY W10164039 Contact Us For Availability
8
MAY W10215085 MAY W10215085 Contact Us For Availability
8
MAY 12990601 MAY 12990601 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
DOOR HANDLE (BLACK) MAY 12845806B Contact Us For Availability
9
DOOR HANDLE (BISQUE) MAY 12845806Q Contact Us For Availability
9
DOOR HANDLE (WHITE) MAY 12845806W Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12802801 MAY 12802801 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12477601C MAY 12477601C Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
HOUSING, FZ LIGHT MAY 12476401V Contact Us For Availability
10
MAY 12528501 MAY 12528501 Contact Us For Availability
10
EVAPORATOR HEATER MAY 12729129 Contact Us For Availability
10
MAY W10231330 MAY W10231330 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12226112 MAY 12226112 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12557906 MAY 12557906 Contact Us For Availability
11
MAY 12745704 MAY 12745704 Contact Us For Availability
11
Screw (6) MAY 12990513 Contact Us For Availability
12
MAY 12992201 MAY 12992201 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
MAY 12990504 MAY 12990504 Contact Us For Availability
12
MAY W10136414 MAY W10136414 Contact Us For Availability
12
START PROTECT, COMBO (PRODUCTION) MAY W10244032 Contact Us For Availability
12
DIVIDER, TOP MAY 12693802 Contact Us For Availability
13
LABEL, FL TB PLUG MAY 12249902 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
Bushing (Black) MAY 10961006B Contact Us For Availability
13
MAY 10961006W MAY 10961006W Contact Us For Availability
13
GLIDE LH MAY 12656601 Contact Us For Availability
13
GLIDE RH MAY 12656602 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY 12805001 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 10447111 MAY 10447111 Contact Us For Availability
14
MAY 10447113 MAY 10447113 Contact Us For Availability
14
MAY 10477112 MAY 10477112 Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
Clip, Evaporator MAY 13058002 Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
15
MAY 12204819 MAY 12204819 Contact Us For Availability
16
MAY 12566606ED MAY 12566606ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
CRISPER (2) MAY 12804601 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
Cover, Corner (Bisque) MAY 12587703C Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12991603V MAY 12991603V Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
Brace, Crisper MAY 12642303WD Contact Us For Availability
18
BRACKET (LEFT) MAY 12812303 Contact Us For Availability
18
BRACKET (RIGHT) MAY 12812304 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
MAY 12796301SP MAY 12796301SP Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
19
GLASS, CRISPER (COVER) MAY 12204824 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY 12435807 MAY 12435807 Contact Us For Availability
21
MAY W10211854 MAY W10211854 Contact Us For Availability
21
Bracket, Slide (Left) MAY W10128118 Contact Us For Availability
21
Bracket, Slide (Right) MAY W10128119 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12710602 MAY 12710602 Contact Us For Availability
22
GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) MAY 12880103B Contact Us For Availability
22
MAY 12880103Q MAY 12880103Q Contact Us For Availability
22
GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) MAY 12880103W Contact Us For Availability
22
GRILLE, FZ MAY 13024803 Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
DIVIDER, BASKET LOWER MAY 12659608 Contact Us For Availability
23
COVER, FL TB MAY 12477501 Contact Us For Availability
23
SHROUD MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY 10460117 MAY 10460117 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
24
MAY 10946015 MAY 10946015 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
SUPPORT-CRISPER MAY 13062602 Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
Motor, Evap MAY W10128551 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
Funnel, Drier MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10160407 MAY W10160407 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
CAPACITOR MAY 2255130 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY 12932103 MAY 12932103 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10261234 MAY W10261234 Contact Us For Availability
× ![]()
