Model Maytag ABB2227VEW2 REFRIGERATOR – Common Parts & Diagrams

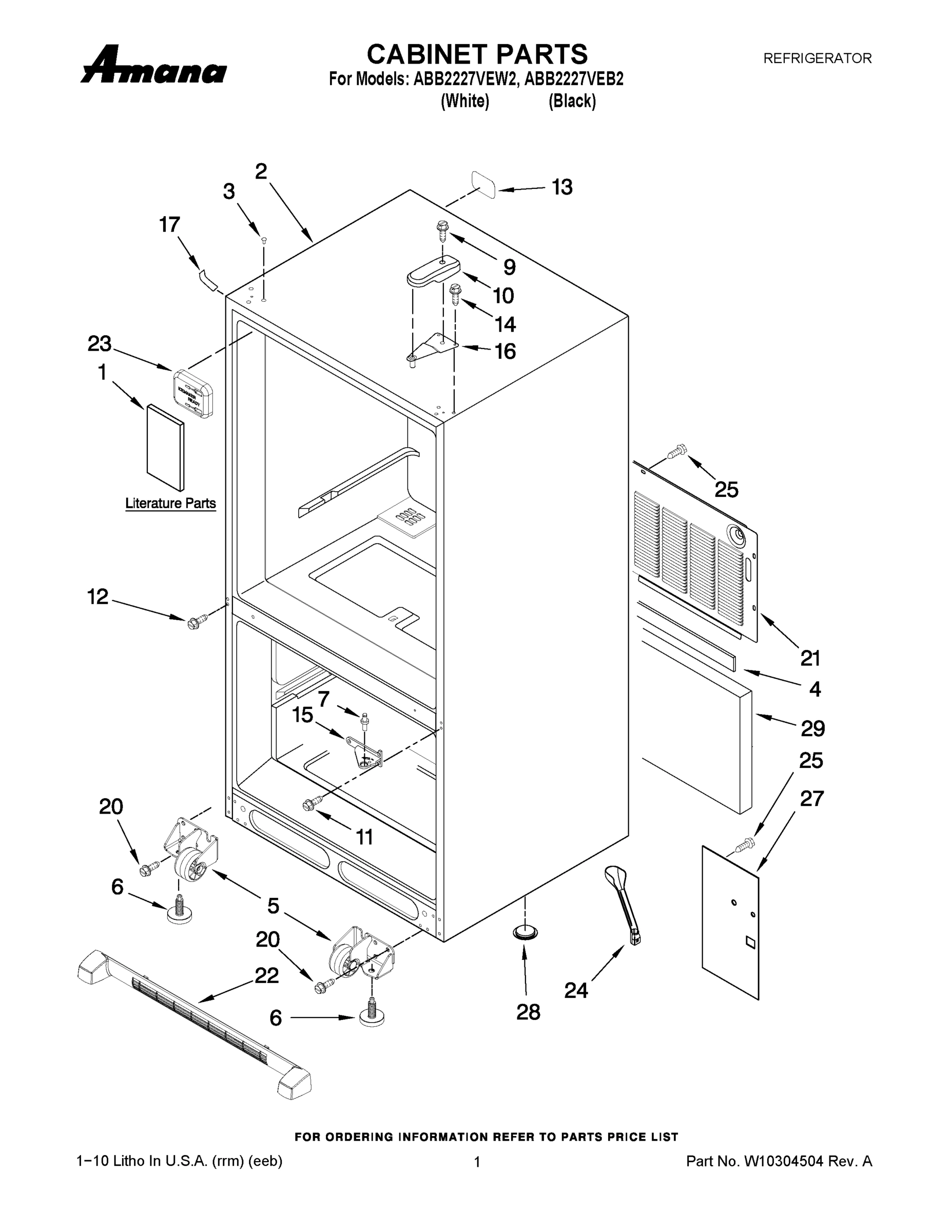

01 - CABINET PARTS

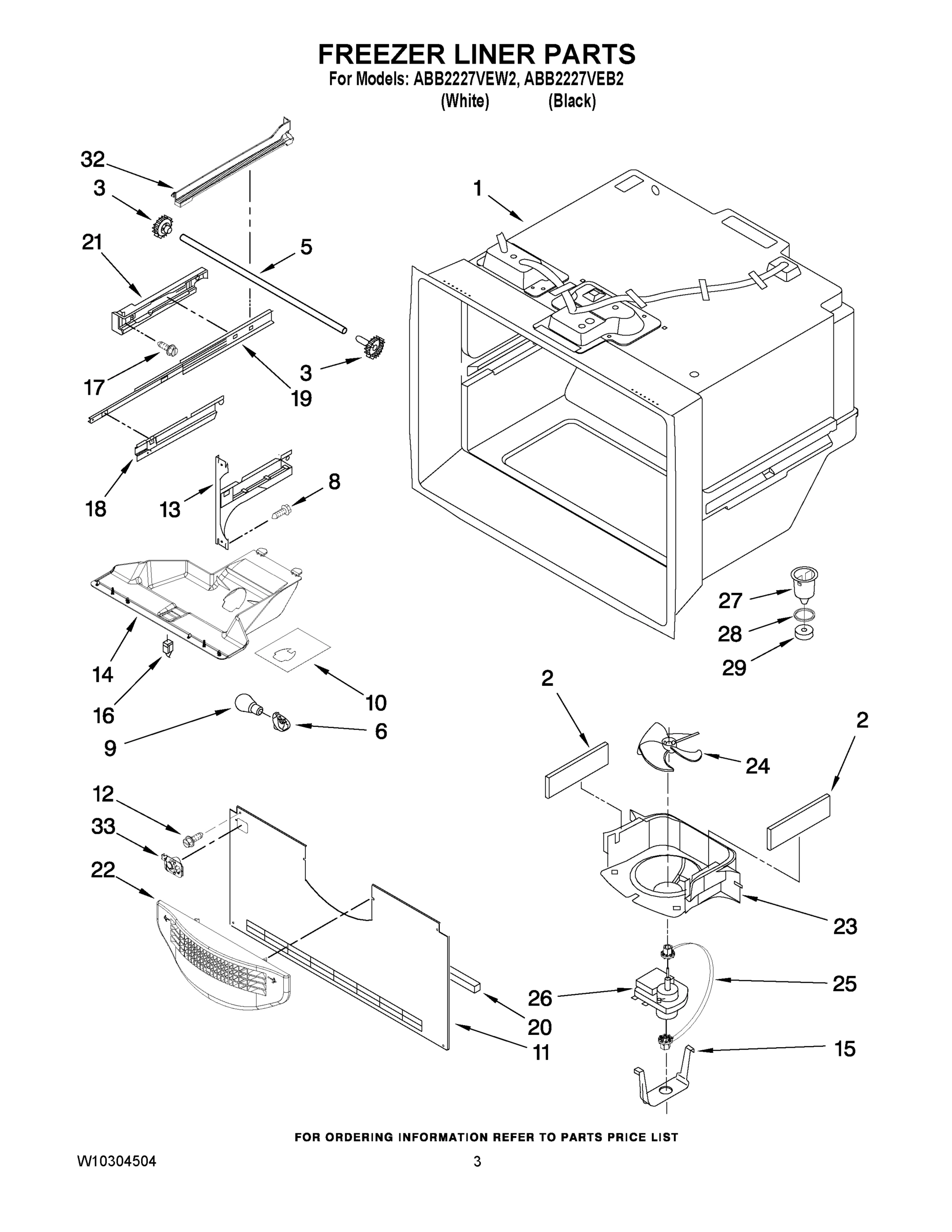

02 - FREEZER LINER PARTS
03 - FREEZER DOOR PARTS
04 - REFRIGERATOR LINER PARTS
05 - REFRIGERATOR DOOR PARTS
06 - UNIT PARTS
07 - SHELF PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ABB2227VEW2 REFRIGERATOR
1
MAY 13092202B MAY 13092202B Contact Us For Availability
1
MAY 13092202W MAY 13092202W Contact Us For Availability
1
REFRIGERATOR DOOR (W/LINER) (BLACK) MAY 12658530B Contact Us For Availability
1
REFRIGERATOR DOOR (W/LINER) (WHITE) MAY 12658530W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
Rail, Center Crisper MAY 12530701 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10179169N MAY W10179169N Contact Us For Availability
2
MAY W10179171N MAY W10179171N Contact Us For Availability
2
MODULE, LIGHT MAY 12806301 Contact Us For Availability
2
Screw MAY 12992802 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231341 MAY W10231341 Contact Us For Availability
3
MAY M0310731 MAY M0310731 Contact Us For Availability
3
Door Gasket, Magnetic (White) MAY W10164036 Contact Us For Availability
3
Door Gasket, Magnetic (Black) MAY W10164037 Contact Us For Availability
3
MAY W10205986N MAY W10205986N Contact Us For Availability
3
Door, Dairy MAY 12744905V Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
MAY 12530805SP MAY 12530805SP Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12806406 MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
Basket, Upper MAY W10201223 Contact Us For Availability
5
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
5
SHAFT MAY 12812902WD Contact Us For Availability
5
MAY 12868513 MAY 12868513 Contact Us For Availability
5
BUCKET, MEDIUM (4) MAY 12557212V Contact Us For Availability
5
MAY W10150038 MAY W10150038 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12991103 MAY 12991103 Contact Us For Availability
6
Screw,Handle Hole (Black) MAY 12991105 Contact Us For Availability
6
MAY W10217745 MAY W10217745 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10280423 Contact Us For Availability
7
Screw MAY 12990515 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Door Gasket, Magnetic (White) MAY W10164034 Contact Us For Availability
8
Door Gasket, Magnetic (Black) MAY W10164035 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
DOOR HANDLE (WHITE) MAY W10179172N Contact Us For Availability
9
DOOR HANDLE (BLACK) MAY W10179174N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
DIVIDER, TOP MAY W10241046 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
MAY 12528501 MAY 12528501 Contact Us For Availability
10
EVAPORATOR HEATER MAY 12729128 Contact Us For Availability
10
Shelf, Sta (4) MAY 12463509 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12226111 MAY 12226111 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
RETAINER, REF DOOR MAY 12557905 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY 12990504 MAY 12990504 Contact Us For Availability
12
MAY W10136414 MAY W10136414 Contact Us For Availability
12
START PROTECT, COMBO (PRODUCTION) MAY W10197426 Contact Us For Availability
13
LABEL, FL TB PLUG MAY 12249902 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
Bushing (Black) MAY 10961006B Contact Us For Availability
13
MAY 10961006W MAY 10961006W Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 10447111 MAY 10447111 Contact Us For Availability
14
Stop, Door (Black) MAY 10447112 Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
Control, Damper MAY W10127429 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
MAY W10206337 MAY W10206337 Contact Us For Availability
16
MAY 12566606ED MAY 12566606ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12724122N MAY 12724122N Contact Us For Availability
17
Plug Button MAY M0310729 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12990501 MAY 12990501 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
BRACE, CRISPER (2) MAY 12227303WD Contact Us For Availability
18
BRACKET, BASKET (LEFT) MAY W10280608 Contact Us For Availability
18
BRACKET, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
19
GLASS, CRISPER (2) MAY 12204822 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY A3189395 MAY A3189395 Contact Us For Availability
20
MAY 12225402WD MAY 12225402WD Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
MAY W10261203 MAY W10261203 Contact Us For Availability
21
MAY W10261204 MAY W10261204 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
MAY W10236195 MAY W10236195 Contact Us For Availability
22
MAY W10236196 MAY W10236196 Contact Us For Availability
22
GRILLE, FAN SHROUD MAY 13024803 Contact Us For Availability
22
MAY 12726402 MAY 12726402 Contact Us For Availability
22
PAN, PANTRY MAY 12645020 Contact Us For Availability
23
COVER, FL TB MAY 12477501 Contact Us For Availability
23
Shroud, Evaporator MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
Funnel MAY D7753903 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
Divider, Lower MAY W10205416 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 MAY W10130129 Contact Us For Availability
28
TRIM, PANTRY MAY W10231333 Contact Us For Availability
29
PAD, ACOUSTIC MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
29
Slide,Pantry MAY 12531502 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 12531401 MAY 12531401 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
MAY 12531601 MAY 12531601 Contact Us For Availability
32
RACK (LEFT) MAY W10284694 Contact Us For Availability
32
RACK (RIGHT) MAY W10284695 Contact Us For Availability
32
GASKET MAY 12531701 Contact Us For Availability
33
MAY 12932103 MAY 12932103 Contact Us For Availability
33
SUPPORT-LEFT MAY 12531001 Contact Us For Availability
33
SUPPORT-RIGHT MAY 12531002 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
34
MAY 12531802 MAY 12531802 Contact Us For Availability
35
ROLLER MAY 12477102 Contact Us For Availability
35
TRACK MAY 12531901 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
36
DIVIDER-UPPER FZ MAY W10171570 Contact Us For Availability
37
GROMMET MAY W10137529 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (WHITE) MAY 72017 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY W10261234 MAY W10261234 Contact Us For Availability
× ![]()
