Model Maytag ABB1922FEW3 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

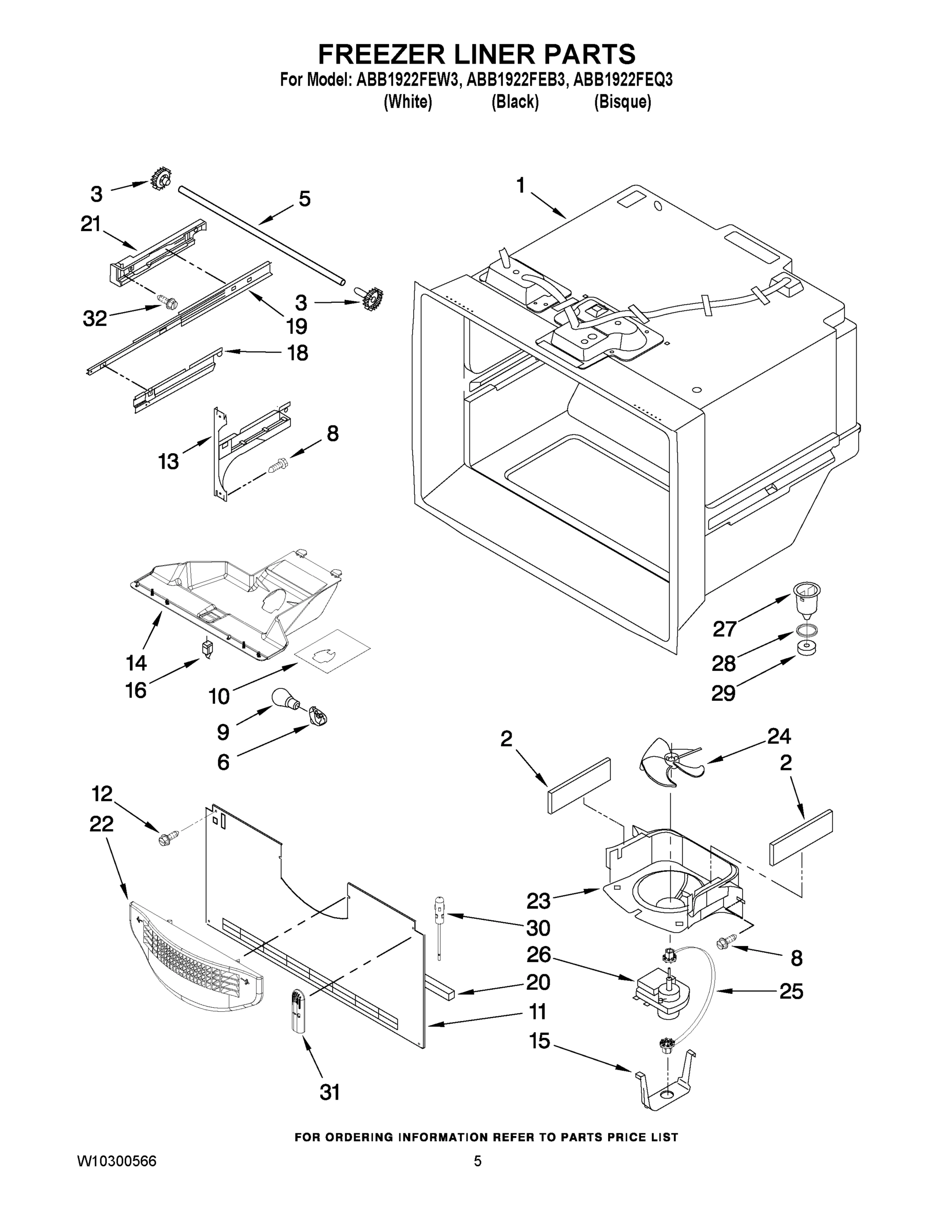

03 - FREEZER LINER PARTS

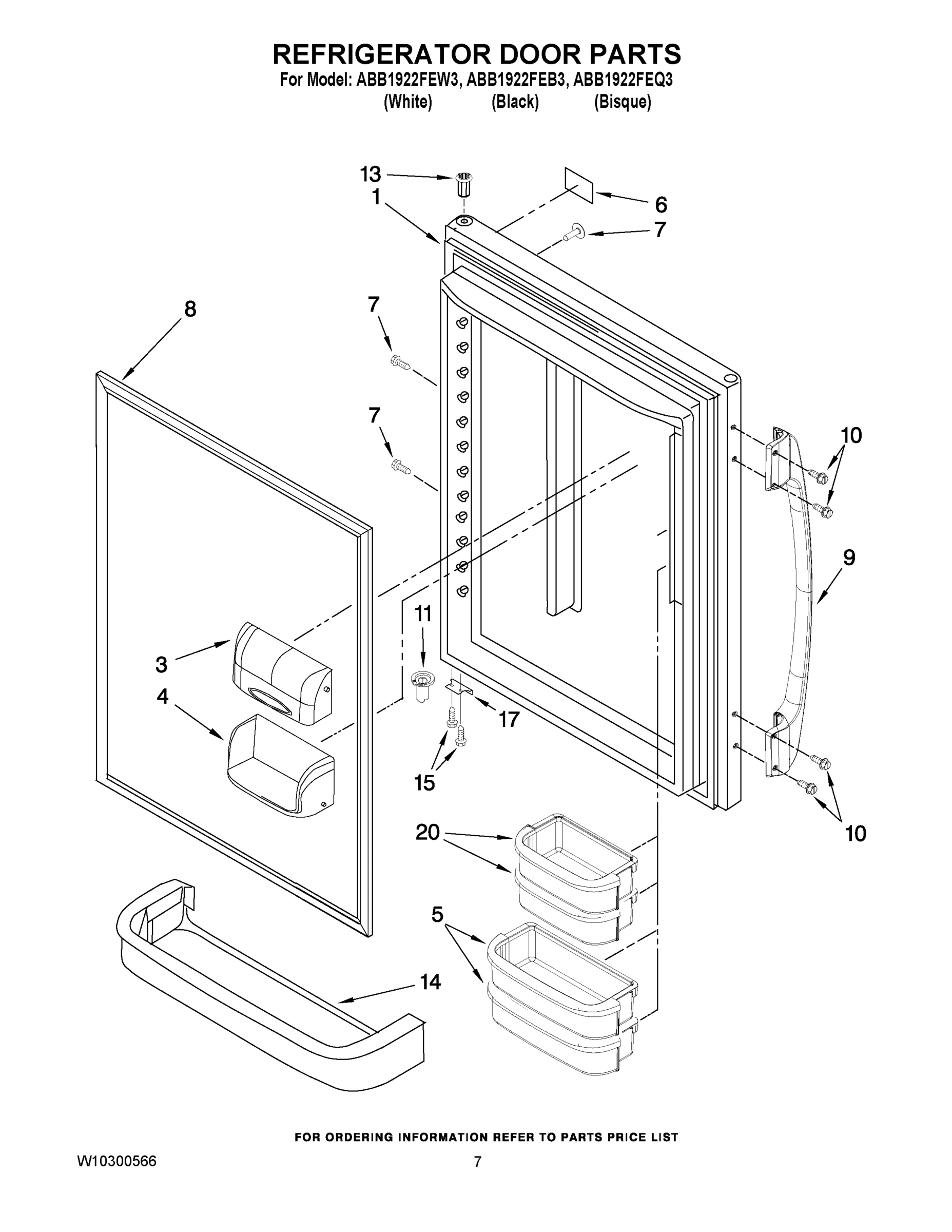

04 - REFRIGERATOR DOOR PARTS

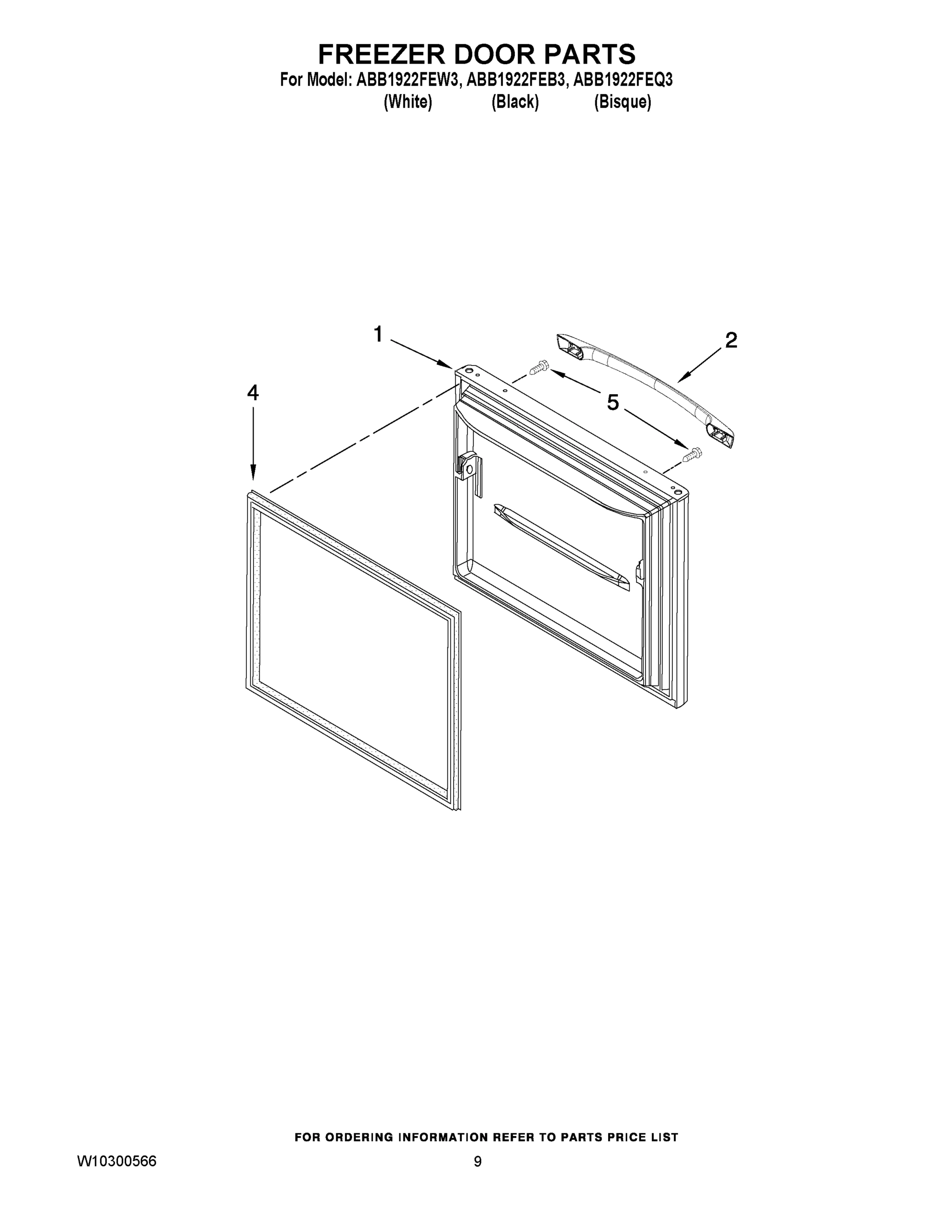

05 - FREEZER DOOR PARTS

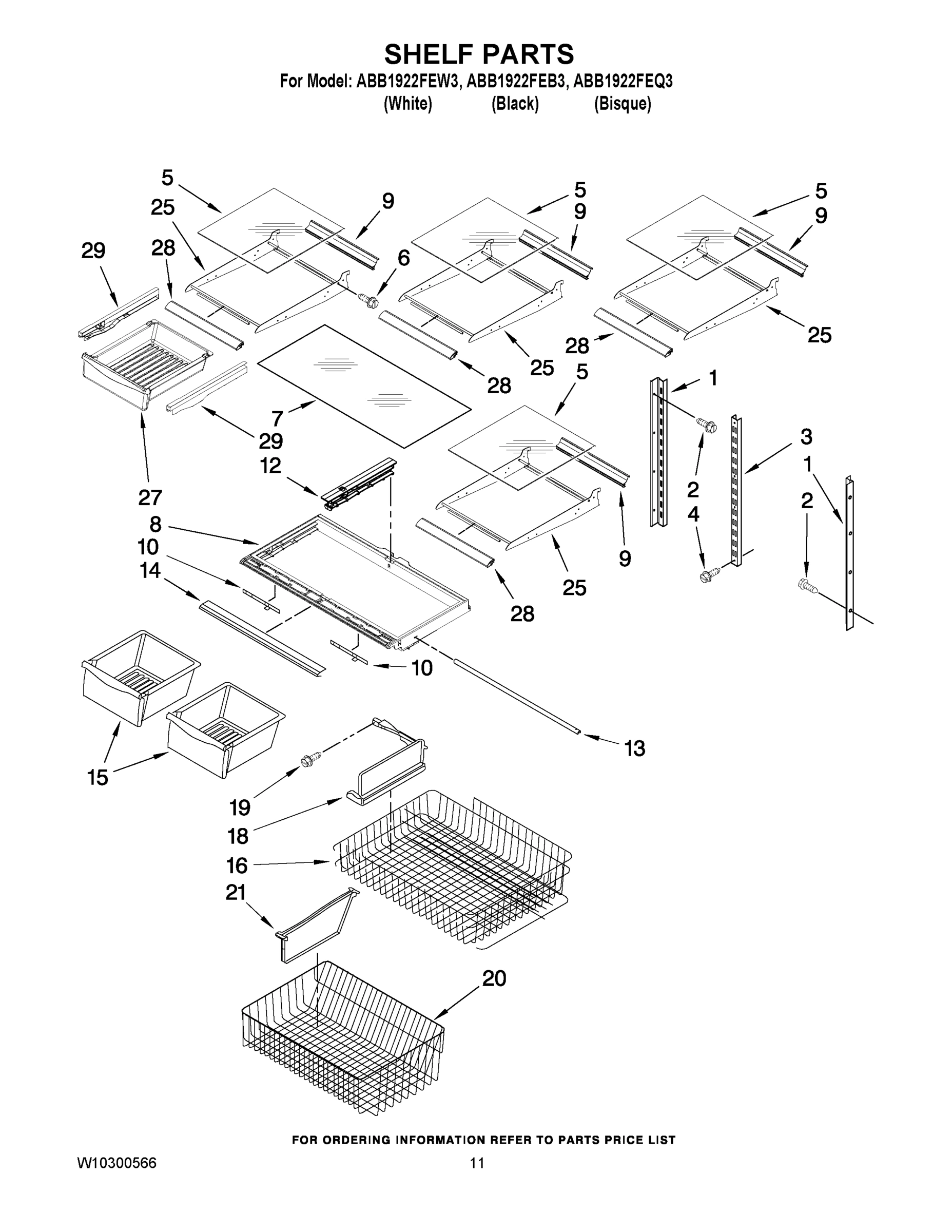

06 - SHELF PARTS

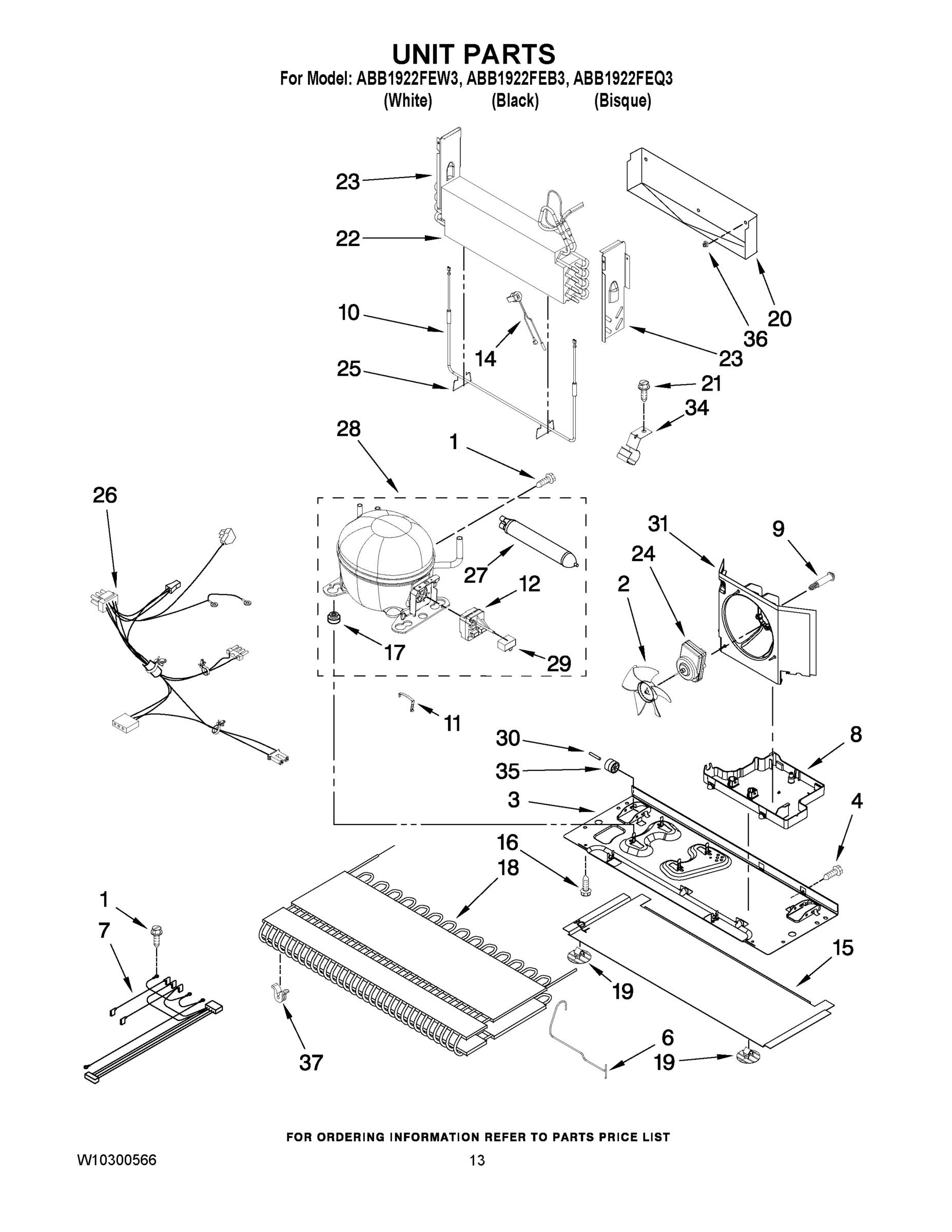

07 - UNIT PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ABB1922FEW3 REFRIGERATOR
1
REFRIGERATOR DOOR (BLACK) MAY 12658529BQ Contact Us For Availability
1
MAY 12658529CQ MAY 12658529CQ Contact Us For Availability
1
REFRIGERATOR DOOR (WHITE) MAY 12658529WQ Contact Us For Availability
1
FREEZER DOOR (BLACK) MAY 13092201BQ Contact Us For Availability
1
MAY 13092201QQ MAY 13092201QQ Contact Us For Availability
1
FREEZER DOOR (WHITE) MAY 13092201WQ Contact Us For Availability
1
MAY W10251970 MAY W10251970 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY W10179169 MAY W10179169 Contact Us For Availability
2
MAY W10179170 MAY W10179170 Contact Us For Availability
2
MAY W10179171 MAY W10179171 Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY M0310731 MAY M0310731 Contact Us For Availability
3
MAY M0310738 MAY M0310738 Contact Us For Availability
3
MAY 12816501 MAY 12816501 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10273463 MAY W10273463 Contact Us For Availability
3
MAY W10210982 MAY W10210982 Contact Us For Availability
4
LABEL-FILL TUBE MAY 12249902 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10164032 MAY W10164032 Contact Us For Availability
4
MAY W10164033 MAY W10164033 Contact Us For Availability
4
Screw MAY 12990515 Contact Us For Availability
5
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
5
MAY 12784415V MAY 12784415V Contact Us For Availability
5
MAY 12812901WD MAY 12812901WD Contact Us For Availability
5
BUCKET, MEDIUM (2) MAY 12557204V Contact Us For Availability
5
SHELF, GLASS (4) MAY 12204808V Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12528501 MAY 12528501 Contact Us For Availability
6
MAY 12990302V MAY 12990302V Contact Us For Availability
6
MAY W10217744 MAY W10217744 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12991103 MAY 12991103 Contact Us For Availability
7
MAY 12991104 MAY 12991104 Contact Us For Availability
7
Screw,Handle Hole (Black) MAY 12991105 Contact Us For Availability
7
MAY 12204823 MAY 12204823 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10280423 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10164030 MAY W10164030 Contact Us For Availability
8
Gasket, Door Magnetic (Black) MAY W10164031 Contact Us For Availability
8
MAY 12530901SP MAY 12530901SP Contact Us For Availability
8
DRAIN PAN MAY W10296784 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10194422V MAY W10194422V Contact Us For Availability
9
MAY 12845806B MAY 12845806B Contact Us For Availability
9
MAY 12845806Q MAY 12845806Q Contact Us For Availability
9
MAY 12845806W MAY 12845806W Contact Us For Availability
9
TRIM, REAR MAY 10946012V Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
COVER-FILL TUBE MAY 12477501 Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
Screw MAY 12992802 Contact Us For Availability
10
Slide, Humidity MAY 12530805SP Contact Us For Availability
10
MAY 12729127 MAY 12729127 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12226110 MAY 12226110 Contact Us For Availability
11
MAY 12028505B MAY 12028505B Contact Us For Availability
11
MAY 12028505W MAY 12028505W Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
Rail, Center Crisper MAY 12530701 Contact Us For Availability
12
MAY 2320150 MAY 2320150 Contact Us For Availability
12
MAY W10136414 MAY W10136414 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
Bushing (Black) MAY 10961006B Contact Us For Availability
13
MAY 10961006W MAY 10961006W Contact Us For Availability
13
BRACE, CRISPER FRAME MAY 12227302WD Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
MAY 12557904 MAY 12557904 Contact Us For Availability
14
MAY W10231337 MAY W10231337 Contact Us For Availability
14
Thermostat MAY 12639324SP Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY 12990504 MAY 12990504 Contact Us For Availability
15
MAY 12531305 MAY 12531305 Contact Us For Availability
15
MAY W10206336 MAY W10206336 Contact Us For Availability
16
Foot Brake (2) MAY 10354002 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
Basket, Freezer (Upper) MAY 12896401 Contact Us For Availability
16
MAY 12788119 MAY 12788119 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
Cover, Corner (Bisque) MAY 12587703C Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
MAY 10447111 MAY 10447111 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
MAY 10447113 MAY 10447113 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
CRADLE-BASKET (LEFT) MAY W10284680 Contact Us For Availability
18
CRADLE-BASKET (RIGHT) MAY W10284681 Contact Us For Availability
18
DIVIDER, BASKET (UPPER) MAY 12693802 Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
19
Insulation, Sound MAY 12820505 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY 12990601 MAY 12990601 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
BUCKET, SMALL (2) MAY 12557202 Contact Us For Availability
20
MAY 13016001 MAY 13016001 Contact Us For Availability
20
MAY 12225401WD MAY 12225401WD Contact Us For Availability
21
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
21
MAY 12477601C MAY 12477601C Contact Us For Availability
21
MAY 12477601W MAY 12477601W Contact Us For Availability
21
MAY W10128118 MAY W10128118 Contact Us For Availability
21
MAY W10128119 MAY W10128119 Contact Us For Availability
21
DIVIDER, BASKET LOWER MAY 12659608 Contact Us For Availability
21
Clip, Evaporator MAY 12990701 Contact Us For Availability
22
Grille Assembly (White) MAY W10236649 Contact Us For Availability
22
Grille Assembly (Black) MAY W10236650 Contact Us For Availability
22
MAY W10236651 MAY W10236651 Contact Us For Availability
22
Cover, Grille MAY W10175909 Contact Us For Availability
22
MAY 12726401 MAY 12726401 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
25
FRAME, SHELF MAY 10460116V Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
27
MAY W10217701 MAY W10217701 Contact Us For Availability
27
Funnel, Drain (Includes 28 & 29) MAY D7753903 Contact Us For Availability
27
PAN MAY 12656504V Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
28
MAY W10210978 MAY W10210978 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
TRIM, FRONT MAY W10231328 Contact Us For Availability
28
COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 MAY W10130129 Contact Us For Availability
29
MAY B5759655 MAY B5759655 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
Glide, Deli (Left) MAY 12656601V Contact Us For Availability
29
Glide, Deli (Right) MAY 12656602V Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY W10210987 MAY W10210987 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
MAY 10623002 MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.OO OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 12868701 MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY W10261234 MAY W10261234 Contact Us For Availability
× ![]()
