Model Maytag ABB1921DEW14 REFRIGERATOR – Common Parts & Diagrams

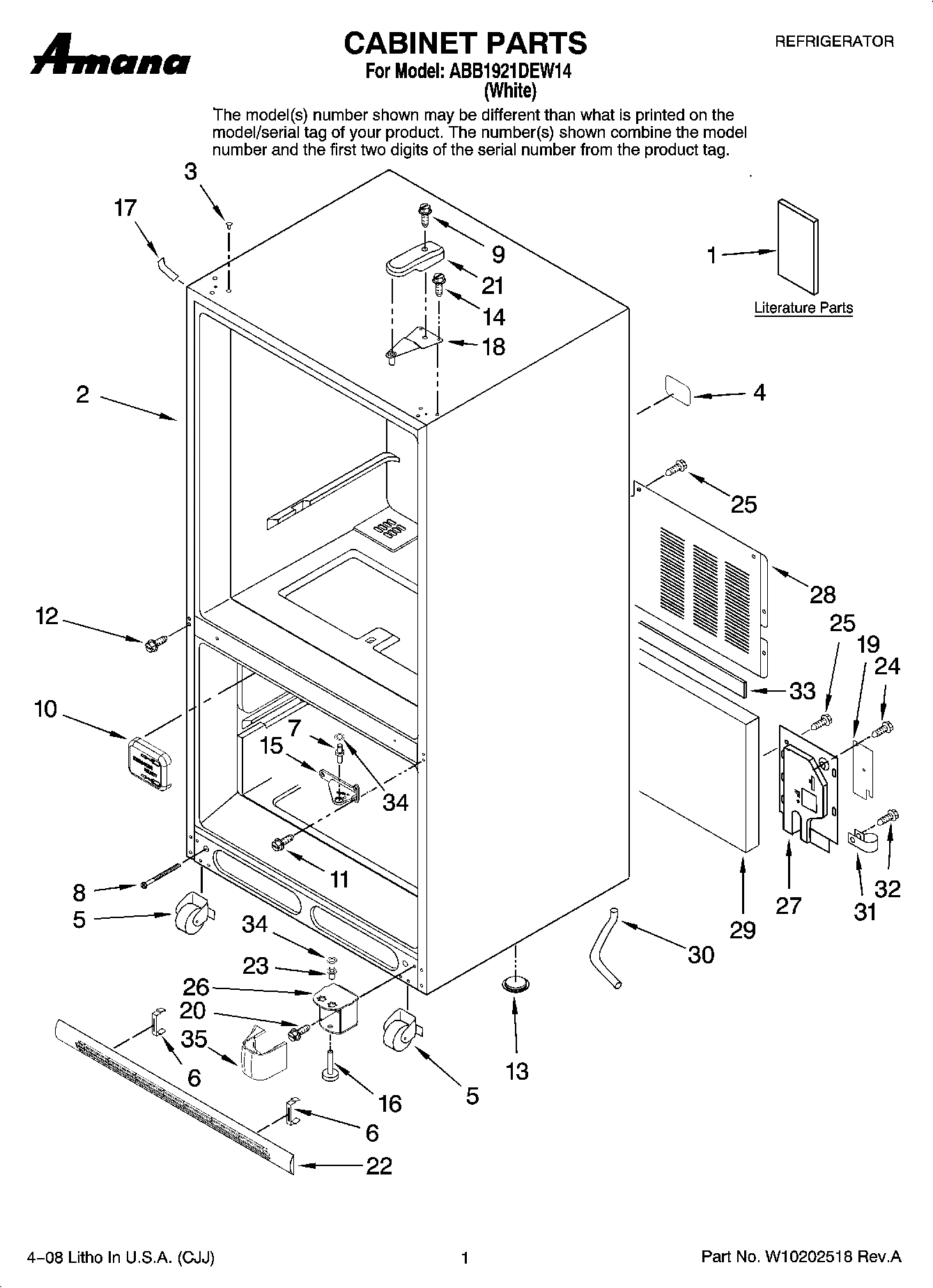

01 - CABINET PARTS

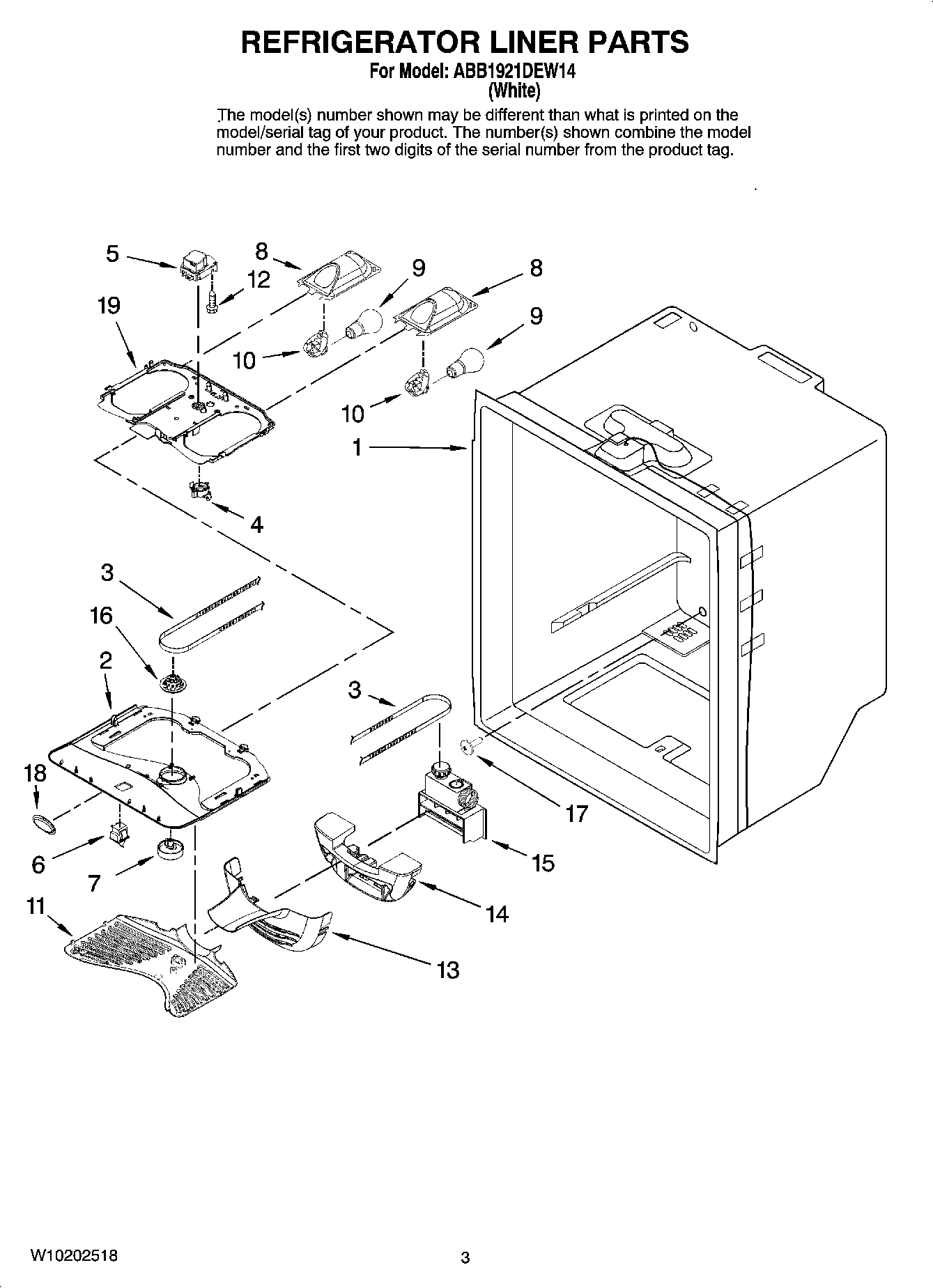

02 - REFRIGERATOR LINER PARTS

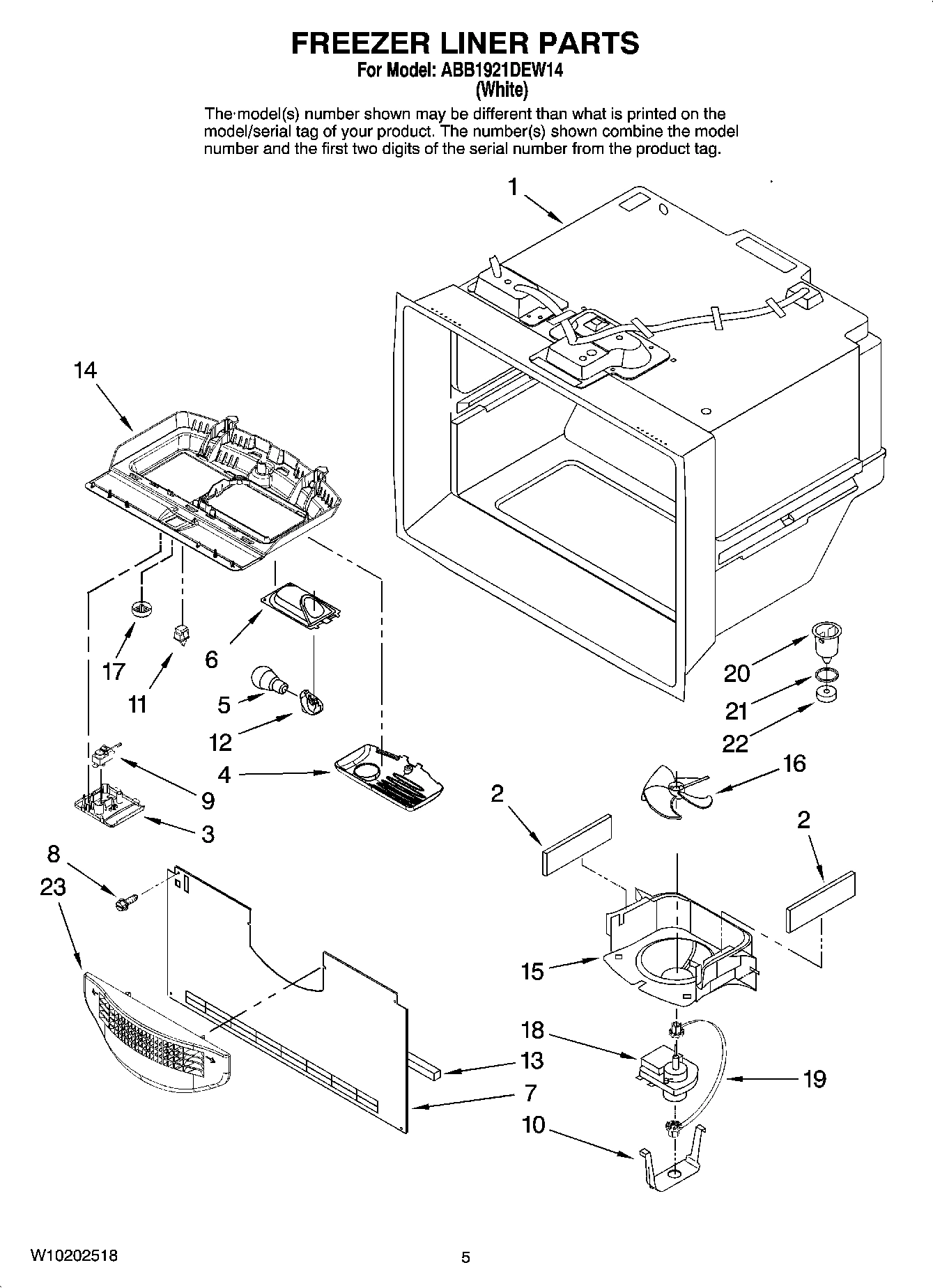

03 - FREEZER LINER PARTS

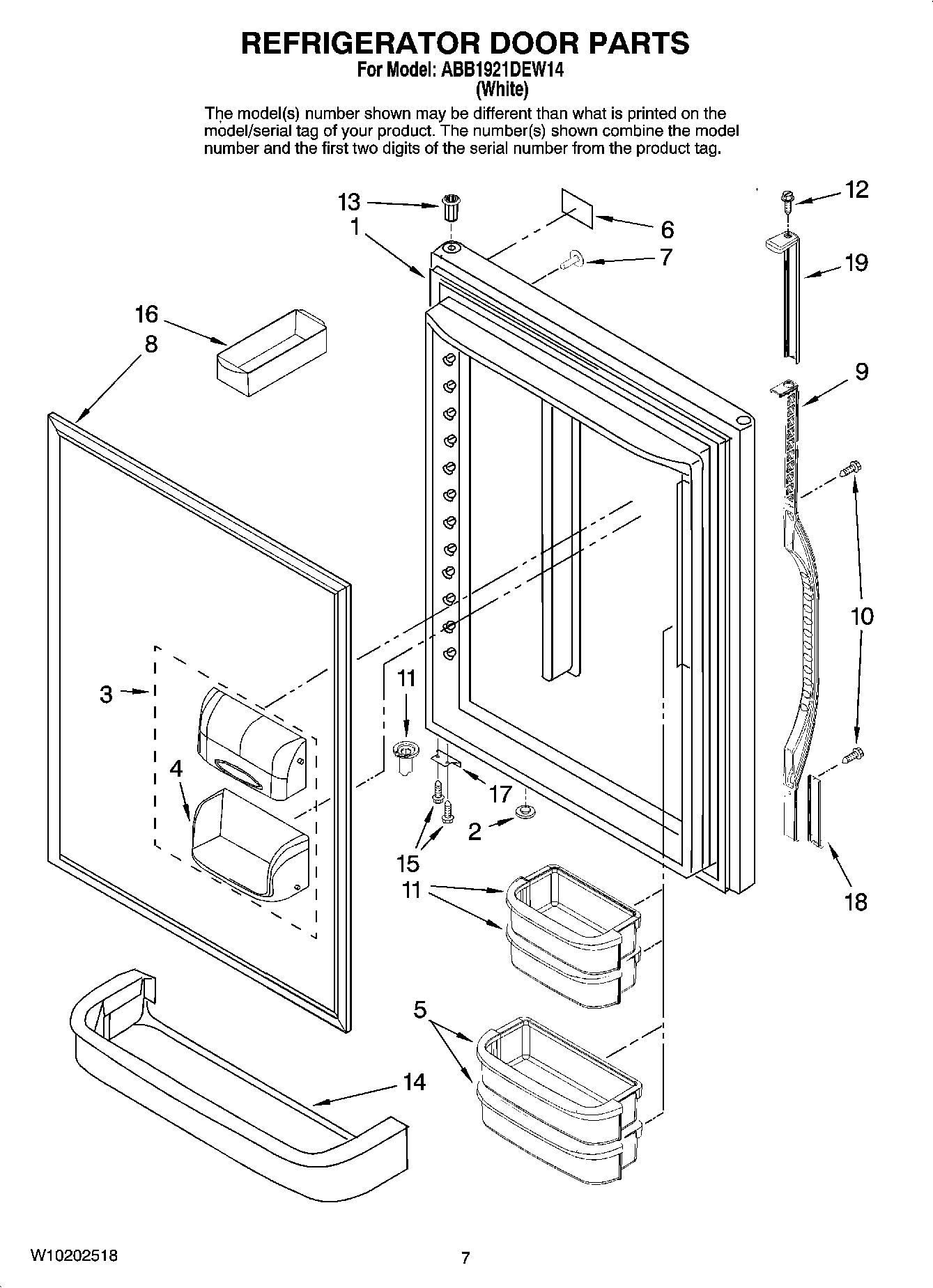

04 - REFRIGERATOR DOOR PARTS

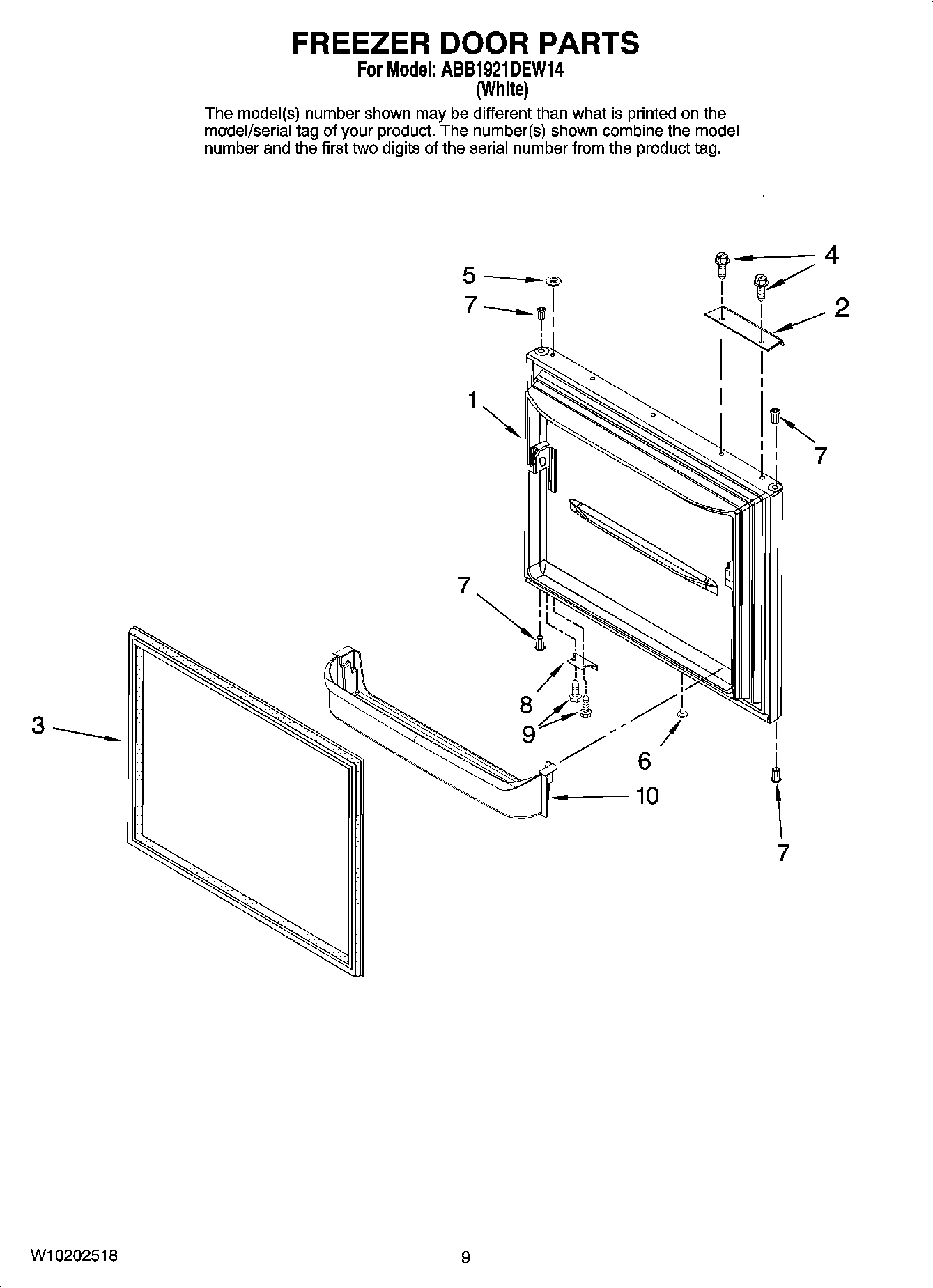

05 - FREEZER DOOR PARTS

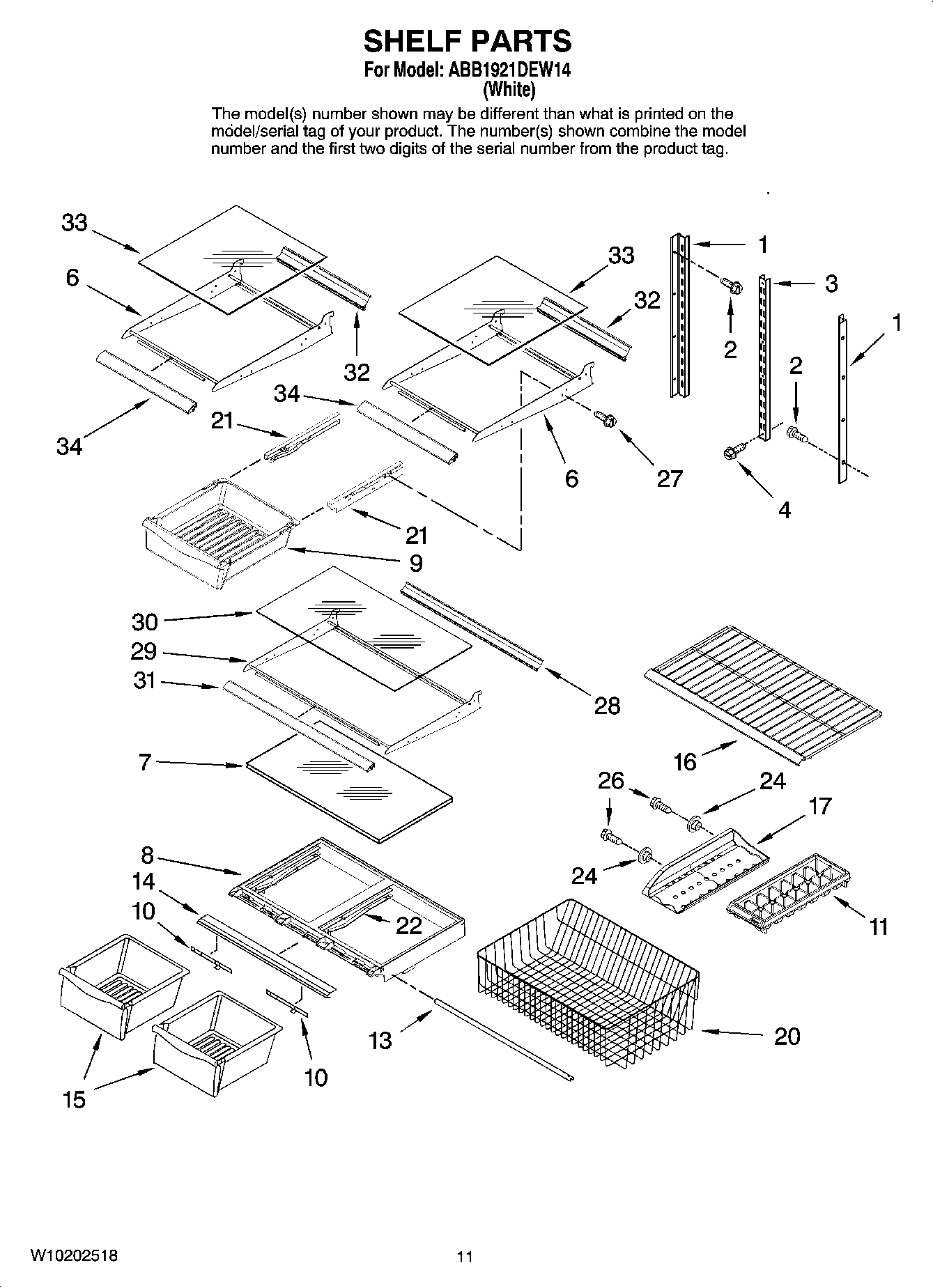

06 - SHELF PARTS

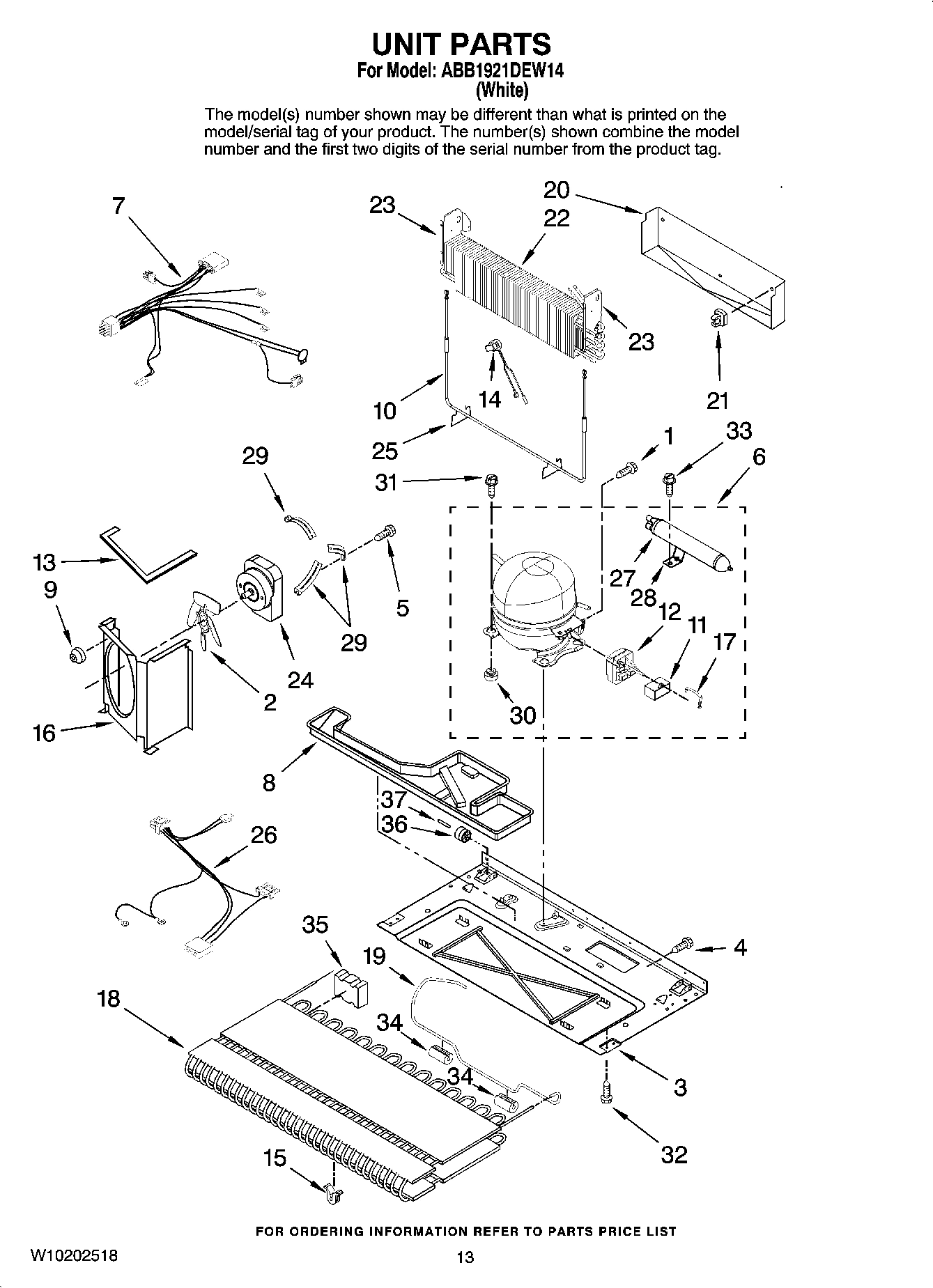

07 - UNIT PARTS

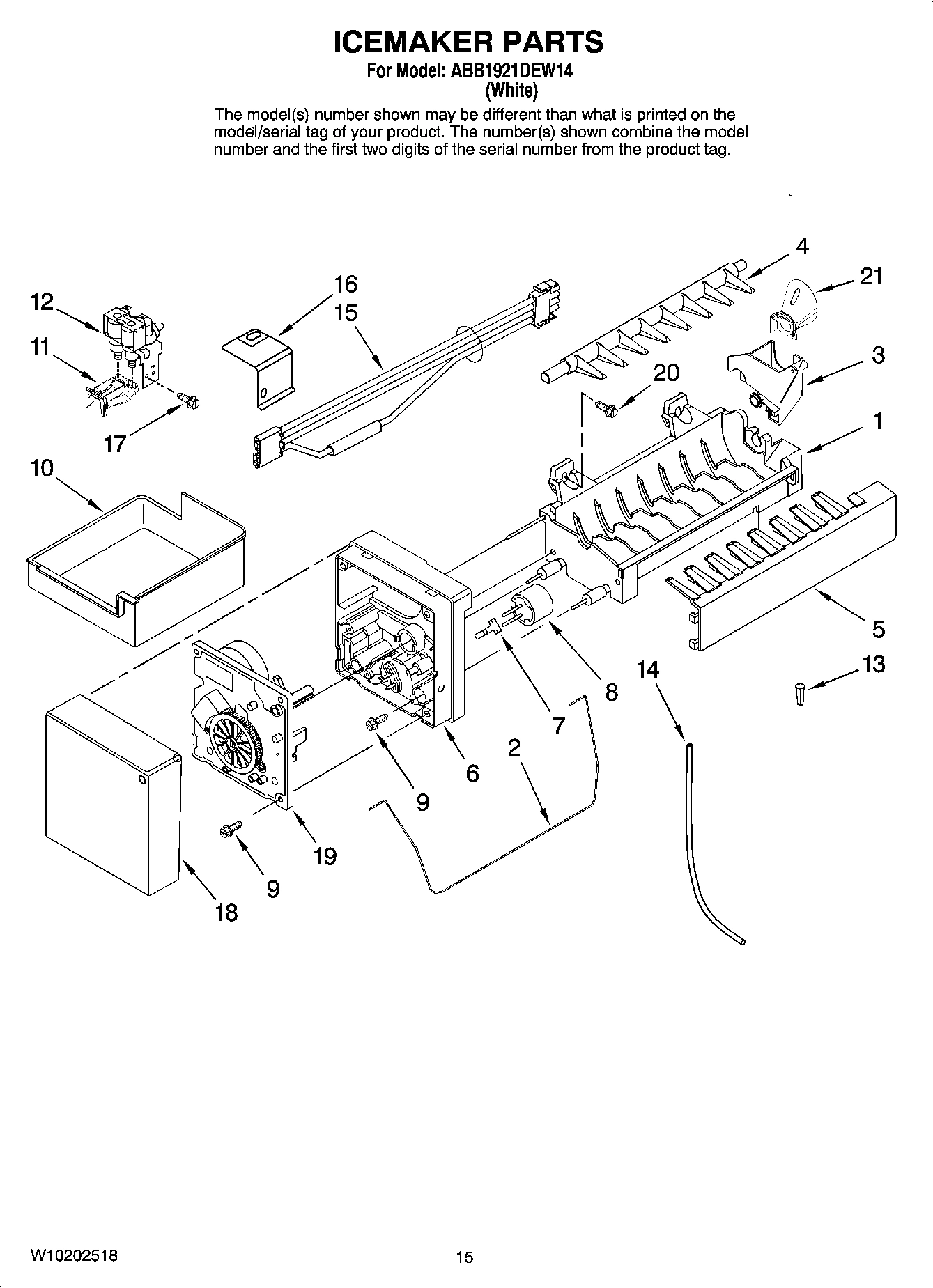

08 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ABB1921DEW14 REFRIGERATOR
1
Refrigerator Door (w/ Insulation) (White) MAY 67001138 Contact Us For Availability
1
Freezer Door (w/ Insulation) (White) MAY W10176974 Contact Us For Availability
1
MAY 67001302 MAY 67001302 Contact Us For Availability
1
Screw (3) MAY 67006433 Contact Us For Availability
2
Screw (6) MAY 67006400 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
3
MAY 67001040 MAY 67001040 Contact Us For Availability
3
MAY W10130150 MAY W10130150 Contact Us For Availability
3
MAY 67006914 MAY 67006914 Contact Us For Availability
3
Cup, Fill MAY 628356 Contact Us For Availability
4
Screw (2) MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
Plug, Hole White MAY 12246601 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
6
Clip, Grille MAY 12627302 Contact Us For Availability
6
MAY 12528501 MAY 12528501 Contact Us For Availability
6
Frame, Deli MAY 67003400 Contact Us For Availability
6
Compressor MAY W10130129 Contact Us For Availability
6
Support & Motor Assembly MAY 2195914 Contact Us For Availability
7
MAY W10119855 MAY W10119855 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
MAY 67001035 MAY 67001035 Contact Us For Availability
8
Gasket, Door Magnetic (White) MAY W10130148 Contact Us For Availability
8
Drain Pan MAY 67004713 Contact Us For Availability
9
MAY 67003129 MAY 67003129 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Screw (2) MAY 681249 Contact Us For Availability
10
SCREW MAY 67006682 Contact Us For Availability
10
Slide, Humidity MAY 67005864 Contact Us For Availability
11
MAY D7725402 MAY D7725402 Contact Us For Availability
11
Capacitor MAY 67005562 Contact Us For Availability
12
MAY 12248201 MAY 12248201 Contact Us For Availability
12
Overload/Relay (Capacitor Incl.) MAY W10174592 Contact Us For Availability
13
MAY 67002000 MAY 67002000 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
MAY 67003884 MAY 67003884 Contact Us For Availability
14
Tubing, Plastic MAY B5705307 Contact Us For Availability
15
Gear, Damper Assembly MAY 67003410 Contact Us For Availability
15
Grommet (4) MAY W10137529 Contact Us For Availability
15
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
16
MAY 10423131 MAY 10423131 Contact Us For Availability
16
Shelf, Freezer MAY 67001164 Contact Us For Availability
16
Shroud, Condenser MAY W10158508 Contact Us For Availability
16
MAY 625910 MAY 625910 Contact Us For Availability
17
Rack, Ice MAY 12646501 Contact Us For Availability
17
MAY W10131991 MAY W10131991 Contact Us For Availability
17
MAY 67006662 MAY 67006662 Contact Us For Availability
18
Trim, Handle Lower MAY 67005137 Contact Us For Availability
19
Trim, Handle Upper MAY 67005131 Contact Us For Availability
19
MAY W10174591 MAY W10174591 Contact Us For Availability
20
MAY W10143565 MAY W10143565 Contact Us For Availability
20
MAY 67001133 MAY 67001133 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
21
MAY 67005603 MAY 67005603 Contact Us For Availability
22
Evaporator MAY 12002051 Contact Us For Availability
22
Grille Assembly (Includes Clips) (White) MAY 67003849 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23A
MAY 67001083 MAY 67001083 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
Harness, Unit (Includes Cord) MAY 13060301 Contact Us For Availability
27
MAY 2317845 MAY 2317845 Contact Us For Availability
28
MAY 10547003 MAY 10547003 Contact Us For Availability
29
Bracket, Fan MAY 67004953 Contact Us For Availability
30
MAY W10169124 MAY W10169124 Contact Us For Availability
31
MAY 10459931 MAY 10459931 Contact Us For Availability
31
Screw (2) MAY 67006432 Contact Us For Availability
32
Trim, Rear (2) Deli, Shelf MAY 10946012 Contact Us For Availability
32
Screw (4) MAY 67006573 Contact Us For Availability
33
Glass, Deli Shelf (2) MAY 12204808 Contact Us For Availability
33
SCREW MAY 67006737 Contact Us For Availability
34
Trim, Front Deli (2) MAY 10459930 Contact Us For Availability
35
MAY 12561901W MAY 12561901W Contact Us For Availability
35
MAY 67005491 MAY 67005491 Contact Us For Availability
NI
MAY W10130480 MAY W10130480 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
