Model LG A3UW243FA2.AWGBEUS – Common Parts & Diagrams

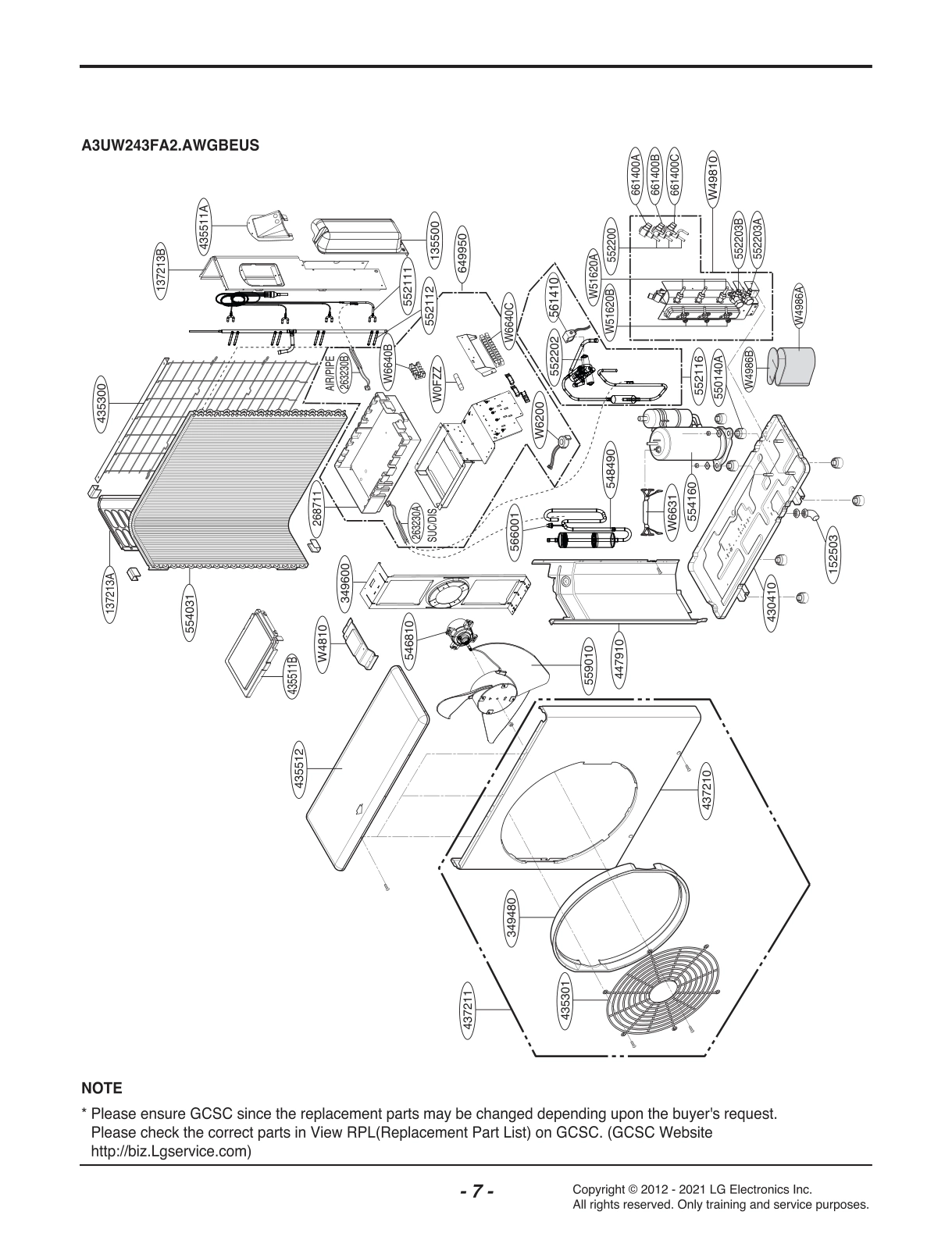

DIAGRAM 1
Common parts from model LG A3UW243FA2.AWGBEUS
430410
Base Assembly,Outdoor LGE AAN74315303 Contact Us For Availability
435300
Grille,Rear LGE MDX59045502 Contact Us For Availability
435511A
Cover Assembly,Control(Outdoor) LGE ACQ36712504 Contact Us For Availability
435511B
Cover Assembly,Control(Outdoor) LGE 3551A30162D Contact Us For Availability
437210
Panel Assembly,Front(Sub) LGE 1A00197C Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM34710905 Contact Us For Availability
546810
Motor Assembly,DC,Outdoor LGE 4681A20122C Contact Us For Availability
546810
Motor, DC Outdoor LGE EAU52759301 Contact Us For Availability
552111
Tube Assembly,Capillary LGE 5211A22009Q Contact Us For Availability
552112
Tube Assembly,Condenser(In) LGE AJR36137704 Contact Us For Availability
552116
Tube Assembly,Reverse LGE 5211A20896P Contact Us For Availability
552200
Valve,Expansion Body LGE MJX62711401 Contact Us For Availability
552203A
Valve,Service LGE 5220A20029P Contact Us For Availability
552203B
Valve,Service LGE 5220A20035A Contact Us For Availability
552203B
Valve,Service LGE 5220A20035C Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG73024802 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ35296001 Contact Us For Availability
559010
Fan,Propeller LGE MDG37706506 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ73082811 Contact Us For Availability
661400C
Drawing,Assembly LGE EAD62437302 Contact Us For Availability
W4986B
Sound proof LGE 3096AP3476L Contact Us For Availability
W6200
Filter,Line Noise LGE EAM38878003 Contact Us For Availability
W6640B
Connector,Terminal Block LGE EAG41846702 Contact Us For Availability
W6640C
Connector,Terminal Block LGE 6640A30001N Contact Us For Availability
W51620A
Socket,Flare LGE 5162AG3296A Contact Us For Availability
W51620B
Socket,Flare LGE MHT40969701 Contact Us For Availability
× ![]()
