Model Maytag A3432SRA GAS RANGE – Common Parts & Diagrams

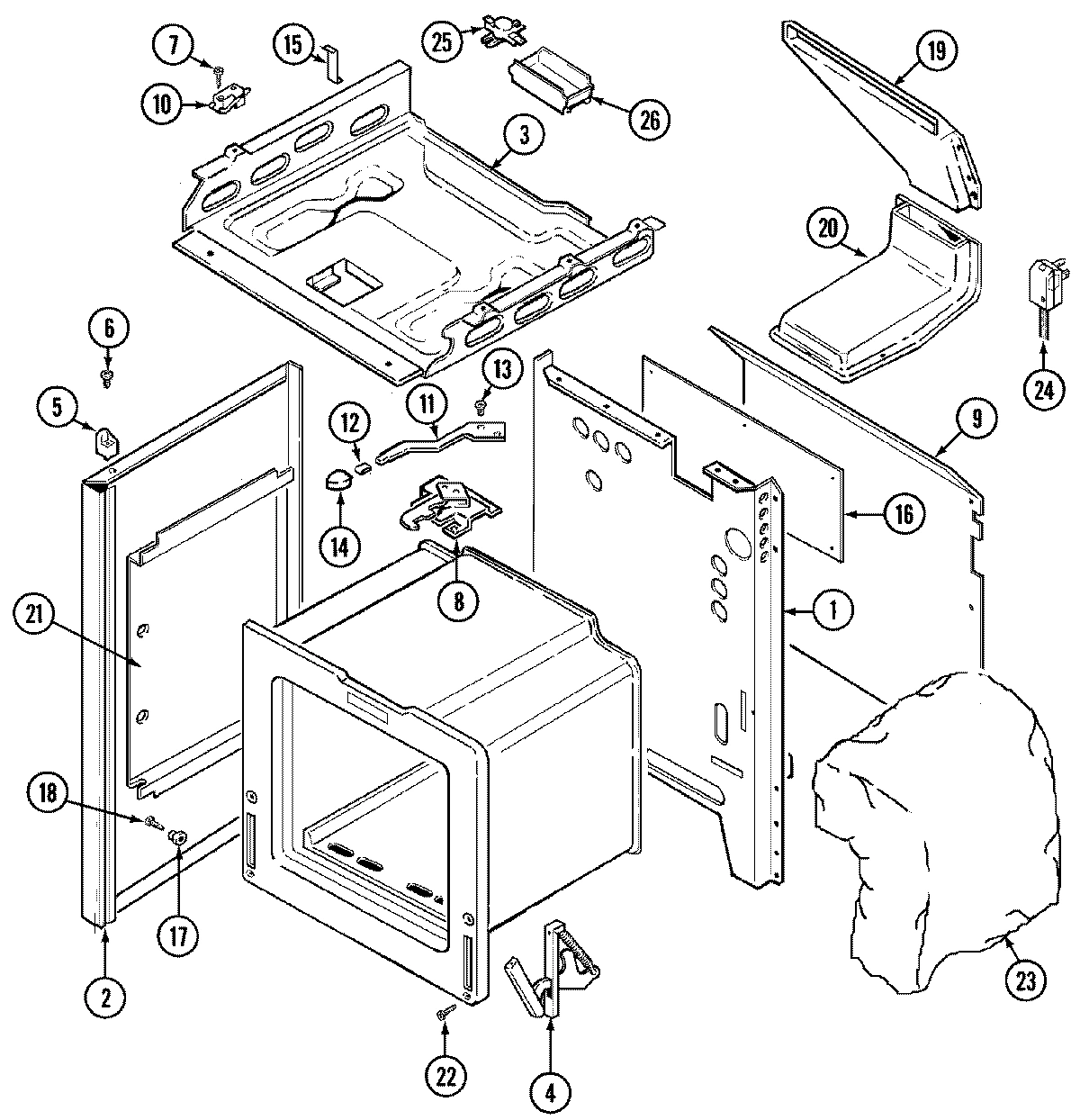

01 - BODY

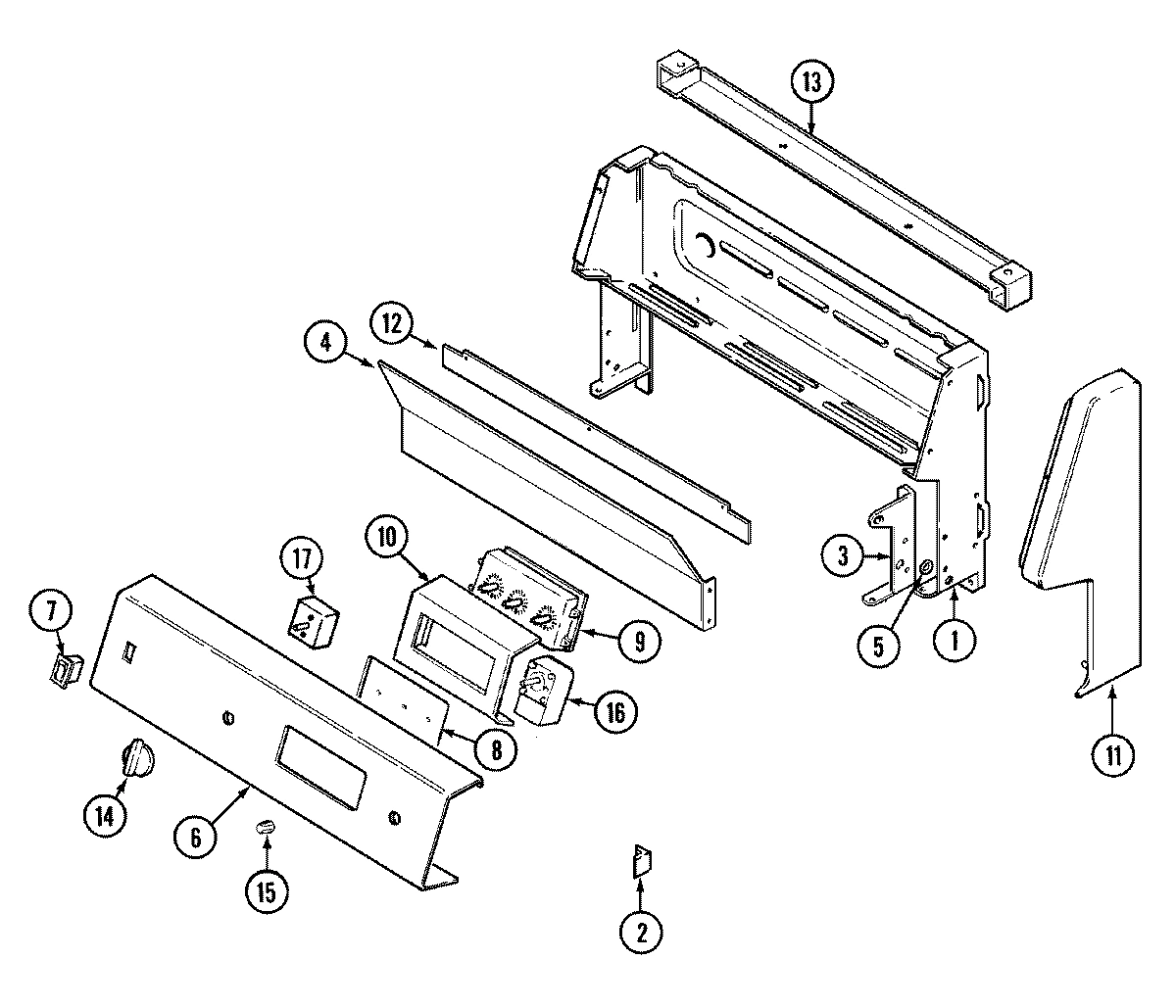

02 - CONTROL PANEL

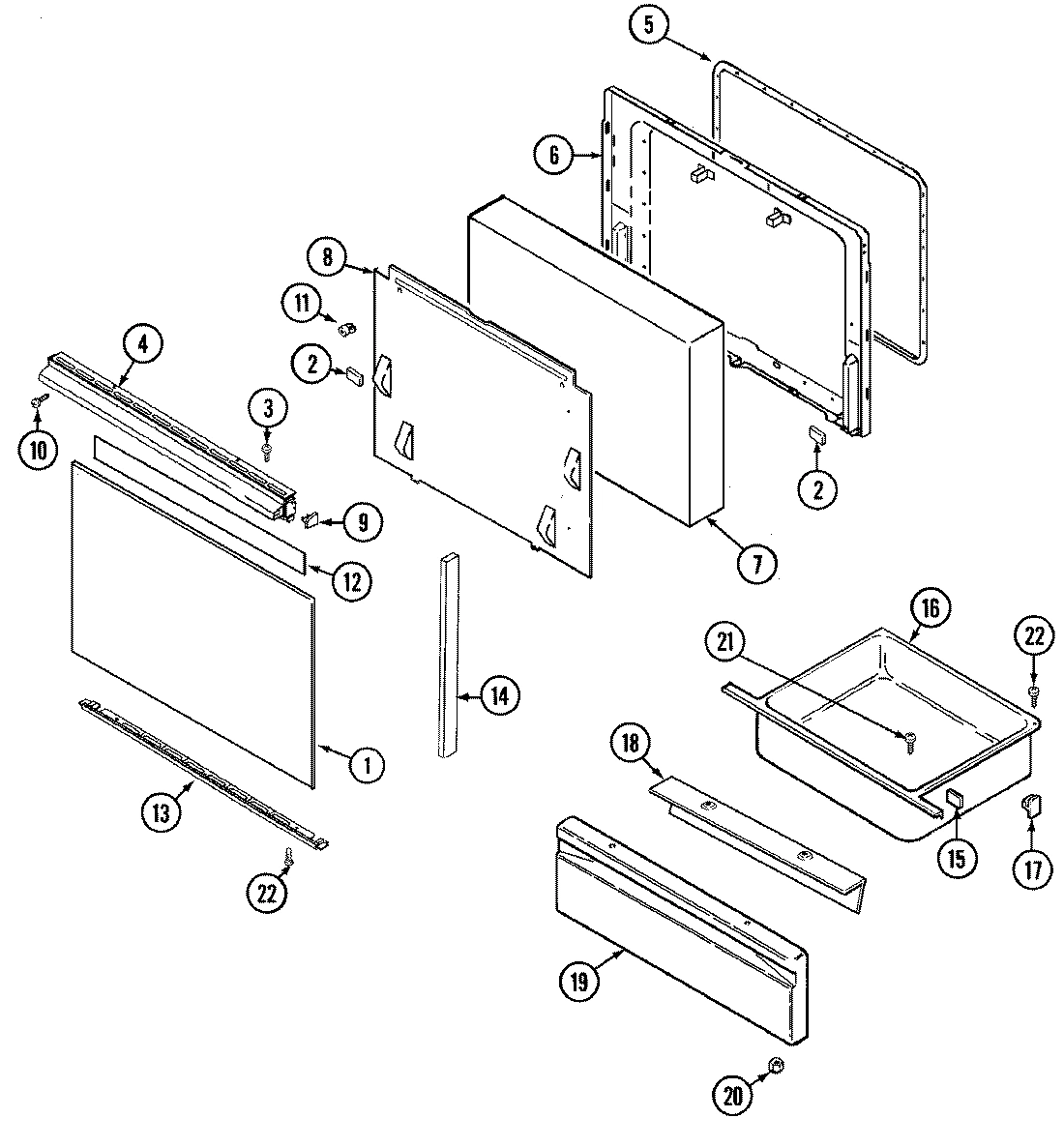

03 - DOOR/DRAWER

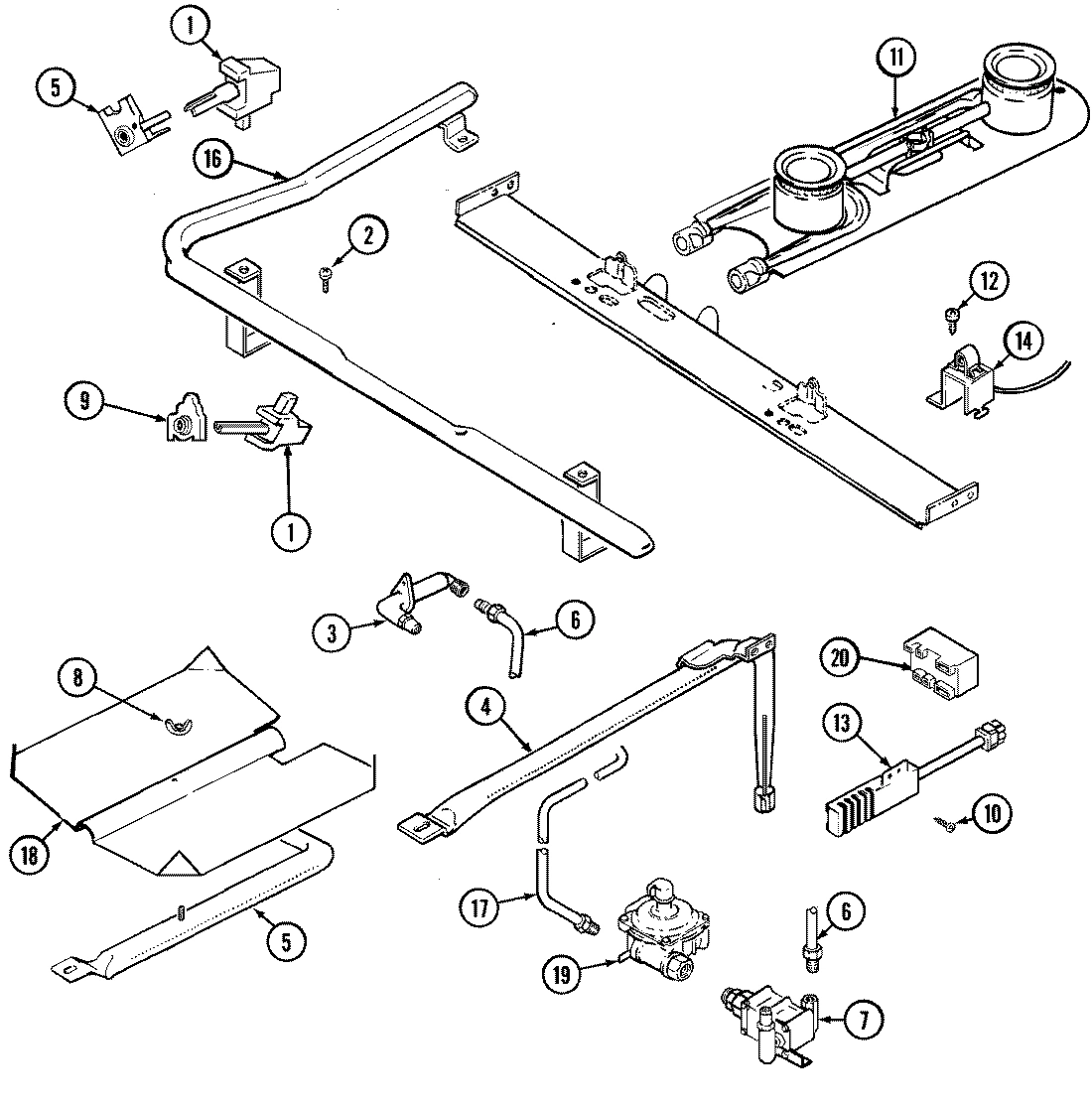

04 - GAS CONTROLS

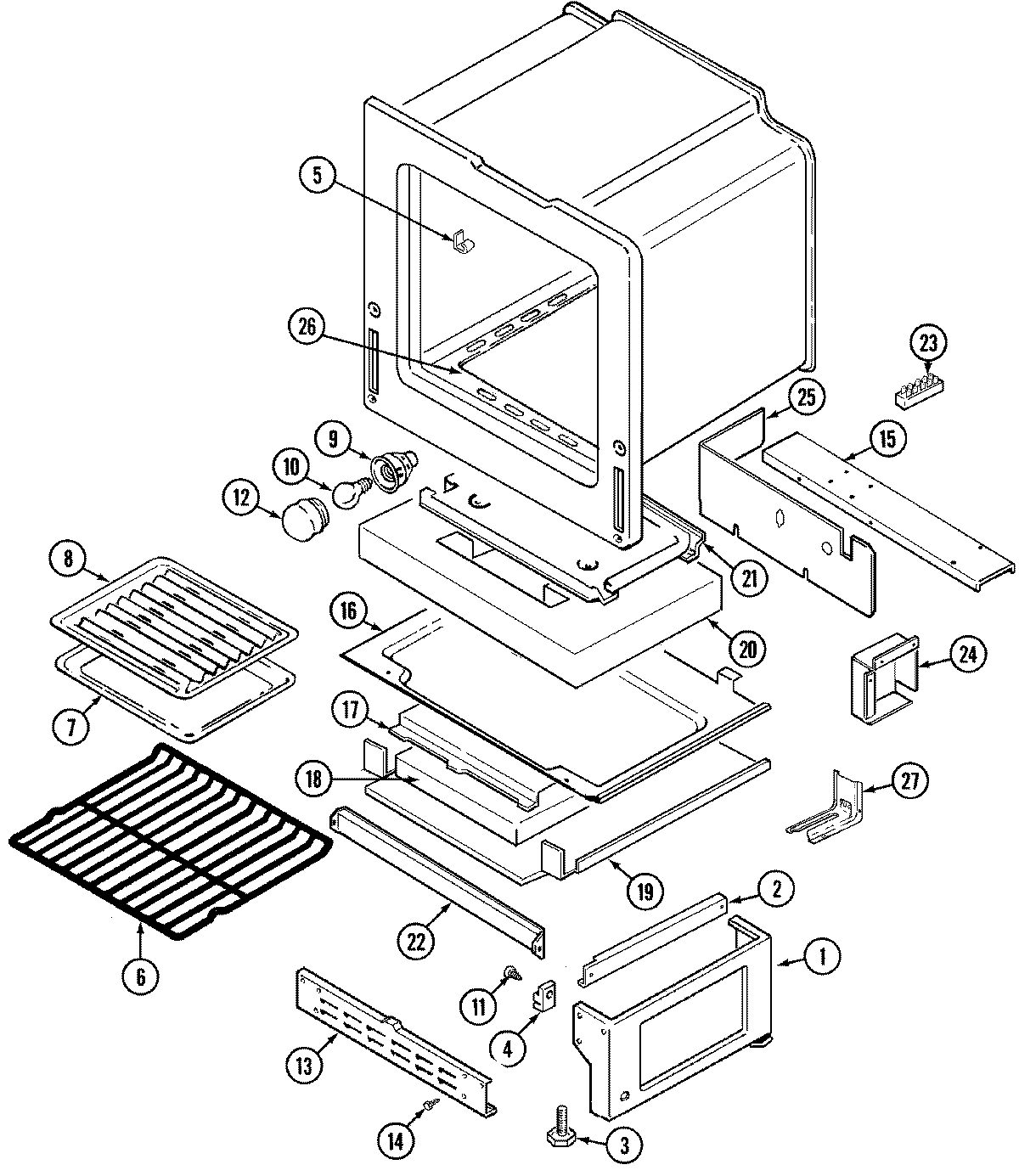

05 - OVEN/BASE

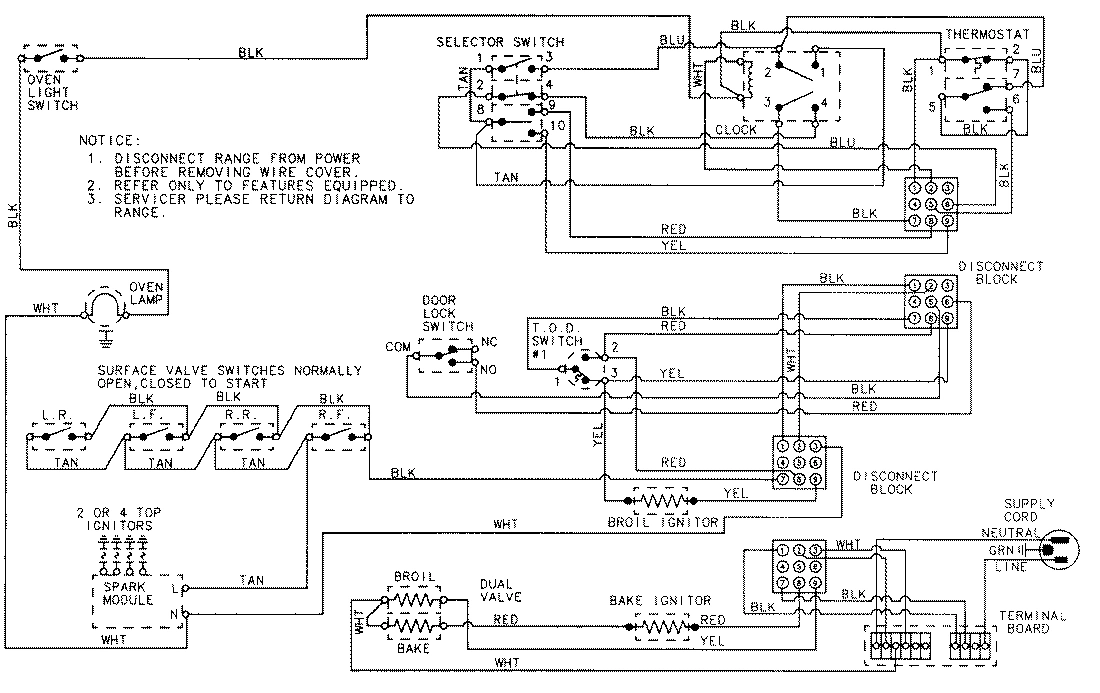

06 - WIRING INFORMATION
Common parts from model Maytag A3432SRA GAS RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 4005F448-45 MAY 4005F448-45 Contact Us For Availability
1
MAY 7902P325-60 MAY 7902P325-60 Contact Us For Availability
1
MAY 7502P174-60 MAY 7502P174-60 Contact Us For Availability
1
MAY 74001705 MAY 74001705 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
3
MAY 74001311 MAY 74001311 Contact Us For Availability
3
MAY 3418D097-60 MAY 3418D097-60 Contact Us For Availability
3
MAY 3418D098-60 MAY 3418D098-60 Contact Us For Availability
3
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
3
MAY 74001779 MAY 74001779 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
5
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
5
CLIP, THERMOSTAT BULB MAY 790055 Contact Us For Availability
6
MAY 7703P325-60 MAY 7703P325-60 Contact Us For Availability
6
MAY 2402W210-19 MAY 2402W210-19 Contact Us For Availability
6
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
6
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
7
MAY 4804F051-60 MAY 4804F051-60 Contact Us For Availability
7
MAY 74001442 MAY 74001442 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
8
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
8
MAY 7201P056-60 MAY 7201P056-60 Contact Us For Availability
8
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
8
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
8
MAY 7902P109-60 MAY 7902P109-60 Contact Us For Availability
8
MAY 3601F218-51 MAY 3601F218-51 Contact Us For Availability
8
NUT, WING MAY 7103P030-60 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
MAY 7403P284-60 MAY 7403P284-60 Contact Us For Availability
9
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
9
MAY 7601P170-60 MAY 7601P170-60 Contact Us For Availability
9
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
9
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
10
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
10
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
10
MAY 3801F264-45 MAY 3801F264-45 Contact Us For Availability
11
MAY 8009P023-60 MAY 8009P023-60 Contact Us For Availability
11
MAY 74001449 MAY 74001449 Contact Us For Availability
11
MAY 7726P059-60 MAY 7726P059-60 Contact Us For Availability
11
MAY 7726P060-60 MAY 7726P060-60 Contact Us For Availability
11
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
11
MAY 3412A004-19 MAY 3412A004-19 Contact Us For Availability
12
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
12
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
12
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
12
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
13
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
13
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
13
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
13
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
13
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
14
MAY 74001719 MAY 74001719 Contact Us For Availability
14
MAY 7731P080-60 MAY 7731P080-60 Contact Us For Availability
14
MAY 7739P049-60 MAY 7739P049-60 Contact Us For Availability
14
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
14
MAY 7432P008-60 MAY 7432P008-60 Contact Us For Availability
14
MAY 7432P031-60 MAY 7432P031-60 Contact Us For Availability
15
MAY 7711P466-60 MAY 7711P466-60 Contact Us For Availability
15
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
15
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
15
MAY 3807F411-51 MAY 3807F411-51 Contact Us For Availability
15
MAY 3807F476-51 MAY 3807F476-51 Contact Us For Availability
16
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
16
MAY 7404P102-60 MAY 7404P102-60 Contact Us For Availability
16
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
16
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
16
MAY 7513P105-60 MAY 7513P105-60 Contact Us For Availability
16
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 7403P236-60 MAY 7403P236-60 Contact Us For Availability
17
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
17
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
18
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
18
MAY 3601F217-47 MAY 3601F217-47 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
19
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
19
MAY 2416F038-64 MAY 2416F038-64 Contact Us For Availability
19
MAY 7510P068-60 MAY 7510P068-60 Contact Us For Availability
19
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
20
MAY 74001934 MAY 74001934 Contact Us For Availability
20
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
20
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
21
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
21
MAY 74001651 MAY 74001651 Contact Us For Availability
22
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
22
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
23
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
23
MAY 74001800 MAY 74001800 Contact Us For Availability
23
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
24
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
24
MAY 3807F473-51 MAY 3807F473-51 Contact Us For Availability
25
SCREW MAY 7101P349-60 Contact Us For Availability
25
MAY 7403P275-60 MAY 7403P275-60 Contact Us For Availability
25
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
26
MAY 3807F420-51 MAY 3807F420-51 Contact Us For Availability
26
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
27
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
NI
MAY 16002079 MAY 16002079 Contact Us For Availability
NI
MAY 5180D155-60 MAY 5180D155-60 Contact Us For Availability
NI
MAY 8113P045-60 MAY 8113P045-60 Contact Us For Availability
NI
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
NI
MAY 15001735 MAY 15001735 Contact Us For Availability
× ![]()
