Model GE 911.95975790 30" Electric Radiant Range (Kenmore 91195975790) – Common Parts & Diagrams
BODY
BACKGUARD
WIRE HARNESSES AND COMPONENTS

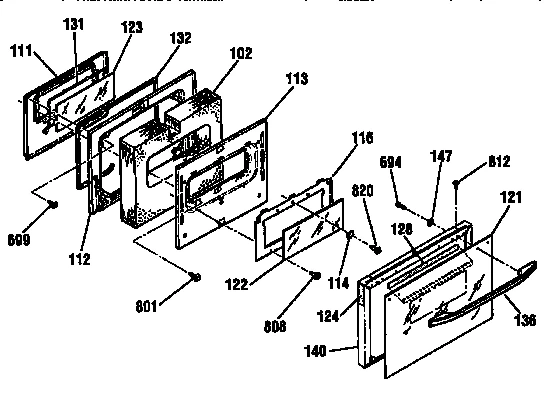

DOOR

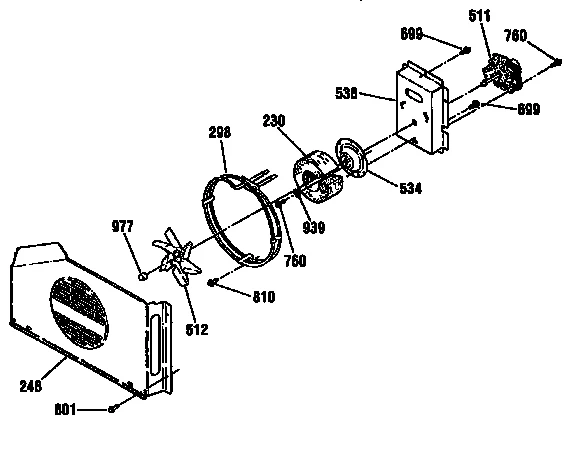

FAN

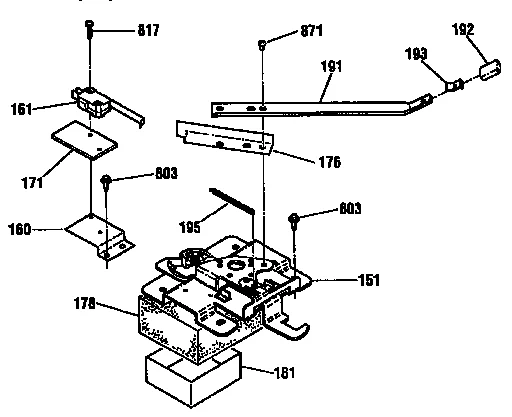

DOOR LOCK

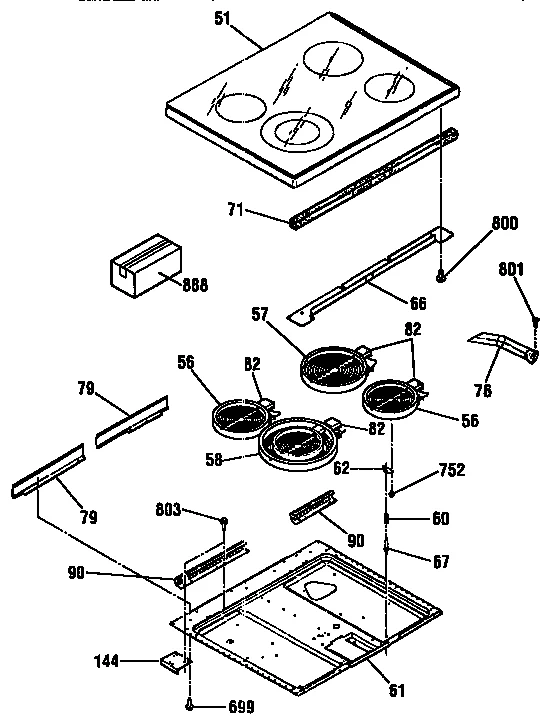

MAINTOP
Common parts from model GE 911.95975790 30" Electric Radiant Range (Kenmore 91195975790)
1
W Cntrl Pnl GEN WB36T10058 Contact Us For Availability
1A
Control Panel GEN WB36T10059 Contact Us For Availability
1B
CONTROL PANEL BLACK GEN WB37T10060 Contact Us For Availability
2
Oven End Cap GEN WB36K5382 Contact Us For Availability
2A
Oven End Cap GEN WB36K5383 Contact Us For Availability
2B
End Cap GEN WB36K5389 Contact Us For Availability
2C
End Cap GEN WB36K5390 Contact Us For Availability
2D
Oven End Cap GEN WB36K5385 Contact Us For Availability
2E
End Cap GEN WB36K5386 Contact Us For Availability
4
Backguard Panel GEN WB37K5031 Contact Us For Availability
4A
Backguard Panel GEN WB37K5033 Contact Us For Availability
4B
Backguard Panel Foot GEN WB37K5032 Contact Us For Availability
6
Backguard Body GEN WB37K5039 Contact Us For Availability
7
Backguard Support GEN WB06X0127 Contact Us For Availability
7A
Backguard Support GEN WB06X0128 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
15
Cntl Insltr GEN WB35T10001 Contact Us For Availability
16
Clock Control GEN WB27T10007 Contact Us For Availability
18
Clock Plate GEN WB27T10024 Contact Us For Availability
18A
Clock Plate GEN WB27T10025 Contact Us For Availability
18B
Clock Plate GEN WB27T10026 Contact Us For Availability
19A
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
19B
Range Surface Element Control Switch GEN WB23K5041 Contact Us For Availability
21
Hi/lo Bur Sw GEN WB24K5068 Contact Us For Availability
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
21B
Rocker Switch GEN WB24K5146 Contact Us For Availability
21C
Rocker Switch GEN WB24K5088 Contact Us For Availability
21D
Range Surface Element Rocker Switch GEN WB24K5107 Contact Us For Availability
21E
Range Rocker Switch GEN WB24K5147 Contact Us For Availability
21F
Range Dual Surface Element Selector Switch GEN WB24K5067 Contact Us For Availability
21H
Rocker Switch GEN WB24K5145 Contact Us For Availability
22
Simmer Contl GEN WB23T10001 Contact Us For Availability
29
Range Surface Element Knob GEN WB03T10002 Contact Us For Availability
29A
Infinte Knob GEN WB03T10004 Contact Us For Availability
29B
Range Surface Burner Knob GEN WB03T10006 Contact Us For Availability
33
Surface Light GEN WB25T10001 Contact Us For Availability
48
Vent Box GEN WB38K5049 Contact Us For Availability
51
Glass Main Top GEN WB57T10014 Contact Us For Availability
51A
Glass Main Top GEN WB57T10015 Contact Us For Availability
51B
Glass Main Top GEN WB57T10016 Contact Us For Availability
58
Range Dual Radiant Surface Element GEN WB30T10008 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
Burner Box GEN WB64K5068 Contact Us For Availability
62
RADIANT HEATER BRACKET GEN WB02K5318 Contact Us For Availability
66
Cover Plate GEN WB34K5199 Contact Us For Availability
71
Vent Duct Insert GEN WB35K5052 Contact Us For Availability
71
Insulation Maintop Frame GEN WB35K5111 Contact Us For Availability
76
Vent Tube Ex GEN WB38K5050 Contact Us For Availability
79
Burner Box Baffle GEN WB34M0046 Contact Us For Availability
79A
Burner Box Baffle GEN WB34M0045 Contact Us For Availability
80
Duct Insert Cover GEN WB38K5033 Contact Us For Availability
82
Thermal Switch GEN WB24K5114 Contact Us For Availability
82A
Therm Sw1900 GEN WB24K5103 Contact Us For Availability
82B
Ther Sw 2400 GEN WB24K5089 Contact Us For Availability
90
Support GEN WB02X9877 Contact Us For Availability
90A
Support GEN WB02X9876 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Door Plug GEN WB55T10005 Contact Us For Availability
112
Door Lining GEN WB55T10003 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Panel GEN WB57T10009 Contact Us For Availability
121A
Glass W/barr GEN WB57T10007 Contact Us For Availability
121B
Glass Blk GEN WB57T10011 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124A
Btm Tr E Cap GEN WB36K5109 Contact Us For Availability
124B
Control Panel GEN WB36K5103 Contact Us For Availability
128
Moisture Bar GEN WB34T10002 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136A
Oven Door Handle GEN WB15K5115 Contact Us For Availability
136B
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Door Frame GEN WB55K5053 Contact Us For Availability
140A
Oven Door Frame GEN WB56K5132 Contact Us For Availability
140B
Oven Door Frame GEN WB55K5054 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
160
Bracket GEN WB02X9882 Contact Us For Availability
161
Micro-Switch GEN WB24K5095 Contact Us For Availability
171
Insulator GEN WB02X9880 Contact Us For Availability
176
Lever Switch GEN WB02X9881 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Wh GEN WB03K5152 Contact Us For Availability
192A
Lock Knob Ad GEN WB03K5191 Contact Us For Availability
192B
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
230
Insulation Cup GEN WB35K5114 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Flat Oven Rack GEN WB48K5024 Contact Us For Availability
248
CONVX FAN COVER GEN WB63T10005 Contact Us For Availability
252
Range Broil Element GEN WB44K5031 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Vent Tube GEN WB38T10001 Contact Us For Availability
286
Door Spring GEN WB09X0273 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
431
Off Oven Rack GEN WB48K5023 Contact Us For Availability
534
Oven Body Support GEN WB02T10002 Contact Us For Availability
538
Motor Mounting Bracket GEN WB02K5360 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
674
Screw GEN WB01T10001 Contact Us For Availability
691A
Trim Screw GEN WB01K5176 Contact Us For Availability
802
Drive Seal Retainer GEN WB02K5123 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
807A
Screw-almond GEN WB01K5168 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812A
Screw-almond GEN WB01K5158 Contact Us For Availability
812B
Screw Black GEN WB01K5160 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
871
Screw GEN WB01M0013 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
939
Washer GEN WB01K5198 Contact Us For Availability
951
Clip Backsplash GEN WB02X9443 Contact Us For Availability
965
Cleat GEN WB02X9000 Contact Us For Availability
976
Pal Nut GEN WB01X1251 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
999
Installation Instructions GEN SR10207 Contact Us For Availability
999
Main Top Harness GEN WB18T10012 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAG. GEN 31-13465 Contact Us For Availability
999A
Range Wire Harness GEN WB18T10014 Contact Us For Availability
999B
Range Owner's Manual GEN SR10325 Contact Us For Availability
999B
Range Door Lock Wire Harness GEN WB18K5489 Contact Us For Availability
999C
Parts List GEN 31-13473 Contact Us For Availability
999C
Sensor Harness GEN WB18K5488 Contact Us For Availability
999D
Lightswitch GEN WB18K5549 Contact Us For Availability
999E
Simmer Harns GEN WB18K5662 Contact Us For Availability
× ![]()
