Model GE 911.95361592 30" Radiant Range (Kenmore 91195361592) – Common Parts & Diagrams

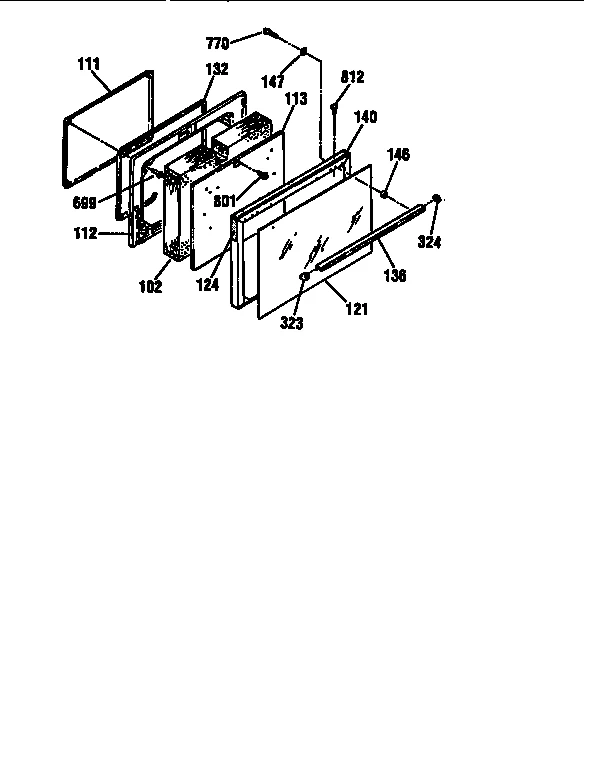

DOOR SECTION
All Parts
BACKGUARD SECTION
MAIN TOP SECTION
DOOR LOCK SECTION
WIRE HARNESS AND COMPONENTS
BODY SECTION
Common parts from model GE 911.95361592 30" Radiant Range (Kenmore 91195361592)
1
Range Control Panel (Black) GEN WB36K5622 Contact Us For Availability
2
Endcap Rt Bl GEN WB36K5380 Contact Us For Availability
2A
Endcap Lt Bl GEN WB36K5381 Contact Us For Availability
4
Backguard Panel GEN WB37K5031 Contact Us For Availability
4A
Backguard Panel GEN WB37K5033 Contact Us For Availability
6
Backguard Body GEN WB37K5035 Contact Us For Availability
7
Backguard Support GEN WB06X0127 Contact Us For Availability
7A
Backguard Support GEN WB06X0128 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
16
Oven Control GEN WB27K5248 Contact Us For Availability
18
Clock Plate GEN WB27K5249 Contact Us For Availability
19
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
28
Main Top Bracket GEN WB02K5268 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
33
Hot Light GEN WB25K5022 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
43
Spacer GEN WB02K5325 Contact Us For Availability
48
Vent Box GEN WB38K5049 Contact Us For Availability
51
Glass Main Top GEN WB57K5330 Contact Us For Availability
56
Sur El 1400w GEN WB23K5039 Contact Us For Availability
57
Sur El 1900w GEN WB23K5040 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
Burner Box GEN WB64K5068 Contact Us For Availability
62
RADIANT HEATER BRACKET GEN WB02K5318 Contact Us For Availability
66
Cover Plate GEN WB34K5199 Contact Us For Availability
71
Ov Dr Pl Ins GEN WB35K5033 Contact Us For Availability
71
Insulation Maintop Frame GEN WB35K5111 Contact Us For Availability
76
Vent Tube Ex GEN WB38K5050 Contact Us For Availability
79
Burner Box Baffle GEN WB34M0046 Contact Us For Availability
79A
Burner Box Baffle GEN WB34M0045 Contact Us For Availability
80
Thermostat Knob GEN WB38K5183 Contact Us For Availability
82
Range Surface Element Temperature Limiter GEN WB24K5070 Contact Us For Availability
82A
Range Surface Element Temperature Limiter GEN WB24K5071 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
90
Support GEN WB02X9877 Contact Us For Availability
90A
Support GEN WB02X9876 Contact Us For Availability
95
Hot Lit Brkt GEN WB02K5157 Contact Us For Availability
121
Range Oven Door Outer Panel GEN WB57K5213 Contact Us For Availability
126
Button Plug GEN WB03K5189 Contact Us For Availability
140
Oven Door Frame GEN WB55K5054 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14X0128 Contact Us For Availability
160
Bracket GEN WB02X9882 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
171
Insulator GEN WB02X9880 Contact Us For Availability
176
Lever Switch GEN WB02X9881 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
202
Frame GEN WB63K5160 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Fr Panel GEN WB56K5060 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Vent Tube GEN WB38M0001 Contact Us For Availability
286
Door Spring GEN WB09X0264 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
560
250 Flag GEN STD374251 Contact Us For Availability
570
Flag Terminal GEN WB08K5020 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
871
Screw GEN WB01M0013 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
965
Cleat GEN WB02X9000 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
999
Wiring Diagram GEN SR13621 Contact Us For Availability
999
Mtop W Harn GEN WB18K5500 Contact Us For Availability
999A
Range Owner's Manual GEN SR10287 Contact Us For Availability
999A
Main Wiring Harness GEN WB18K5475 Contact Us For Availability
999B
Repair Parts List GEN 31-13354 Contact Us For Availability
999B
Lock Switch Harness GEN WB18K5492 Contact Us For Availability
999C
Installation Instructions GEN SR10207 Contact Us For Availability
999C
Range Sensor Wire Harness GEN WB18K5598 Contact Us For Availability
× ![]()
