Model GE 911.95181890 30" Radiant Range (Kenmore 91195181890) – Common Parts & Diagrams

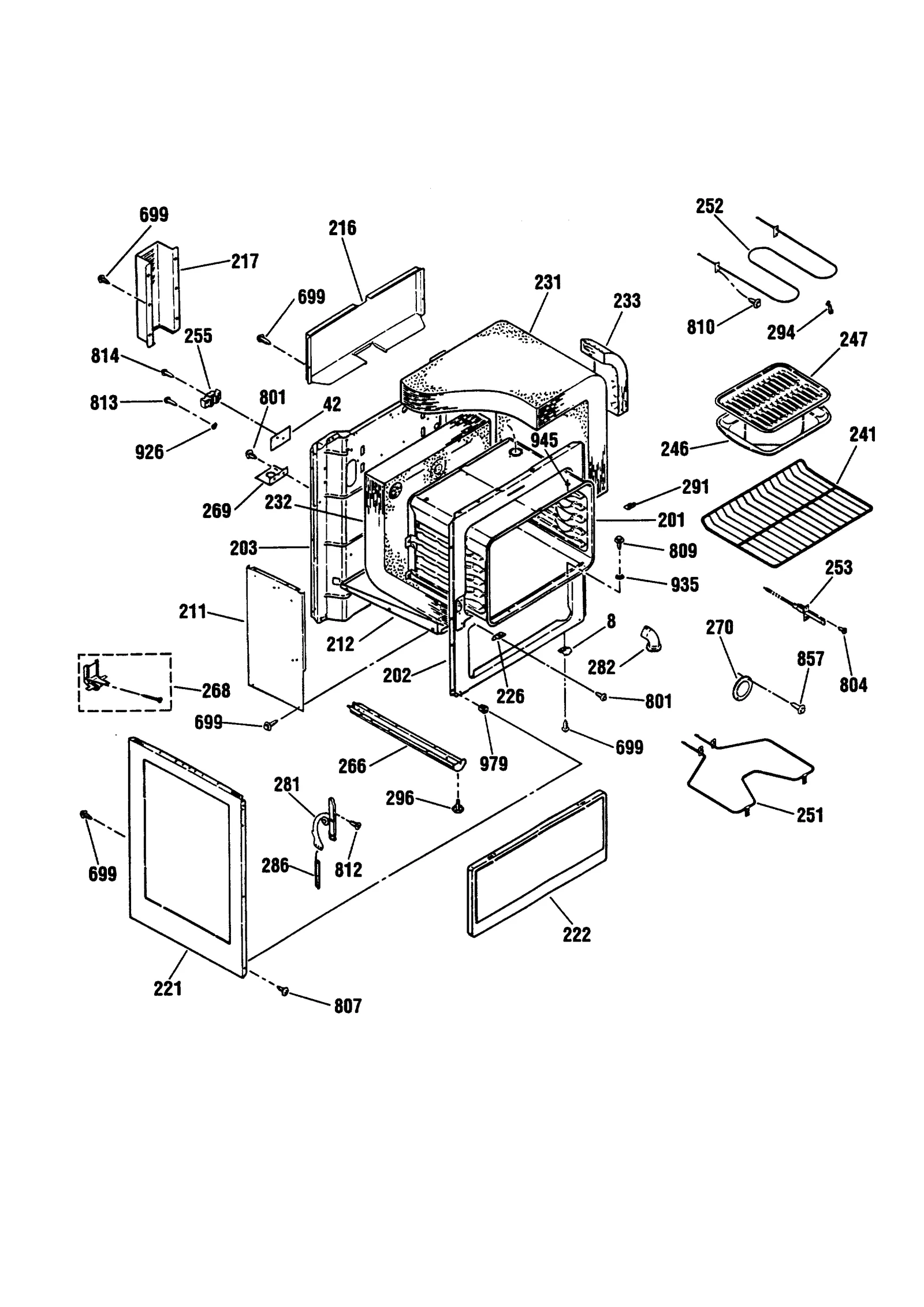

BODY

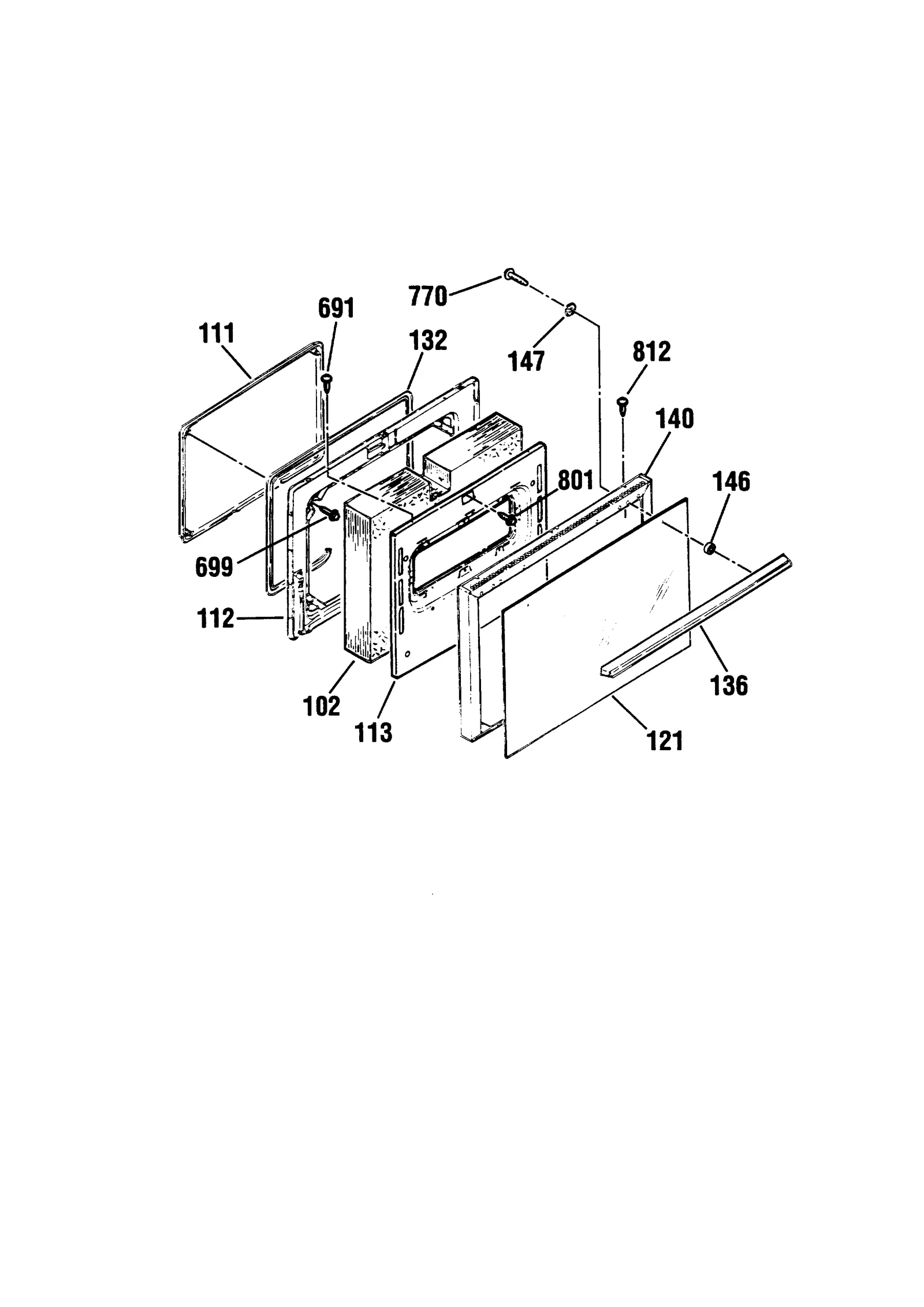

DOOR
MAINTOP
WIRE HARNESS AND COMPONENTS
LOCK
BACKGUARD
Common parts from model GE 911.95181890 30" Radiant Range (Kenmore 91195181890)
1
Control Panel GEN WB36T10140 Contact Us For Availability
2
Endcap Lt Bl GEN WB36K5381 Contact Us For Availability
2A
Endcap Rt Bl GEN WB36K5380 Contact Us For Availability
4
Backguard Panel GEN WB37K5031 Contact Us For Availability
6
Backguard Body GEN WB37K5035 Contact Us For Availability
7
Backguard Support GEN WB06X0127 Contact Us For Availability
7A
Backguard Support GEN WB06X0128 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
13
Cam Dual GEN WB02X8313 Contact Us For Availability
16
Oven Control Clock GEN WB27K5125 Contact Us For Availability
19
Ele Ctl 2000 GEN WB23M0023 Contact Us For Availability
19A
INFINITE SWITCH - 1500W GEN WB26M0024 Contact Us For Availability
28
Bracket Clock GEN WB02K5282 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
33
Hot Light GEN WB25K5022 Contact Us For Availability
45
Spring Deten GEN WB09X5121 Contact Us For Availability
48
Vent Box GEN WB38K5049 Contact Us For Availability
51
Glass Main Top GEN WB57T10062 Contact Us For Availability
56
Range Radiant Surface Element, 1,500-watt GEN WB30T10003 Contact Us For Availability
57
2000w Element GEN WB30T10004 Contact Us For Availability
60
Radiant Spring GEN WB09K5014 Contact Us For Availability
61
BOTTOM BURN BOX GEN WB64T10009 Contact Us For Availability
62
RADIANT HEATER BRACKET GEN WB02K5318 Contact Us For Availability
66
Cover Plate GEN WB34K5199 Contact Us For Availability
71
Insulation Maintop Frame GEN WB35K5111 Contact Us For Availability
71
Vent Duct Insert GEN WB35K5052 Contact Us For Availability
76
Vent Tube Ex GEN WB38K5050 Contact Us For Availability
79
Burner Box Baffle GEN WB34M0046 Contact Us For Availability
79A
Burner Box Baffle GEN WB34M0045 Contact Us For Availability
80
Duct Insert Cover GEN WB38K5033 Contact Us For Availability
82
Thermal Bulb Shield GEN WB34K5114 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
90
Support GEN WB02X9877 Contact Us For Availability
90A
Support GEN WB02X9876 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Door Plug GEN WB55T10004 Contact Us For Availability
112
Door Lining GEN WB55T10003 Contact Us For Availability
113
Oven Drive Insert GEN WB02M0036 Contact Us For Availability
121
Range Oven Door Outer Panel GEN WB57K5213 Contact Us For Availability
126
Button Plug GEN WB03K5189 Contact Us For Availability
140
Oven Door Frame GEN WB55K5054 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
160
Bracket GEN WB02X9882 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
171
Insulator GEN WB02X9880 Contact Us For Availability
176
Lever Switch GEN WB02X9881 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
222
Lo Frt Panel GEN WB63K5138 Contact Us For Availability
226
Foot Panel Catch GEN WB02K5230 Contact Us For Availability
226A
Foot Panel Catch GEN WB02K5231 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Insul Bk&btm GEN WB35T10003 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
253
Sensor GEN WB21X5310 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5274 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
270
Light Cover GEN WB34K5048 Contact Us For Availability
282
Vent Tube GEN WB38T10001 Contact Us For Availability
286
Spring GEN WB09X5020 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
296
Leg-leveling GEN WB02X9188 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
699
SCREW 10-16 X 7/16" GEN WB01X5150 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
817
Screw GEN WB01X1346 Contact Us For Availability
871
Screw GEN WB01M0013 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
965
Cleat GEN WB02X9000 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Nut GEN WB02X8268 Contact Us For Availability
999
Lock Switch Harness GEN WB18K5492 Contact Us For Availability
999
Installation Instructions GEN SR10207 Contact Us For Availability
999A
Main Wiring Harness GEN WB18K5457 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-13546 Contact Us For Availability
999B
Main Top Harness GEN WB18T10009 Contact Us For Availability
999B
User's Manual GEN SR10397 Contact Us For Availability
999C
Sensor Harness GEN WB18K5459 Contact Us For Availability
999C
Parts List GEN 31-13581 Contact Us For Availability
× ![]()
