Model GE 911.93561790 30" Electric Range (Kenmore 91193561790) – Common Parts & Diagrams
MAIN TOP SECTION
DOOR LOCK SECTION

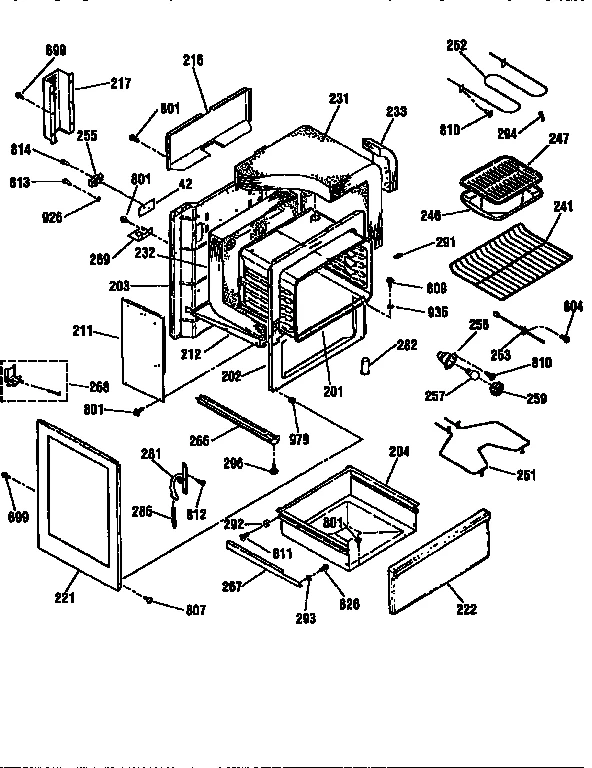

BODY SECTION

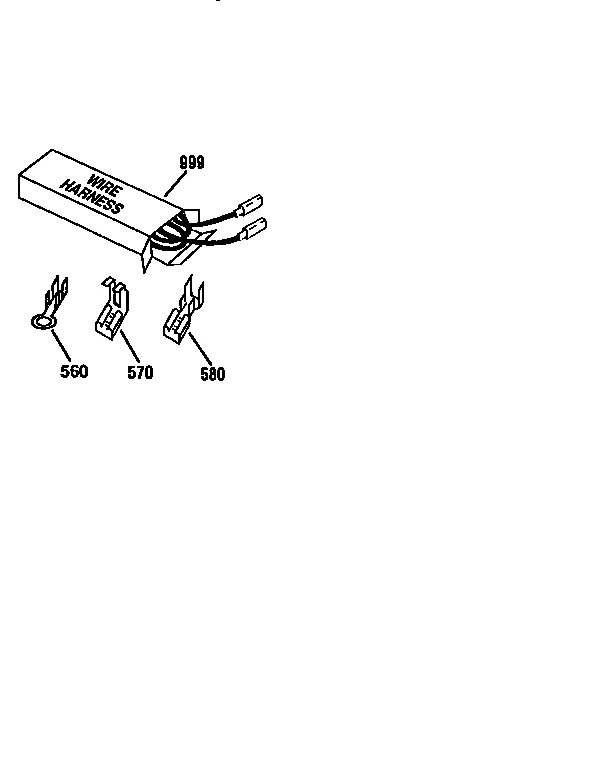

WIRE HARNESSES AND COMPONENTS

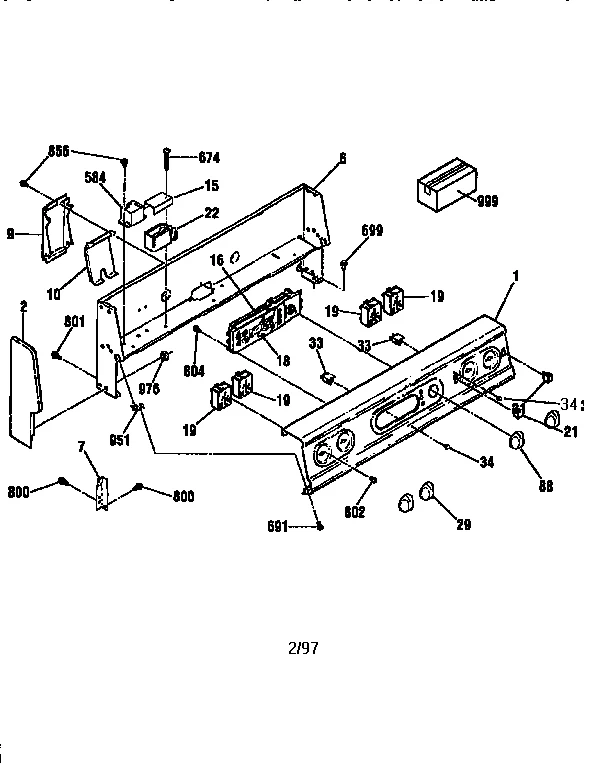

BACKGUARD SECTION

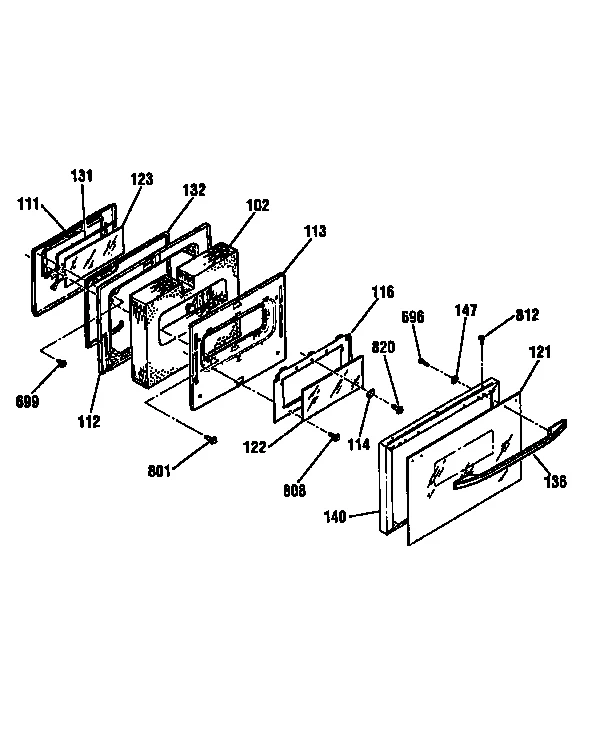

DOOR SECTION
Common parts from model GE 911.93561790 30" Electric Range (Kenmore 91193561790)
1
Control Panel GEN WB36T10005 Contact Us For Availability
1B
Control Panel GEN WB36T10007 Contact Us For Availability
2
End Cap GEN WB36K5361 Contact Us For Availability
2A
End Cap Lft GEN WB36K5362 Contact Us For Availability
2B
End Cap GEN WB36K5366 Contact Us For Availability
2C
End Cap GEN WB36K5365 Contact Us For Availability
2D
End Cap GEN WB36K5370 Contact Us For Availability
2E
End Cap GEN WB36K5369 Contact Us For Availability
6
Backguard Body GEN WB37K5039 Contact Us For Availability
7
Backguard Support GEN WB06X0128 Contact Us For Availability
7A
Backguard Support GEN WB06X0127 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
15
Cntl Insltr GEN WB35T10001 Contact Us For Availability
16
Oven Control GEN WB27K5251 Contact Us For Availability
18
Clock Plate GEN WB27K5253 Contact Us For Availability
18A
Clock Plate GEN WB27K5252 Contact Us For Availability
18B
Clock Plate GEN WB27K5347 Contact Us For Availability
19A
Range Surface Element Control Switch GEN WB23K5062 Contact Us For Availability
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
21B
Rocker Switch GEN WB24K5088 Contact Us For Availability
21C
Rocker Switch GEN WB24K5145 Contact Us For Availability
21D
Rocker Switch GEN WB24K5146 Contact Us For Availability
21E
Range Rocker Switch GEN WB24K5147 Contact Us For Availability
22
Simmer Contl GEN WB23T10001 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
29A
Inf Knob Wh GEN WB03K5099 Contact Us For Availability
29B
Inf Knob Ad GEN WB03K5190 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
58
Range Coil Surface Element, 8-in GEN WB30K5038 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
88A
Thermostat Knob GEN WB03K5192 Contact Us For Availability
88B
Thermostat Knob GEN WB03K5307 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (Black) GEN WB57K5307 Contact Us For Availability
121A
Range Oven Door Outer Panel (White) GEN WB57K5304 Contact Us For Availability
121B
Door Glass GEN WB57K5308 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
136
Door Handle GEN WB15K5114 Contact Us For Availability
136A
Oven Handle GEN WB15K5113 Contact Us For Availability
136B
Oven Door Handle GEN WB15K5115 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
140A
Oven Drive Frame (White) GEN WB56K5136 Contact Us For Availability
140B
Oven Door Frame GEN WB56K5132 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
167
Retainer GEN WB02X9433 Contact Us For Availability
171
Insulator Switch GEN WB35K5101 Contact Us For Availability
175
Lock Cover GEN WB02X9431 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Insulation Retainer GEN WB02X5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
192A
Lock Knob Wh GEN WB03K5152 Contact Us For Availability
192B
Lock Knob Ad GEN WB03K5191 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
194
Lever Switch GEN WB02X9432 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
202
Frame GEN WB63K5160 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Fr Panel GEN WB56K5060 Contact Us For Availability
222A
Front Panel GEN WB56K5059 Contact Us For Availability
222B
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Range Oven Vent GEN WB38K5018 Contact Us For Availability
286
Door Spring GEN WB09X0273 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
584
Smmr Relay GEN WB41T10001 Contact Us For Availability
674
Screw GEN WB01T10001 Contact Us For Availability
691B
Trim Screw GEN WB01K5176 Contact Us For Availability
697
Screw GEN WB01X1170 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
812B
Screw-almond GEN WB01K5158 Contact Us For Availability
821
Screw GEN WB01X1265 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
951
Clip Backsplash GEN WB02X9443 Contact Us For Availability
974
Hex Nut GEN WB01X1264 Contact Us For Availability
976
Pal Nut GEN WB01X1251 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
999
Main Top Harness GEN WB18K5663 Contact Us For Availability
999
MINI MANUAL W/WIRE DIAGRAM GEN 31-13408 Contact Us For Availability
999A
Main Harness GEN WB18T10001 Contact Us For Availability
999A
Owner's Manual GEN 31-10232 Contact Us For Availability
999B
Lock Switch Harness GEN WB18K5503 Contact Us For Availability
999B
Repair Parts List GEN 31-13407 Contact Us For Availability
999C
Range Sensor Wire Harness GEN WB18K5598 Contact Us For Availability
999C
Installation Instructions GEN SR10207 Contact Us For Availability
999D
Relay Harnes GEN WB18T10002 Contact Us For Availability
× ![]()
