Model GE 911.93551991 30" Electric Freestanding Range (Kenmore 91193551991) – Common Parts & Diagrams
BACKGUARD
WIRE HARNESSE AND WIRING COMPONENTS

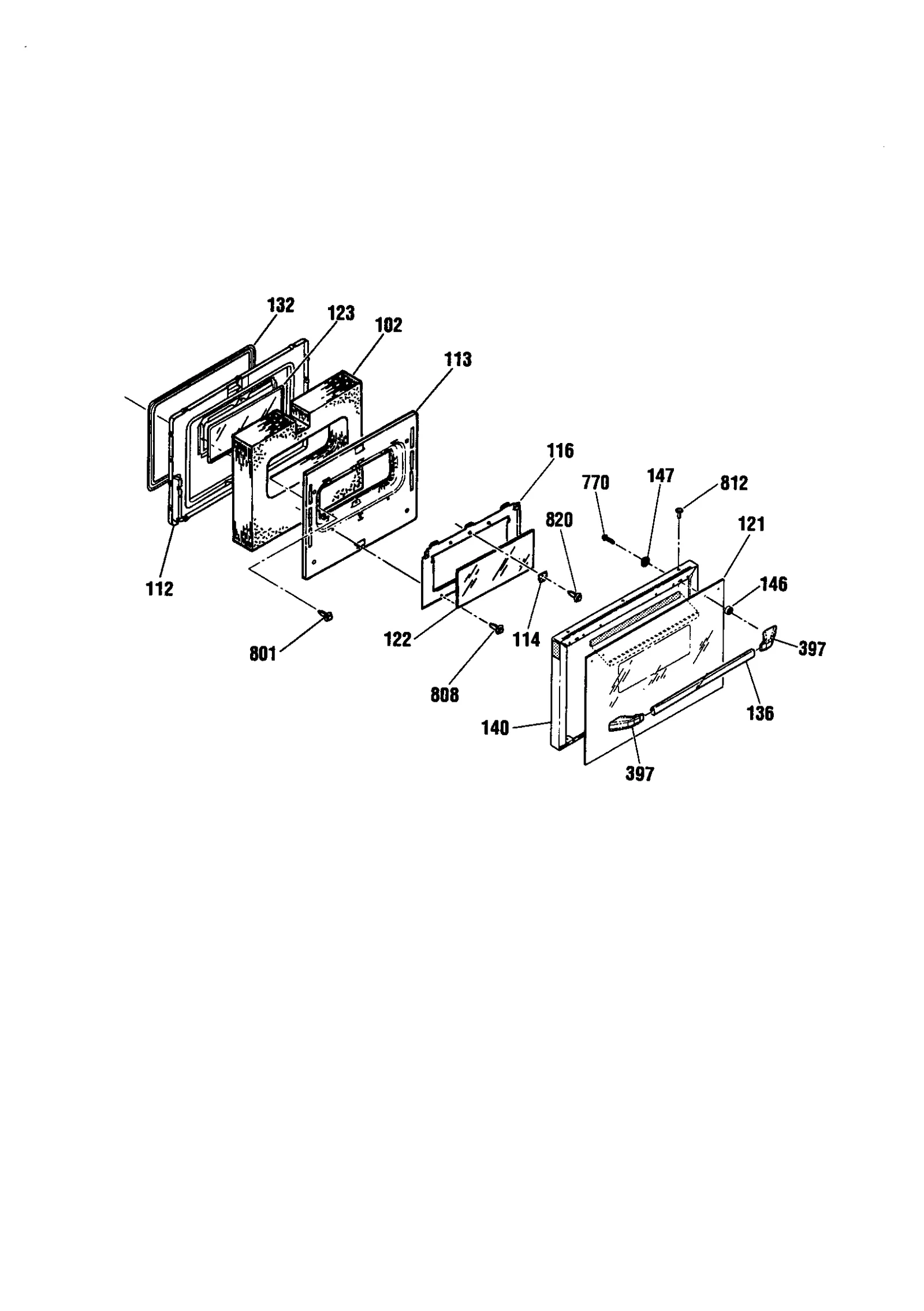

DOOR

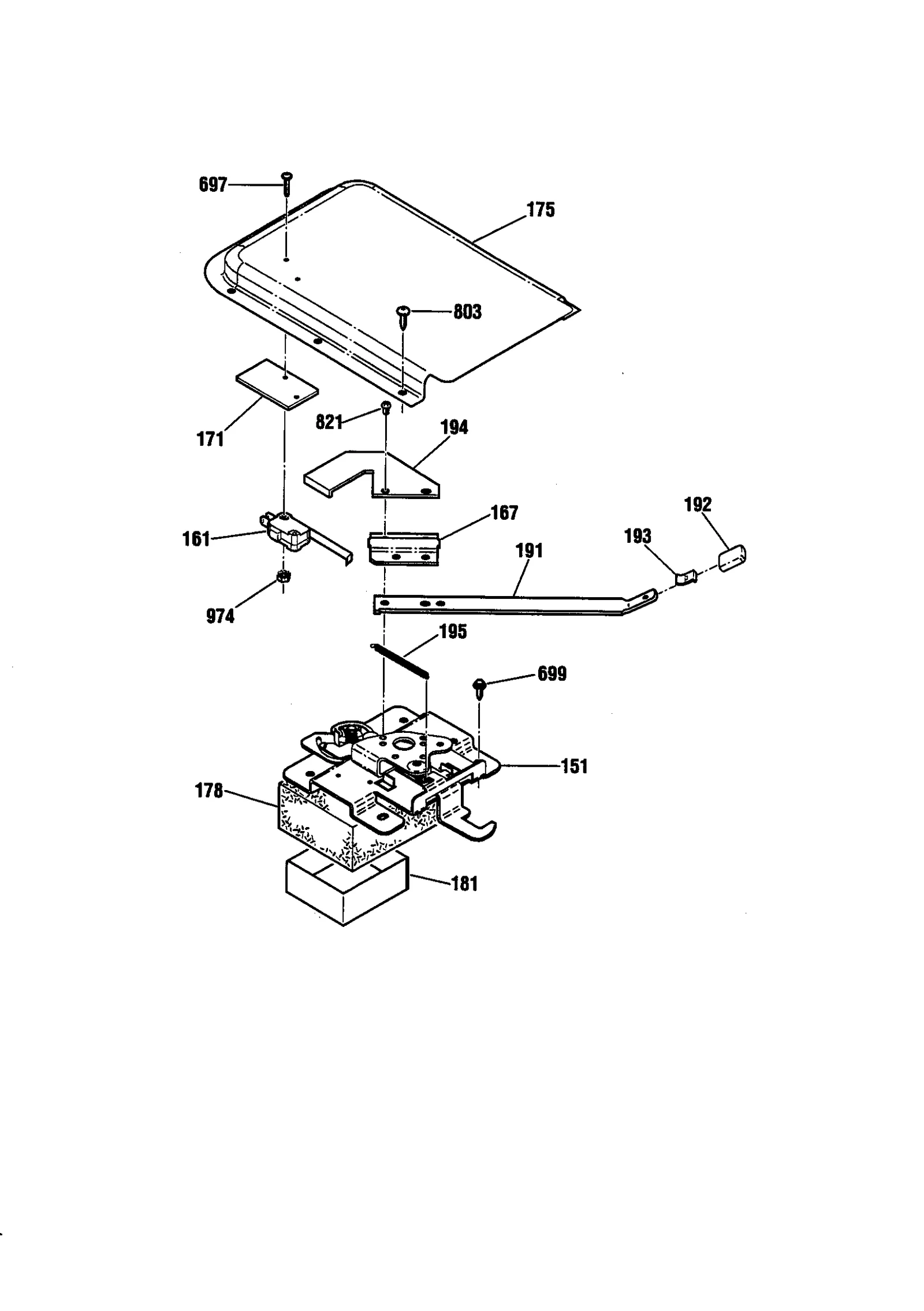

DOOR LOCK

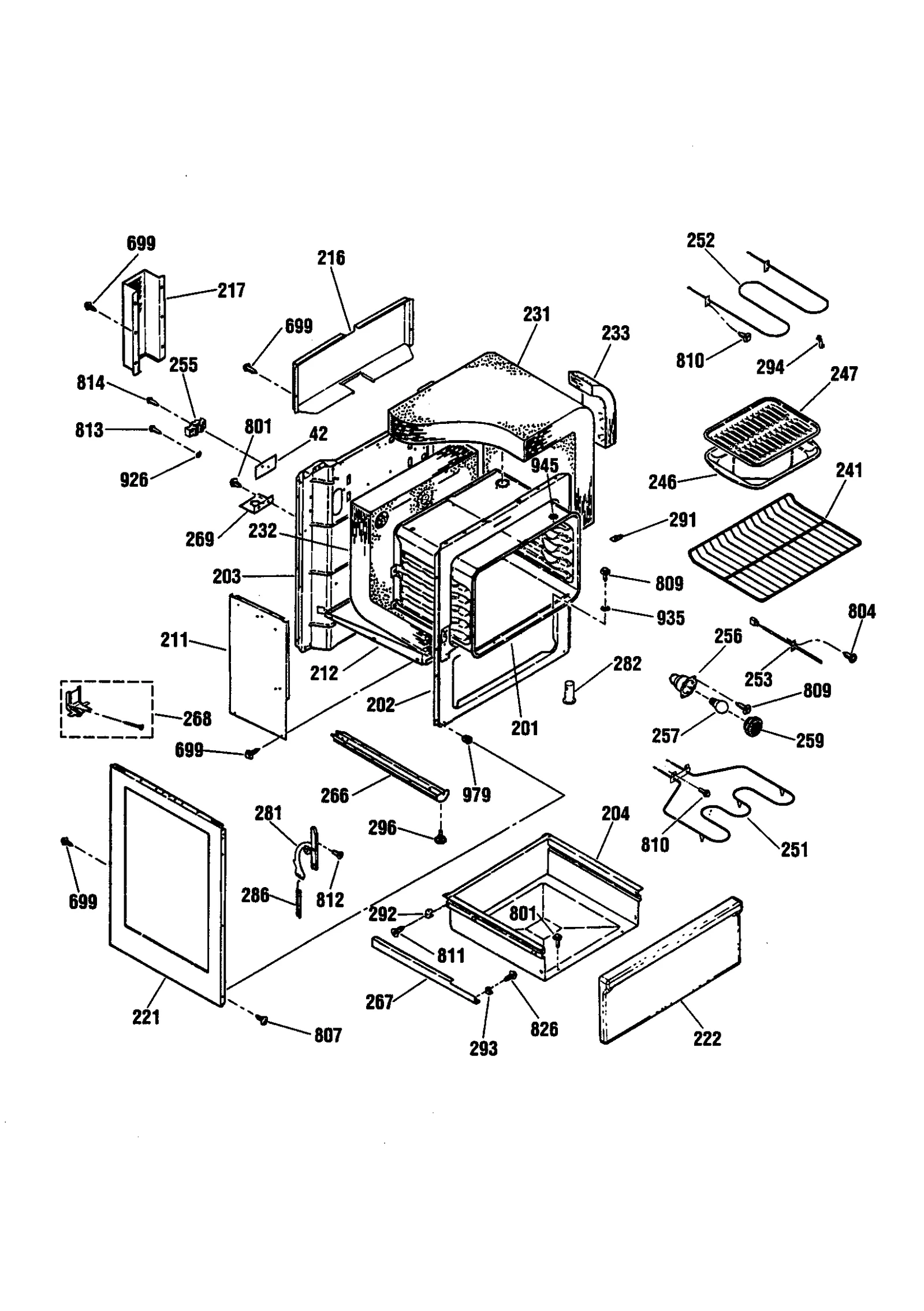

BODY

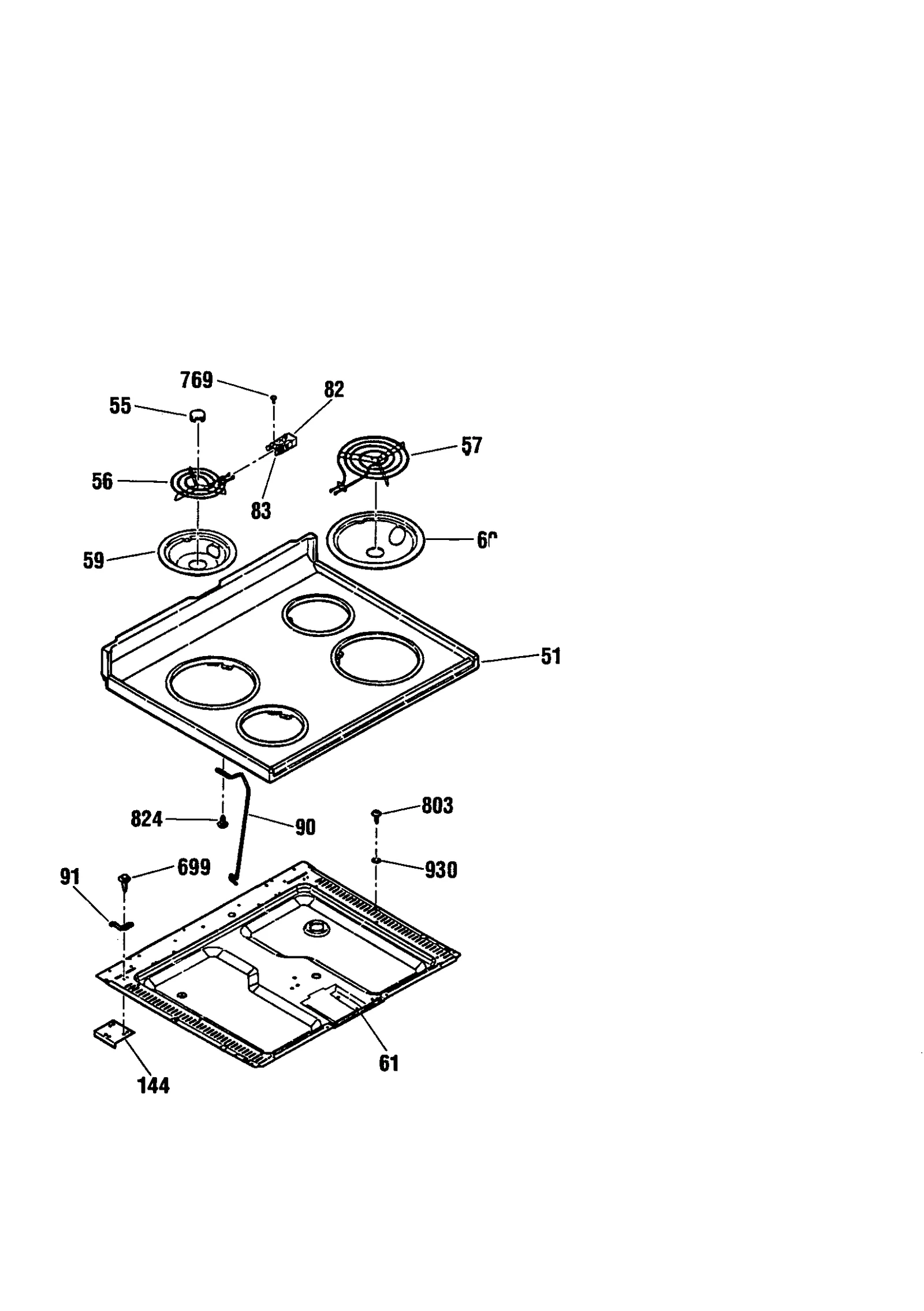

MAINTOP
Common parts from model GE 911.93551991 30" Electric Freestanding Range (Kenmore 91193551991)
29
Range Surface Burner Knob GEN WB03T10006 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
51
Main Top Wh GEN WB62M0017 Contact Us For Availability
51A
Main Top Ad GEN WB62M0018 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30T10001 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30T10002 Contact Us For Availability
60
8" Pan-blk GEN WB31K5041 Contact Us For Availability
61
Burner Box GEN WB64T10003 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
88
Range Thermostat Knob GEN WB03T10007 Contact Us For Availability
90
Support Rod GEN WB02X9084 Contact Us For Availability
91
Hinge GEN WB14X0126 Contact Us For Availability
91A
Hinge GEN WB14X0127 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
112
Door Liner GEN WB55T10018 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Oven Door Glass GEN WB57K5235 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
167
Retainer GEN WB02X9433 Contact Us For Availability
171
Insulator Switch GEN WB35K5101 Contact Us For Availability
175
Lock Cover GEN WB02X9431 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
194
Lever Switch GEN WB02X9432 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10003 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Fr Panel GEN WB56K5060 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Insul Bk&btm GEN WB35T10003 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
259
Oven Bulb Lens GEN WB25T1002 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Range Plate GEN WB02T10054 Contact Us For Availability
282
Range Oven Vent GEN WB38K5018 Contact Us For Availability
286
Door Spring GEN WB09X0273 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
397
Dr Hndl Ecap GEN WB15K5069 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
697
Screw GEN WB01X1170 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
821
Screw GEN WB01X1265 Contact Us For Availability
824
Screw GEN WB01X1291 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
Washer GEN WB01M0022 Contact Us For Availability
951
Clip Backsplash GEN WB02X9443 Contact Us For Availability
974
Hex Nut GEN WB01X1264 Contact Us For Availability
976
Pal Nut GEN WB01X1251 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Nut GEN WB02X8268 Contact Us For Availability
999
Range Wire Harness GEN WB18K5469 Contact Us For Availability
999
MINI MANUAL W/WIRE DIAGRAM GEN 31-13696 Contact Us For Availability
999A
Owner's Manual GEN SR10431 Contact Us For Availability
999A
Main Wiring Harness GEN WB18K5475 Contact Us For Availability
999B
Parts List GEN 31-13697 Contact Us For Availability
999B
Lock Switch Harness GEN WB18K5503 Contact Us For Availability
999C
Installation Instructions GEN 31-10249 Contact Us For Availability
999C
Range Sensor Wire Harness GEN WB18K5598 Contact Us For Availability
× ![]()
