Model GE 911.93171790 30" Electric Range (Kenmore 91193171790) – Common Parts & Diagrams
WIRE HARNESS AND COMPONENTS
MAINTOP

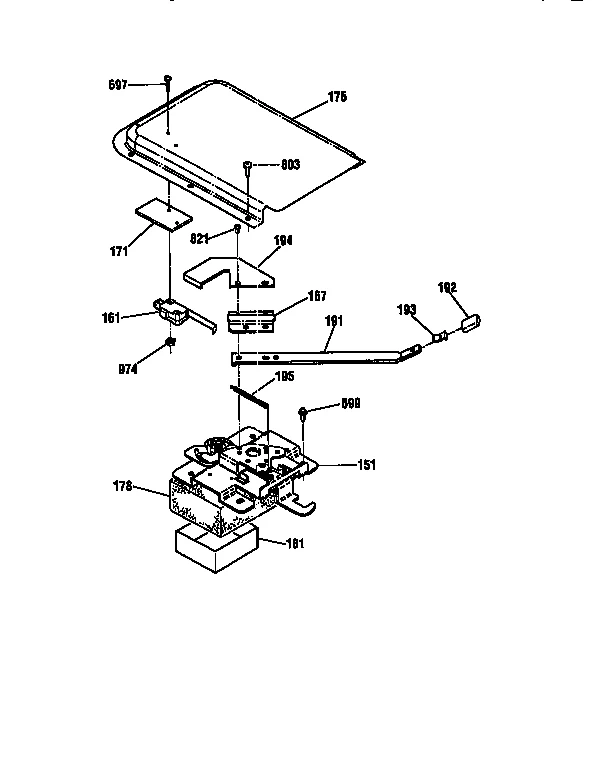

DOOR LOCK
BODY

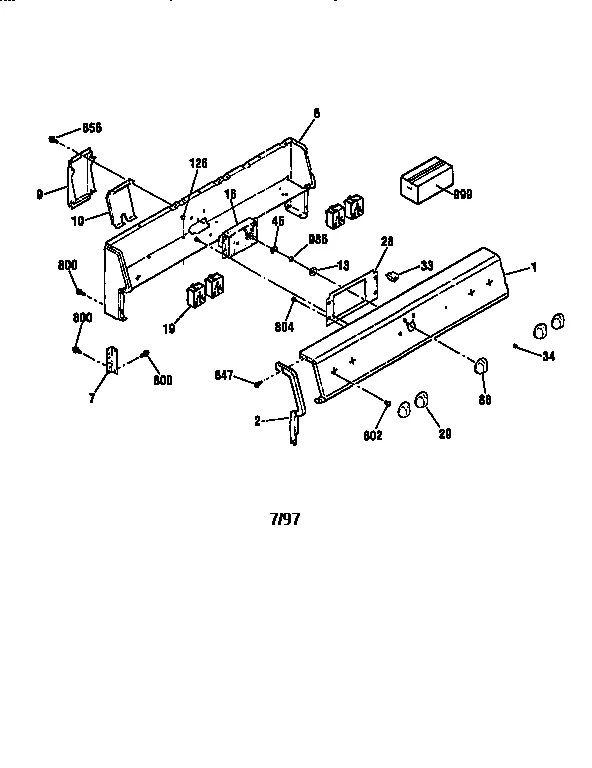

BACKGUARD

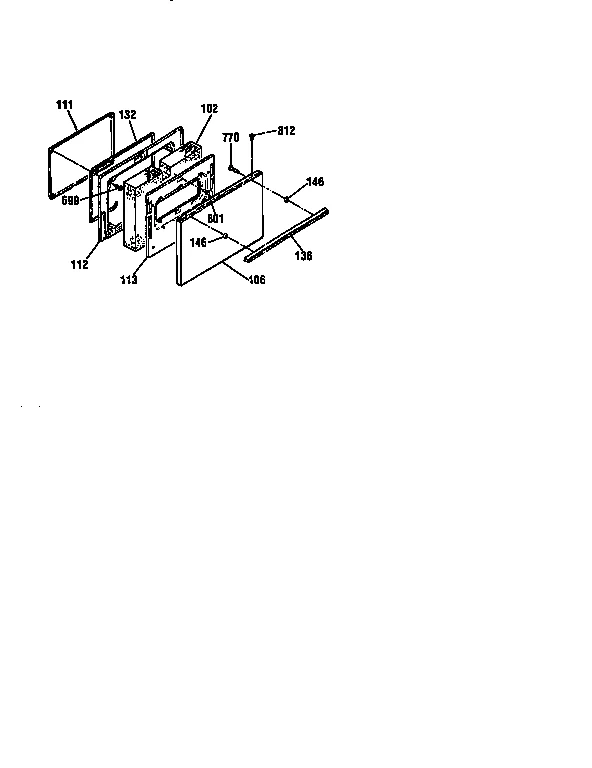

DOOR
Common parts from model GE 911.93171790 30" Electric Range (Kenmore 91193171790)
1
Control Panel GEN WB36T10038 Contact Us For Availability
2
End Cap GEN WB36K5357 Contact Us For Availability
2A
End Cap GEN WB36K5356 Contact Us For Availability
6
Backguard Body GEN WB37K5035 Contact Us For Availability
7
Backguard Support GEN WB06X0127 Contact Us For Availability
7A
Backguard Support GEN WB06X0128 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
13
Dual Cam GEN WB02K5283 Contact Us For Availability
16
Oven Control Clock GEN WB27K5125 Contact Us For Availability
28
Bracket Clock GEN WB02K5282 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
45
Spring Deten GEN WB09X5121 Contact Us For Availability
61
Burner Box GEN WB64T10003 Contact Us For Availability
69
Clamp Rod GEN WB02X9420 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
90
Menu Label GEN WB02X9414 Contact Us For Availability
91
Hinge GEN WB14X0126 Contact Us For Availability
91A
Hinge GEN WB14X0127 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
106
Ovdr Frt Pnl GEN WB56K5072 Contact Us For Availability
111
Door Plug GEN WB55T10004 Contact Us For Availability
112
Door Lining GEN WB55T10003 Contact Us For Availability
113
Oven Drive Insert GEN WB02M0036 Contact Us For Availability
126
Button Plug GEN WB03K5189 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
151
Latch GEN WB14K5011 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
167
Retainer GEN WB02X9433 Contact Us For Availability
171
Insulator Switch GEN WB35K5101 Contact Us For Availability
175
Lock Cover GEN WB02X9431 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
194
Lever Switch GEN WB02X9432 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10003 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
253
Sensor GEN WB21X5310 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
270
Light Cover GEN WB34K5048 Contact Us For Availability
282
Range Oven Vent GEN WB38K5018 Contact Us For Availability
286
DOOR SPRING 64261690 GEN WB02X5019 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
FRONT SLIDE BLOCK-LT./RT. GEN WBO2X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
691
Trim Screw GEN WB01K5192 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
821
Screw GEN WB01X1265 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
856
Screw GEN WB01X1170 Contact Us For Availability
888
Range Drip Pan GEN WB31K5042 Contact Us For Availability
888A
Range Drip Pan GEN WB31K5043 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
Washer GEN WB01M0022 Contact Us For Availability
974
Hex Nut GEN WB01X1264 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Nut GEN WB02X8268 Contact Us For Availability
999
Range Wire Harness GEN WB18K5469 Contact Us For Availability
999
MINI MANUAL W/WIRE DIAG. GEN 31-13494 Contact Us For Availability
999A
Owner's Manual GEN SR10321 Contact Us For Availability
999B
Parts List GEN 31-13453 Contact Us For Availability
999C
Installation Instructions GEN 31-10059 Contact Us For Availability
× ![]()
