Model GE 911.91461690 30" Electric Range (Kenmore 91191461690) – Common Parts & Diagrams
All Parts
WIRE HARNESSES AND COMPONENTS

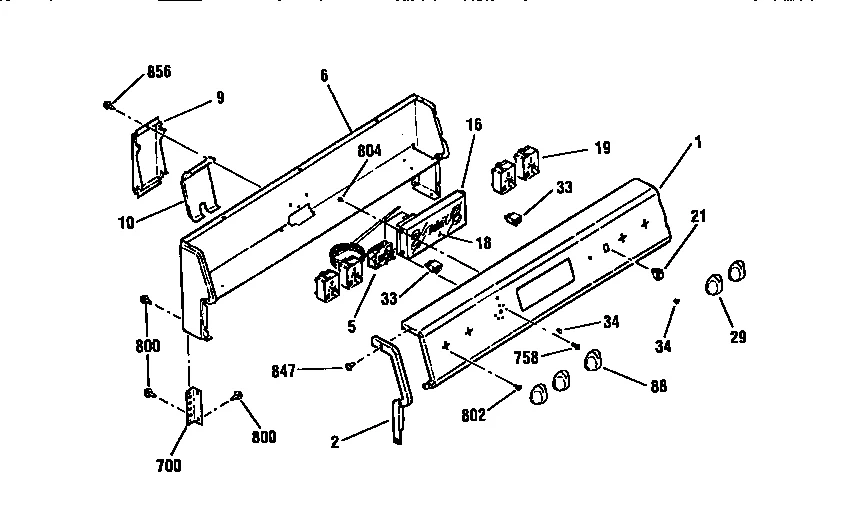

BACKGUARD SECTION

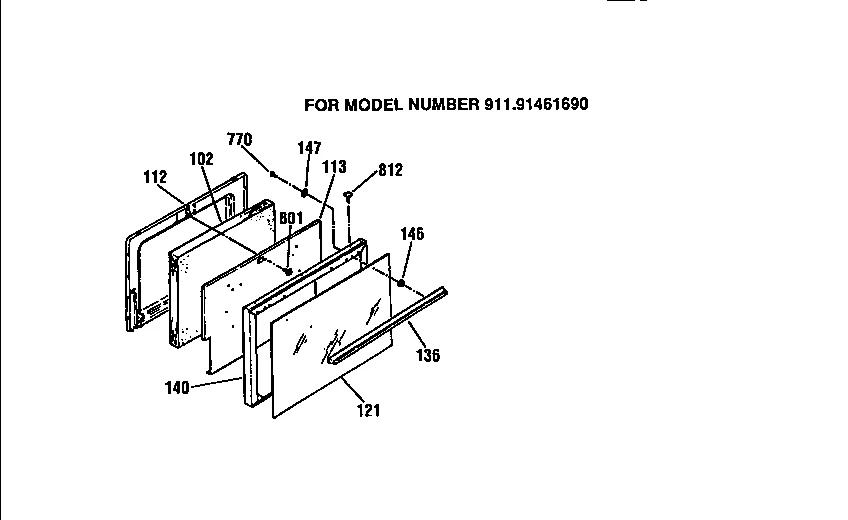

DOOR

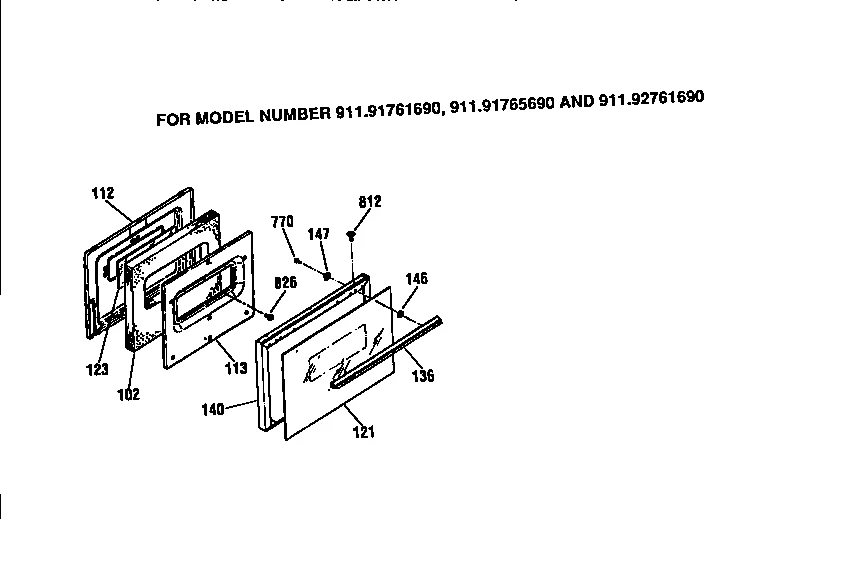

DOOR SECTION
BODY SECTION

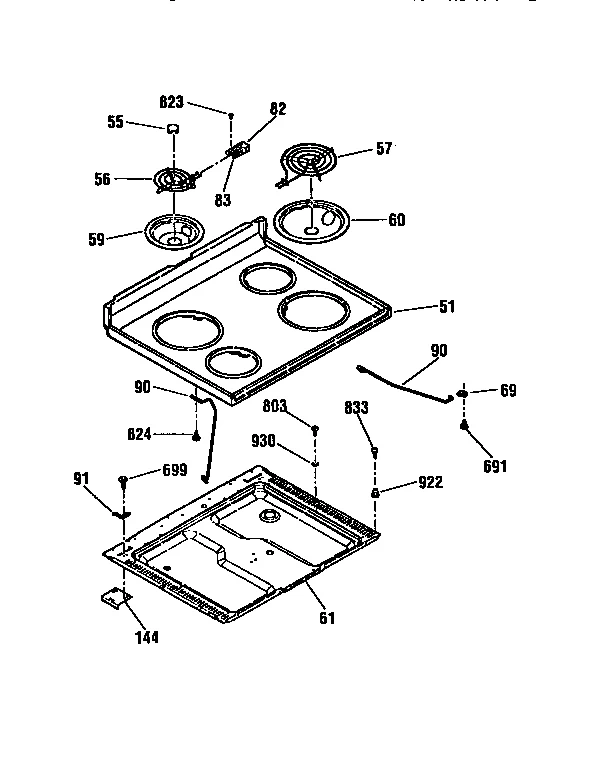

MAIN TOP SECTION
Common parts from model GE 911.91461690 30" Electric Range (Kenmore 91191461690)
2A
End Cap GEN WB36K5356 Contact Us For Availability
2B
End Cap GEN WB36K5359 Contact Us For Availability
2C
End Cap GEN WB36K5358 Contact Us For Availability
6
Backguard Body GEN WB37K5035 Contact Us For Availability
6A
BACKGROUND BODY-91765690 GEN WB37K5036 Contact Us For Availability
7
Backguard Support GEN WB06X0127 Contact Us For Availability
7A
Backguard Support GEN WB06X0128 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
16
Clock Timer GEN WB27K5314 Contact Us For Availability
16A
Clock Timer GEN WB27K5315 Contact Us For Availability
18
Faceplate GEN WB27K5317 Contact Us For Availability
18A
Faceplate GEN WB27K5316 Contact Us For Availability
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
29A
Inf Knob Wh GEN WB03K5099 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
49
Motor Clock GEN WB11X0008 Contact Us For Availability
51
Main Top Wh GEN WB62M0017 Contact Us For Availability
51A
Main Top Ad GEN WB62M0018 Contact Us For Availability
51B
Maintop Wh GEN WB62M0012 Contact Us For Availability
51C
Main Top Ad GEN WB62M0013 Contact Us For Availability
55
Medallion GEN WB32X0105 Contact Us For Availability
61
Cooktop Burner Box GEN WB64K5097 Contact Us For Availability
69
Clamp Rod GEN WB02X9420 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
88
Therm Knob B GEN WB03K5095 Contact Us For Availability
88A
Thermostat Knob GEN WB03K5105 Contact Us For Availability
90
Support Rod GEN WB02X9419 Contact Us For Availability
90A
Support Rod GEN WB02X9084 Contact Us For Availability
91
Hinge GEN WB14X0126 Contact Us For Availability
91A
Hinge GEN WB14X0127 Contact Us For Availability
102
Insulation GEN WB02X9123 Contact Us For Availability
112
Ovdr Lining GEN WB55K5042 Contact Us For Availability
112
Ov Dr Lining GEN WB55M0008 Contact Us For Availability
112A
Ovdr Lining GEN WB55K5040 Contact Us For Availability
113
Oven Drive Insert GEN WB02M0036 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
121
Range Oven Door Outer Panel GEN WB57K5213 Contact Us For Availability
121
Oven Door Glass GEN WB57K5215 Contact Us For Availability
121A
Door Glass Outer Oven GEN WB57K5216 Contact Us For Availability
123
Ov Dr In Gl GEN WB57K5038 Contact Us For Availability
136A
Ovdr Hndl Wh GEN WB15K5058 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
140A
Oven Drive Frame (White) GEN WB56K5136 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
146A
Spacer GEN WB02X9640 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
201A
Oven Body GEN WB63K5110 Contact Us For Availability
202
Frame GEN WB63K5162 Contact Us For Availability
203
Main GEN WB63K5187 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02X9030 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34K5225 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body GEN WB63K5188 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
222A
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
231
Insulation Oven Body GEN WB35K5074 Contact Us For Availability
232
Insul Ov Bck GEN WB35K5073 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
266
Base GEN WB02K5274 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
277
Range Oven Door Seal GEN WB32K5051 Contact Us For Availability
282
Vent Tube GEN WB38K5020 Contact Us For Availability
286
Spring GEN WB09X0258 Contact Us For Availability
286A
Oven Door Spring GEN WB09K5020 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
551A
Range Wire Harness GEN WB18K5469 Contact Us For Availability
691
Trim Screw GEN WB01K5192 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
824
Screw GEN WB01X1291 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
847
Screw (White) GEN WB01K5161 Contact Us For Availability
922
Strike GEN WB14X0105 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
Washer GEN WB01M0022 Contact Us For Availability
954
Clip GEN WB02X9105 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
× ![]()
