GE 911.62471790 Electric Freestanding Range (Kenmore 91162471790) Parts List

1

Control Panel GEN WB36T10036 Contact Us For Availability

View on Model

1A

Control Panel GEN WB36T10037 Contact Us For Availability

View on Model

1B

Control Panel GEN WB36T10035 Contact Us For Availability

View on Model

2

End Cap GEN WB36K5356 Contact Us For Availability

View on Model

2A

End Cap GEN WB36K5357 Contact Us For Availability

View on Model

2B

End Cap GEN WB36K5358 Contact Us For Availability

View on Model

2C

End Cap GEN WB36K5359 Contact Us For Availability

View on Model

5

WB20K5027 GE Range Thermostat Backorder GEN WB20K5027 $236.82

View on Model

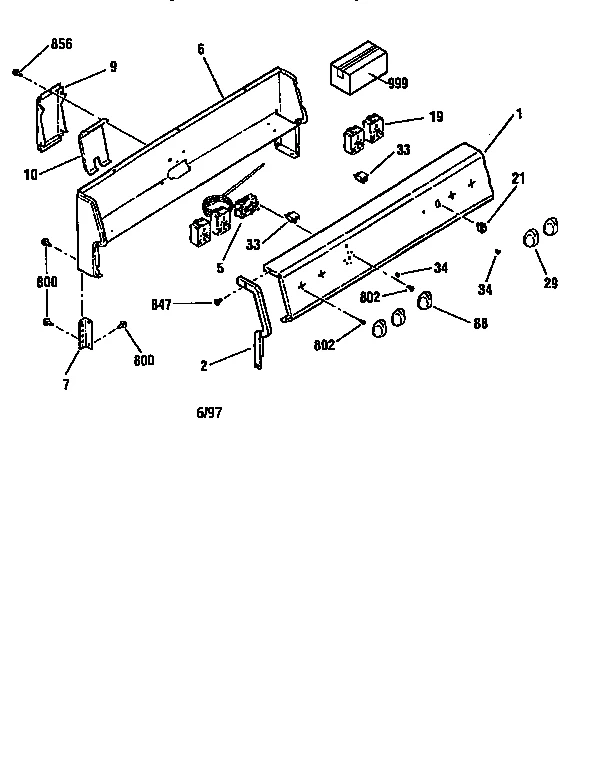

6

Backguard Body GEN WB36K5036 Contact Us For Availability

View on Model

6A

Backguard Body GEN WB37K5035 Contact Us For Availability

View on Model

7

Backguard Support GEN WB06X0127 Contact Us For Availability

View on Model

7A

Backguard Support GEN WB06X0128 Contact Us For Availability

View on Model

9

Raceway GEN WB02X9415 Contact Us For Availability

View on Model

10

Raceway Cvr GEN WB06X0134 Contact Us For Availability

View on Model

19

WB23M24 GE Stove Range Infinite Switch 1500W In Stock GEN WB23M24 $84.76

View on Model

19A

WB23K5027 GE Stove Range Oven Infinite Contro In Stock GEN WB23K5027 $97.56

View on Model

21

Range Rocker Switch GEN WB24K5036 Contact Us For Availability

View on Model

29

Inf Knob Wh GEN WB03K5099 Contact Us For Availability

View on Model

29A

Inf Knob Blk GEN WB03K5096 Contact Us For Availability

View on Model

33

WB25T10039 GE Oven Light Indicator Backorder GEN WB25T10039 $9.08

View on Model

33A

WB25T10040 GE Oven Light Indicator Backorder GEN WB25T10040 $5.80

View on Model

34

WB25T10042 GE Oven Lens In Stock GEN WB25T10042 $5.65

View on Model

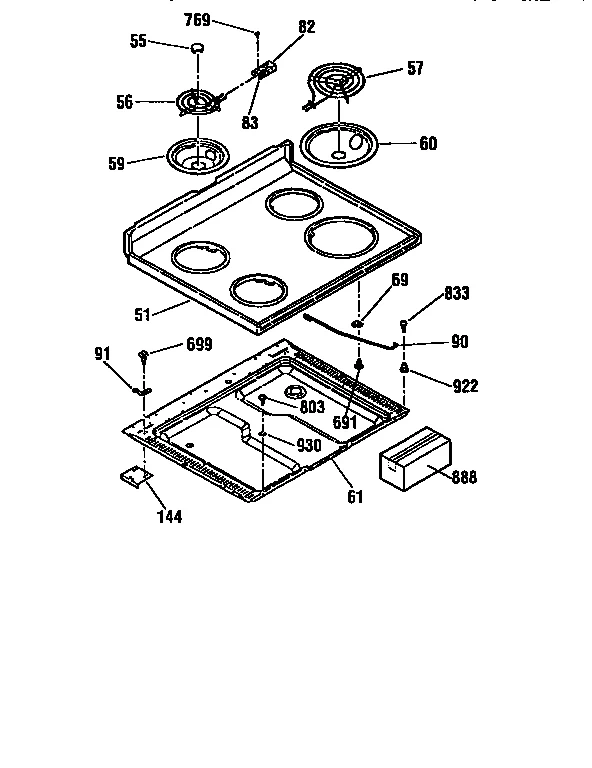

51

Maintop Wh GEN WB62M0012 Contact Us For Availability

View on Model

51A

Main Top Ad GEN WB62M0013 Contact Us For Availability

View on Model

55

Medallion GEN WB32X0105 Contact Us For Availability

View on Model

56

WB30X254 GE Oven 6" Burner Unit 1250W 240V In Stock GEN WB30X254 $47.58

View on Model

57

WB30X253 GE Oven Burner Surface Unit Element In Stock GEN WB30X253 $43.58

View on Model

59

WB31K5024 GE Stove Range Cooktop 6" Chrome Dr In Stock GEN WB31K5024 $8.65

View on Model

60

WB31K5025 GE Stove Range Cooktop 8" Chrome Dr In Stock GEN WB31K5025 $9.04

View on Model

61

Burner Box GEN WB64T10002 Contact Us For Availability

View on Model

69

Clamp Rod GEN WB02X9420 Contact Us For Availability

View on Model

82

WB17X210 GE Oven Cooktop Burner Receptacle Bl In Stock GEN WB17X210 $58.57

View on Model

83

Terminal Block Clip GEN WB01K5128 Contact Us For Availability

View on Model

88

Thermostat Knob GEN WB03K5105 Contact Us For Availability

View on Model

88A

Therm Knob B GEN WB03K5095 Contact Us For Availability

View on Model

90

Support Rod GEN WB02X9419 Contact Us For Availability

View on Model

91

Hinge GEN WB14X0126 Contact Us For Availability

View on Model

91A

Hinge GEN WB14X0127 Contact Us For Availability

View on Model

102

Insulation GEN WB02X9123 Contact Us For Availability

View on Model

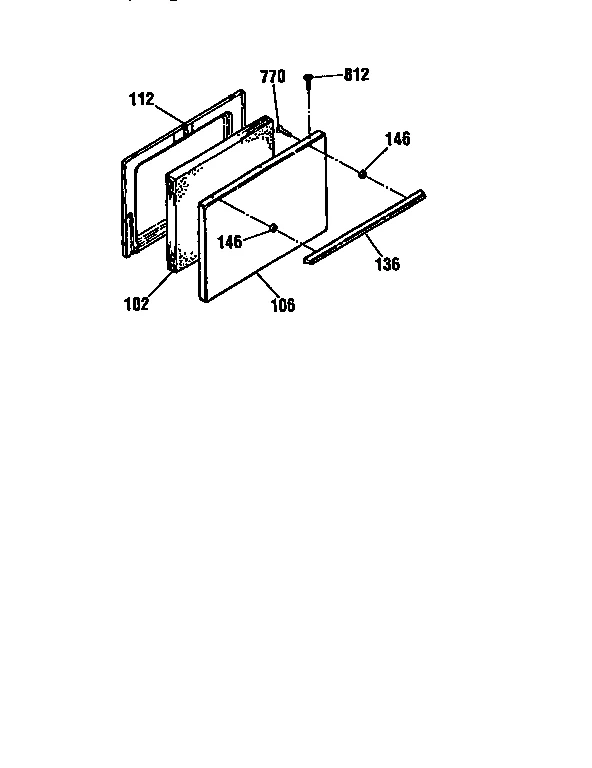

106

Panel-white GEN WB56X1896 Contact Us For Availability

View on Model

106A

Panel-almond GEN WB56X1897 Contact Us For Availability

View on Model

112

Oven Dr Lng GEN WB55T10001 Contact Us For Availability

View on Model

136

WB15X10225 GE Range Handle Backorder GEN WB15X10225 $88.06

View on Model

144

Reinforcement Plate GEN WB02K5316 Contact Us For Availability

View on Model

146

Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability

View on Model

217

Wire Cover GEN WB34K5093 Contact Us For Availability

View on Model

222

Front Panel GEN WB56K5059 Contact Us For Availability

View on Model

222A

Frt Pnl Ad GEN WB56K5063 Contact Us For Availability

View on Model

231

Insulation Oven Body GEN WB35K5074 Contact Us For Availability

View on Model

232

Insul Ov Bck GEN WB35K5073 Contact Us For Availability

View on Model

239

WB2X9189 GE Range Plug - REC Backorder GEN WB2X9189 $4.89

View on Model

241

Oven Rack GEN WB48X0208 Contact Us For Availability

View on Model

247

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

251

WB44K5012 GE Oven Bake Element In Stock GEN WB44K5012 $27.26

View on Model

252

WB44X232 GE Range Broil Element In Stock GEN WB44X232 $74.19

View on Model

255

WB17X5095 GE Black Oven Terminal Backorder GEN WB17X5095 $62.45

View on Model

256

Ovlamp Hldr GEN WB08K5042 Contact Us For Availability

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.37

View on Model

266

Base GEN WB02K5274 Contact Us For Availability

View on Model

267

Drawer Support GEN WB56M0003 Contact Us For Availability

View on Model

268

WB2X7909 GE Range Anti-Tip Kit In Stock GEN WB2X7909 $38.67

View on Model

269

Mounting Plate GEN WB02X9427 Contact Us For Availability

View on Model

270

Light Cover GEN WB34K5048 Contact Us For Availability

View on Model

277

Range Oven Door Seal GEN WB32K5051 Contact Us For Availability

View on Model

281

WB14X103 GE Range Oven Left Door Hinge In Stock GEN WB14X103 $51.82

View on Model

281A

WB14X104 GE Stove Range Oven Right Hand Door In Stock GEN WB14X104 $46.89

View on Model

282

Vent Tube GEN WB38K5020 Contact Us For Availability

View on Model

286

Oven Door Spring GEN WB09K5020 Contact Us For Availability

View on Model

286A

Spring GEN WB09X0258 Contact Us For Availability

View on Model

292

Rear Block GEN WB02X9146 Contact Us For Availability

View on Model

293

Block GEN WB02X9148 Contact Us For Availability

View on Model

294

WB2X9719 GE Oven Support Bracket Clip In Stock GEN WB2X9719 $7.66

View on Model

296

Leg-leveling GEN WB02X9188 Contact Us For Availability

View on Model

560

Eyelet Terminal GEN WB18M0001 Contact Us For Availability

View on Model

570

250 Flag GEN STD374251 Contact Us For Availability

View on Model

580

187 Push On GEN STD374180 Contact Us For Availability

View on Model

580A

250 Push On GEN STD374250 Contact Us For Availability

View on Model

691

Trim Screw GEN WB01K5192 Contact Us For Availability

View on Model

769

WB1X500D GE Oven Screw Package Backorder GEN WB1X500D $5.43

View on Model

770

WB1K5072 GE Oven Screw Backorder GEN WB1K5072 $5.65

View on Model

800

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

802

SCREW GEN WB01K5123 Contact Us For Availability

View on Model

803

WB1K5162 GE Oven Black Screw Backorder GEN WB1K5162 $5.65

View on Model

807

WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI Backorder GEN WB01X32746 $5.65

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

View on Model

811

Screw GEN WB01X1172 Contact Us For Availability

View on Model

812

WB1K5191 GE Oven Zinc FL Screw Backorder GEN WB1K5191 $5.65

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.65

View on Model

814

WB1X1258 GE Oven Screw Backorder GEN WB1X1258 $5.65

View on Model

826

Screw GEN WB01X1167 Contact Us For Availability

View on Model

833

WB1X1131 GE Screw 6-32 Backorder GEN WB1X1131 $5.02

View on Model

847

Screw (White) GEN WB01K5161 Contact Us For Availability

View on Model

847A

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $5.65

View on Model

856

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $5.65

View on Model

888

Range Drip Pan GEN WB31K5042 Contact Us For Availability

View on Model

922

Strike GEN WB14X0105 Contact Us For Availability

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

930

Washer GEN 2B01M0022 Contact Us For Availability

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.65

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $5.02

View on Model

954

Clip GEN WB02X9105 Contact Us For Availability

View on Model

979

Spacer GEN WB01X1177 Contact Us For Availability

View on Model

999

Main Wiring Harness GEN WB18K5336 Contact Us For Availability

View on Model

999

Installation Instructions GEN SR10207 Contact Us For Availability

View on Model

999A

Main Wiring Harness GEN WB18K5340 Contact Us For Availability

View on Model

999A

MINI MANUAL W/WIRE DIAG. GEN 31-13492 Contact Us For Availability

View on Model

999B

Range Wire Harness GEN WB18K5469 Contact Us For Availability

View on Model

999B

Owner's Manual GEN SR10332 Contact Us For Availability

View on Model

999C

Parts List GEN 31-13452 Contact Us For Availability

View on Model
