Model GE 911.49239300 Electric Range (Kenmore 91149239300) – Common Parts & Diagrams

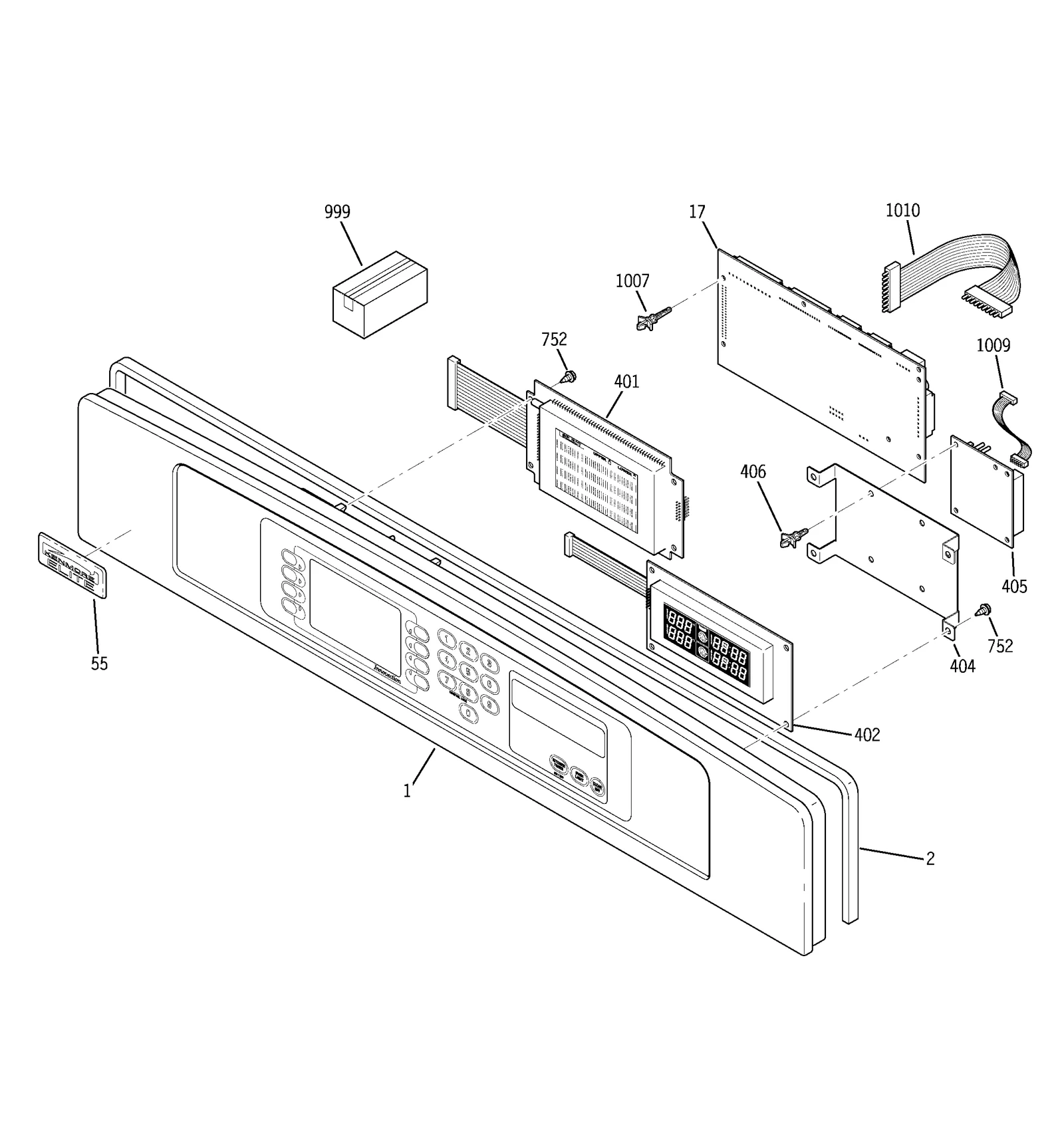

CONTROL PANEL

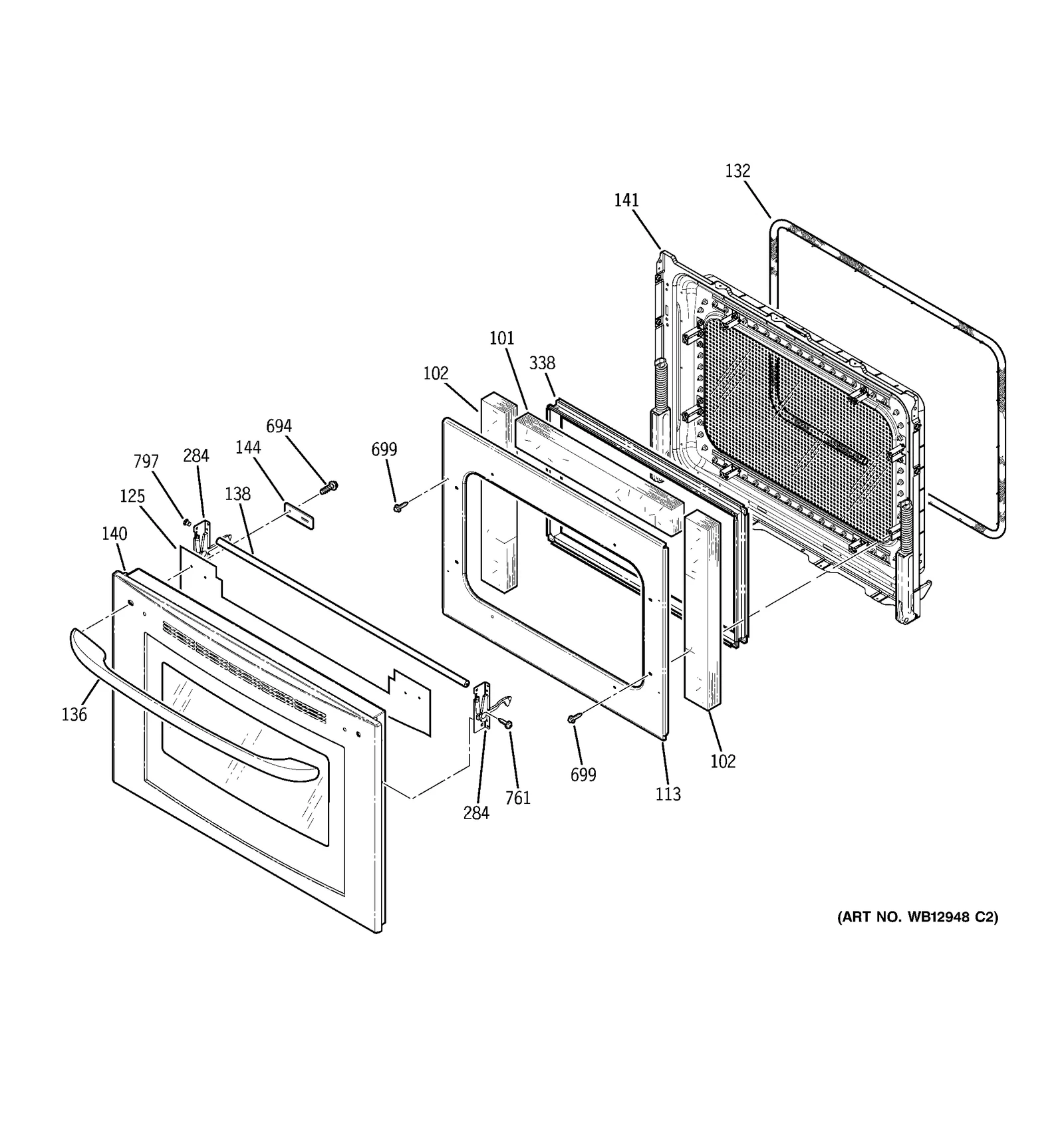

STAINLESS STEEL DOOR
LOWER OVEN BODY

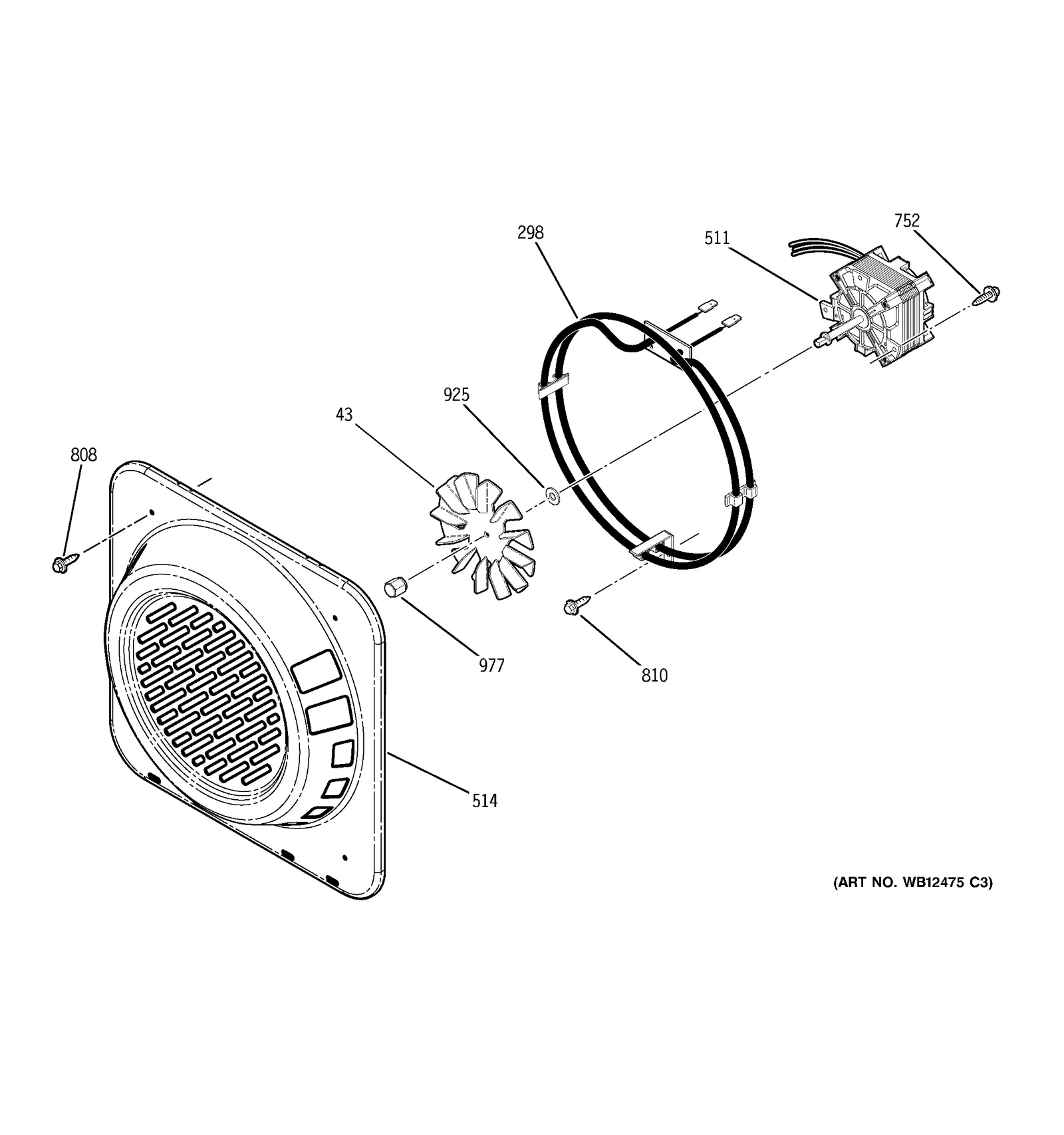

LOWER OVEN CONVECTION FAN

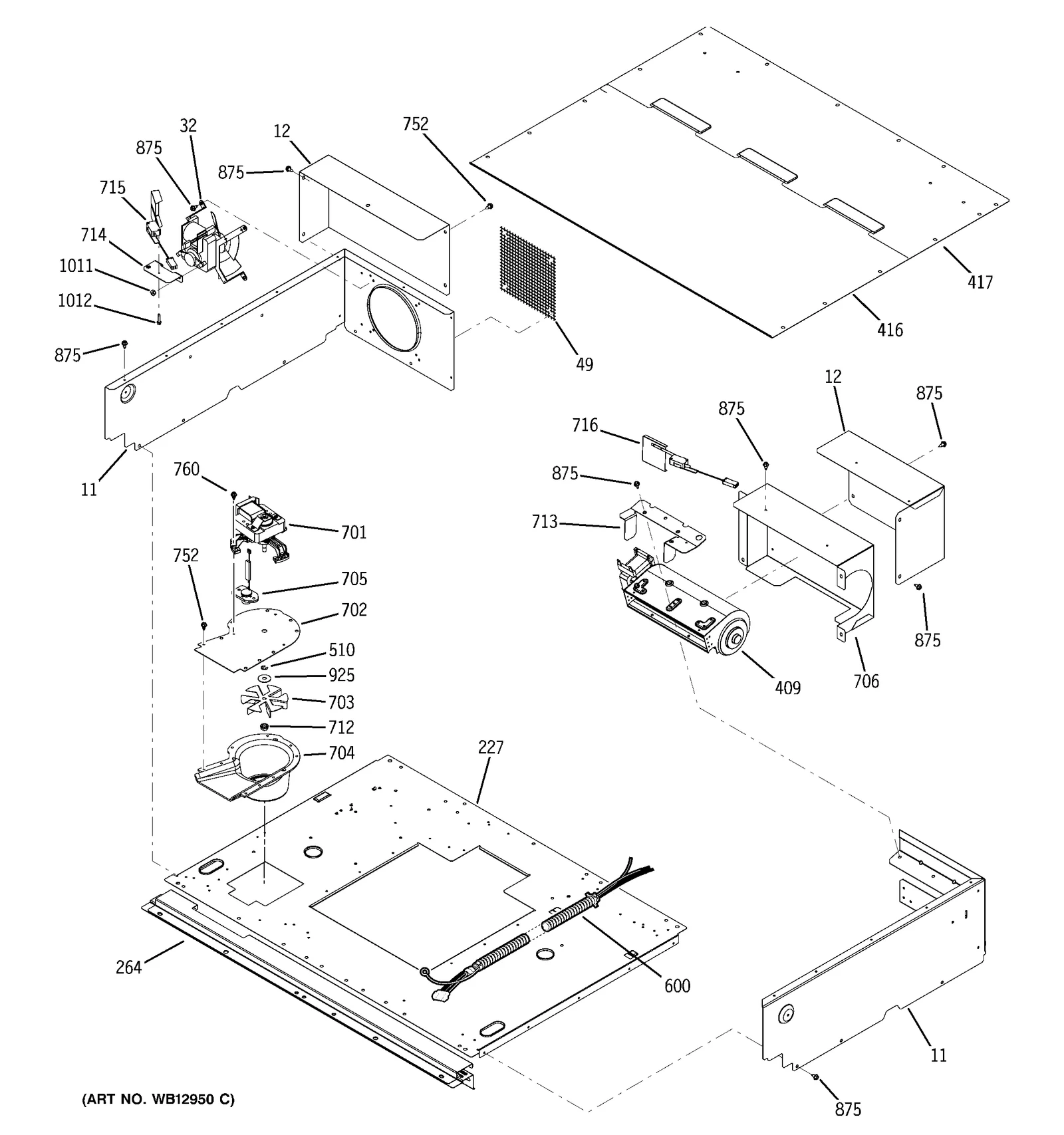

COOLING FAN

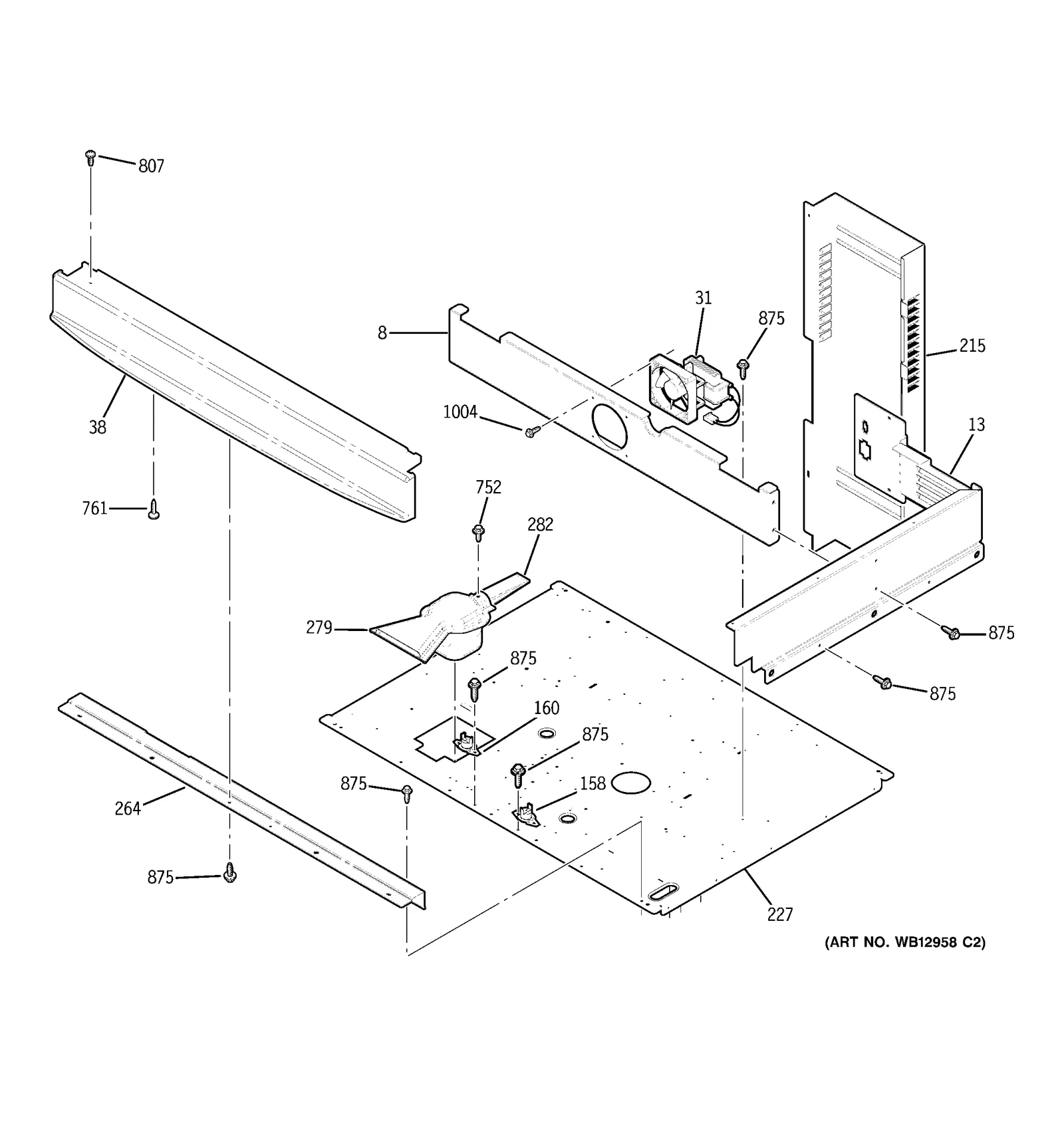

CENTER SPACER

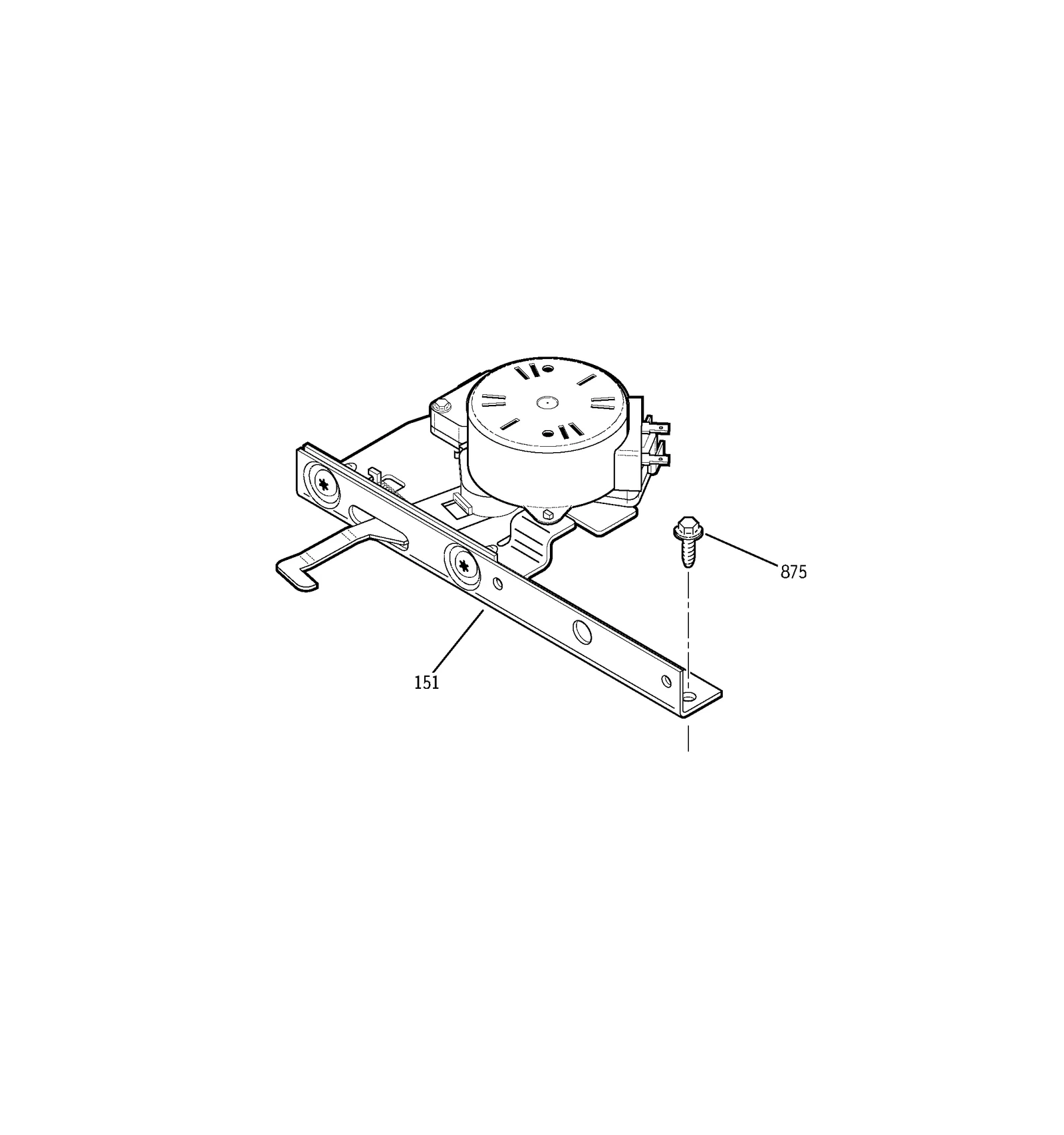

DOOR LOCK

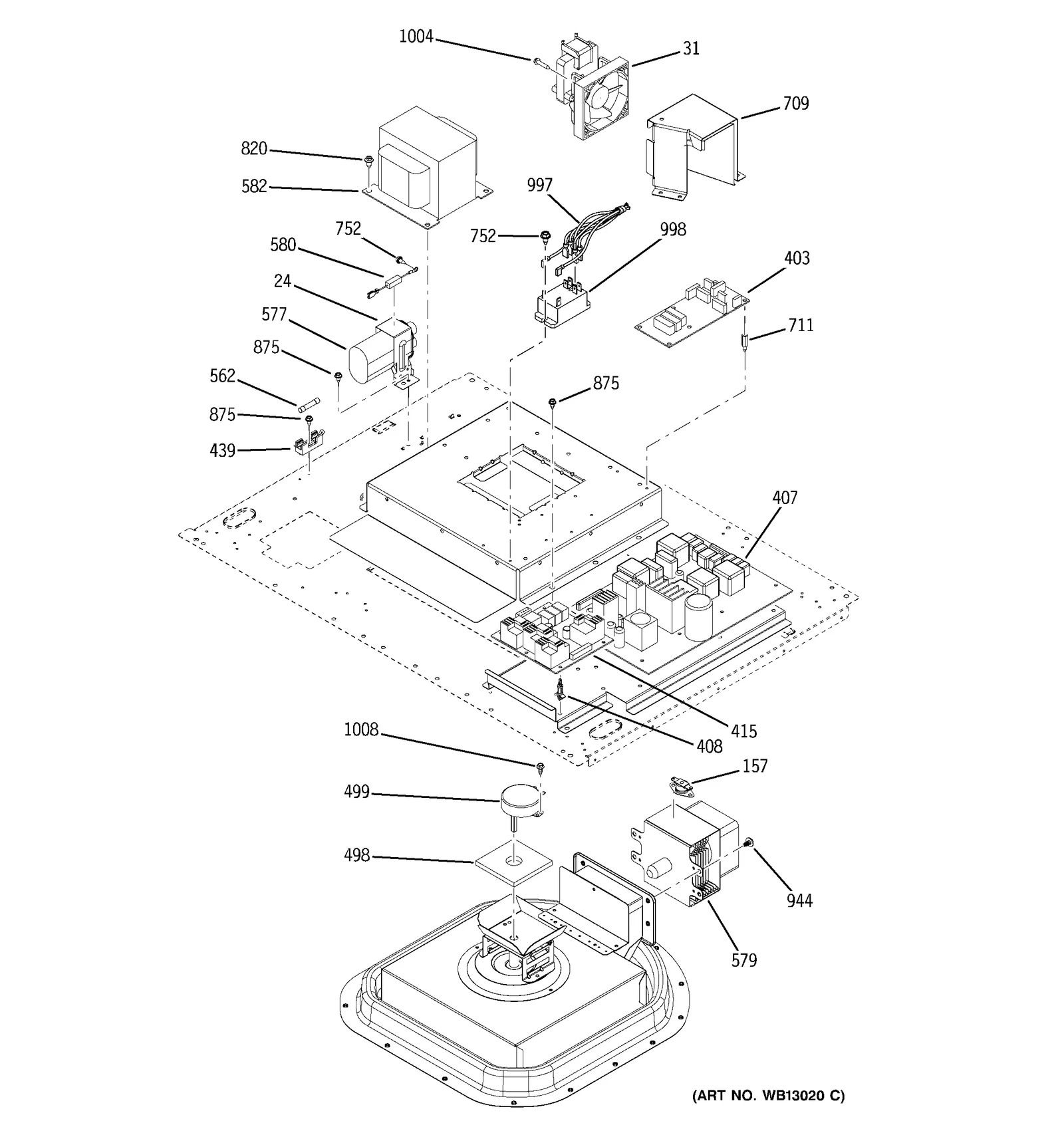

CONTROL SECTION

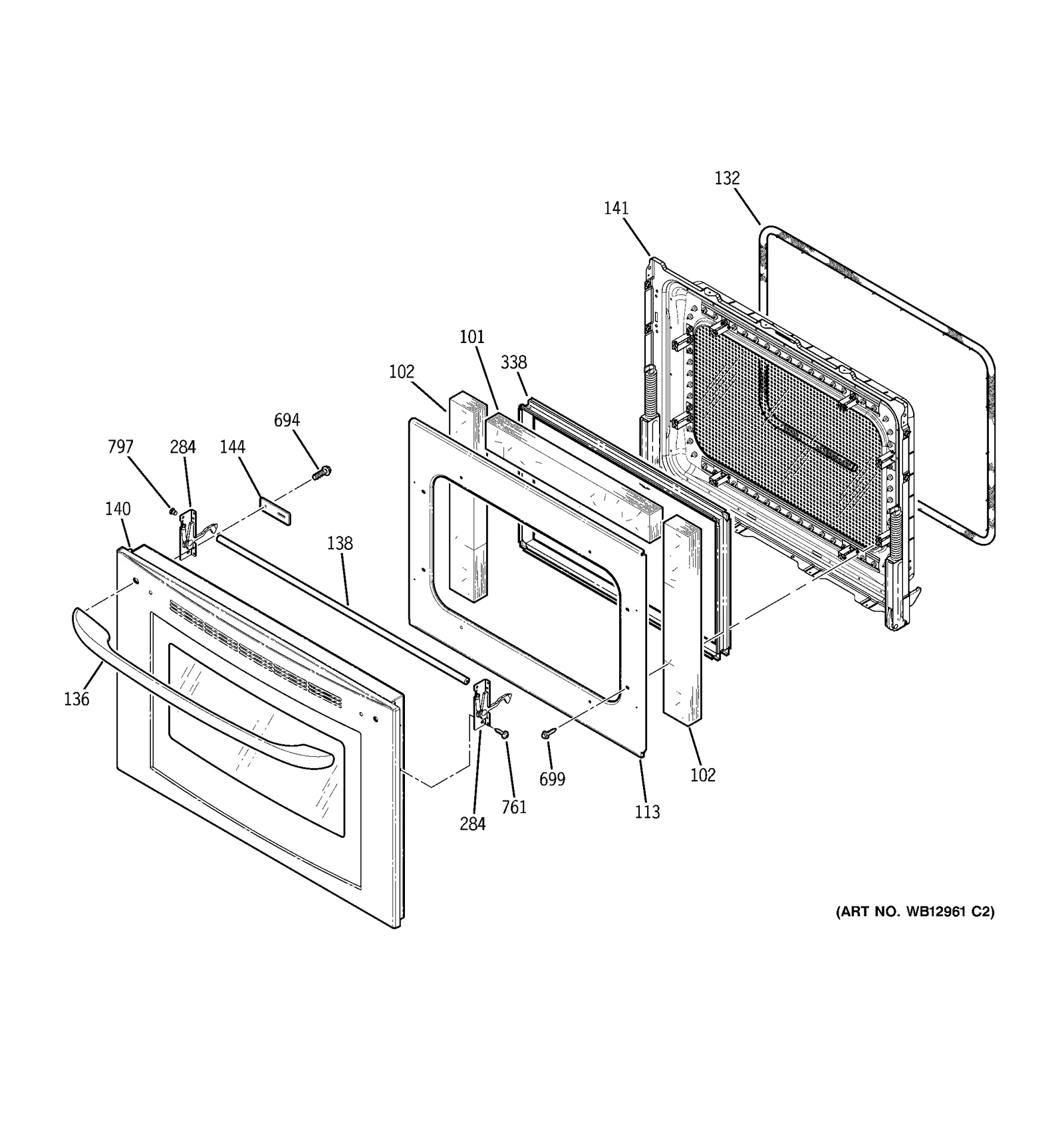

UPPER OVEN DOOR

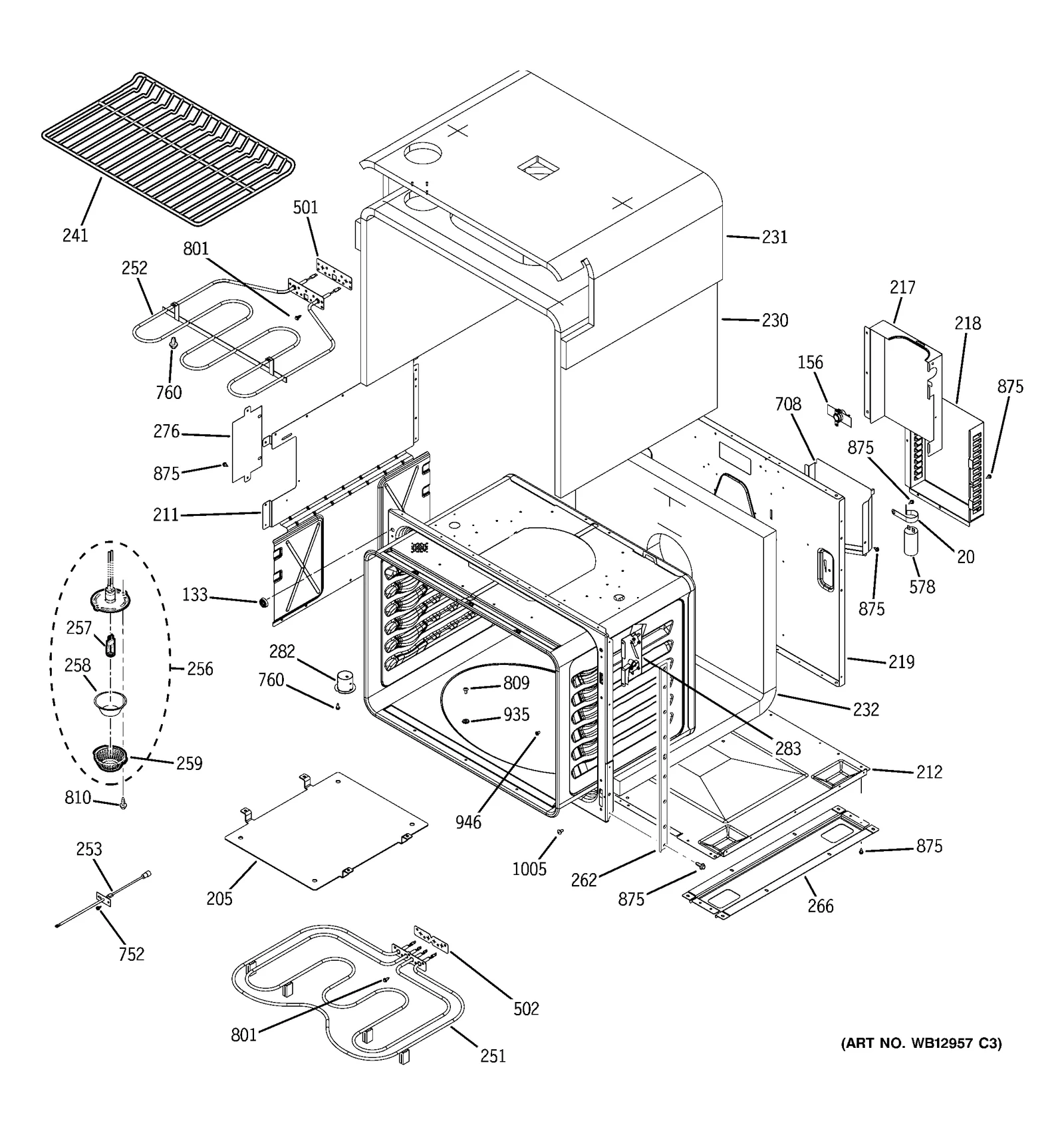

UPPER OVEN BODY

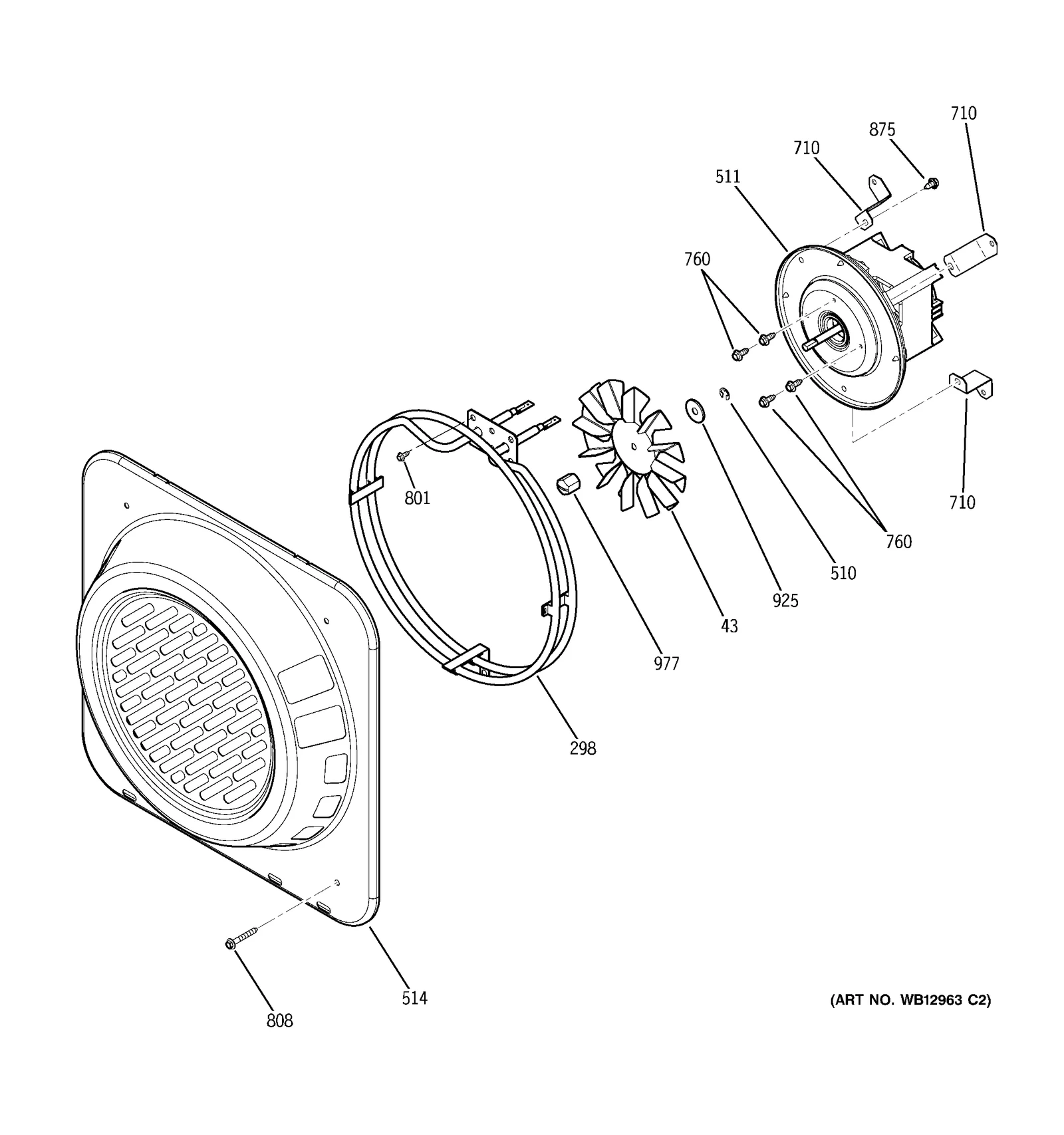

UPPER OVEN CONVECTION FAN

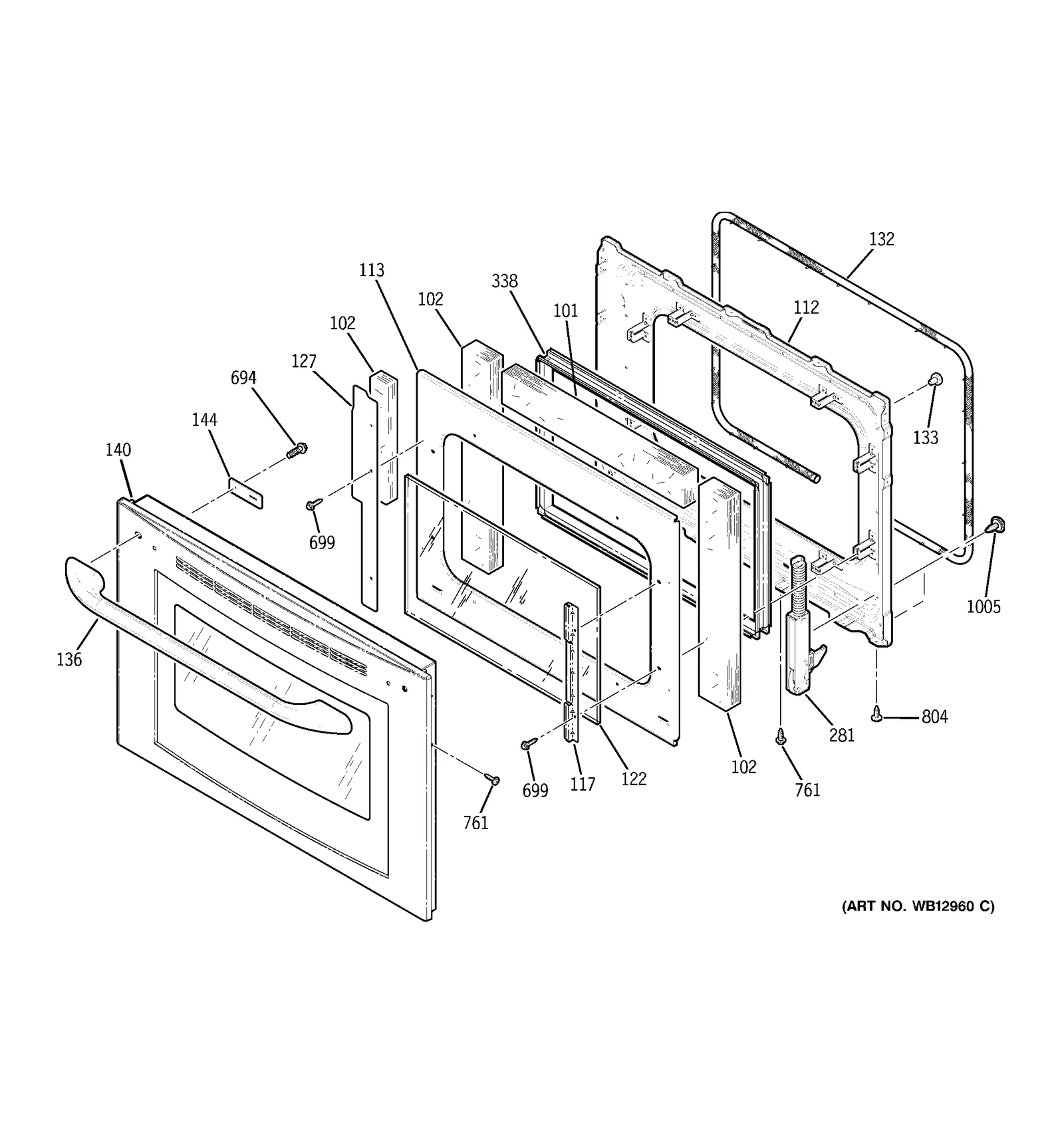

LOWER OVEN DOOR
Common parts from model GE 911.49239300 Electric Range (Kenmore 91149239300)
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Fan Housing GEN WB07T10424 Contact Us For Availability
11
Fan Housing GEN WB07T10425 Contact Us For Availability
12
Cover Fan Ring GEN WB02T10208 Contact Us For Availability
12
Cover Fan Le GEN WB02T10209 Contact Us For Availability
13
Side Ext-rt GEN WB37K5037 Contact Us For Availability
13
Side Ext-lt GEN WB37K5038 Contact Us For Availability
24
Bracket-h.v. GEN WB02T10206 Contact Us For Availability
31
Fan GEN WB26T10019 Contact Us For Availability
32
Wall Oven Transformer Fan Assembly GEN WB26T10025 Contact Us For Availability
38
Filler Trim GEN WB07T10292 Contact Us For Availability
38
Filler Trim GEN WB07T10293 Contact Us For Availability
38
Filler Trim GEN WB07T10294 Contact Us For Availability
38
Filler Trim GEN WB07T10295 Contact Us For Availability
49
Fan Screen GEN WB34T10091 Contact Us For Availability
102
Oven Insulation GEN WB35T10086 Contact Us For Availability
112
Oven Door Liner GEN WB55T10106 Contact Us For Availability
113
Retainer Insert GEN WB56T10147 Contact Us For Availability
132
Oven Door Gasket GEN WB04T10031 Contact Us For Availability
136
Oven Handle GEN WB15T10073 Contact Us For Availability
136
Oven Handle GEN WB15T10074 Contact Us For Availability
136
Oven Handle GEN WB15T10075 Contact Us For Availability
136
Oven Handle GEN WB15T10076 Contact Us For Availability
138
Rod Bracket Reinforcement GEN WB02T10200 Contact Us For Availability
140
Out Door/wht GEN WB56T10112 Contact Us For Availability
140
Outer Door Assembly GEN WB56T10113 Contact Us For Availability
140
Outer Door Assembly GEN WB56T10114 Contact Us For Availability
140
Door Outer A GEN WB57T10244 Contact Us For Availability
140
Door Outer A GEN WB57T10246 Contact Us For Availability
140
Door Outer A GEN WB57T10247 Contact Us For Availability
140
Door Outer A GEN WB57T10248 Contact Us For Availability
140
Outer Door Assembly GEN WB57T10249 Contact Us For Availability
141
In Door Pnl GEN WB55T10130 Contact Us For Availability
141
Inner Door GEN WB55T10131 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
158
Limit Bake Switch GEN WB24T10080 Contact Us For Availability
205
Match Plate GEN WB02T10199 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
211
Retainer Insert GEN WB02T10220 Contact Us For Availability
212
Retainer GEN WB02T10143 Contact Us For Availability
215
Cover Wire M GEN WB34T10094 Contact Us For Availability
217
Cover Wire U GEN WB34T10090 Contact Us For Availability
218
Cover Wire L GEN WB34T10056 Contact Us For Availability
219
Retainer Insert GEN WB02T10201 Contact Us For Availability
227
Retainer Insert GEN WB02T10202 Contact Us For Availability
230
Tub Insulation GEN WB35T10073 Contact Us For Availability
230
Insulation I GEN WB35T10096 Contact Us For Availability
231
Insulation GEN WB35T10095 Contact Us For Availability
232
Insulation GEN WB35T10097 Contact Us For Availability
241
Range Oven Rack GEN WB48T10020 Contact Us For Availability
241
Range Oven Rack GEN WB48T10038 Contact Us For Availability
251
Range Bake Element GEN WB44T10048 Contact Us For Availability
251
Range Bake Element GEN WB44T10046 Contact Us For Availability
252
Broil Unit GEN WB44T10045 Contact Us For Availability
256
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
256
Halogen Lamp GEN WB08T10028 Contact Us For Availability
258
Glass Shield GEN WB25T10035 Contact Us For Availability
259
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10276 Contact Us For Availability
262
Trim GEN WB07T10277 Contact Us For Availability
262
Trim GEN WB07T10280 Contact Us For Availability
262
Trim GEN WB07T10281 Contact Us For Availability
262
Trim GEN WB07T10284 Contact Us For Availability
262
Trim GEN WB07T10285 Contact Us For Availability
262
Trim GEN WB07T10296 Contact Us For Availability
262
Trim GEN WB07T10297 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10252 Contact Us For Availability
264
Vent Trim GEN WB07T10423 Contact Us For Availability
268
Wall Oven Trim (Black) GEN WB07T10401 Contact Us For Availability
276
Interlock Cover GEN WB02T10210 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
281
Oven Door Hinge, Right GEN WB10T10034 Contact Us For Availability
281
Oven Door Hinge, Left GEN WB10T10035 Contact Us For Availability
282
Vent Inlet D GEN WB28T10083 Contact Us For Availability
283
Interlock GEN WB15T10099 Contact Us For Availability
283
Interlock GEN WB15T10115 Contact Us For Availability
284
Interlock Hook GEN WB10T10038 Contact Us For Availability
298
Conversion Element GEN WB44T10023 Contact Us For Availability
401
Wall Oven Text Display Board GEN WB27T10547 Contact Us For Availability
403
Emi Fluid Board GEN WB27T10561 Contact Us For Availability
407
Range Oven Control Board GEN WB27T10551 No Longer Available
409
Wall Oven Cooling Fan Assembly GEN WB26T10023 Contact Us For Availability
416
Cover Frt Fa GEN WB02T10222 Contact Us For Availability
417
Cover Rear F GEN WB02T10223 Contact Us For Availability
499
Stirrer Motor GEN WB26T10028 Contact Us For Availability
501
Gasket Broil GEN WB04T10033 Contact Us For Availability
502
Bake Gasket GEN WB04T10034 Contact Us For Availability
510
Clip-e GEN WB01T10078 Contact Us For Availability
511
Range Convection Fan Motor GEN WB26T10013 Contact Us For Availability
514
Fan Cover GEN WB02T10224 Contact Us For Availability
514
Fan Cover GEN WB26T10012 Contact Us For Availability
577
Capacitor GEN WB27T10543 Contact Us For Availability
578
Range Fan Motor Start Capacitor GEN WB26T10016 Contact Us For Availability
582
Wall Oven Transformer GEN WB27T10544 Contact Us For Availability
600
Conduit Wire GEN WB18T10315 Contact Us For Availability
701
Vent Motor GEN WB26T10024 Contact Us For Availability
702
Body Vent To GEN WB02T10215 Contact Us For Availability
703
Blade Vent F GEN WB02T10213 Contact Us For Availability
704
Body Vent Bo GEN WB02T10214 Contact Us For Availability
705
Sc Sensor GEN WB23T10017 Contact Us For Availability
706
Magnet Cover GEN WB02T10216 Contact Us For Availability
708
Duct Convect GEN WB02T10218 Contact Us For Availability
709
Duct Mag Wo GEN WB02T10219 Contact Us For Availability
710
BRACKET CONVECT MOUNT GEN WB02T10221 Contact Us For Availability
711
Stud GEN WB01T10080 Contact Us For Availability
712
Oven Ven Nut GEN WB01T10081 Contact Us For Availability
713
Bracket Sail GEN WB02T10226 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
801
Scr10-16 Trt GEN WB01T10088 Contact Us For Availability
944
Magnet Screw GEN WB01T10082 Contact Us For Availability
997
Harness Dwo GEN WB18T10301 Contact Us For Availability
998
Relay Sail GEN WB18T10326 Contact Us For Availability
1004
Screw-12-pk GEN WH02X0941 Contact Us For Availability
1008
Stirrer Motor GEN WB01T10085 Contact Us For Availability
1010
Wall Oven Logic Board Ribbon Cable GEN WB18T10293 Contact Us For Availability
× ![]()
