Model GE 911.49223300 Electric Range (Kenmore 91149223300) – Common Parts &amp; Diagrams

24

Bracket-h.v. GEN WB02T10206 Contact Us For Availability

31

Fan GEN WB26T10019 Contact Us For Availability

32

Wall Oven Transformer Fan Assembly GEN WB26T10025 Contact Us For Availability

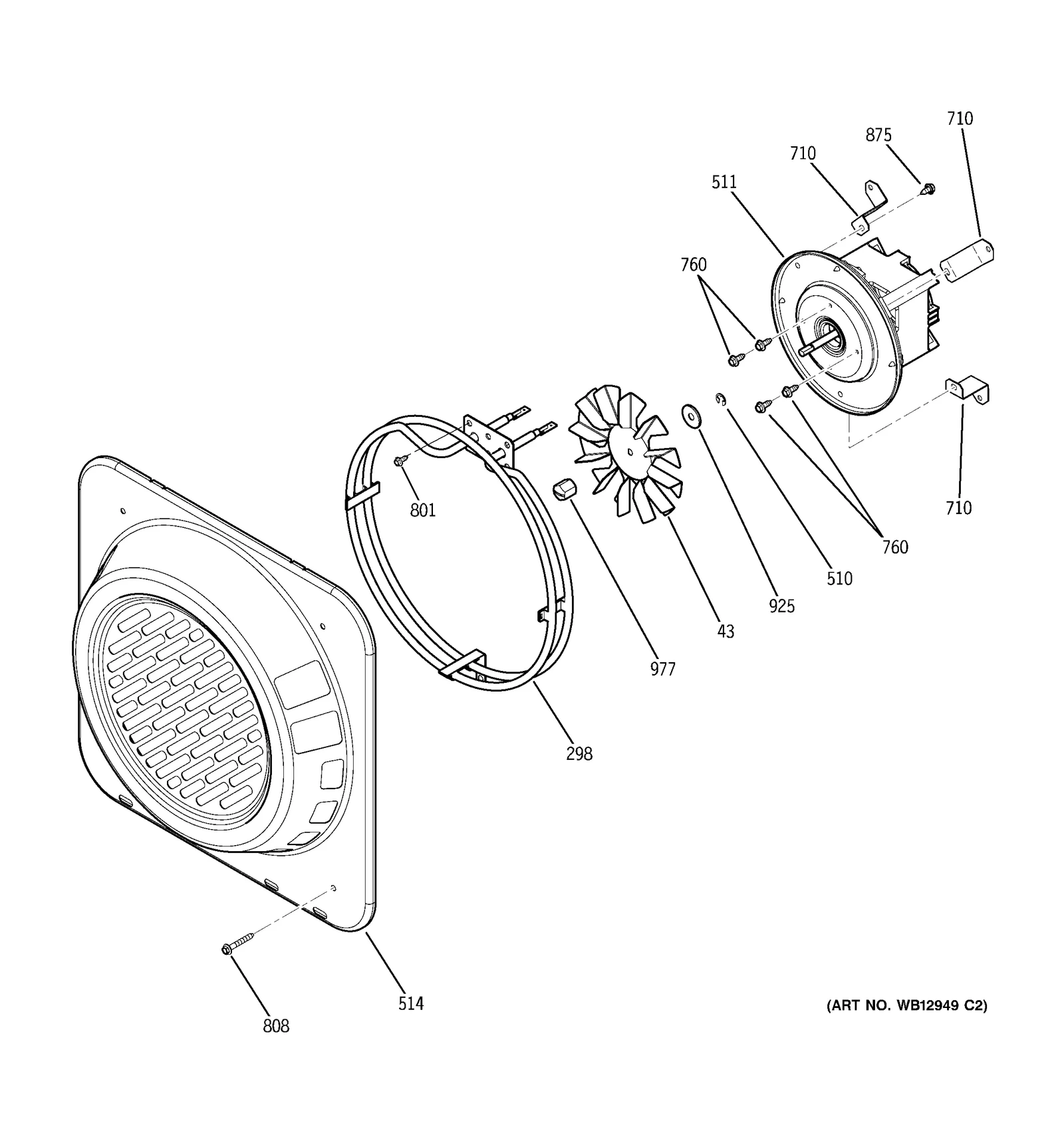

43

WB02T10289 GE Oven Stirring Fan Blade Backorder GEN WB02T10289 $17.50

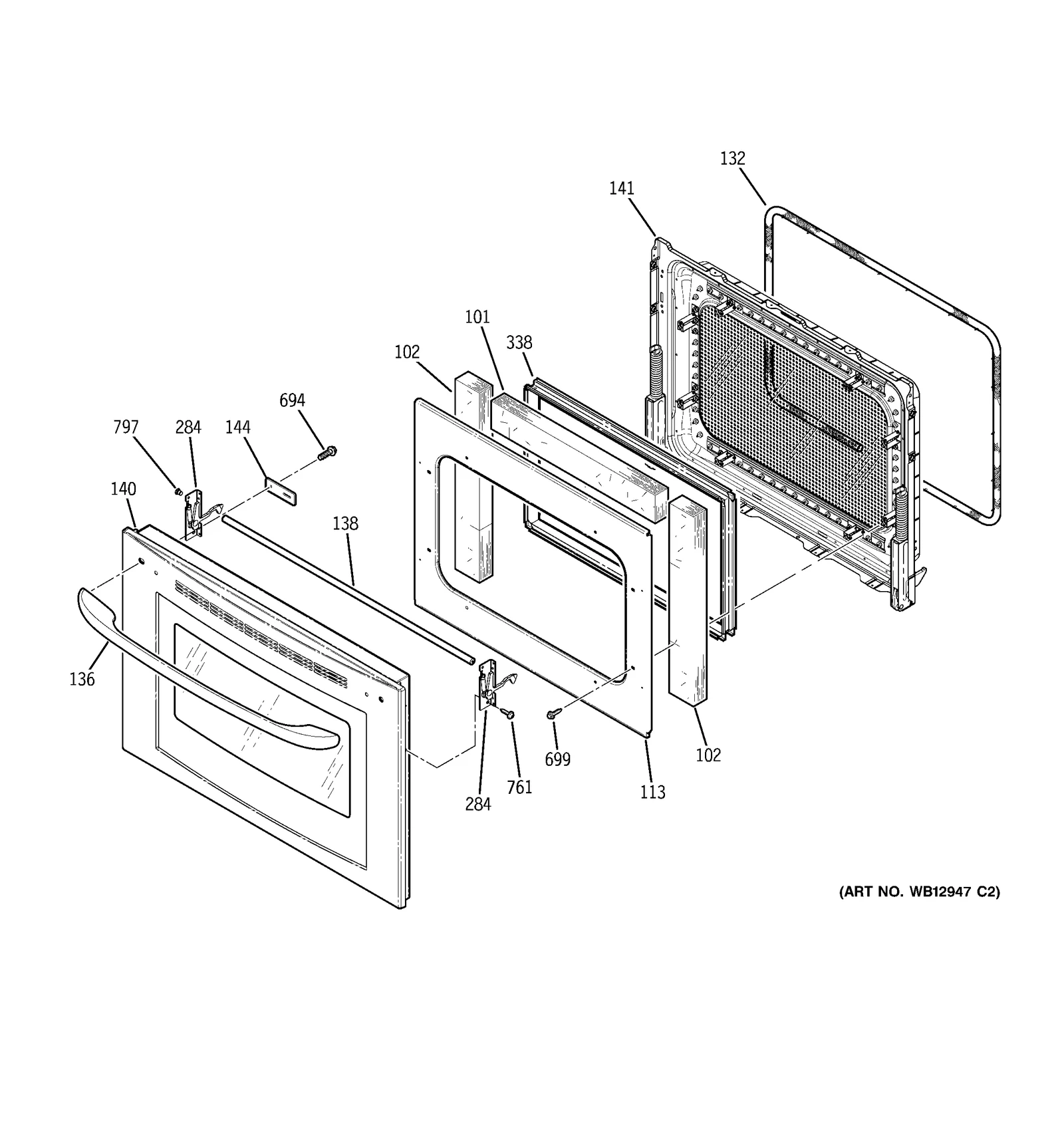

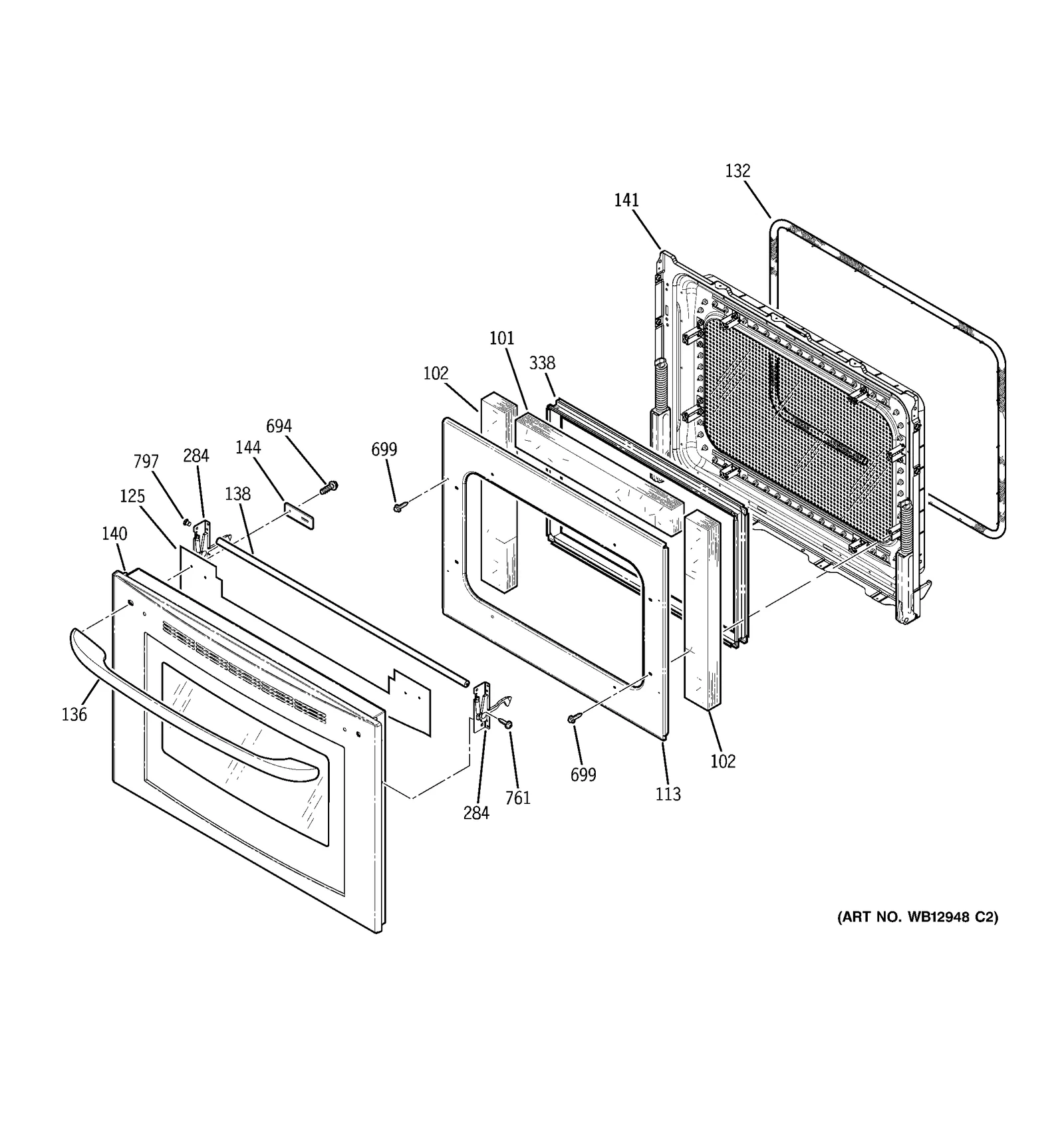

101

WB35X30052 GE Oven Door Insulation Assembly Backorder GEN WB35X30052 $5.65

102

WB35K10025 GE Oven Side Door Insulation Backorder GEN WB35K10025 $5.65

113

Retainer Insert GEN WB56T10147 Contact Us For Availability

125

Reflector He GEN WB34T10092 Contact Us For Availability

132

Oven Door Gasket GEN WB04T10031 Contact Us For Availability

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $5.65

Oven Handle GEN WB15T10073 Contact Us For Availability

Oven Handle GEN WB15T10074 Contact Us For Availability

Oven Handle GEN WB15T10075 Contact Us For Availability

Oven Handle GEN WB15T10076 Contact Us For Availability

138

Rod Bracket Reinforcement GEN WB02T10200 Contact Us For Availability

Door Outer A GEN WB57T10244 Contact Us For Availability

Door Outer A GEN WB57T10246 Contact Us For Availability

Door Outer A GEN WB57T10247 Contact Us For Availability

Door Outer A GEN WB57T10248 Contact Us For Availability

141

In Door Pnl GEN WB55T10130 Contact Us For Availability

141

Inner Door GEN WB55T10131 Contact Us For Availability

144

Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability

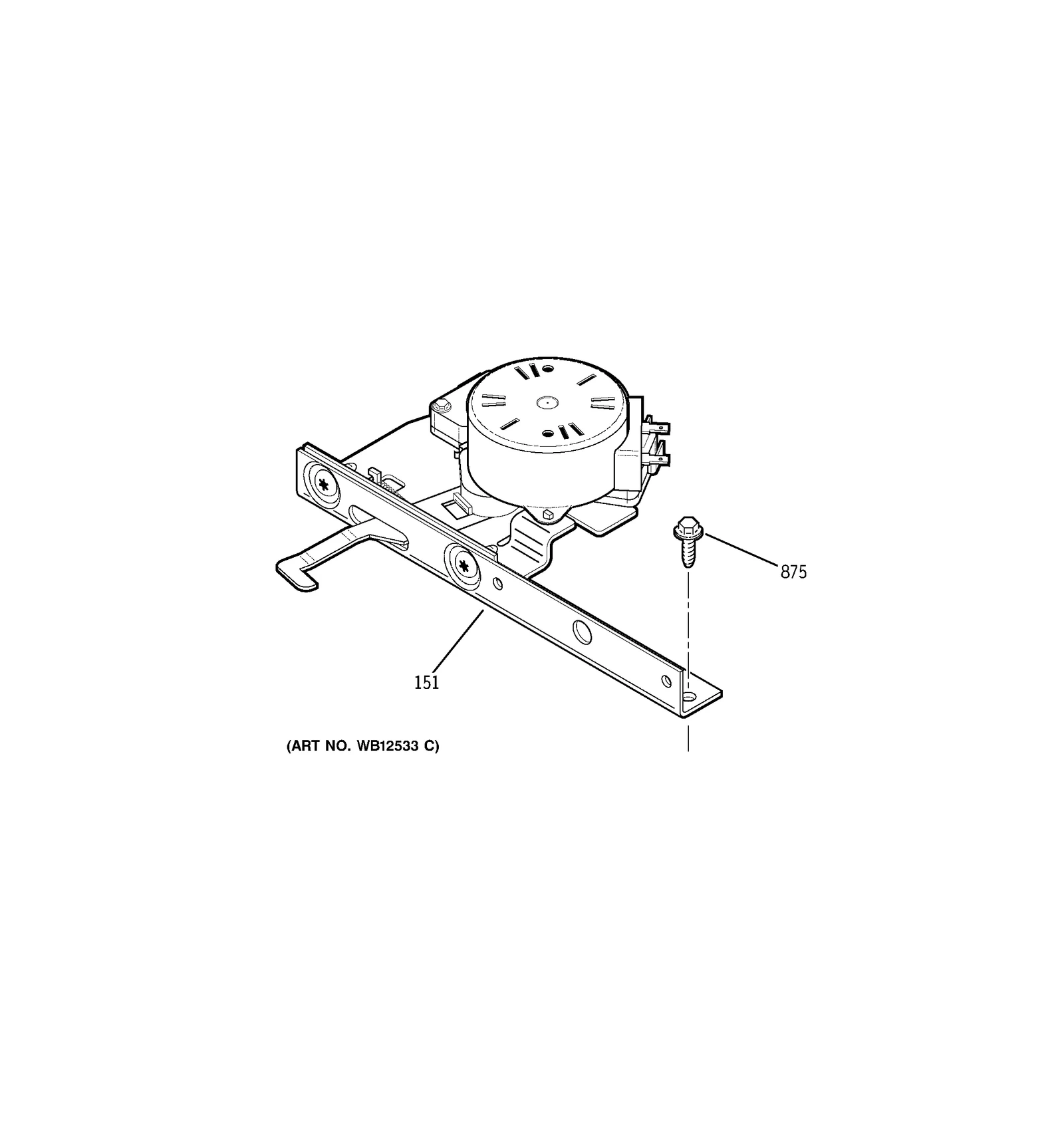

151

Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability

156

WB24T10105 GE Oven Runaway TCO Backorder GEN WB24T10105 $146.32

157

WB20X10003 GE Microwave Thermostat Backorder GEN WB20X10003 $10.88

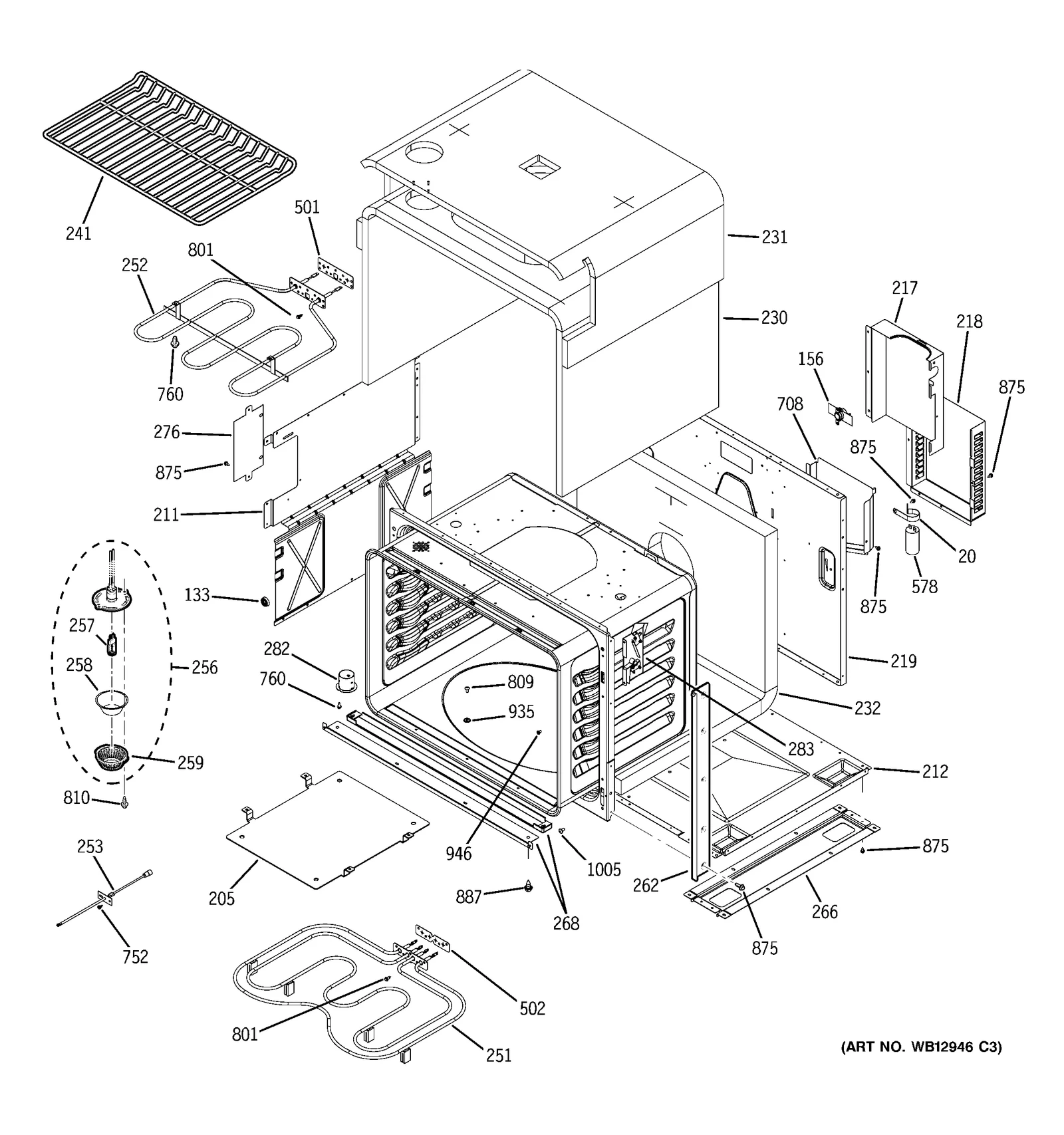

205

Match Plate GEN WB02T10199 Contact Us For Availability

211

WB63T10043 GE Cabinet Side Backorder GEN WB63T10043 $36.08

211

Retainer Insert GEN WB02T10220 Contact Us For Availability

212

Retainer GEN WB02T10143 Contact Us For Availability

217

Cover Wire U GEN WB34T10090 Contact Us For Availability

218

Cover Wire L GEN WB34T10056 Contact Us For Availability

219

Retainer Insert GEN WB02T10201 Contact Us For Availability

230

Insulation I GEN WB35T10096 Contact Us For Availability

231

Insulation GEN WB35T10095 Contact Us For Availability

232

Insulation GEN WB35T10097 Contact Us For Availability

241

Range Oven Rack GEN WB48T10038 Contact Us For Availability

251

Range Bake Element GEN WB44T10048 Contact Us For Availability

252

WB44T10047 GE Oven Broil Element 2500W Backorder GEN WB44T10047 $67.34

253

WB23T10020 GE Oven Sensor Assembly Backorder GEN WB23T10020 $18.75

256

Halogen Lamp GEN WB08T10028 Contact Us For Availability

257

WB49X29679 GE Range Halogen Bulb Kit In Stock GEN WB49X29679 $29.19

258

Glass Shield GEN WB25T10035 Contact Us For Availability

259

WB25T10027 GE Oven Lens Lamp Backorder GEN WB25T10027 $9.95

Trim GEN WB07T10250 Contact Us For Availability

Trim GEN WB07T10251 Contact Us For Availability

Trim GEN WB07T10255 Contact Us For Availability

Trim GEN WB07T10256 Contact Us For Availability

Trim GEN WB07T10258 Contact Us For Availability

Trim GEN WB07T10259 Contact Us For Availability

Trim GEN WB07T10263 Contact Us For Availability

Trim GEN WB07T10264 Contact Us For Availability

266

WB02K10048 GE Base Rail Backorder GEN WB02K10048 $14.88

Wall Oven Trim (Black) GEN WB07T10401 Contact Us For Availability

Bottom Trim, 30-in GEN WB07T10399 Contact Us For Availability

Bottom Trim, 30-in GEN WB07T10400 Contact Us For Availability

Bottom Trim, 30-in GEN WB07T10428 Contact Us For Availability

Cabinet Trim, Lower GEN WB07T10439 Contact Us For Availability

Cabinet Trim, Lower GEN WB07T10440 Contact Us For Availability

Cabinet Trim, Lower GEN WB07T10441 Contact Us For Availability

Cabinet Trim, Lower GEN WB07T10442 Contact Us For Availability

276

Interlock Cover GEN WB02T10210 Contact Us For Availability

282

WB38X33650 GE Vent Tube Backorder GEN WB38X33650 $12.28

283

Interlock GEN WB15T10099 Contact Us For Availability

283

Interlock GEN WB15T10115 Contact Us For Availability

284

Interlock Hook GEN WB10T10038 Contact Us For Availability

298

Conversion Element GEN WB44T10023 Contact Us For Availability

338

WB56T10105 GE Oven Inner Window Assembly In Stock GEN WB56T10105 $104.37

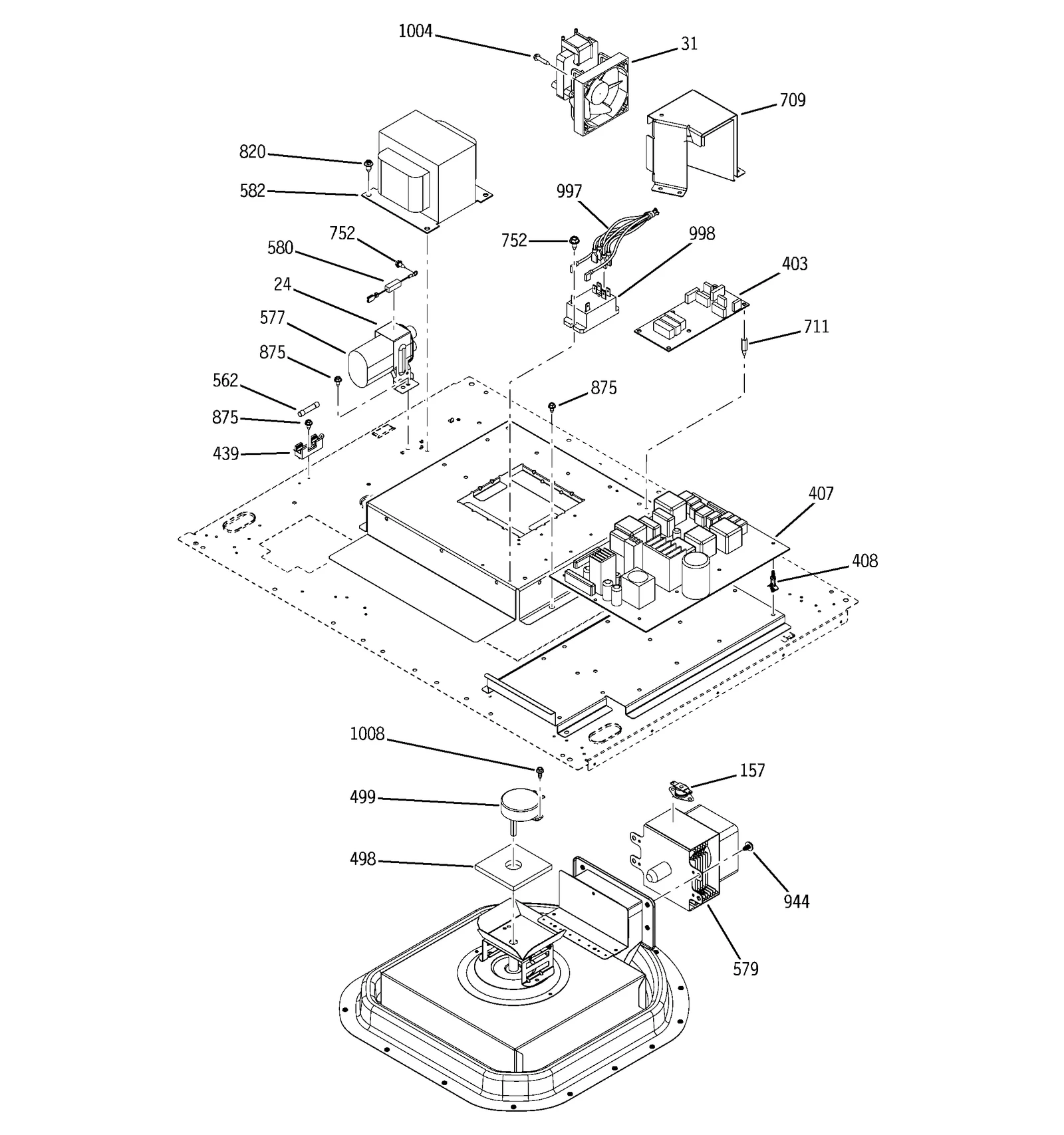

401

Wall Oven Text Display Board GEN WB27T10547 Contact Us For Availability

402

WB27T10548 GE Oven VFD2 Display Backorder GEN WB27T10548 $473.46

403

Emi Fluid Board GEN WB27T10561 Contact Us For Availability

405

WB27T10549 GE Oven Quantum Board Backorder GEN WB27T10549 $234.19

407

Range Oven Control Board GEN WB27T10551 No Longer Available

408

WB02T10207 GE PCB Standoff Backorder GEN WB02T10207 $5.65

409

Wall Oven Cooling Fan Assembly GEN WB26T10023 Contact Us For Availability

439

WB06T10013 GE Microwave Fuse Holder Backorder GEN WB06T10013 $17.78

498

WB35T10098 GE Stirrer Motor Insulation Backorder GEN WB35T10098 $4.84

499

Stirrer Motor GEN WB26T10028 Contact Us For Availability

501

Gasket Broil GEN WB04T10033 Contact Us For Availability

502

Bake Gasket GEN WB04T10034 Contact Us For Availability

510

Clip-e GEN WB01T10078 Contact Us For Availability

511

WB26X26537 GE Oven Convection Motor PSC Backorder GEN WB26X26537 $72.07

514

Fan Cover GEN WB02T10224 Contact Us For Availability

562

WB27X10454 GE Oven Fuse Backorder GEN WB27X10454 $11.92

577

Capacitor GEN WB27T10543 Contact Us For Availability

578

Range Fan Motor Start Capacitor GEN WB26T10016 Contact Us For Availability

579

WB27X11079 GE Oven Magnetron Assembly In Stock GEN WB27X11079 $114.39

580

WB27X10597 GE Oven Diode In Stock GEN WB27X10597 $46.87

582

Wall Oven Transformer GEN WB27T10544 Contact Us For Availability

694

WB01T10066 GE Oven Screw 10-16 XC02 Backorder GEN WB01T10066 $5.65

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

703

Blade Vent F GEN WB02T10213 Contact Us For Availability

708

Duct Convect GEN WB02T10218 Contact Us For Availability

709

Duct Mag Wo GEN WB02T10219 Contact Us For Availability

710

BRACKET CONVECT MOUNT GEN WB02T10221 Contact Us For Availability

711

Stud GEN WB01T10080 Contact Us For Availability

712

Oven Ven Nut GEN WB01T10081 Contact Us For Availability

715

WB24T10103 GE Oven Left Switch Sail Assembly Backorder GEN WB24T10103 $54.29

716

WB24T10104 GE Oven Right Switch Assembly Backorder GEN WB24T10104 $40.83

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $5.65

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.90

761

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $5.65

761

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $5.65

761

Screw (White) GEN WB01K5185 Contact Us For Availability

797

WB1K5119 GE Oven Screw Backorder GEN WB1K5119 $5.65

801

Scr10-16 Trt GEN WB01T10088 Contact Us For Availability

808

WB01T10058 GE Screw 10-16 AB HXW 750 S N Backorder GEN WB01T10058 $5.65

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $5.65

820

WB1X1424D GE Oven Screw Package Backorder GEN WB1X1424D $4.84

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

WB1K5172 GE Oven Screw Backorder GEN WB1K5172 $11.53

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $5.65

Screw St 8-1 GEN WB01T10032 Contact Us For Availability

Screw St 8-1 GEN WB01T10033 Contact Us For Availability

925

WB1K5117 GE Oven Washer Backorder GEN WB1K5117 $5.65

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.65

944

Magnet Screw GEN WB01T10082 Contact Us For Availability

946

WB01T10084 GE Screw 8-32 x .343 Truss Backorder GEN WB01T10084 $5.65

977

WB02T10017 GE Oven Nut Backorder GEN WB02T10017 $6.99

997

Wall Oven Microwave Control Wire Harness GEN WB18T10295 Contact Us For Availability

998

Relay Sail GEN WB18T10326 Contact Us For Availability

999

WB18T10313 GE Oven Harness Ground Hinge Recei Backorder GEN WB18T10313 $5.95

1004

Screw-12-pk GEN WH02X0941 Contact Us For Availability

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.65

1008

Stirrer Motor GEN WB01T10085 Contact Us For Availability

1010

Wall Oven Logic Board Ribbon Cable GEN WB18T10293 Contact Us For Availability
