Model GE 911.47749200 Wall Oven (Kenmore 91147749200) – Common Parts & Diagrams

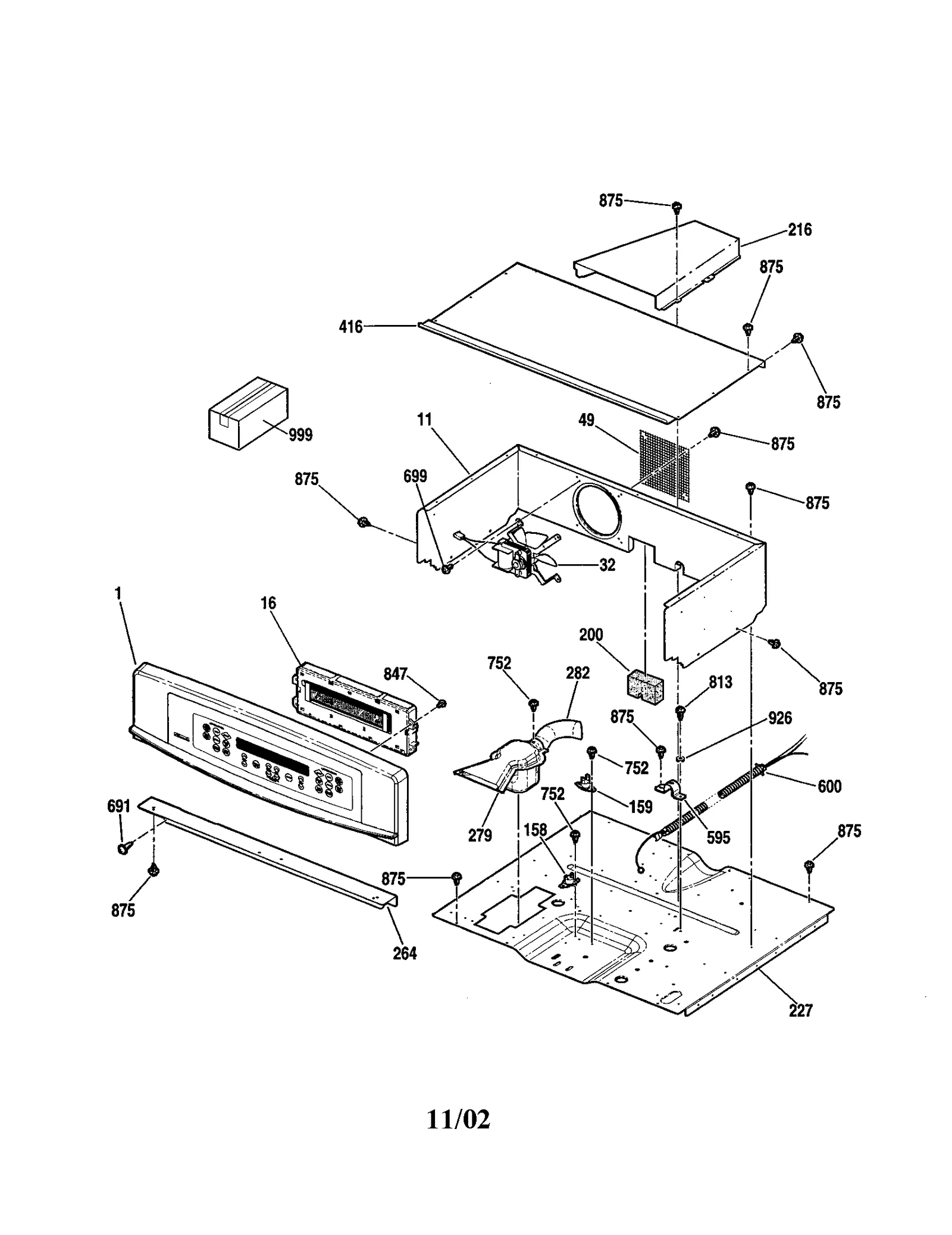

11
Side Extensi
Side Extensi GEN WB36T10389 Contact Us For Availability
View on Model

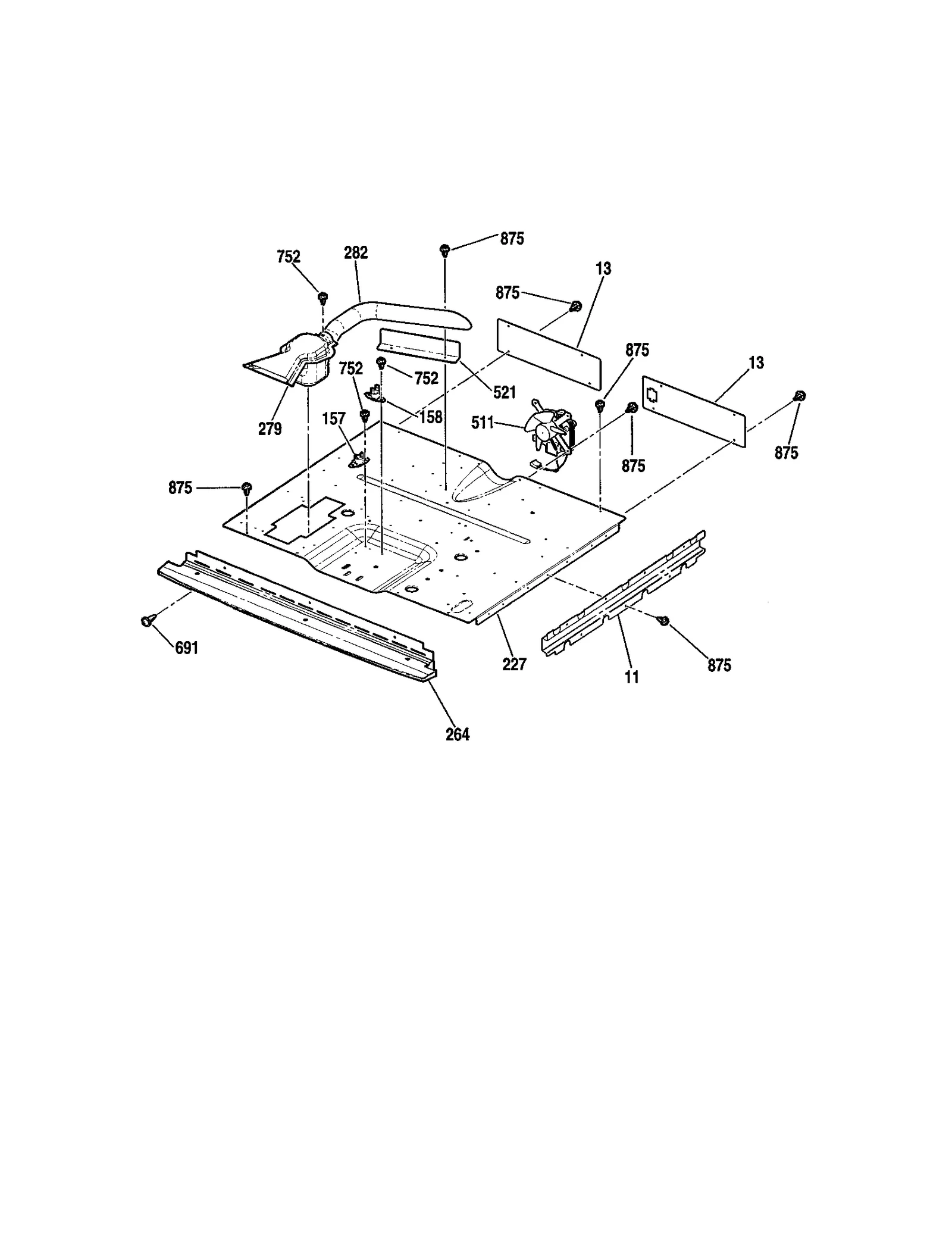

13
Plate
Plate GEN WB34T10048 Contact Us For Availability
View on Model
13A
Back Plate-l
Back Plate-l GEN WB34T10046 Contact Us For Availability
View on Model

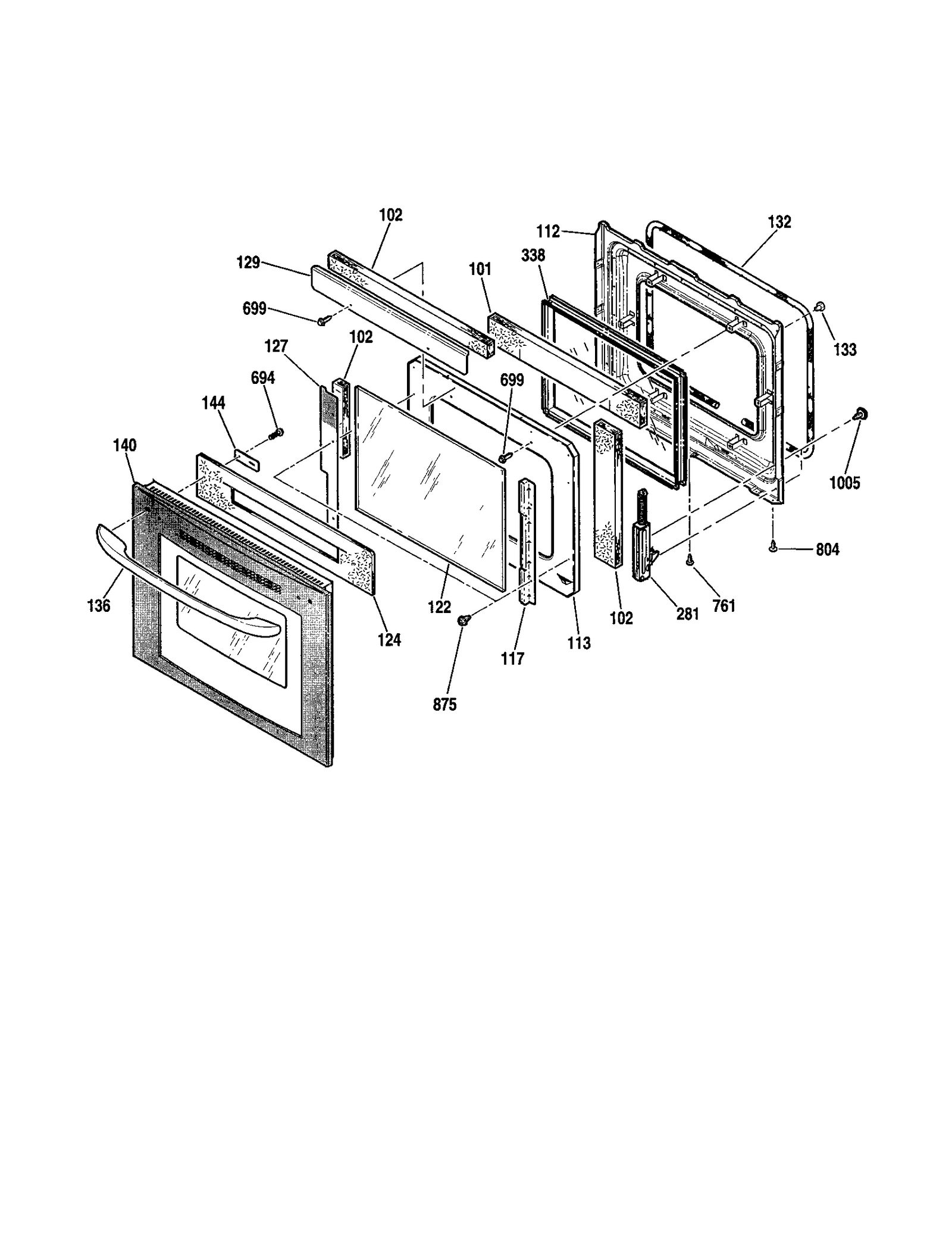

101
Oven Door
Oven Door GEN WB35T10062 Contact Us For Availability
View on Model
102
Oven Door
Oven Door GEN WB35T10061 Contact Us For Availability
View on Model
102A
Oven Insulation
Oven Insulation GEN WB35T10086 Contact Us For Availability
View on Model
102B
Oven Insulation
Oven Insulation GEN WB35T10083 Contact Us For Availability
View on Model
112
Oven Door Liner
Oven Door Liner GEN WB55T10088 Contact Us For Availability
View on Model
122
Wall Oven Door Middle Glass
Wall Oven Door Middle Glass GEN WB57T10185 Contact Us For Availability
View on Model
124
Insulation
Insulation GEN WB35T10084 Contact Us For Availability
View on Model
127
Oven Retainer
Oven Retainer GEN WB02T10170 Contact Us For Availability
View on Model
129
Extension Retainer
Extension Retainer GEN WB02T10178 Contact Us For Availability
View on Model
136
Handle
Handle GEN WB15T10082 Contact Us For Availability
View on Model
140
Door Asm (ot
Door Asm (ot GEN WB57T10220 Contact Us For Availability
View on Model
144
Wall Oven Door Handle Mounting Bracket
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
View on Model
157
Range Oven Temperature Limit Switch
Range Oven Temperature Limit Switch GEN WB24T10077 Contact Us For Availability
View on Model
158
Limit Switch
Limit Switch GEN WB24T10076 Contact Us For Availability
View on Model

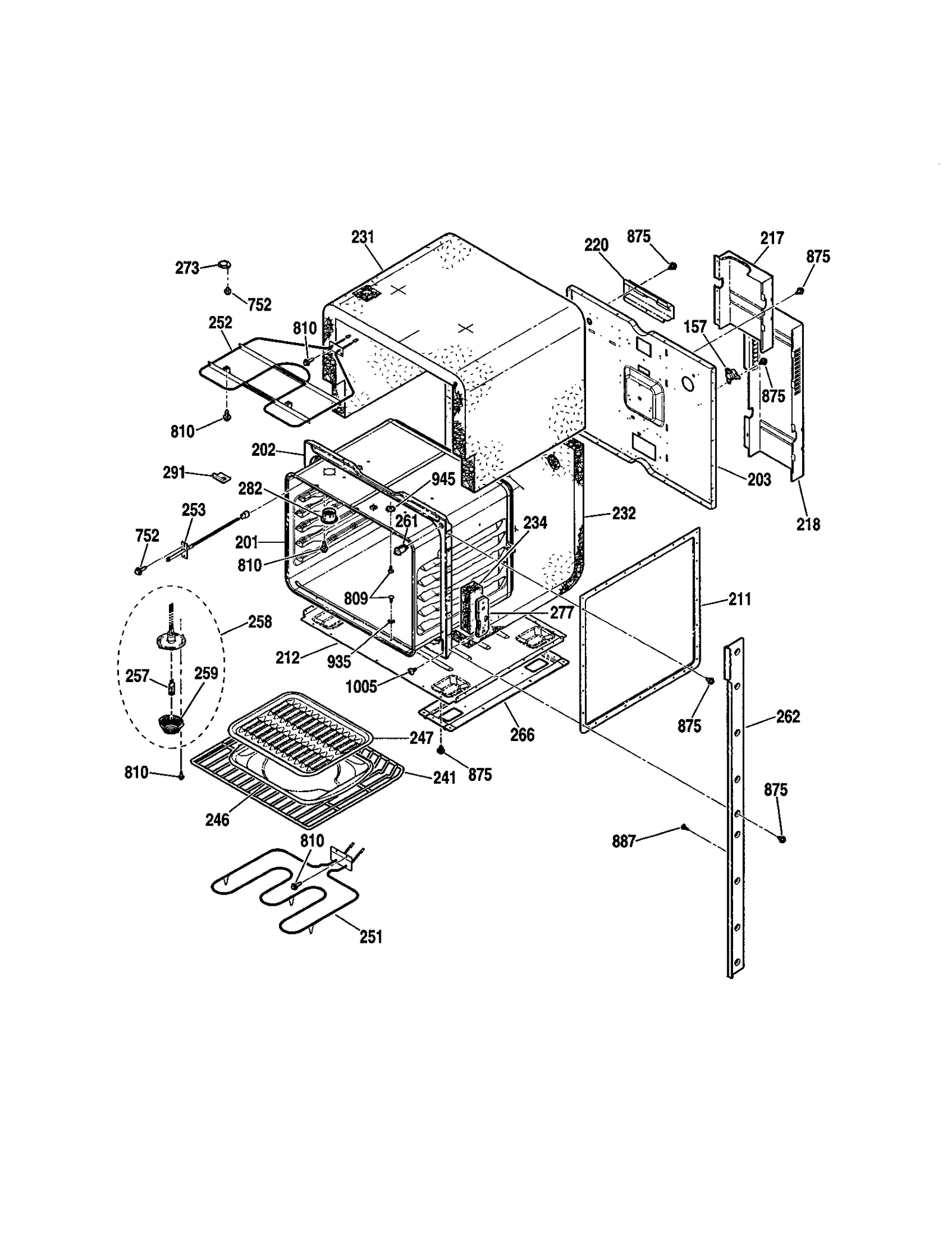

201
Oven Wrapper
Oven Wrapper GEN WB63T10090 Contact Us For Availability
View on Model
202
Frame
Frame GEN WB63T10072 Contact Us For Availability
View on Model
203
Retainer Insert
Retainer Insert GEN WB63T10087 Contact Us For Availability
View on Model
211
Retainer Insert
Retainer Insert GEN WB63T10091 Contact Us For Availability
View on Model
212
Retainer Insert
Retainer Insert GEN WB63T10082 Contact Us For Availability
View on Model
217
Wall Oven Wire Harness Cover, Upper
Wall Oven Wire Harness Cover, Upper GEN WB34T10062 Contact Us For Availability
View on Model
218
Wall Oven Wire Harness Cover, Center
Wall Oven Wire Harness Cover, Center GEN WB34T10063 Contact Us For Availability
View on Model
218
Cover Wire L
Cover Wire L GEN WB34T10056 Contact Us For Availability
View on Model
220
Wall Oven Temperature Sensor Wire Harness Cov
Wall Oven Temperature Sensor Wire Harness Cov GEN WB34T10061 Contact Us For Availability
View on Model
227
Retainer Insert
Retainer Insert GEN WB02T10159 Contact Us For Availability
View on Model
231
Insulation
Insulation GEN WB35T10075 Contact Us For Availability
View on Model
232
Insulation
Insulation GEN WB35T10076 Contact Us For Availability
View on Model
234
Insulation H
Insulation H GEN WB10T10016 Contact Us For Availability
View on Model
241
Range Oven Rack
Range Oven Rack GEN WB48T10025 Contact Us For Availability
View on Model
258
Wall Oven Halogen Light Assembly
Wall Oven Halogen Light Assembly GEN WB25T10025 Contact Us For Availability
View on Model
259
Oven Lamp Lens
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
View on Model
261
Range Oven Door Switch
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
View on Model
262
Trim
Trim GEN WB07T10308 Contact Us For Availability
View on Model
262A
Trim
Trim GEN WB07T10309 Contact Us For Availability
View on Model
262B
Trim
Trim GEN WB07T10311 Contact Us For Availability
View on Model
262C
Trim
Trim GEN WB07T10312 Contact Us For Availability
View on Model
262D
Trim
Trim GEN WB07T10314 Contact Us For Availability
View on Model
262E
Trim
Trim GEN WB07T10315 Contact Us For Availability
View on Model
264
Trim
Trim GEN WB07T10343 Contact Us For Availability
View on Model

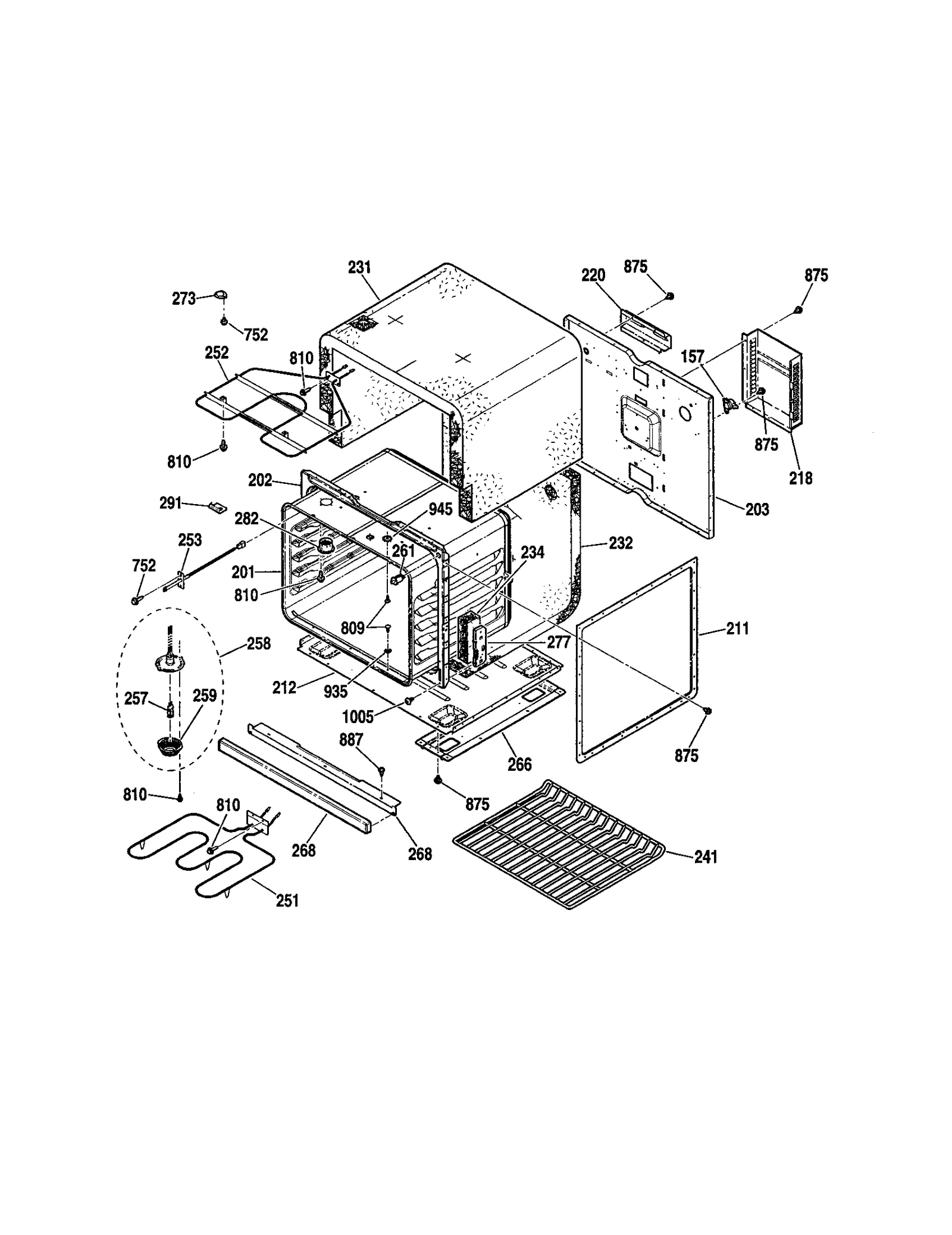

268
Trim Btm 27
Trim Btm 27 GEN WB07T10320 Contact Us For Availability
View on Model
268A
Trim Btm 27
Trim Btm 27 GEN WB07T10322 Contact Us For Availability
View on Model
268B
Trim Btm 27
Trim Btm 27 GEN WB07T10321 Contact Us For Availability
View on Model
268C
Cabinet Trim, Lower
Cabinet Trim, Lower GEN WB28T10077 Contact Us For Availability
View on Model
268D
Cabinet Trim, Lower
Cabinet Trim, Lower GEN WB28T10079 Contact Us For Availability
View on Model
268E
Cabinet Trim, Lower
Cabinet Trim, Lower GEN WB28T10078 Contact Us For Availability
View on Model
268F
LOWER FRONT FRAME TRIM (W/O RIVET) WHITE
LOWER FRONT FRAME TRIM (W/O RIVET) WHITE GEN WB28T10377 Contact Us For Availability
View on Model
268G
LOWER FRONT FRAME TRIM (W/O RIVET)
LOWER FRONT FRAME TRIM (W/O RIVET) GEN WB28T10376 Contact Us For Availability
View on Model
268H
LOWER FRONT FRAME TRIM (W/O RIVET) BISQUE
LOWER FRONT FRAME TRIM (W/O RIVET) BISQUE GEN WB28T10378 Contact Us For Availability
View on Model
273
COVER
COVER GEN WB02K5365 Contact Us For Availability
View on Model
277
Hinge Receiver
Hinge Receiver GEN WB10T10015 Contact Us For Availability
View on Model
281
Oven Door Hinge, Right
Oven Door Hinge, Right GEN WB10T10034 Contact Us For Availability
View on Model
281A
Oven Door Hinge, Left
Oven Door Hinge, Left GEN WB10T10035 Contact Us For Availability
View on Model
282
Duct Vent Inlet
Duct Vent Inlet GEN WB28T10082 Contact Us For Availability
View on Model
291
COVER
COVER GEN WB02X9152 Contact Us For Availability
View on Model
416
Electronic Cover
Electronic Cover GEN WB35T10060 Contact Us For Availability
View on Model
511
Fan Assembly
Fan Assembly GEN WB64T10028 Contact Us For Availability
View on Model
521
Deflector Ai
Deflector Ai GEN WB34T10064 Contact Us For Availability
View on Model
691
Screw
Screw GEN WB01K5163 Contact Us For Availability
View on Model
691A
Screw St 10-
Screw St 10- GEN WB01T10038 Contact Us For Availability
View on Model
887A
Screw St 8-1
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
View on Model
926
GROUND WASHER
GROUND WASHER GEN WB01X1260 Contact Us For Availability
View on Model
999
Install Manl
Install Manl GEN 31-10517 Contact Us For Availability
View on Model
999A
Installation Instructions
Installation Instructions GEN 31-10549 Contact Us For Availability
View on Model
999B
MANUAL MINI & WD ASM
MANUAL MINI & WD ASM GEN 31-14008 Contact Us For Availability
View on Model
999C
Wall Oven Owner's Manual
Wall Oven Owner's Manual GEN SR10495 Contact Us For Availability
View on Model
999D
Parts List
Parts List GEN 31-14104 Contact Us For Availability
View on Model
