Model GE 911.47699100 27" Electric Wall Oven (Kenmore 91147699100) – Common Parts & Diagrams
BODY
ENCLOSURE

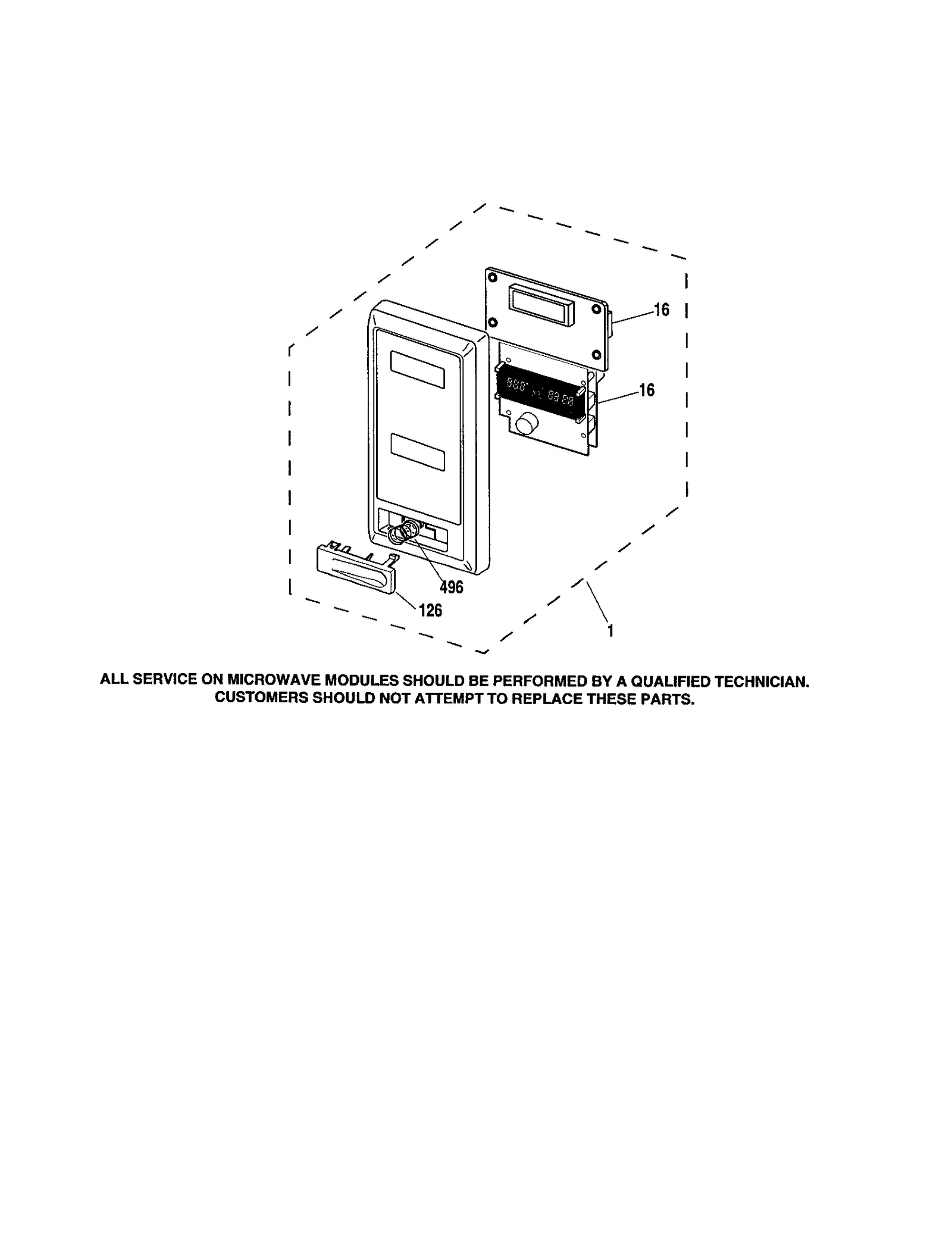

CONTROL PANEL

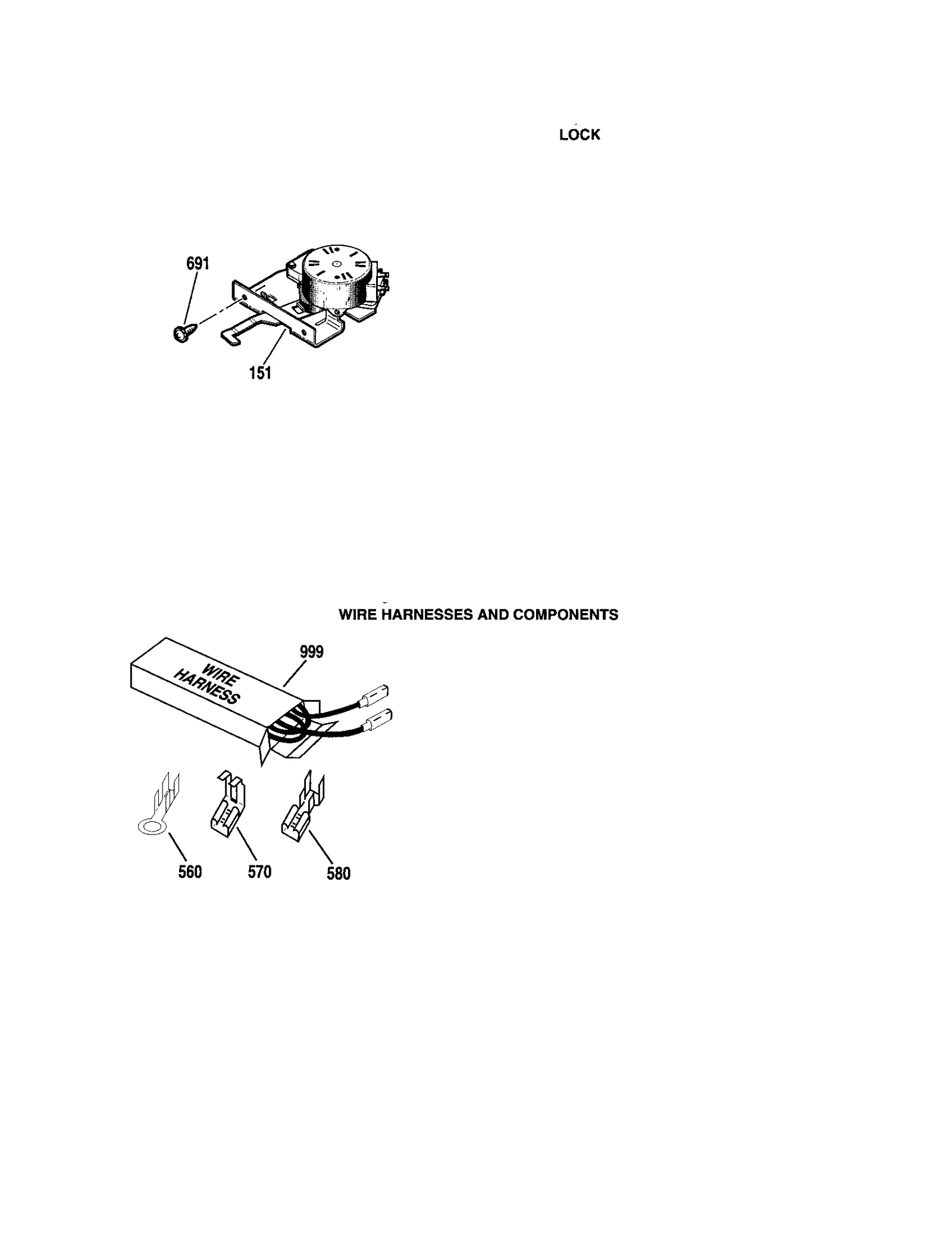

LOCK AND WIRE HARNESS AND COMPONENT

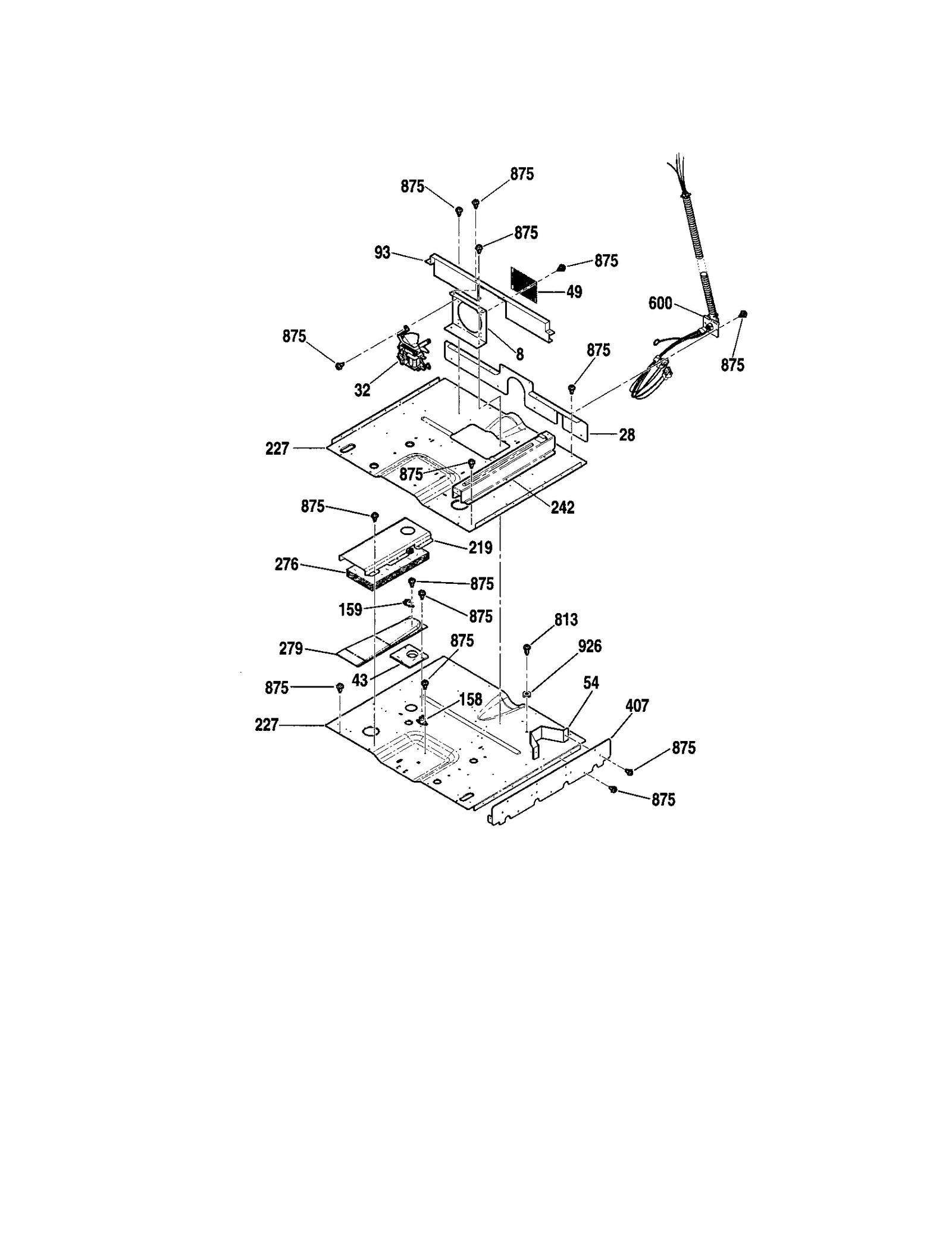

PEDESTAL

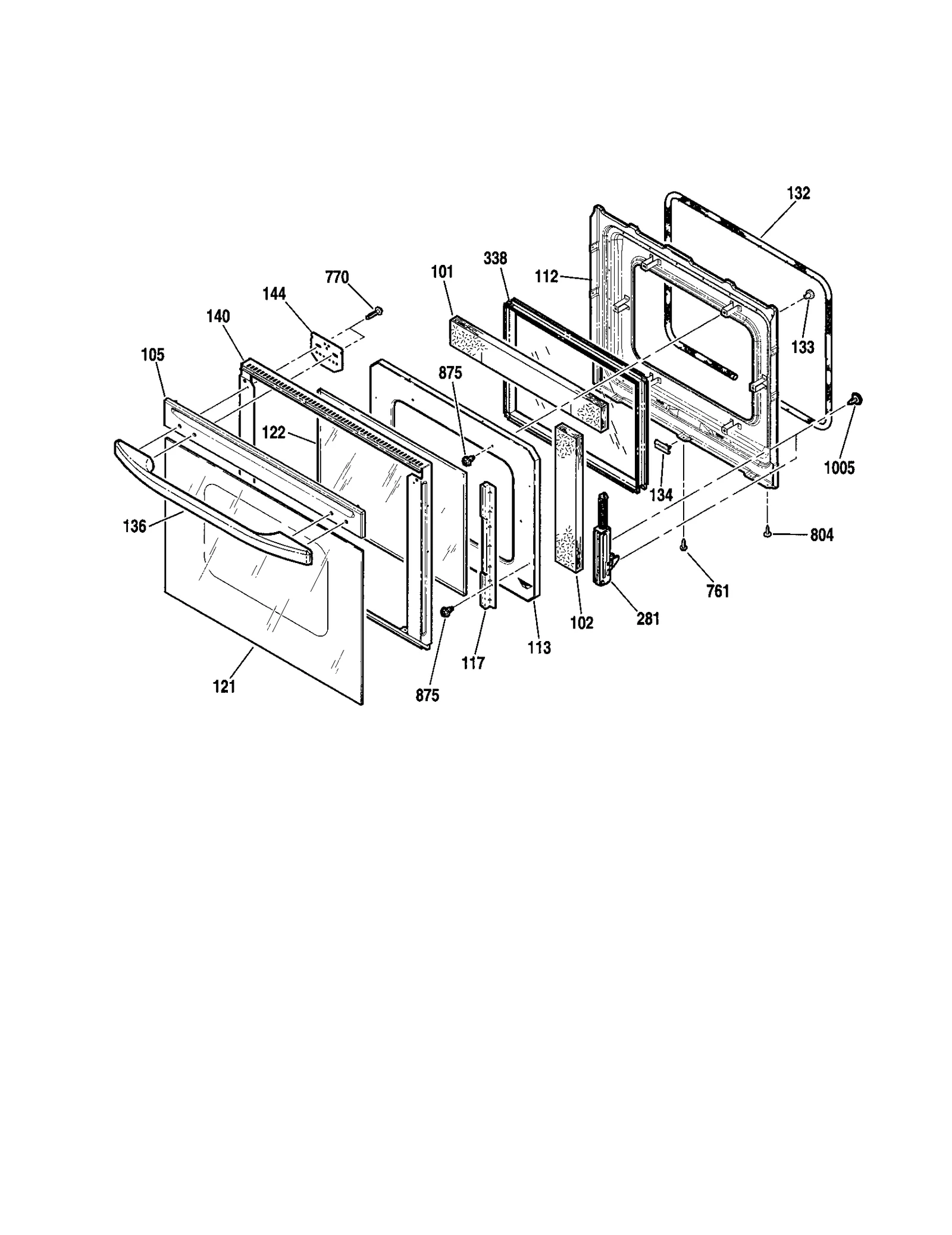

UPPER AND LOWER DOOR

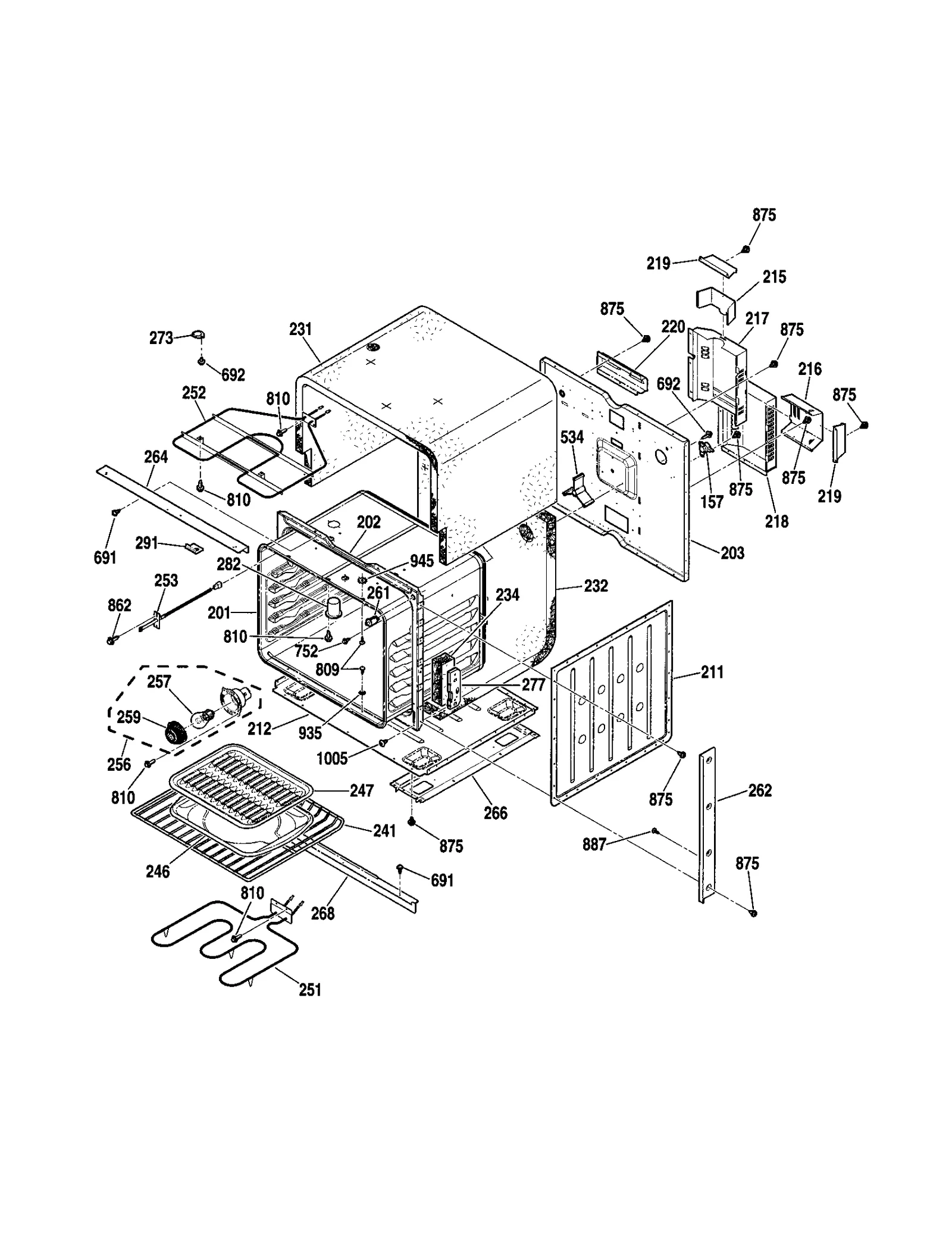

LOWER BODY

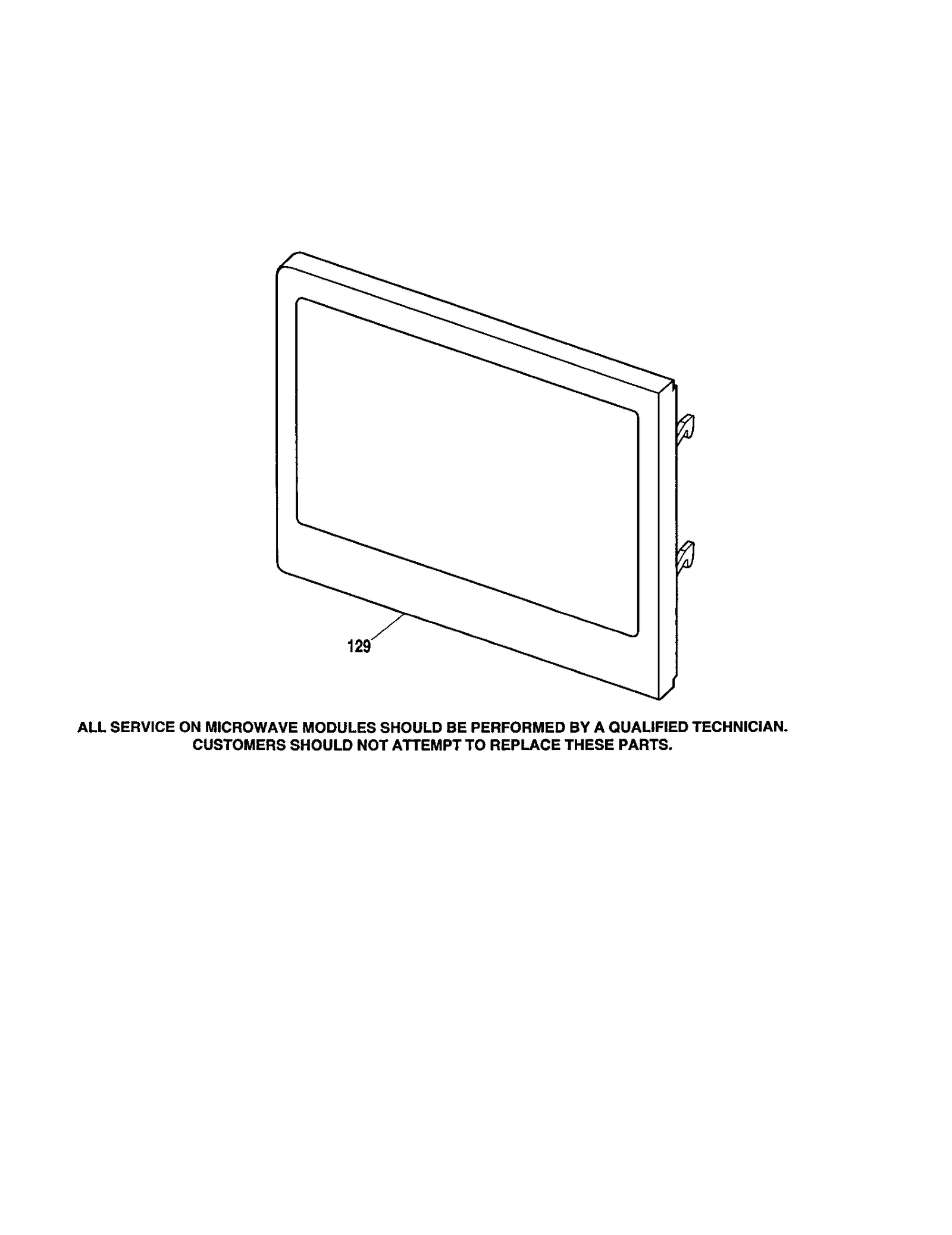

DOOR
Common parts from model GE 911.47699100 27" Electric Wall Oven (Kenmore 91147699100)
1
Oven Control Board GEN WB36X10088 Contact Us For Availability
1A
PCB GEN WB36X10089 Contact Us For Availability
8
Fan Support GEN WB02T10120 Contact Us For Availability
16
Wall Oven Control Board GEN WB27T10322 Contact Us For Availability
16A
Microwave Electronic Control Board GEN WB27T10091 Contact Us For Availability
28
Fan Support GEN WB02T10121 Contact Us For Availability
43
Collar Vent GEN WB38T10017 Contact Us For Availability
49
Fan Screen GEN WB34T10050 Contact Us For Availability
54
Bracket Support GEN WB02T10124 Contact Us For Availability
93
Wire Cover GEN WB34T10051 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
105
Drive Trim Vent GEN WB07T10243 Contact Us For Availability
105A
Drive Trim Vent GEN WB07T10242 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
121
Oven Door Glass GEN WB57T10186 Contact Us For Availability
121A
Oven Door Glass GEN WB57T10184 Contact Us For Availability
122
Wall Oven Door Middle Glass GEN WB57T10185 Contact Us For Availability
126
Button-black GEN WB03X0885 Contact Us For Availability
126A
Button-white GEN WB03X0887 Contact Us For Availability
129
White Door GEN WB55T10037 Contact Us For Availability
129A
Oven Door Assembly (Black) GEN WB55T10036 Contact Us For Availability
136
Oven Door Handle GEN WB15T10008 Contact Us For Availability
136A
Wall Oven Door Handle GEN WB15T10007 Contact Us For Availability
140
Wall Oven Door Frame Trim Assembly (White) GEN WB55T10087 Contact Us For Availability
140A
Oven Drive Frame GEN WB55T10084 Contact Us For Availability
151
Oven Latch GEN WB30T10070 Contact Us For Availability
157
Limit Switch GEN WB24K5029 Contact Us For Availability
158
Wall Oven Microwave Thermal Cut-Off GEN WB24T10068 Contact Us For Availability
159
Limit Switch GEN WB24T10064 Contact Us For Availability
201
Oven Body GEN WB63T10075 Contact Us For Availability
202
Frame GEN WB63T10072 Contact Us For Availability
203
Retainer Insert GEN WB63T10081 Contact Us For Availability
206A
Wall Oven Microwave Trim Kit (Black) GEN WB07T10148 Contact Us For Availability
211
Insulation R GEN WB63T10074 Contact Us For Availability
212
Retainer Insert GEN WB63T10082 Contact Us For Availability
215
Wire Cover M GEN WB34T10049 Contact Us For Availability
216
Wire Cover GEN WB34T10044 Contact Us For Availability
217
WIRE COVER LOWER-REAR GEN WB34T10039 Contact Us For Availability
218
WIRE COVER LOWER RR GEN WB34T10040 Contact Us For Availability
219
Vent Cover GEN WB34T10041 Contact Us For Availability
219
BOTTOM WIRE COVER GEN WB34T10042 Contact Us For Availability
220
Sensor Wire GEN WB34T10038 Contact Us For Availability
227
Insulation R GEN WB02T10114 Contact Us For Availability
227A
Insulation Retainer GEN WB02T10123 Contact Us For Availability
231
Oven Wrapper GEN WB35T10064 Contact Us For Availability
232
Insulation GEN WB35T10063 Contact Us For Availability
234
Insulation H GEN WB10T10016 Contact Us For Availability
241
Range Oven Rack GEN WB48T10025 Contact Us For Availability
242
Slide Rail GEN WB02T10119 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
246
Glass Tray GEN WB49X0690 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10211 Contact Us For Availability
262A
Trim GEN WB07T10212 Contact Us For Availability
262B
Vert Side Tr GEN WB07T10213 Contact Us For Availability
262C
Vert Side Tr GEN WB07T10214 Contact Us For Availability
263
Trim I-brow GEN WB07T10097 Contact Us For Availability
263A
Trim I-brow GEN WB07T10105 Contact Us For Availability
268
Oven Trim GEN WB07T10198 Contact Us For Availability
268A
Trim GEN WB07T10188 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
276
Insulation Vent GEN WB35T10066 Contact Us For Availability
277
Hinge Receiver GEN WB10T10015 Contact Us For Availability
279
Box Vent GEN WB28T10057 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10017 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10018 Contact Us For Availability
282
Vent Tube GEN WB28T10056 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
407
Microwave Chassis Support Bracket GEN WB02T10122 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
534
Oven Cavity Support GEN WB26K5050 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Microwave High-Voltage Transformer GEN WB27X10189 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
813
SCREW 10-32 X 7/16" GEN WH01X1261 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Wall Oven Owner's Manual GEN 31-13682 Contact Us For Availability
999A
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
999A
Main Wire Harness GEN WB18T10234 Contact Us For Availability
999B
Oven Latch GEN WB18T10230 Contact Us For Availability
× ![]()
