GE 911.47643100 27" Electric Wall Oven (Kenmore 91147643100) Parts List

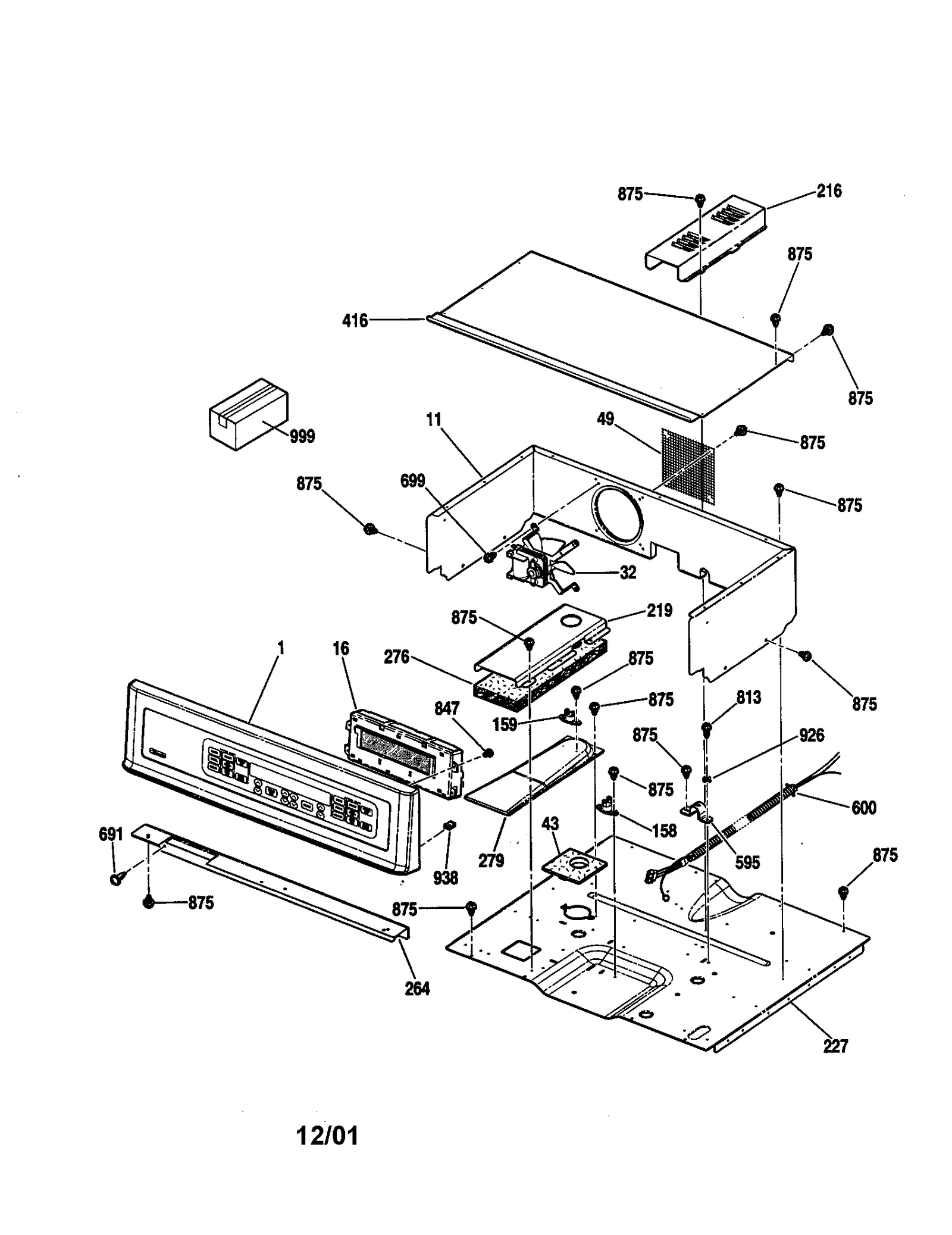

1

Wall Oven Control Panel GEN WB36T10485 Contact Us For Availability

View on Model

11

Fan Housing GEN WB02T10112 Contact Us For Availability

View on Model

13A

Back Plate-l GEN WB34T10046 Contact Us For Availability

View on Model

16

Wall Oven Control Board GEN WB27T10345 Contact Us For Availability

View on Model

32

WB26K5061 GE Oven Upper Fan Assembly In Stock GEN WB26K5061 $151.44

View on Model

43

Collar Vent GEN WB38T10017 Contact Us For Availability

View on Model

49

Fan Screen GEN WB34T10043 Contact Us For Availability

View on Model

101

Oven Door GEN WB35T10062 Contact Us For Availability

View on Model

102

Oven Door GEN WB35T10061 Contact Us For Availability

View on Model

132

WB32T10010 GE Oven Door Gasket Backorder GEN WB32T10010 $71.43

View on Model

133

WB03T10156 GE Oven Door Bumper Backorder GEN WB03T10156 $5.28

View on Model

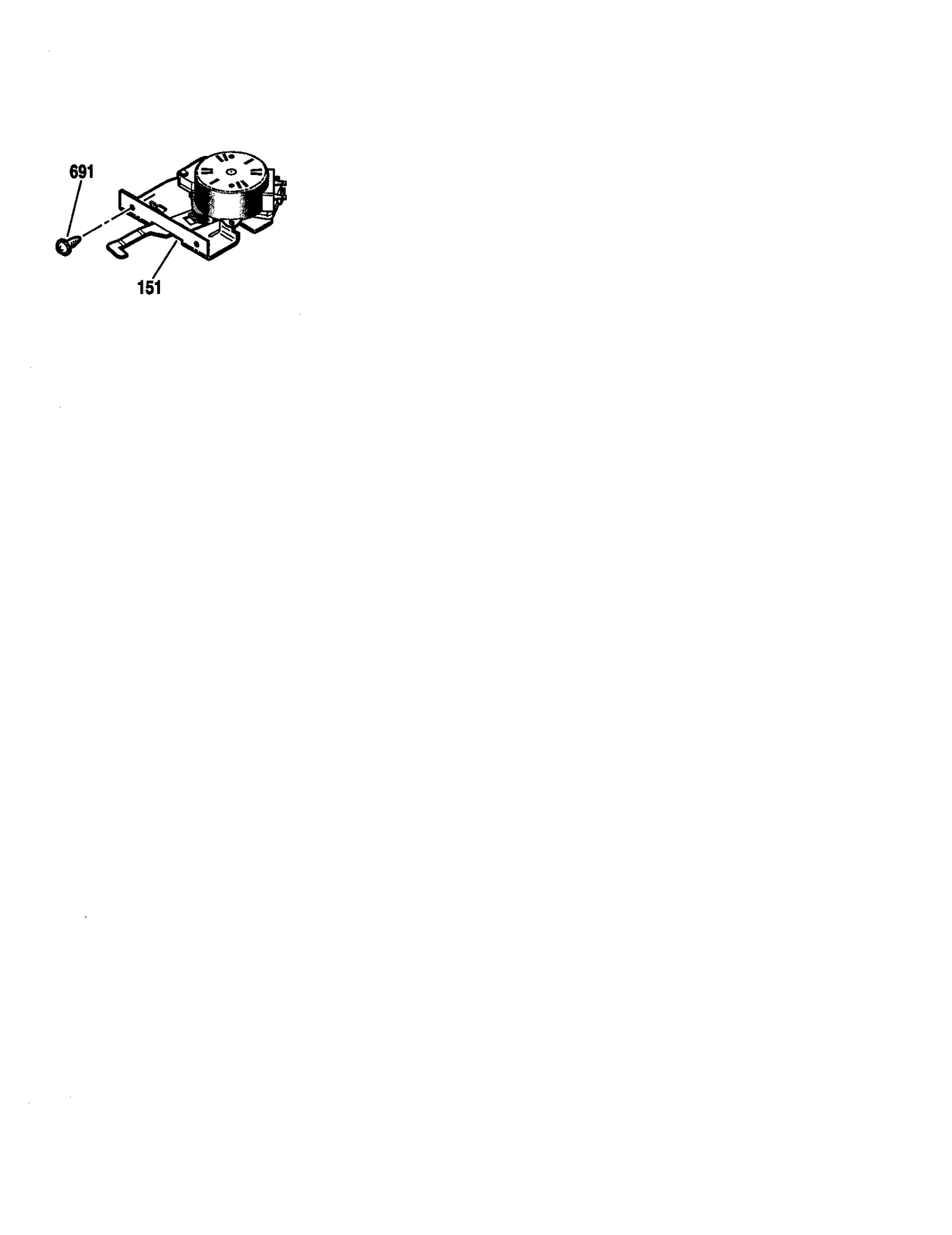

151

Oven Latch GEN WB30T10069 Contact Us For Availability

View on Model

157

WB24K5098 GE Oven Limit Switch Backorder GEN WB24K5098 $80.02

View on Model

158

WB24T10060 GE Oven Safety Thermostat In Stock GEN WB24T10060 $10.08

View on Model

158

WB24T10067 GE Oven Limit Switch Lower Backorder GEN WB24T10067 $61.16

View on Model

159

Limit Switch GEN WB24T10059 Contact Us For Availability

View on Model

159

Limit Switch GEN WB24T10064 Contact Us For Availability

View on Model

201

Oven Body GEN WB63T10075 Contact Us For Availability

View on Model

203

Retainer Insert GEN WB63T10081 Contact Us For Availability

View on Model

211

Insulation R GEN WB63T10074 Contact Us For Availability

View on Model

212

Retainer Insert GEN WB63T10082 Contact Us For Availability

View on Model

216

Wire Cover GEN WB34K5216 Contact Us For Availability

View on Model

216

Wire Cover GEN WB34T10044 Contact Us For Availability

View on Model

217

WIRE COVER LOWER-REAR GEN WB34T10039 Contact Us For Availability

View on Model

218

Wire Cover M GEN WB34T10047 Contact Us For Availability

View on Model

218

WIRE COVER LOWER RR GEN WB34T10040 Contact Us For Availability

View on Model

219

Vent Cover GEN WB34T10041 Contact Us For Availability

View on Model

219

BOTTOM WIRE COVER GEN WB34T10042 Contact Us For Availability

View on Model

220

Sensor Wire GEN WB34T10038 Contact Us For Availability

View on Model

227

Insulation R GEN WB02T10114 Contact Us For Availability

View on Model

231

Oven Wrapper GEN WB35T10064 Contact Us For Availability

View on Model

232

Insulation GEN WB35T10063 Contact Us For Availability

View on Model

234

Insulation H GEN WB10T10016 Contact Us For Availability

View on Model

241

Range Oven Rack GEN WB48T10025 Contact Us For Availability

View on Model

247

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

251

WB44T10031 GE Oven Bake Element Backorder GEN WB44T10031 $102.93

View on Model

252

WB44T10051 GE Oven Broil Element In Stock GEN WB44T10051 $76.08

View on Model

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $16.50

View on Model

256

WB08T10002 GE Oven 40W 120V Cooktop Lamp Bulb In Stock GEN WB08T10002 $19.20

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.37

View on Model

259

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $5.77

View on Model

261

Range Oven Door Switch GEN WB24T10065 Contact Us For Availability

View on Model

262

Vert Side Tr GEN WB07T10206 Contact Us For Availability

View on Model

262A

Vert Side Tr GEN WB07T10207 Contact Us For Availability

View on Model

264

Trim GEN WB07T10202 Contact Us For Availability

View on Model

264

Vent Trim GEN WB07T10186 Contact Us For Availability

View on Model

266

WB02K10048 GE Base Rail Backorder GEN WB02K10048 $14.88

View on Model

268

Trim GEN WB07T10188 Contact Us For Availability

View on Model

273

COVER GEN WB02K5365 Contact Us For Availability

View on Model

276

Insulation Vent GEN WB35T10066 Contact Us For Availability

View on Model

277

Hinge Receiver GEN WB10T10015 Contact Us For Availability

View on Model

279

Vent Box GEN WB28T10055 Contact Us For Availability

View on Model

282

Vent Tube GEN WB28T10056 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

338

WB55T10086 GE Oven Window Assembly Backorder GEN WB55T10086 $165.74

View on Model

416

Electronic Cover GEN WB35T10060 Contact Us For Availability

View on Model

511

Fan Assembly GEN WB64T10028 Contact Us For Availability

View on Model

534

Oven Cavity Support GEN WB26K5050 Contact Us For Availability

View on Model

595

WB2K5126 GE Oven Condenser Clamp Backorder GEN WB2K5126 $6.70

View on Model

600

WB18T10225 GE Oven Wire Conduit Assembly Backorder GEN WB18T10225 $70.14

View on Model

691

WB1K5162 GE Oven Black Screw Backorder GEN WB1K5162 $5.65

View on Model

691

Screw GEN WB01K5163 Contact Us For Availability

View on Model

692

Screw GEN WZ04X0416 Contact Us For Availability

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.43

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $5.65

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.65

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $5.65

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.65

View on Model

847

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $5.65

View on Model

862

SCREW GEN WB01X1178 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.65

View on Model

887

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $5.65

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.65

View on Model

938

WB1K5209 GE Oven Clip Backorder GEN WB1K5209 $9.19

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $5.02

View on Model

999

Installation Instructions GEN 31-10478 Contact Us For Availability

View on Model

999A

MANUAL MINI & WD ASM GEN 31-13641 Contact Us For Availability

View on Model

999B

Wall Oven Owner's Manual GEN SR10406 Contact Us For Availability

View on Model

999C

Parts List GEN 31-13991 Contact Us For Availability

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.65

View on Model
