Model GE 911.47642100 27" Electric Wall Oven (Kenmore 91147642100) – Common Parts & Diagrams
LOCK
WIRE HARNESSES/COMPONENTS

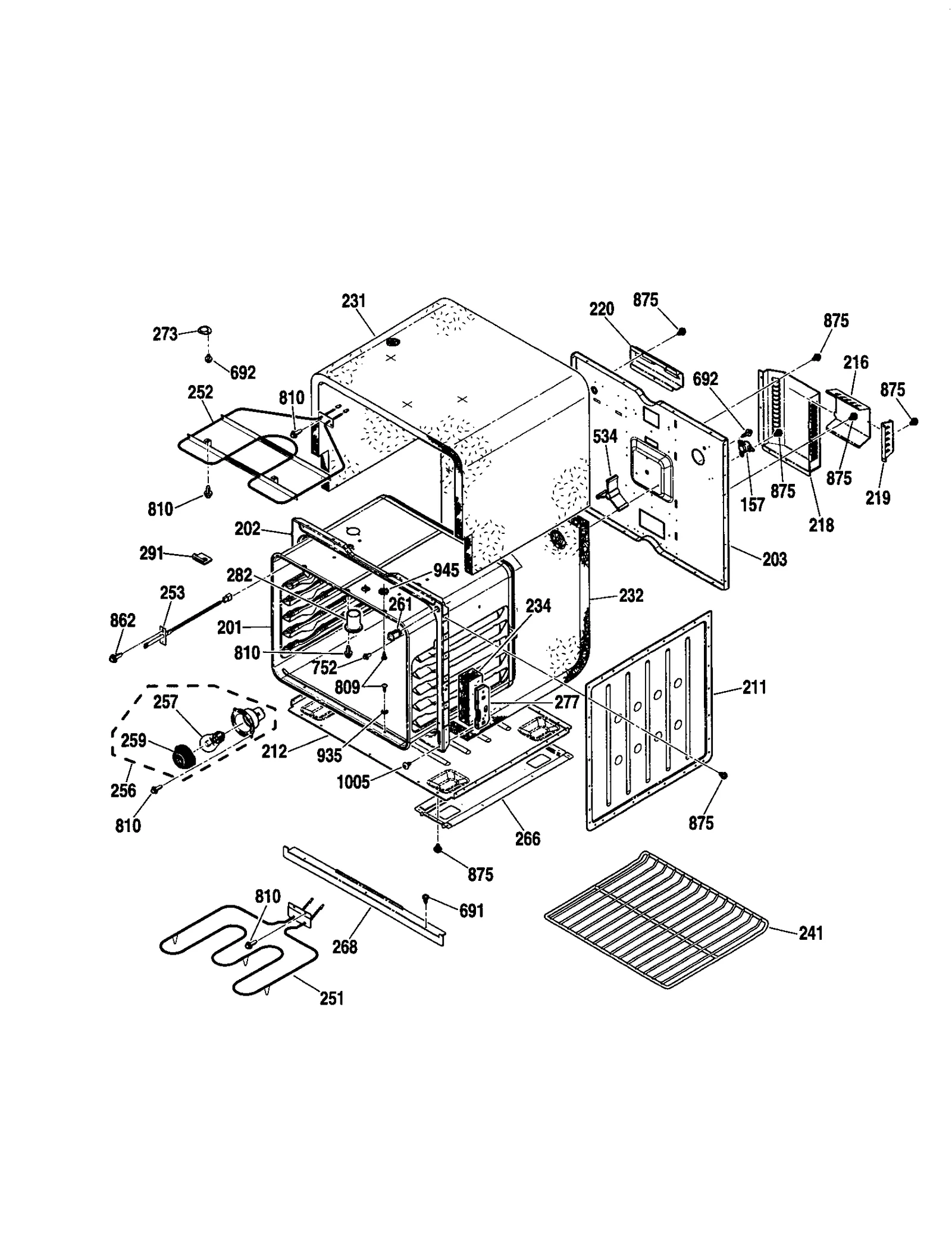

LOWER BODY
UPPER BODY

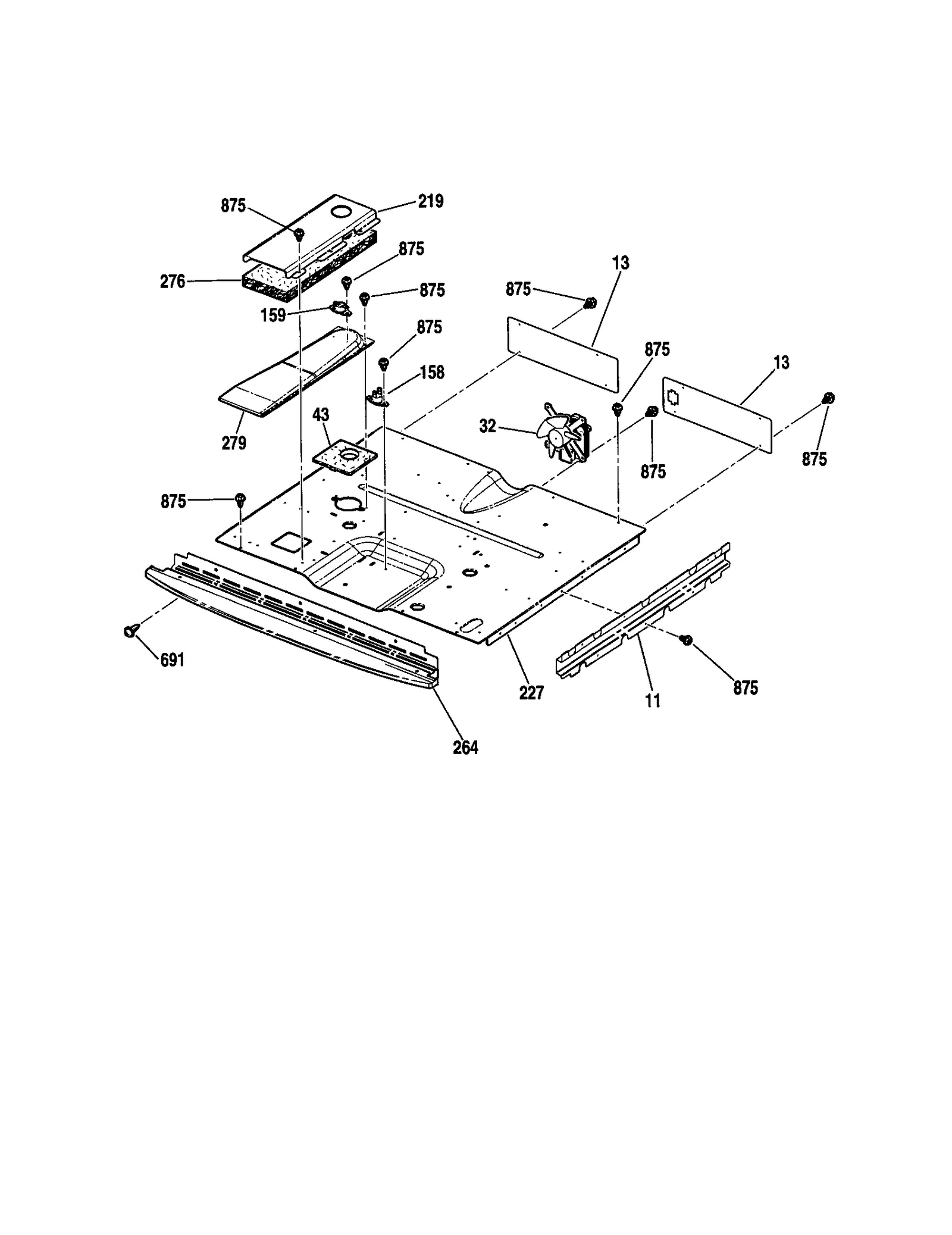

CENTER SPACER

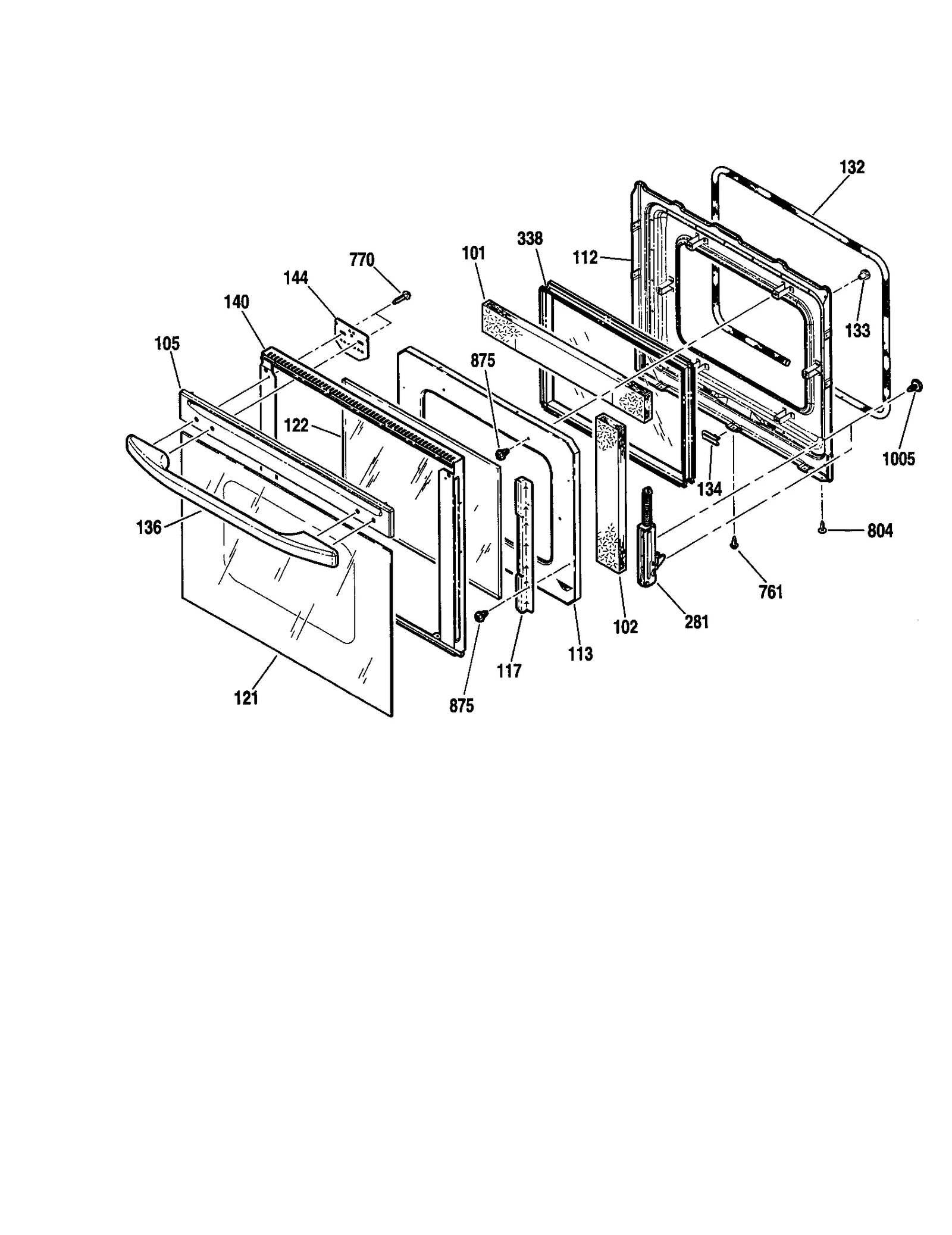

UPPER AND LOWER DOOR

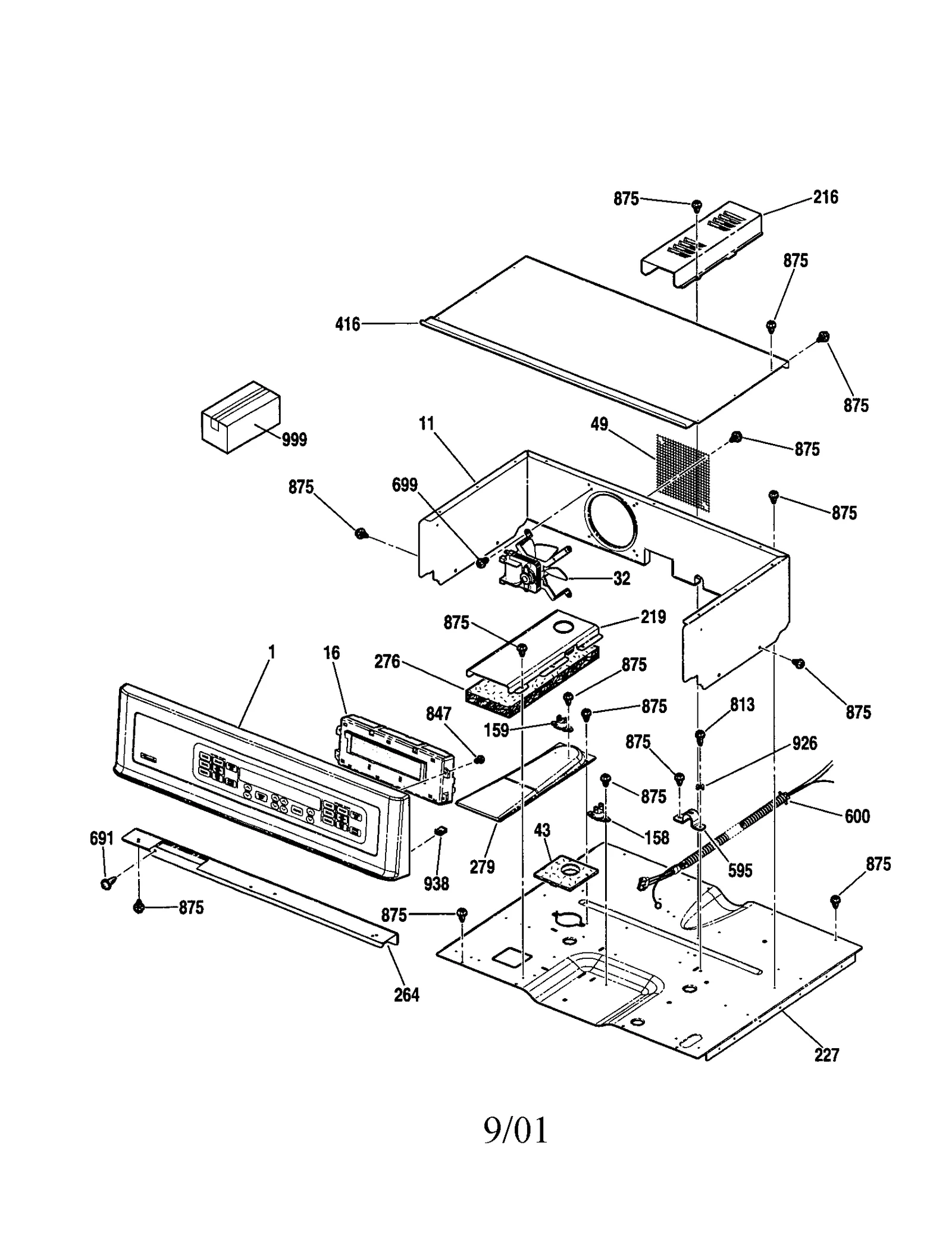

CONTROL PANEL
Common parts from model GE 911.47642100 27" Electric Wall Oven (Kenmore 91147642100)
1
Control Panel GEN WB36T10174 Contact Us For Availability
1A
Control Panel GEN WB36T10386 Contact Us For Availability
1B
Control Panel GEN WB36T10173 Contact Us For Availability
11
Fan Housing GEN WB02T10112 Contact Us For Availability
13
Back Plate-r GEN WB34T10045 Contact Us For Availability
13A
Back Plate-l GEN WB34T10046 Contact Us For Availability
16
Wall Oven Control Board GEN WB27T10345 Contact Us For Availability
43
Collar Vent GEN WB38T10017 Contact Us For Availability
49
Fan Screen GEN WB34T10043 Contact Us For Availability
101
Oven Door GEN WB35T10062 Contact Us For Availability
102
Oven Door GEN WB35T10061 Contact Us For Availability
105
Door Vent Trim GEN WB07T10066 Contact Us For Availability
105A
Door Vent Trim GEN WB07T10197 Contact Us For Availability
105B
Door Vent Trim GEN WB07T10058 Contact Us For Availability
112
Oven Door Liner GEN WB55T10088 Contact Us For Availability
121
Oven Door Glass GEN WB57T10186 Contact Us For Availability
121A
Oven Door Glass GEN WB57T10187 Contact Us For Availability
121B
Oven Door Glass GEN WB57T10184 Contact Us For Availability
122
Wall Oven Door Middle Glass GEN WB57T10185 Contact Us For Availability
136
Oven Door Handle GEN WB15T10008 Contact Us For Availability
136A
Oven Door Handle GEN WB15T10049 Contact Us For Availability
136B
Wall Oven Door Handle GEN WB15T10007 Contact Us For Availability
140
Wall Oven Door Frame Trim Assembly (White) GEN WB55T10087 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10089 Contact Us For Availability
140B
Oven Drive Frame GEN WB55T10084 Contact Us For Availability
159
Limit Switch GEN WB24T10059 Contact Us For Availability
159
Limit Switch GEN WB24T10064 Contact Us For Availability
201
Oven Body GEN WB63T10075 Contact Us For Availability
202
Frame GEN WB63T10072 Contact Us For Availability
203
Insulation R GEN WB63T10073 Contact Us For Availability
211
Insulation R GEN WB63T10074 Contact Us For Availability
212
Cabinet GEN WB63T10076 Contact Us For Availability
216
Wire Cover GEN WB34T10044 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
WIRE COVER LOWER-REAR GEN WB34T10039 Contact Us For Availability
218
Wire Cover M GEN WB34T10047 Contact Us For Availability
219
BOTTOM WIRE COVER GEN WB34T10042 Contact Us For Availability
219
Vent Cover GEN WB34T10041 Contact Us For Availability
220
Sensor Wire GEN WB34T10038 Contact Us For Availability
227
Insulation R GEN WB02T10114 Contact Us For Availability
231
Oven Wrapper GEN WB35T10064 Contact Us For Availability
232
Insulation GEN WB35T10063 Contact Us For Availability
234
Insulation H GEN WB10T10016 Contact Us For Availability
241
Range Oven Rack GEN WB48T10025 Contact Us For Availability
253
Oven Sensor GEN WB21T10005 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
261
JAMB SWITCH GEN WB24T0065 Contact Us For Availability
262
Vert Side Tr GEN WB07T10200 Contact Us For Availability
262A
Vert Side Tr GEN WB07T10201 Contact Us For Availability
262B
Vert Side Tr GEN WB07T10203 Contact Us For Availability
262C
Vert Side Tr GEN WB07T10204 Contact Us For Availability
262D
Vert Side Tr GEN WB07T10206 Contact Us For Availability
262E
Vert Side Tr GEN WB07T10207 Contact Us For Availability
264
Trim GEN WB07T10202 Contact Us For Availability
264
Vent Trim GEN WB07T10186 Contact Us For Availability
268
Oven Trim GEN WB07T10198 Contact Us For Availability
268A
Trim GEN WB07T10199 Contact Us For Availability
268B
Trim GEN WB07T10188 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
276
Insulation Vent GEN WB35T10066 Contact Us For Availability
277
Hinge Receiver GEN WB10T10015 Contact Us For Availability
279
Vent Box GEN WB28T10055 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10017 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10018 Contact Us For Availability
282
Vent Tube GEN WB28T10056 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
416
Electronic Cover GEN WB35T10060 Contact Us For Availability
511
Fan Assembly GEN WB64T10028 Contact Us For Availability
534
Oven Cavity Support GEN WB26K5050 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
691A
Screw St 10- GEN WB01T10038 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
761A
Trim Screw GEN WB01K5211 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
887A
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Installation Instructions GEN 31-10478 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-13641 Contact Us For Availability
999B
Wall Oven Owner's Manual GEN SR10406 Contact Us For Availability
999C
Parts List GEN 31-13969 Contact Us For Availability
× ![]()
