Model GE 911.36669690 30" Gas Slide-In Range (Kenmore 91136669690) – Common Parts & Diagrams
DOOR LOCK
OPTIONAL BACKSPLASH

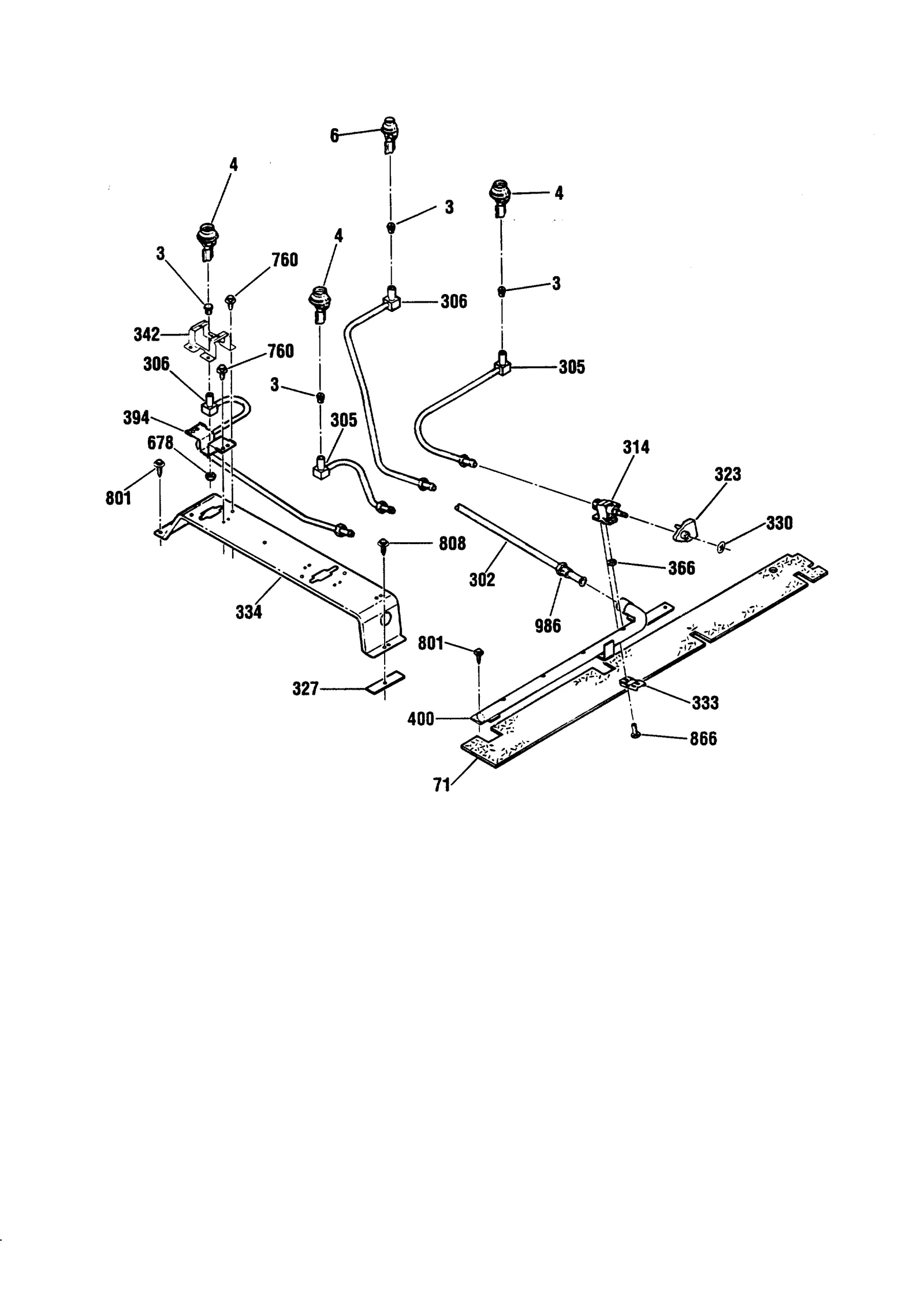

TOP BURNER

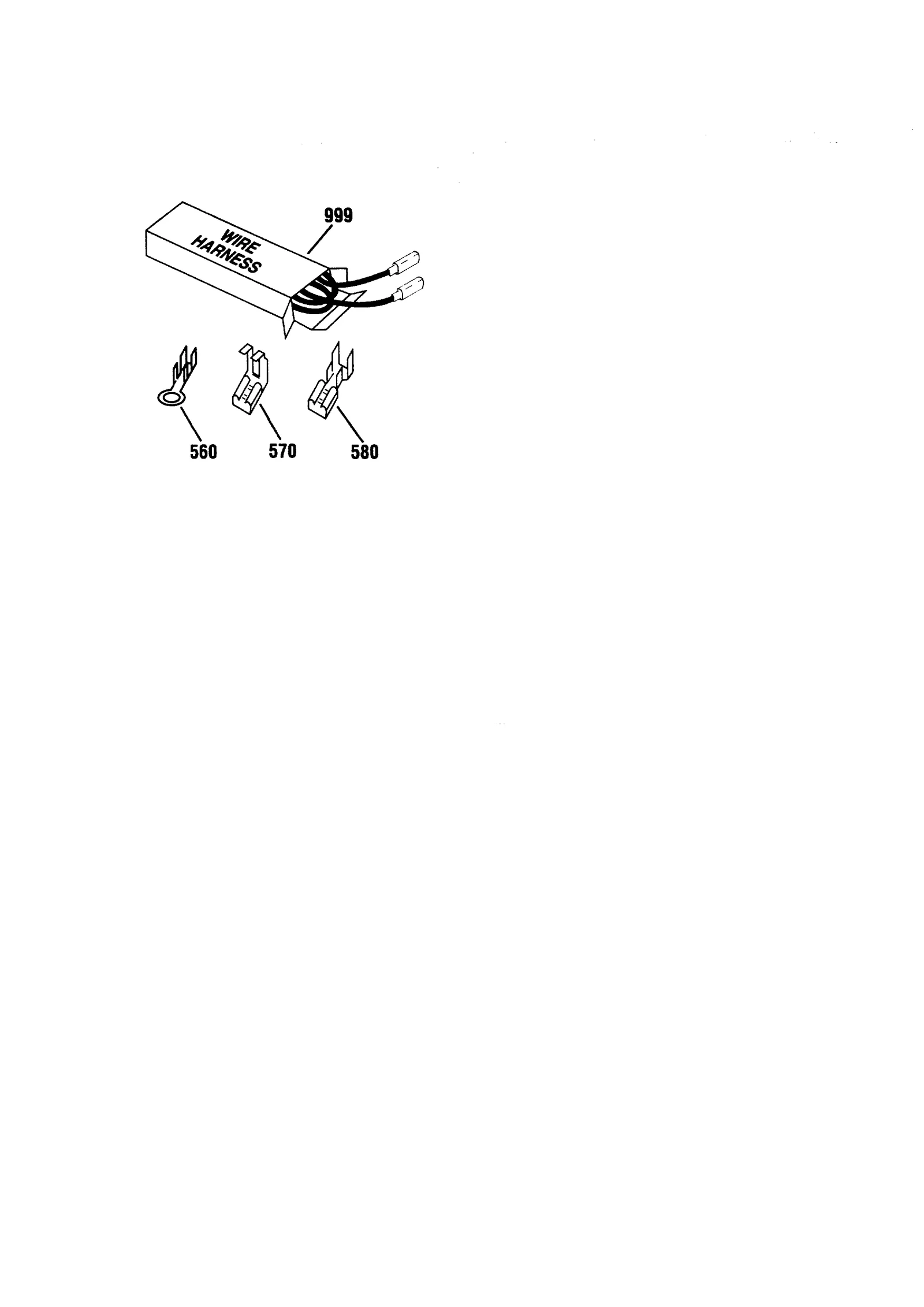

WIRE HARNESSESS AND COMPONENTS

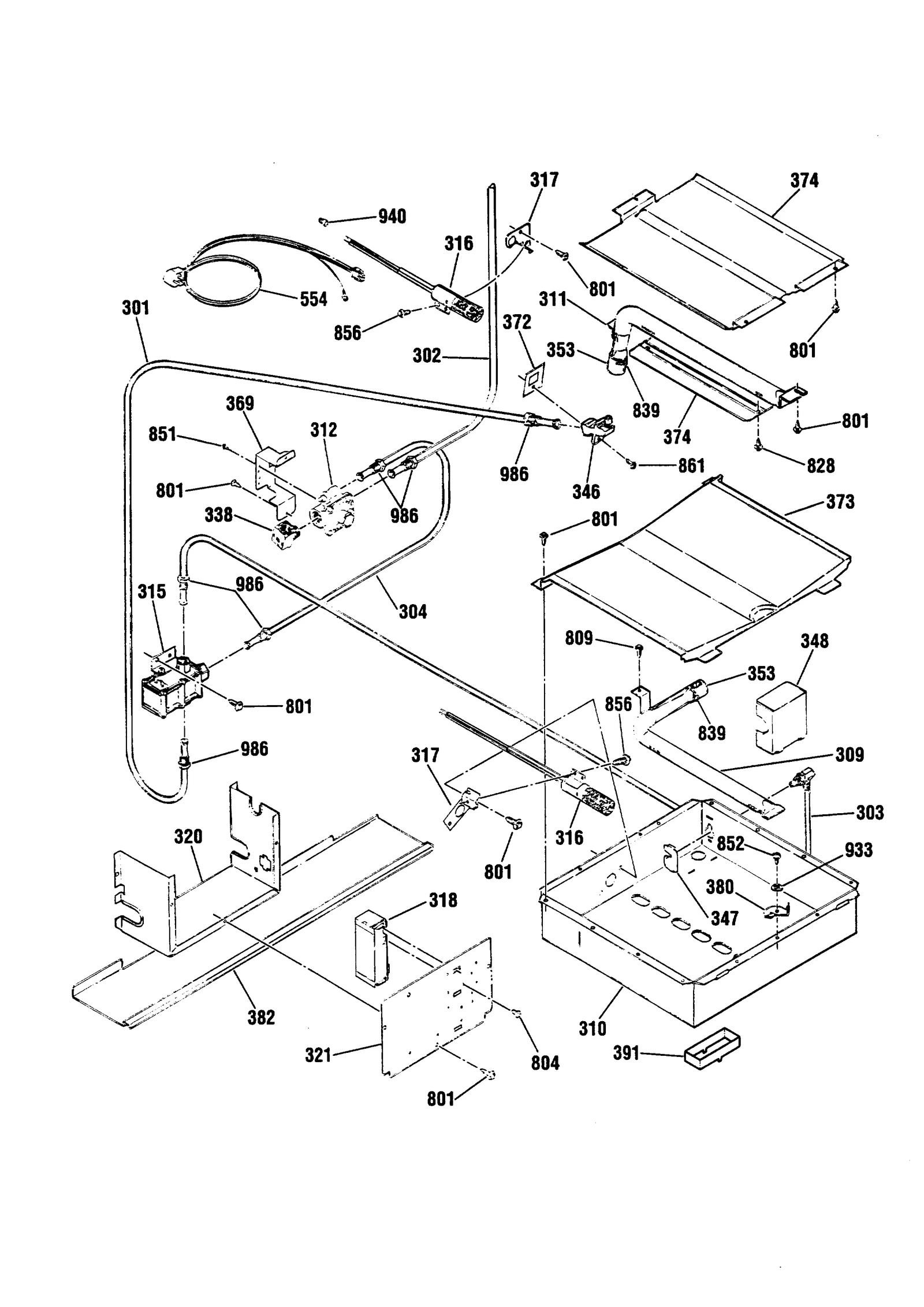

OVEN BURNER

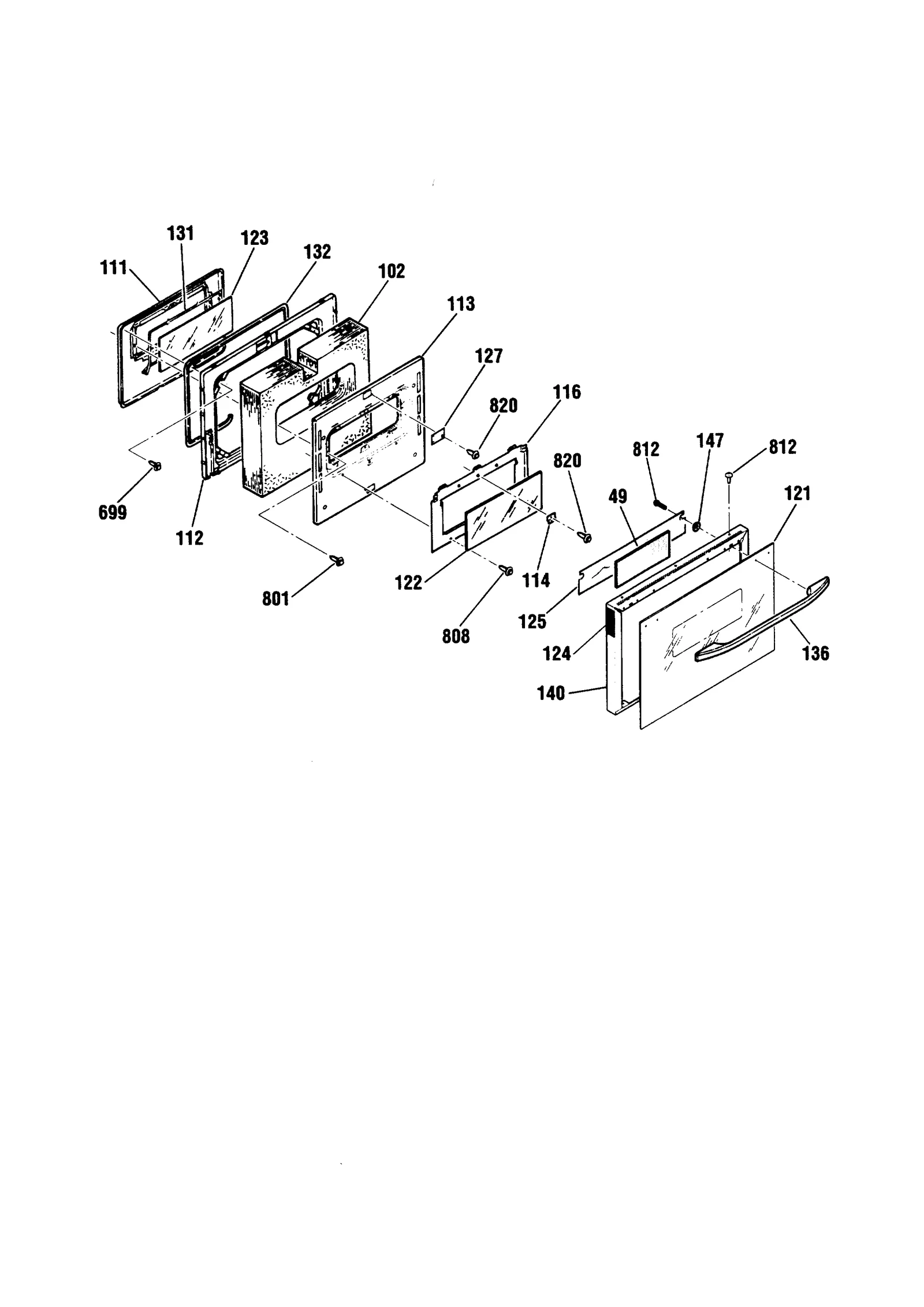

DOOR

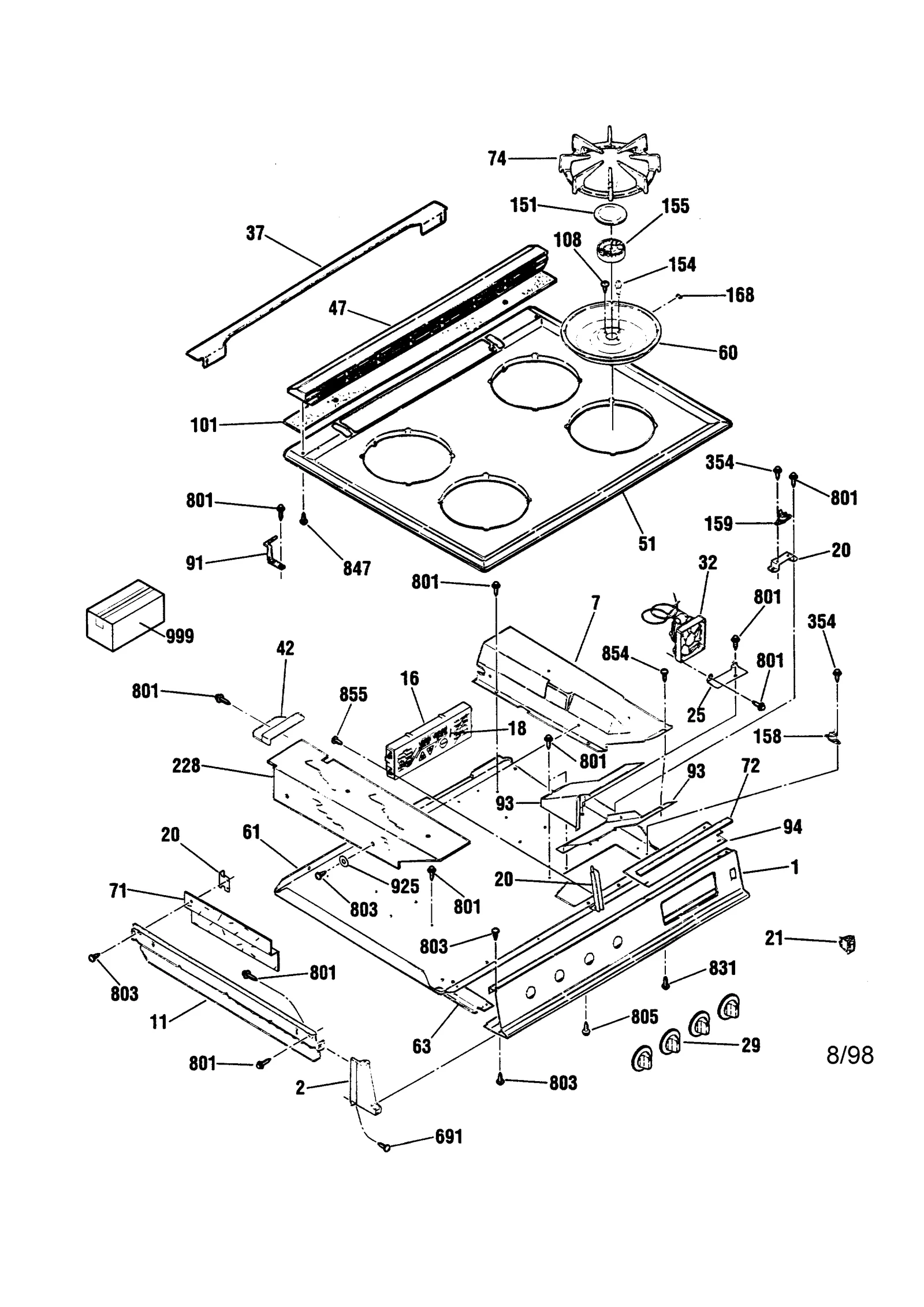

MAINTOP

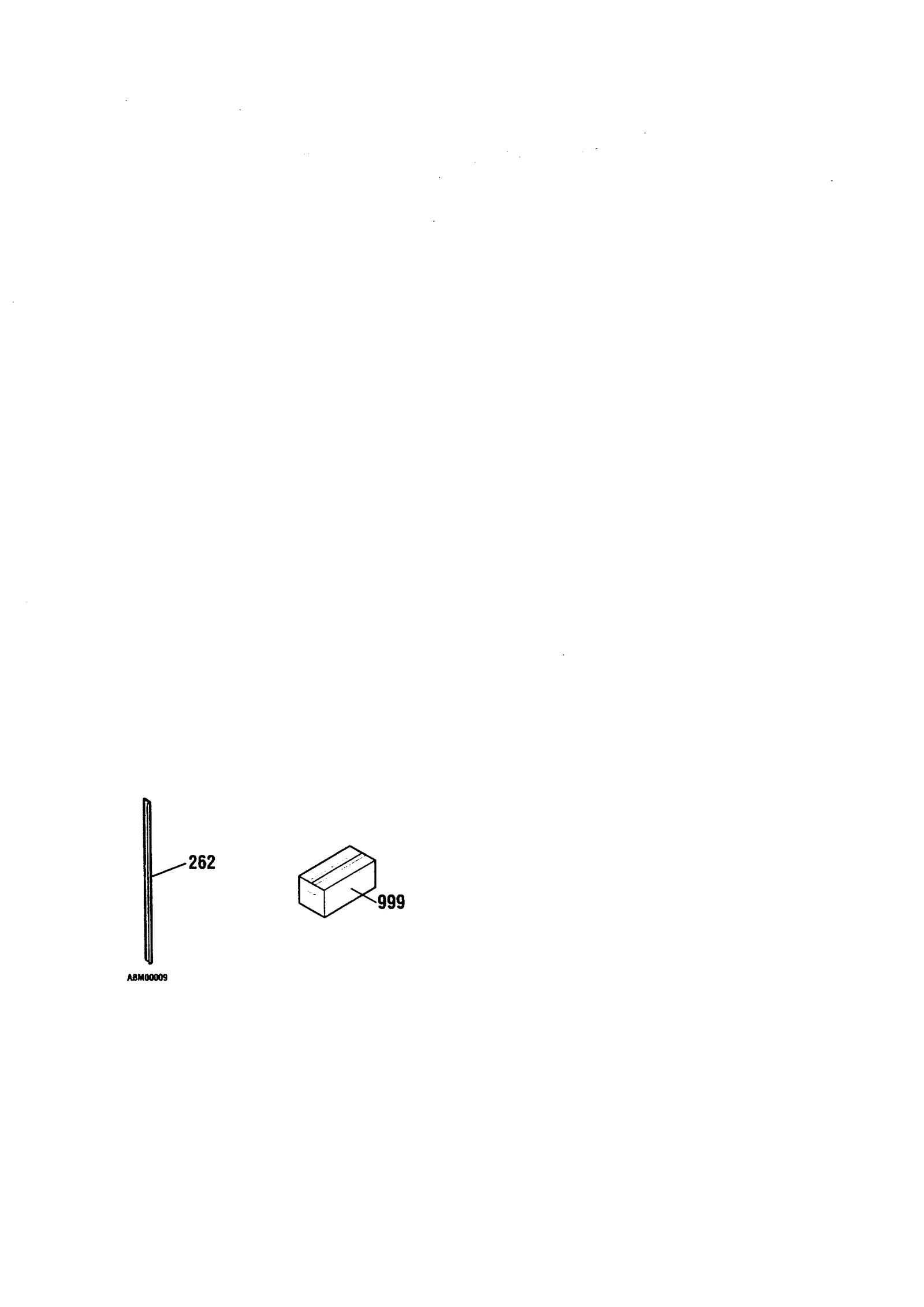

VERTICAL SIDE TRIM EXTENSION

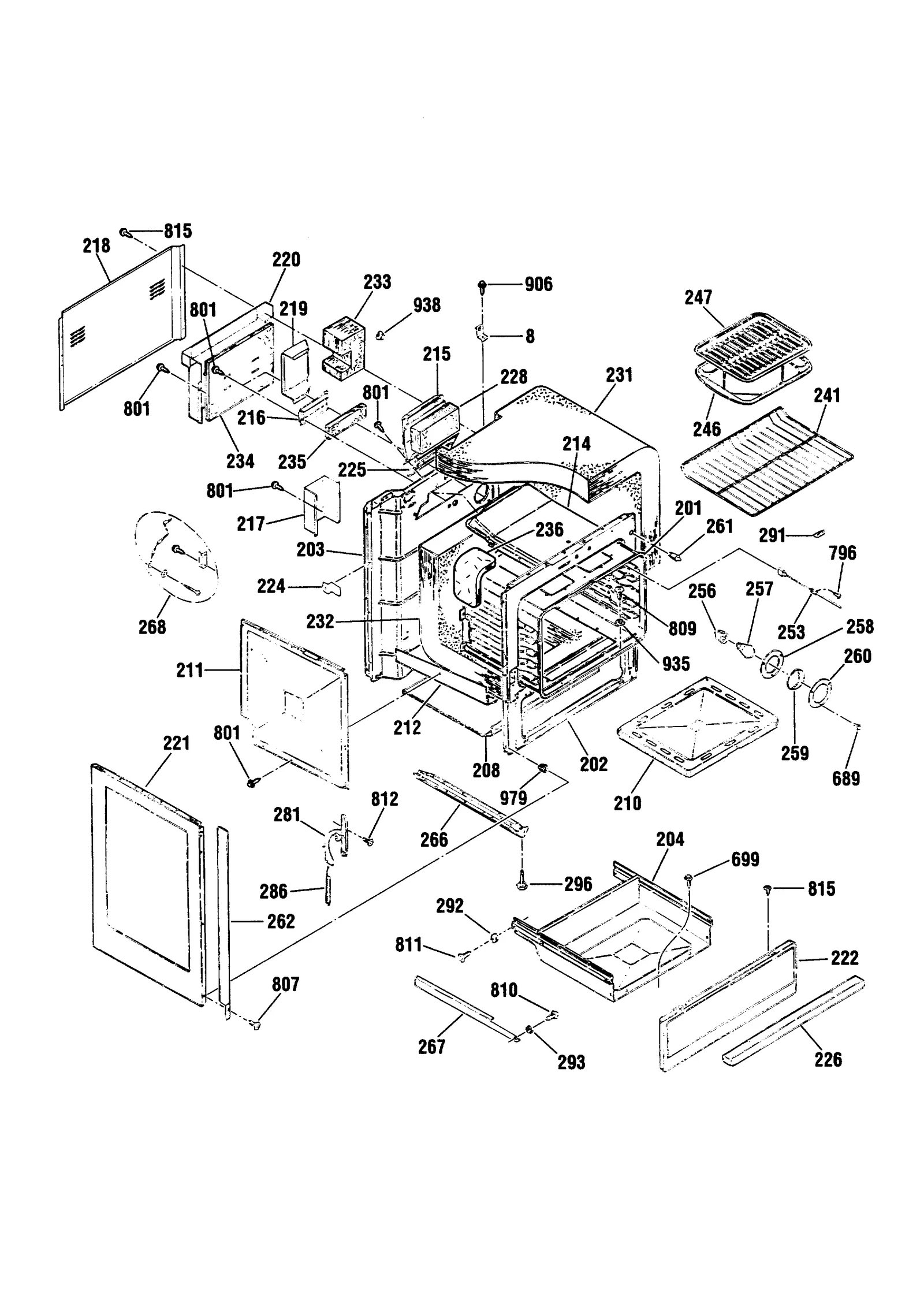

BODY
Common parts from model GE 911.36669690 30" Gas Slide-In Range (Kenmore 91136669690)
1
Cntrl Pnl-wh GEN WB36K5705 Contact Us For Availability
1A
Cntrl Pnl-bl GEN WB36K5706 Contact Us For Availability
2
End Cap GEN WB54K5411 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2A
End Cap GEN WB54K5410 Contact Us For Availability
2B
End Cap GEN WB36K5378 Contact Us For Availability
2C
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K5095 Contact Us For Availability
3A
Orif Spd Rrc GEN WB28K0141 Contact Us For Availability
3B
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
3C
LP Orifice Spud GEN WB28K0145 Contact Us For Availability
4
Air Mix Tube GEN WB16K0013 Contact Us For Availability
6
Air Mix Tube GEN WB16K0014 Contact Us For Availability
7
Duct Fan GEN WB26M0001 Contact Us For Availability
8
Main Top Support GEN WB02K5129 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
16
Clock Control GEN WB27K5294 Contact Us For Availability
18
Clock Plate (White) GEN WB27K5342 Contact Us For Availability
18A
Clock Plt-bl GEN WB27K5341 Contact Us For Availability
20
SWITCH BRACKET GEN WB02K5238 Contact Us For Availability
20A
Trim Bracket GEN WB02M0077 Contact Us For Availability
20B
Bracket Clock GEN WB02M0075 Contact Us For Availability
21A
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
25
Bracket GEN WB02X9131 Contact Us For Availability
29
Valve Knob GEN WB03K5300 Contact Us For Availability
29A
Valve Knob GEN WB03K5301 Contact Us For Availability
32
Fan Motor GEN WB26X0100 Contact Us For Availability
37
Filler Maintop GEN WB07K5499 Contact Us For Availability
37A
Filler Maintop GEN WB07K5498 Contact Us For Availability
42
Fan Duct Shd GEN WB34K5076 Contact Us For Availability
47
WHT VENT COV GEN WB31K5213 Contact Us For Availability
47A
Vent Cover GEN WB34K5205 Contact Us For Availability
49
Insulation Shield GEN WB35K5127 Contact Us For Availability
51
Main GEN WB62K5142 Contact Us For Availability
51A
Main GEN WB62K5141 Contact Us For Availability
60
Range Drip Pan GEN WB31K5091 Contact Us For Availability
60B
Range Drip Pan GEN WB31K5088 Contact Us For Availability
60C
Range Drip Pan GEN WB31K5090 Contact Us For Availability
61
Burner Box GEN WB64K5092 Contact Us For Availability
63
Stiffner GEN WB02X9110 Contact Us For Availability
63A
Stiffner GEN WB02X9132 Contact Us For Availability
71
Insulation Panel GEN WB35K5126 Contact Us For Availability
71
Extension Insulation GEN WB35K5134 Contact Us For Availability
72
Acrylic Tape GEN WB06K5014 Contact Us For Availability
74A
Burner Grate GEN WB31K5089 Contact Us For Availability
91
Mt Hinge-lt GEN WB14K5024 Contact Us For Availability
91A
Mt Hinge-rt GEN WB14K5023 Contact Us For Availability
93
Wire Cover GEN WB34K5074 Contact Us For Availability
93A
Wire Cover GEN WB34K5075 Contact Us For Availability
94
Moisture Bar GEN WB34K5153 Contact Us For Availability
101
Insulation Vent Trim GEN WB35K5037 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Door Glass GEN WB57K5305 Contact Us For Availability
121A
Door Glass GEN WB57K5306 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124A
Drive Frame Insulation GEN WB35K5103 Contact Us For Availability
125
Heat Reflector GEN WB34K5091 Contact Us For Availability
127
Heat Shield GEN WB34K5227 Contact Us For Availability
136
Door Handle GEN WB15K5114 Contact Us For Availability
136A
Oven Handle GEN WB15K5113 Contact Us For Availability
140
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Burner Cap GEN WB29K0042 Contact Us For Availability
151A
Burner Cap GEN WB29K0045 Contact Us For Availability
151B
Burner Cap GEN WB29K0041 Contact Us For Availability
151C
Burner Cap GEN WB29K0044 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
159
Limit Switch GEN WB24K5141 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
201
Oven Liner GEN WB53X0276 Contact Us For Availability
202
Frame GEN WB63K5208 Contact Us For Availability
203
Main Bck Asm GEN WB63M0047 Contact Us For Availability
204
Drawer GEN WB58X0063 Contact Us For Availability
208
Heat Baffle GEN WB34M0007 Contact Us For Availability
210
Oven GEN WB63X0335 Contact Us For Availability
211
Retainer GEN WB02X9755 Contact Us For Availability
212
Retainer GEN WB02X9149 Contact Us For Availability
214
Flue Box Asm GEN WB38K5052 Contact Us For Availability
215
Flue Def Kit GEN WB50K5006 Contact Us For Availability
216
Shield GEN WB02X9141 Contact Us For Availability
217
Wire Shield GEN WB34K5231 Contact Us For Availability
218
Heat Shield GEN WB34K5258 Contact Us For Availability
219
Wire Shield GEN WB34K5221 Contact Us For Availability
220
Flue Defl Sd GEN WB34K5182 Contact Us For Availability
221
Body GEN WB63K5191 Contact Us For Availability
222
Lwr Frt Pnl GEN WB56K5022 Contact Us For Availability
222A
Lower Front Panel GEN WB56K5028 Contact Us For Availability
224
Ins Ret Spcr GEN WB02M0011 Contact Us For Availability
225
Gasket GEN WB02X9143 Contact Us For Availability
226
Oven Door Handle GEN WB15K5095 Contact Us For Availability
226A
Drawer Handle GEN WB15K5096 Contact Us For Availability
228
Fan Duct Insert GEN WB35K5044 Contact Us For Availability
228
Insulation GEN WB02X9430 Contact Us For Availability
229
Insulation GEN WB02X9140 Contact Us For Availability
231
Insulation GEN WB02X9153 Contact Us For Availability
232
Ins Bk & Bot GEN WB35K5035 Contact Us For Availability
233
Insulation GEN WB35M0024 Contact Us For Availability
234
Ins Flue Def GEN WB35K5077 Contact Us For Availability
235
Insulation GEN WB02X9394 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
253
Sensor Assembly GEN WB02X5318 Contact Us For Availability
258
Gasket GEN WB02X9151 Contact Us For Availability
259
Light Lens GEN WB36X0754 Contact Us For Availability
260
Light Lens GEN WB02K5303 Contact Us For Availability
262
VERTICAL TRIM EXTENSION GEN WB01X1744 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5301 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5302 Contact Us For Availability
262B
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
262C
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
301
Tube GEN WB28K5021 Contact Us For Availability
302
Tube GEN WB28K5019 Contact Us For Availability
303
Tube GEN WB28K5025 Contact Us For Availability
303A
Orifice Hood GEN WB13K5043 Contact Us For Availability
304
Tube GEN WB28K5023 Contact Us For Availability
305
Tube Assembly, Left GEN WB28K5070 Contact Us For Availability
305A
Tube Assembly, Right GEN WB28K5074 Contact Us For Availability
305B
Tube Assembly, Right GEN WB28K5072 Contact Us For Availability
305C
Tube Assembly, Left GEN WB28K5073 Contact Us For Availability
309
Oven Burner GEN WB28X0089 Contact Us For Availability
310
Bottom GEN WB53X0277 Contact Us For Availability
311
Broil Burner GEN WB28X0088 Contact Us For Availability
312
Pressure Regulator GEN WB19K5020 Contact Us For Availability
314
Range Surface Burner Valve GEN WB19K5027 Contact Us For Availability
314A
Small Gas Valve GEN WB19K5028 Contact Us For Availability
315
Control Valve GEN WB21X0475 Contact Us For Availability
317A
Bracket GEN WB02X9155 Contact Us For Availability
318
Spark Module GEN WB13K0025 Contact Us For Availability
320
Cover Valve Wire GEN WB34K5146 Contact Us For Availability
321
Wire Cover GEN WB34K5226 Contact Us For Availability
327
Spacer GEN WB06X0100 Contact Us For Availability
330
Clip GEN WB02K5125 Contact Us For Availability
334
Burner Support GEN WB02K5361 Contact Us For Availability
338
Str Ell-1/2 GEN WB06X0080 Contact Us For Availability
342
Bowl Bracket GEN WB02K5380 Contact Us For Availability
342A
Bowl Bracket GEN WB02K5381 Contact Us For Availability
346
Fitting GEN WB02X9156 Contact Us For Availability
348
Shield GEN WB02X9159 Contact Us For Availability
353
Air Shutter GEN WB02X9014 Contact Us For Availability
366
Gasket GEN WB06X0091 Contact Us For Availability
369
Reg Bracket GEN WB02K5227 Contact Us For Availability
372
Cover Chip GEN WB06K5015 Contact Us For Availability
373
Oven Baffle GEN WB34K5248 Contact Us For Availability
374
Baffle GEN WB49X0629 Contact Us For Availability
374A
Baffle GEN WB49X0630 Contact Us For Availability
382
Wire Cvr Shd GEN WB34K5147 Contact Us For Availability
391
Retainer GEN WB02X9176 Contact Us For Availability
394
Orifice Bracket GEN WB02K5367 Contact Us For Availability
400
Manual Pipe GEN WB28K5008 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
580B
.110 - .020 (SWITCH LEAD) GEN STD374120 Contact Us For Availability
678
Palnut GEN WB01K5196 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
815
Screw (White) GEN WB01K5179 Contact Us For Availability
815A
Screw-almond GEN WB01K5184 Contact Us For Availability
815B
Screw-black GEN WB01K5212 Contact Us For Availability
831
Screw-6-32 GEN WB01X1132 Contact Us For Availability
839
Adjustment Screw GEN WB01X1124 Contact Us For Availability
851
Screw GEN WB01X5691 Contact Us For Availability
852
Screw GEN WB01X1179 Contact Us For Availability
854
Screw (Black) GEN WB01X1164 Contact Us For Availability
855
Screw GEN WB01X1295 Contact Us For Availability
861
Screw GEN WB01X1307 Contact Us For Availability
866
Scw8-32x.748 GEN WB01X1428 Contact Us For Availability
906
SCREW 12-24 GEN WB01X5053 Contact Us For Availability
933
Washer GEN WB01X1256 Contact Us For Availability
938
Bushing GEN WB02X9103 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Inverted Nut GEN WB01X1117 Contact Us For Availability
999
Backguard Kit GEN SR10099 Contact Us For Availability
999
Switch Wire Harness GEN WB18K5354 Contact Us For Availability
999
Owner's Manual GEN SR10312 Contact Us For Availability
999
Installation Instructions GEN SR10011 Contact Us For Availability
999A
Main Harness GEN WB18K5608 Contact Us For Availability
999A
Installation GEN SR10284 Contact Us For Availability
999B
Igniter Harness GEN WB18K5638 Contact Us For Availability
999B
MINI MANUAL W/WIRE DIAG. GEN SR13635 Contact Us For Availability
999C
Electrode Harness GEN WB18K5659 Contact Us For Availability
999C
Parts List GEN 31-13344 Contact Us For Availability
999D
Mtr W Harn GEN WB18K5376 Contact Us For Availability
× ![]()
Login and Registration Form
