Model GE 911.36665893 30" Gas Slide-In Range (Kenmore 91136665893) – Common Parts & Diagrams

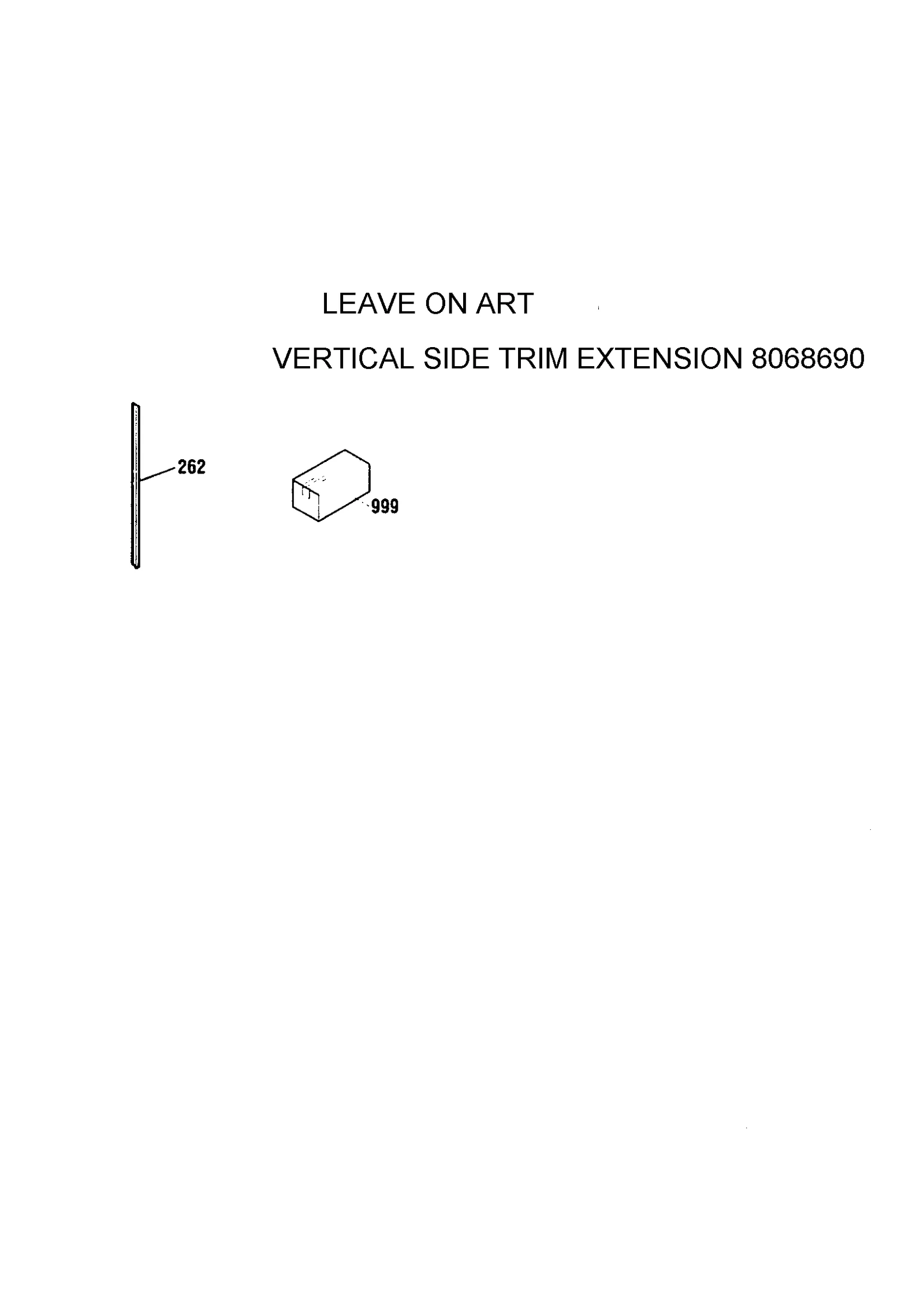

VERTICAL SIDE-TRIM EXT.8068690

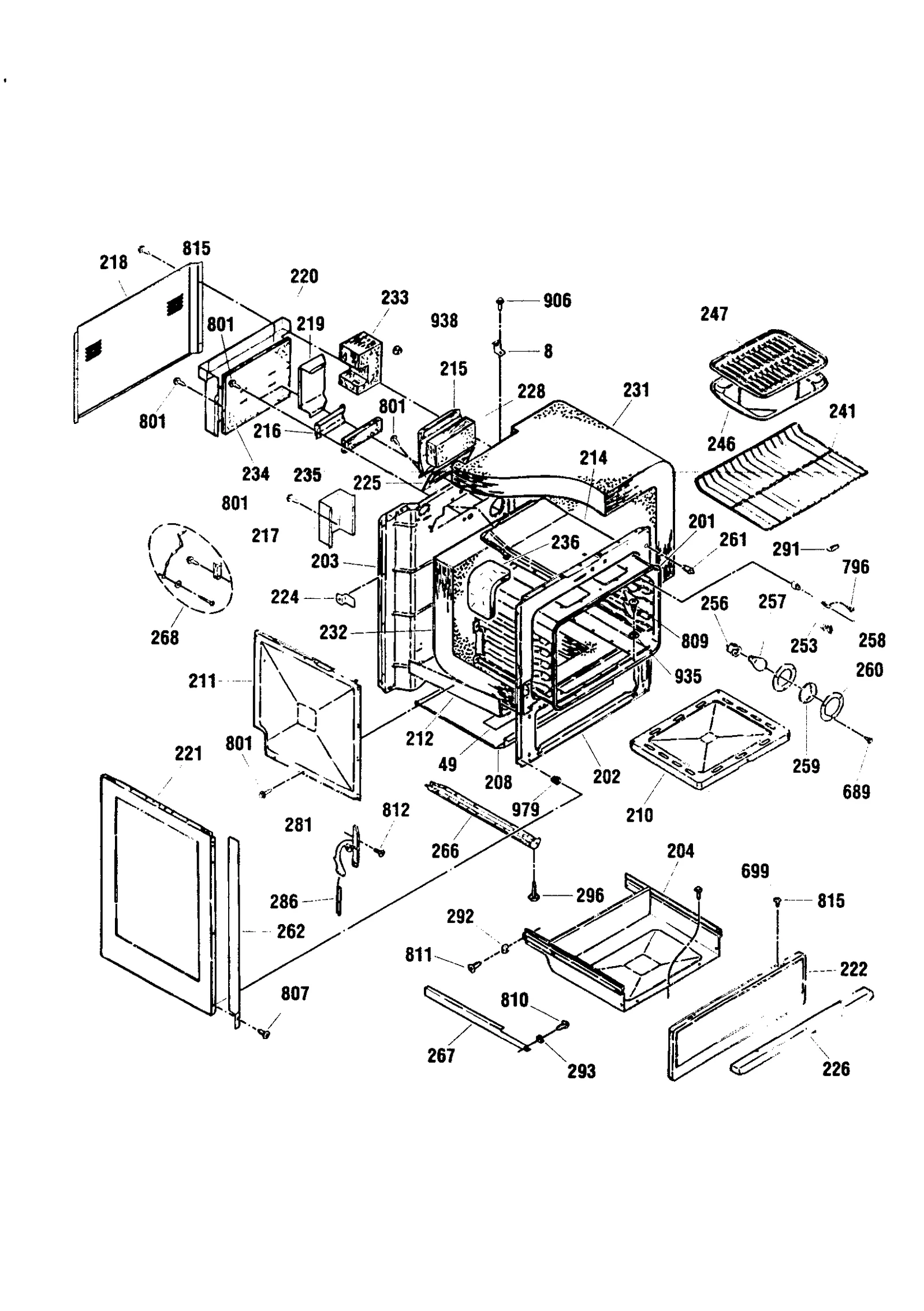

BODY
DOOR LOCK
MAINTOP
OPTIONAL BACKSPLASH 8050190/8059091
TOP BURNER
DOOR
OVEN BURNER
WIRING HARNESS/WIRING COMPONENT
Common parts from model GE 911.36665893 30" Gas Slide-In Range (Kenmore 91136665893)
2
End Cap GEN WB36K5410 Contact Us For Availability
2
End Cap GEN WB36K5497 Contact Us For Availability
2A
End Cap GEN WB36K5411 Contact Us For Availability
2A
End Cap GEN WB36K5498 Contact Us For Availability
2B
Range Control Panel End Cap, Right GEN WB36K5379 Contact Us For Availability
2C
End Cap GEN WB36K5378 Contact Us For Availability
3
Orif Spd Rrc GEN WB28K0141 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K5095 Contact Us For Availability
3B
Range Surface Burner Orifice GEN WB28K5087 Contact Us For Availability
3C
LP Orifice Spud GEN WB28K0145 Contact Us For Availability
4
Air Mix Tube GEN WB16K0013 Contact Us For Availability
6
Air Mix Tube GEN WB16K0014 Contact Us For Availability
7
Duct Fan GEN WB26M0001 Contact Us For Availability
7
Backguard Support GEN WB02K5152 Contact Us For Availability
7A
Backguard Support GEN WB02K5153 Contact Us For Availability
11
Wire Cover GEN WB64K5038 Contact Us For Availability
11
Range Top Trim Kit GEN WB36K5047 Contact Us For Availability
16
Range Oven Control Board GEN WB27T10081 Contact Us For Availability
18
Range Oven Control Overlay (White) GEN WB27T10038 Contact Us For Availability
18A
Clock Plate GEN WB27T10039 Contact Us For Availability
20
SWITCH BRACKET GEN WB02K5238 Contact Us For Availability
20A
Trim Bracket GEN WB02M0077 Contact Us For Availability
20B
Bracket Clock GEN WB02M0075 Contact Us For Availability
21A
Light Switch (Black) GEN WB24X0415 Contact Us For Availability
25
Bracket GEN WB02X9131 Contact Us For Availability
29
Range Burner Control Knob GEN WB03T10040 Contact Us For Availability
29A
Valve Knob GEN WB03T10041 Contact Us For Availability
32
Fan Motor GEN WB26X0100 Contact Us For Availability
36
Backsplash GEN WB36K5123 Contact Us For Availability
36A
Range Backsplash (Black) GEN WB36K5145 Contact Us For Availability
37
Filler Maintop GEN WB07K5499 Contact Us For Availability
37A
Filler Maintop GEN WB07K5498 Contact Us For Availability
42
Fan Duct Shd GEN WB34K5076 Contact Us For Availability
47
Vent Cover GEN WB34K5213 Contact Us For Availability
47A
Vent Cover GEN WB34K5205 Contact Us For Availability
51
Main GEN WB62K5142 Contact Us For Availability
51A
Main GEN WB62K5141 Contact Us For Availability
52
Console GEN WB36T10084 Contact Us For Availability
52A
Range Control Panel GEN WB36T10085 Contact Us For Availability
60
Range Drip Pan GEN WB31K5091 Contact Us For Availability
60B
Range Drip Pan GEN WB31K5088 Contact Us For Availability
60C
Range Drip Pan GEN WB31K5090 Contact Us For Availability
61
Burner Box GEN WB64K5092 Contact Us For Availability
63
Stiffner GEN WB02X9110 Contact Us For Availability
63A
Stiffner GEN WB02X9132 Contact Us For Availability
71
Extension Insulation GEN WB35K5134 Contact Us For Availability
71
Insulation GEN WB35T10007 Contact Us For Availability
72
Acrylic Tape GEN WB06K5014 Contact Us For Availability
74B
Cooktop Burner Grate GEN WB31T10003 Contact Us For Availability
91
Mt Hinge-lt GEN WB14K5024 Contact Us For Availability
91A
Mt Hinge-rt GEN WB14K5023 Contact Us For Availability
93
Wire Cover GEN WB34K5074 Contact Us For Availability
93A
Wire Cover GEN WB34K5075 Contact Us For Availability
94
Moisture Bar GEN WB34K5153 Contact Us For Availability
101
Insulation Vent Trim GEN WB35K5037 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
112
Door Liner GEN WB55T10018 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (White) GEN WB57T10004 Contact Us For Availability
121A
Range Oven Door Outer Panel (Black) GEN WB57K5307 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
125
Heat Reflector GEN WB34K5091 Contact Us For Availability
127
Heat Shield GEN WB34K5227 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136A
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Door Frame GEN WB55K5053 Contact Us For Availability
140A
Oven Door Frame GEN WB55K5054 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Burner Cap GEN WB29K0042 Contact Us For Availability
151A
Burner Cap GEN WB29K0045 Contact Us For Availability
151B
Burner Cap GEN WB29K0041 Contact Us For Availability
151C
Burner Cap GEN WB29K0044 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
155A
Burner Head GEN WB16K0011 Contact Us For Availability
159
Range Thermal Cut-Off GEN WB24T10010 Contact Us For Availability
166
Lock Box GEN WB02K5394 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
184
Dr Lck Plate GEN WB02K5393 Contact Us For Availability
185
Lock Lever Assembly GEN WB15K5015 Contact Us For Availability
195
Lock Spring GEN WB09X0243 Contact Us For Availability
226A
Oven Door Handle GEN WB15K5095 Contact Us For Availability
228
Insulation GEN WB02X9430 Contact Us For Availability
228
Fan Duct Insert GEN WB35K5044 Contact Us For Availability
231
Insulation GEN WB02X9153 Contact Us For Availability
232
Ins Bk & Bot GEN WB35K5035 Contact Us For Availability
233
Insulation GEN WB02X9140 Contact Us For Availability
234
Ins Flue Def GEN WB35K5077 Contact Us For Availability
235
Insulation GEN WB02X9394 Contact Us For Availability
236
Insulation GEN WB35M0024 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
258
Gasket GEN WB02X9151 Contact Us For Availability
259
Light Lens GEN WB36X0754 Contact Us For Availability
260
Light Lens GEN WB02K5303 Contact Us For Availability
262
Vert Sd Trim GEN WB07K5301 Contact Us For Availability
262A
Vert Sd Trim GEN WB07K5302 Contact Us For Availability
262B
Sd Trim Lt GEN WB07K5297 Contact Us For Availability
262C
Sd Trim Rt GEN WB07K5298 Contact Us For Availability
266
Base GEN WB02K5334 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
286
Oven Drive Spring GEN WB09X0244 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Range Level Screw GEN WB01M0018 Contact Us For Availability
301
Tube GEN WB28K5021 Contact Us For Availability
302
Tube GEN WB28T10003 Contact Us For Availability
303
Tube GEN WB28K5025 Contact Us For Availability
303A
Orifice Hood GEN WB13K5043 Contact Us For Availability
304
Tube GEN WB28K5023 Contact Us For Availability
305
Tube Assembly, Left GEN WB28K5070 Contact Us For Availability
305A
Tube Assembly, Right GEN WB28K5074 Contact Us For Availability
306
Tube Assembly, Right GEN WB28K5072 Contact Us For Availability
306A
BURNER TUBING-REAR LEFT GEN WB20K5073 Contact Us For Availability
309
Bake Burner GEN WB16T10002 Contact Us For Availability
310
Burner Box GEN WB53T10003 Contact Us For Availability
311
Broiler Burner GEN WB16T10001 Contact Us For Availability
311A
Range Broil Burner GEN WB16T10004 Contact Us For Availability
312
Pressure Regulator GEN WB19T10001 Contact Us For Availability
314
Small Gas Valve GEN WB19K5028 Contact Us For Availability
314A
Range Surface Burner Valve GEN WB19K5027 Contact Us For Availability
315
Range Oven Gas Valve GEN WB21T10001 Contact Us For Availability
318
Spark Module GEN WB13K0025 Contact Us For Availability
320
Cover Valve Wire GEN WB34K5146 Contact Us For Availability
321
Wire Cover GEN WB34K5226 Contact Us For Availability
330
Clip GEN WB02K5125 Contact Us For Availability
334
Burner Support GEN WB02K5361 Contact Us For Availability
338
Str Ell-1/2 GEN WB06X0080 Contact Us For Availability
342
Bowl Bracket GEN WB02K5380 Contact Us For Availability
342A
Bowl Bracket GEN WB02K5381 Contact Us For Availability
346
Fitting GEN WB02X9156 Contact Us For Availability
348
Shield GEN WB02X9159 Contact Us For Availability
353
Air Shutter GEN WB02X9014 Contact Us For Availability
366
Gasket GEN WB06X0091 Contact Us For Availability
369
Reg Bracket GEN WB02K5227 Contact Us For Availability
372
Cover Chip GEN WB06K5015 Contact Us For Availability
373
Oven Baffle GEN WB34K5248 Contact Us For Availability
374
Baffle GEN WB49T10004 Contact Us For Availability
374A
Baffle GEN WB49X0630 Contact Us For Availability
382
Wire Cvr Shd GEN WB34K5147 Contact Us For Availability
391
Retainer GEN WB02X9176 Contact Us For Availability
394
Orifice Bracket GEN WB02K5367 Contact Us For Availability
400
Manifold Pipe GEN WB28T10001 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
580B
.110 - .020 (SWITCH LEAD) GEN STD374120 Contact Us For Availability
678
Palnut GEN WB01K5196 Contact Us For Availability
805
Screw GEN WB01X1113 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812A
Screw Black GEN WB01K5160 Contact Us For Availability
815
Screw (White) GEN WB01K5179 Contact Us For Availability
815A
Screw-black GEN WB01K5212 Contact Us For Availability
831
Screw-6-32 GEN WB01X1132 Contact Us For Availability
839
Adjustment Screw GEN WB01X1124 Contact Us For Availability
851
Screw GEN WB01X5691 Contact Us For Availability
852
Screw GEN WB01X1179 Contact Us For Availability
854
Screw (Black) GEN WB01X1164 Contact Us For Availability
855
Screw GEN WB01X1295 Contact Us For Availability
861
SCREW 10AB X 3/4" GEN WB10X1307 Contact Us For Availability
866
Scw8-32x.748 GEN WB01X1428 Contact Us For Availability
933
Washer GEN WB01X1256 Contact Us For Availability
938
Bushing GEN WB02X9103 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
986
Inverted Nut GEN WB01X1117 Contact Us For Availability
995
COMPRESSION NUT- MALE GEN WB01T10004 Contact Us For Availability
996
Compression Nut GEN WB01T10005 Contact Us For Availability
999
Installation GEN 31-10254 Contact Us For Availability
999
Backguard Kit GEN SR10099 Contact Us For Availability
999
Switch Wire Harness GEN WB18K5354 Contact Us For Availability
999A
Light Product GEN SR10371 Contact Us For Availability
999A
Wire Harness GEN WB18T10027 Contact Us For Availability
999B
Mini Manual GEN 31-13530 Contact Us For Availability
999B
Wire Harness GEN WB18T10024 Contact Us For Availability
999C
Parts List GEN 31-13625 Contact Us For Availability
999C
Range Spark Module Wire Harness GEN WB18T10025 Contact Us For Availability
999D
Cleaner Grat GEN WB31T10009 Contact Us For Availability
999D
Range Main Wire Harness GEN WB18T10026 Contact Us For Availability
× ![]()
Login and Registration Form
