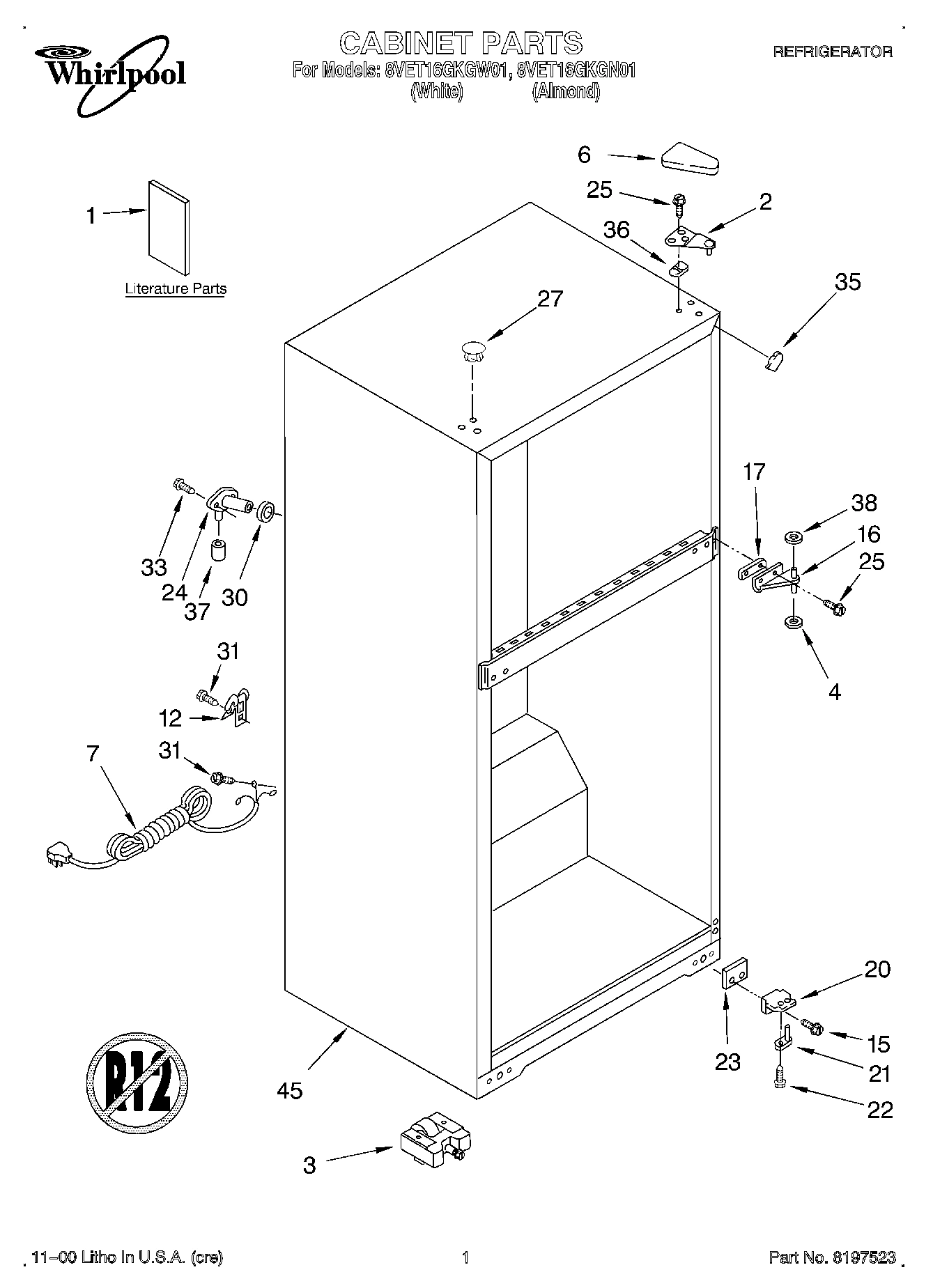

Model Whirlpool 8VET16GKGN01 REFRIGERATOR – Common Parts &amp; Diagrams

2

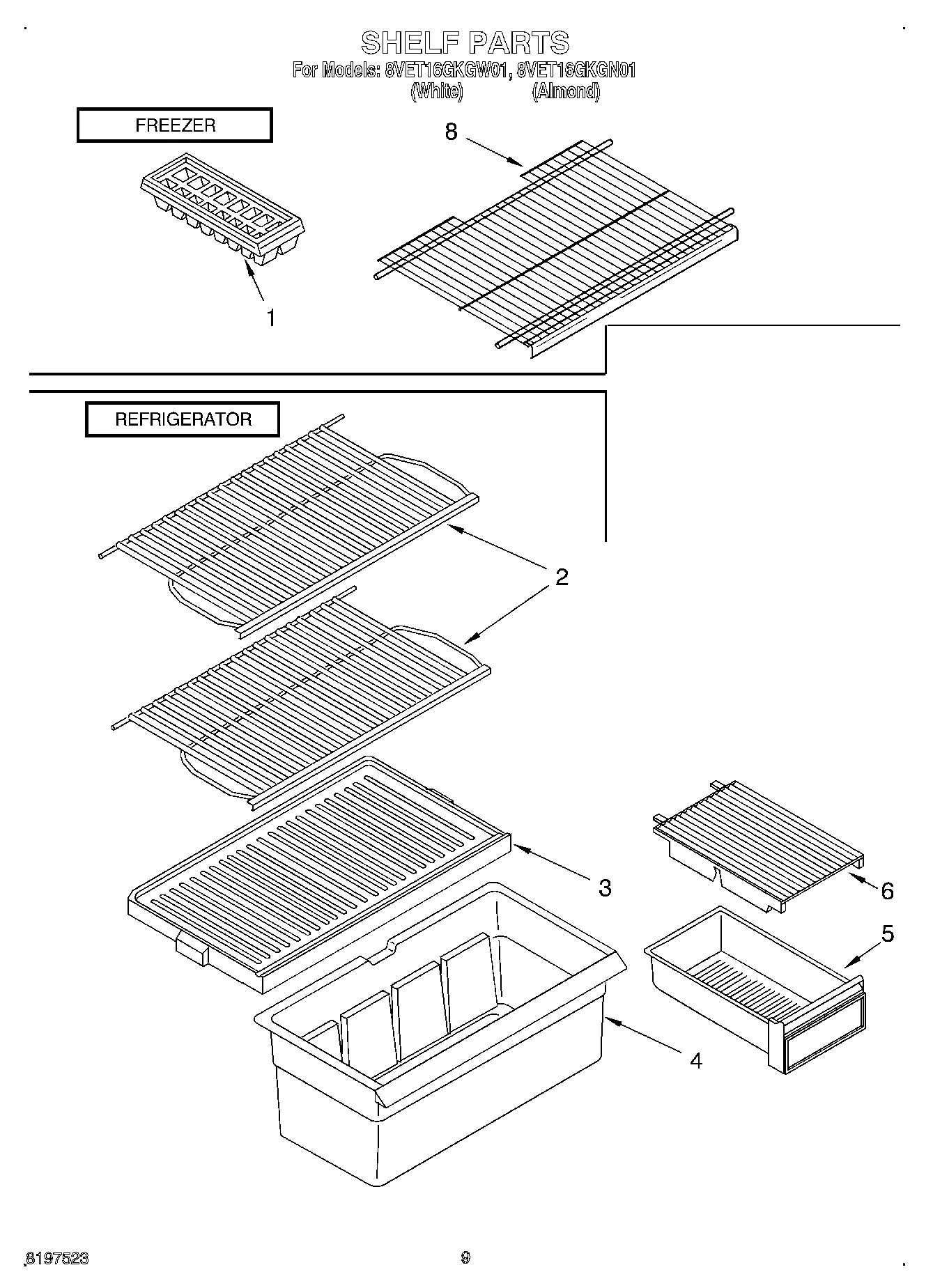

WP2192515 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2192515 $72.33

3

W11547193 Whirlpool Drawer Cover In Stock WPL W11547193 $86.74

3

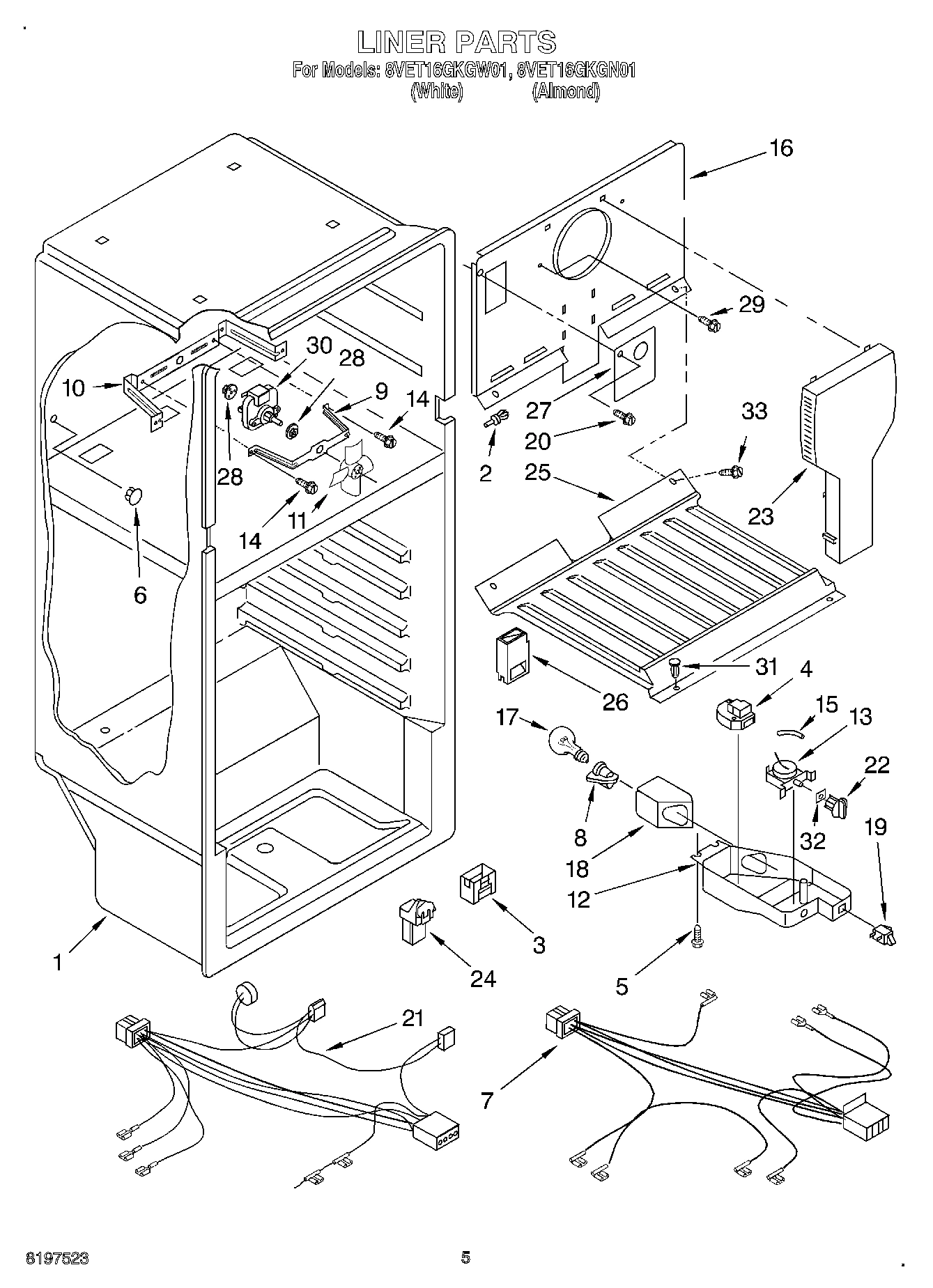

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $38.88

4

WP2192009 Whirlpool Crisper Pan In Stock WPL WP2192009 $68.99

4

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

5

WP2202807W Whirlpool Handle Door In Stock WPL WP2202807W $89.51

5

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

5

Pan, Meat WPL 2183273 Contact Us For Availability

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Cover, Pan WPL 9790379 Contact Us For Availability

7

2176927 Whirlpool Refrigerator Wire Harness Backorder WPL 2176927 $53.56

7

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

WP2192514 Whirlpool Refrigerator Wire Shelf In Stock WPL WP2192514 $66.83

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $4.63

9

WPW10180172 Whirlpool Refrigerator Bracket Backorder WPL WPW10180172 $14.37

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

11

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

11

Fan Blade WPL 2169141 Contact Us For Availability

12

2215213 Whirlpool Refrigerator Control Box Backorder WPL 2215213 $40.72

12

WP2202819W Whirlpool Refrigerator Cover Backorder WPL WP2202819W $3.70

13

WPW10567140 Whirlpool Refrigerator Thermostat In Stock WPL WPW10567140 $58.66

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

14

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

16

WP2166037 Whirlpool Refrigerator Door Hinge In Stock WPL WP2166037 $51.83

16

Cover, Evaporator WPL 2201205 Contact Us For Availability

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

17

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

18

W11034434 Whirlpool Refrigerator Light Lens Backorder WPL W11034434 $43.59

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

20

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

21

WP2192096 Whirlpool Refrigerator Wire Harness Backorder WPL WP2192096 $121.65

21

Hinge-Pin Bott. WPL 9791682 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

Screw WPL 488714 Contact Us For Availability

23

WP2201567 Whirlpool Hinge Shim Backorder WPL WP2201567 $3.70

23

Air Tower WPL 2174502 Contact Us For Availability

24

Hood & Foil Assembly WPL 2197052 Contact Us For Availability

25

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

25

Freezer Floor WPL 2174798 Contact Us For Availability

26

Air Diffuser WPL 2197030 Contact Us For Availability

27

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $17.06

28

Installation Kit WPL 482801 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

30

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

31

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

32

RETAINER Backorder WPL 2165773 $5.44

32

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $105.37

WP2202098 Whirlpool Refrigerator Handle In Stock WPL WP2202098 $74.17

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVA WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

34

Retainer, Gasket WPL 1122553 Contact Us For Availability

37

WP2163629 Whirlpool Refrigerator Door Trim In Stock WPL WP2163629 $24.49

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

43

Tray, Evaporator WPL 2201801 Contact Us For Availability

45

W11661102 Whirlpool Tube Backorder WPL W11661102 $11.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
