Model Whirlpool 8GT9FTKXST01 REFRIGERATOR – Common Parts &amp; Diagrams

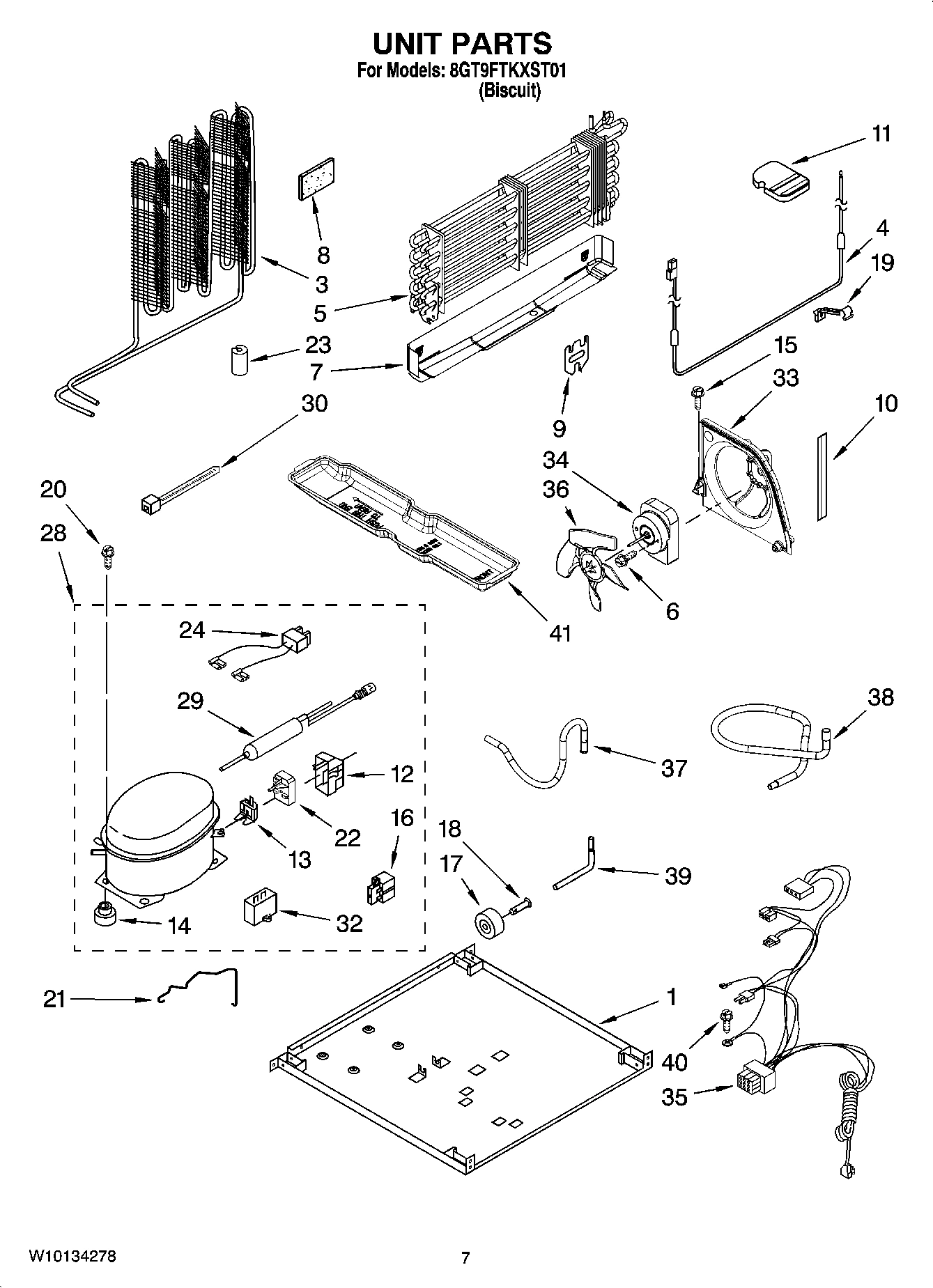

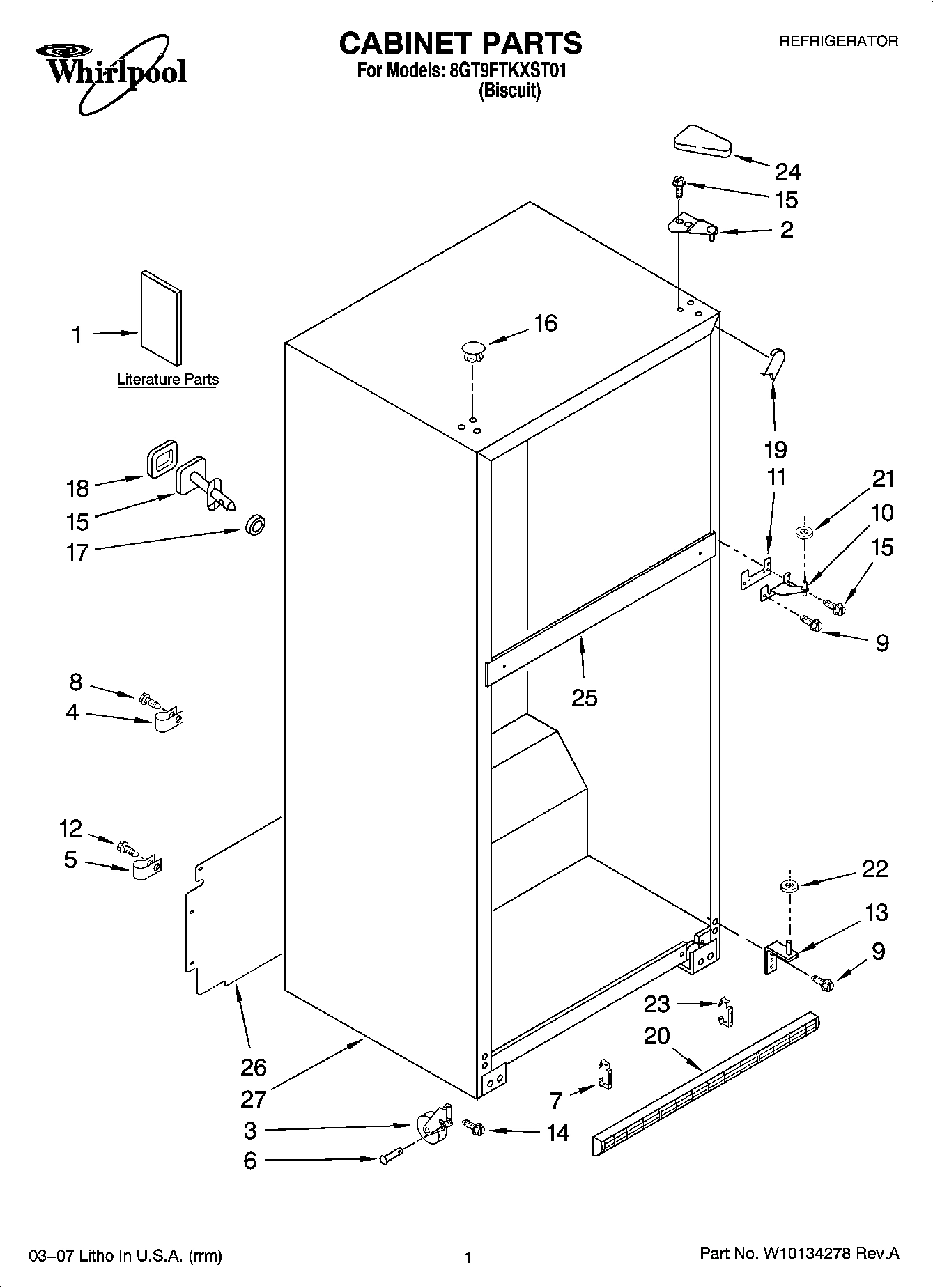

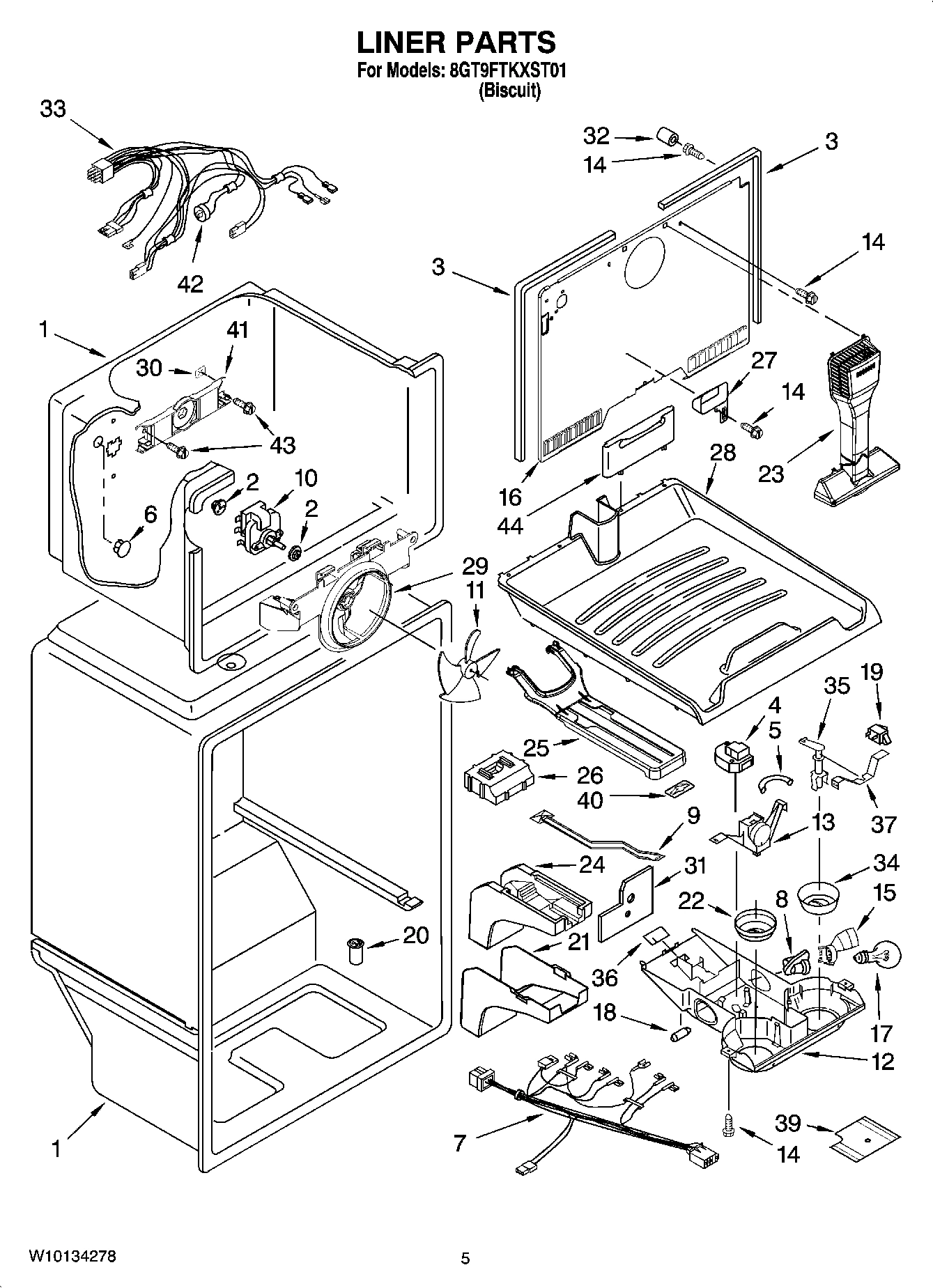

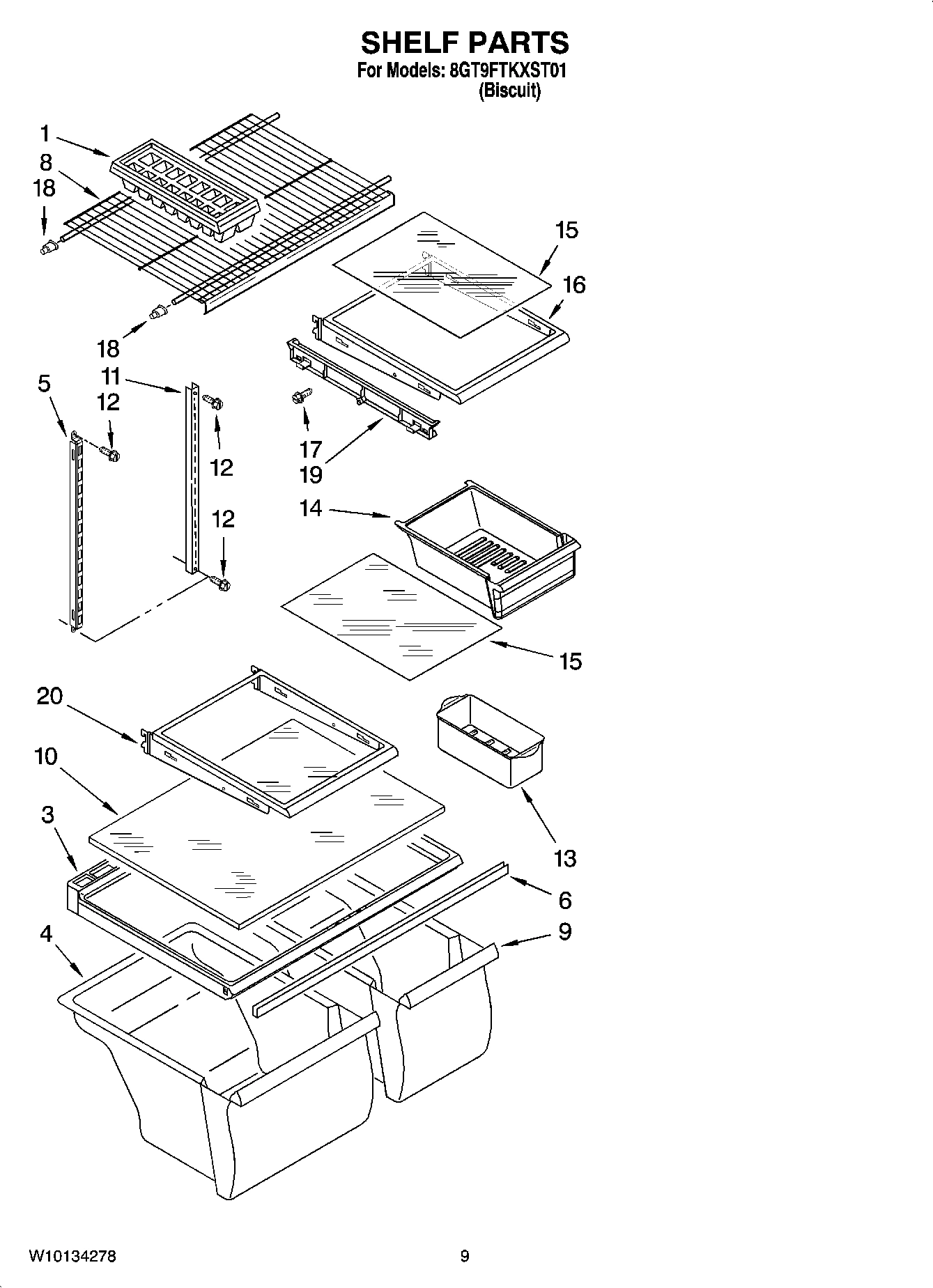

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

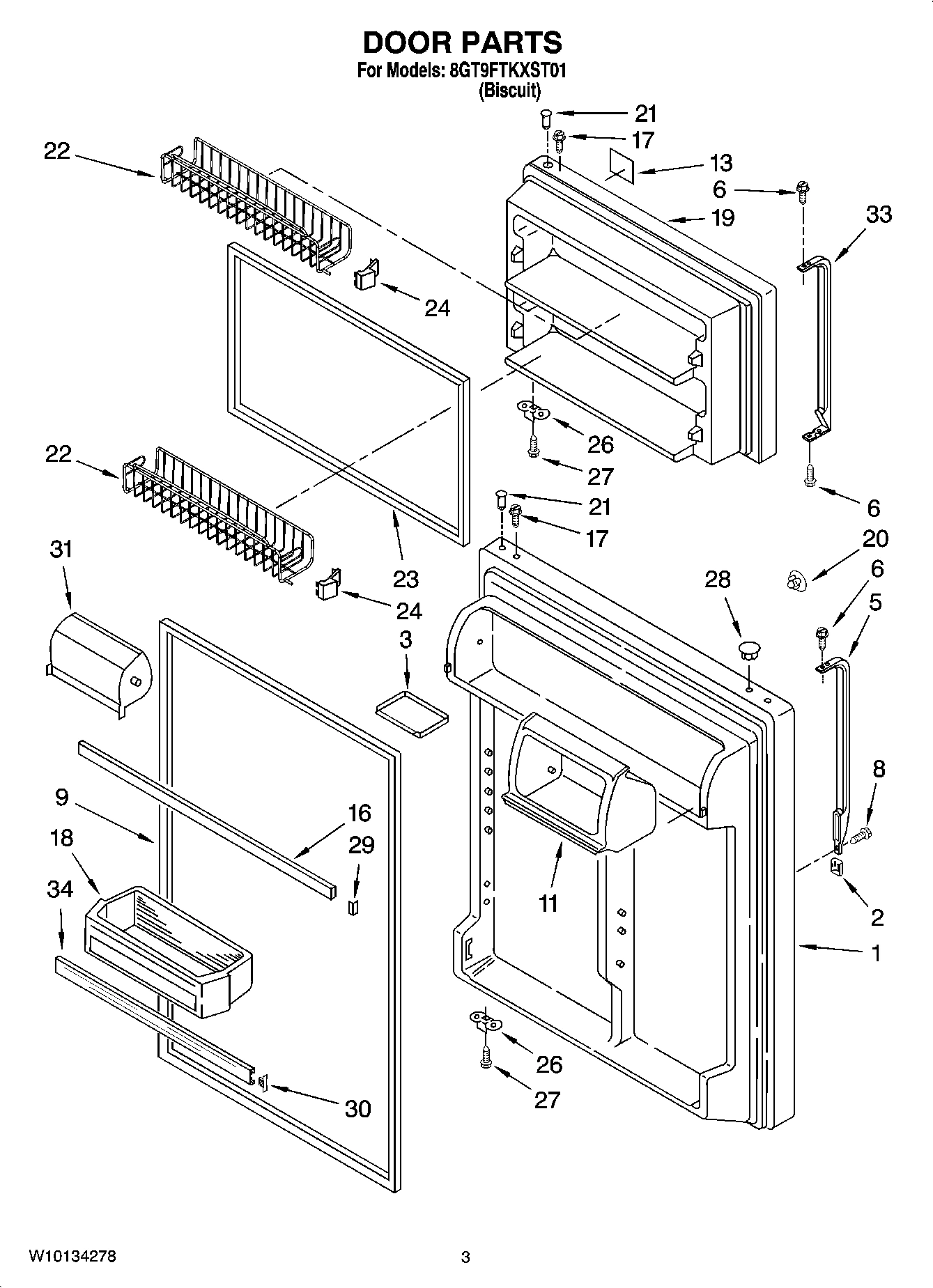

Refrigerator Door (Includes 9 & 21) (Biscuit) WPL 2205286 Contact Us For Availability

2

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

Tray-Door, RC WPL 2159302 Contact Us For Availability

4

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

4

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

6

8534058 Whirlpool Refrigerator Screw Backorder WPL 8534058 $4.58

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

CLIP, GRILLE WPL 2189356 Contact Us For Availability

7

Drain Pan WPL 2254294 Contact Us For Availability

8

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

9

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

9

Bracket, Heater WPL 2176301 Contact Us For Availability

10

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

11

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

11

Support Block WPL 2201184 Contact Us For Availability

11

Housing Compt. RC WPL 2210566 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2210489 Contact Us For Availability

Nameplate (Biscuit) WPL 2220214 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $81.90

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

15

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

16

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

16

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

17

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

18

Door Bin (3) WPL 2300447 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Clip, Heater WPL 2182338 Contact Us For Availability

19

Freezer Door (Includes Illus. 21 & 23) (Biscu WPL 2205130 Contact Us For Availability

20

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

21

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

21

WP2314293 Whirlpool Refrigerator Thimble Backorder WPL WP2314293 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

22

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

22

Door Basket- FC WPL 2300797 Contact Us For Availability

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

End Cap-FC Bskt.LH WPL 2300798 Contact Us For Availability

End Cap-FC Bskt.RH WPL 2300799 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

27

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

29

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Plug-Trim WPL 2177340 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

33

Air Baffle WPL 2302249 Contact Us For Availability

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

34

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

Wire Assembly Unit WPL 2187807 Contact Us For Availability

36

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

37

Tube, Discharge WPL 2205384 Contact Us For Availability

38

Tube, Suction WPL 2225237 Contact Us For Availability

39

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

40

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2254574 Whirlpool Refrigerator Evaporator T In Stock WPL WP2254574 $57.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI19503A1 Contact Us For Availability

REFRIGERANT CHARGE 4.00 Ozs. (R134A) WPL ARI19504A7 Contact Us For Availability

44

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
