Model Whirlpool 8ET21DKXDN02 REFRIGERATOR – Common Parts & Diagrams

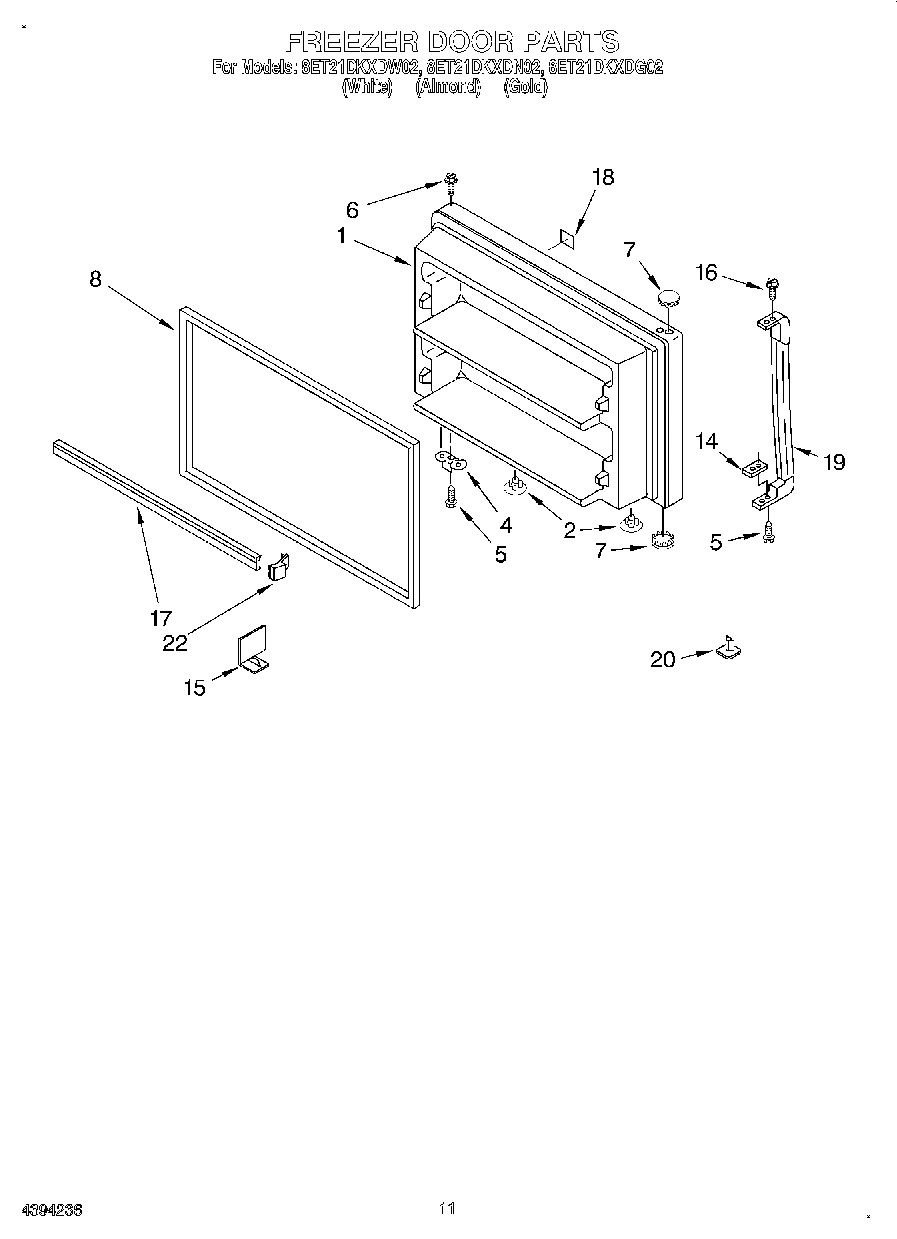

06 - FREEZER DOOR, LIT/OPTIONAL

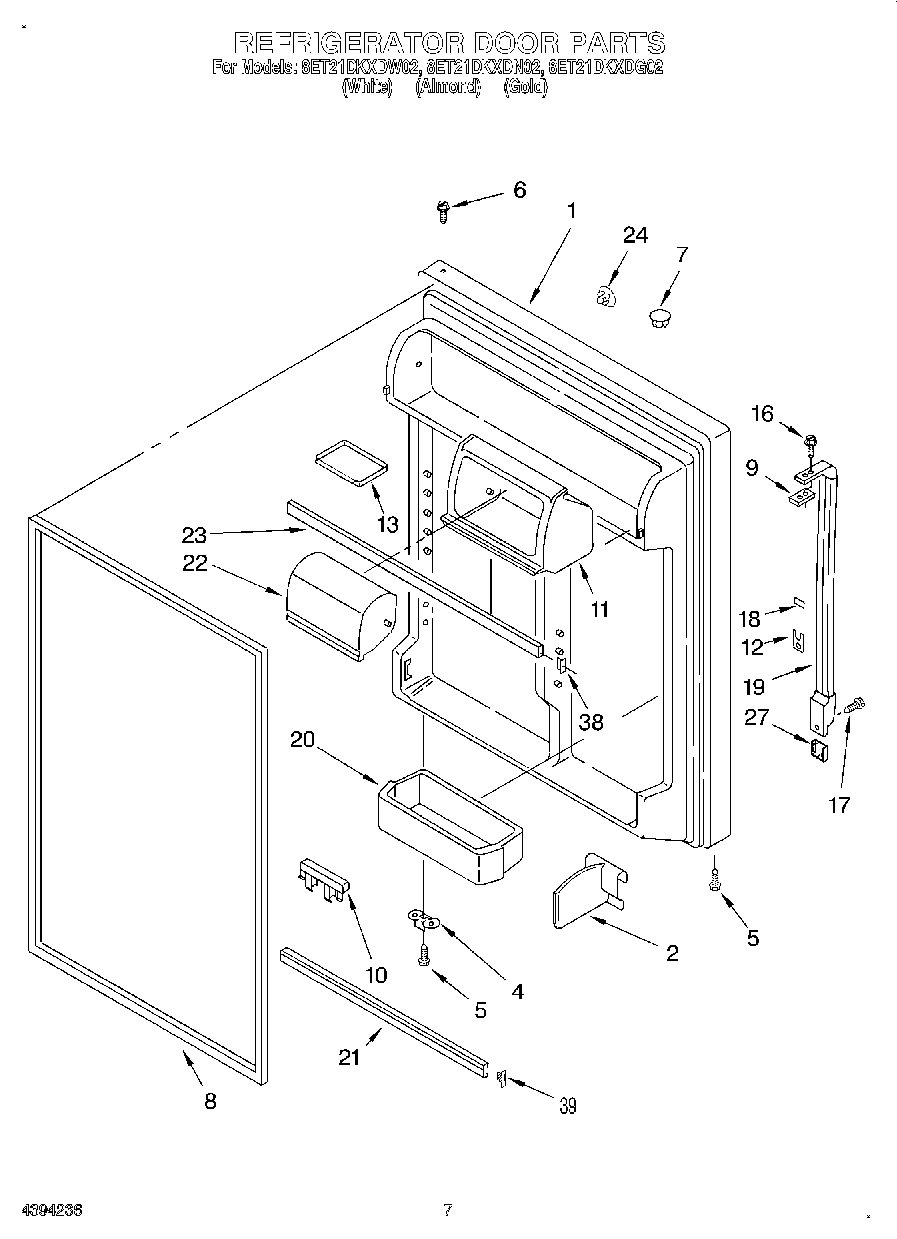

04 - REFRIGERATOR DOOR
02 - LINER
01 - CABINET
03 - SHELF
05 - UNIT
Common parts from model Whirlpool 8ET21DKXDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19123A9 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI19120A3 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Shim WPL 2172745 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Control Box WPL 2174672 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179717 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172684 Contact Us For Availability
13
Overload (Includes Relay) (Production) WPL 2169407 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2166223 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (Black) WPL 2179313 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI19124A9 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Door Compartment WPL 2182402 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Relay (See Overload) WPL ARI19125A5 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI19121A4 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2166112 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2184459 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Hole Plug (6) (Black) WPL 2151654 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176241 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Black) WPL 2166188 Contact Us For Availability
35
Ice Bucket WPL 2174616 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Grille (Black) WPL 2182434 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Pullout, Freezer Floor WPL 2172504 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Cover-Hinge (Gold) WPL 2176205 Contact Us For Availability
41
Roller, Slide WPL 2176246 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI19122A1 Contact Us For Availability
42
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
43
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
43
Trim, Crisper Pan WPL 2190552 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Trim, Pullout Freezer Floor WPL 2179721 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
44
Trim, Meat Pan WPL 2190556 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174469 Contact Us For Availability
49
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
53
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
