Model Whirlpool 8ET19DKXFN02 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
04 - REFRIGERATOR DOOR

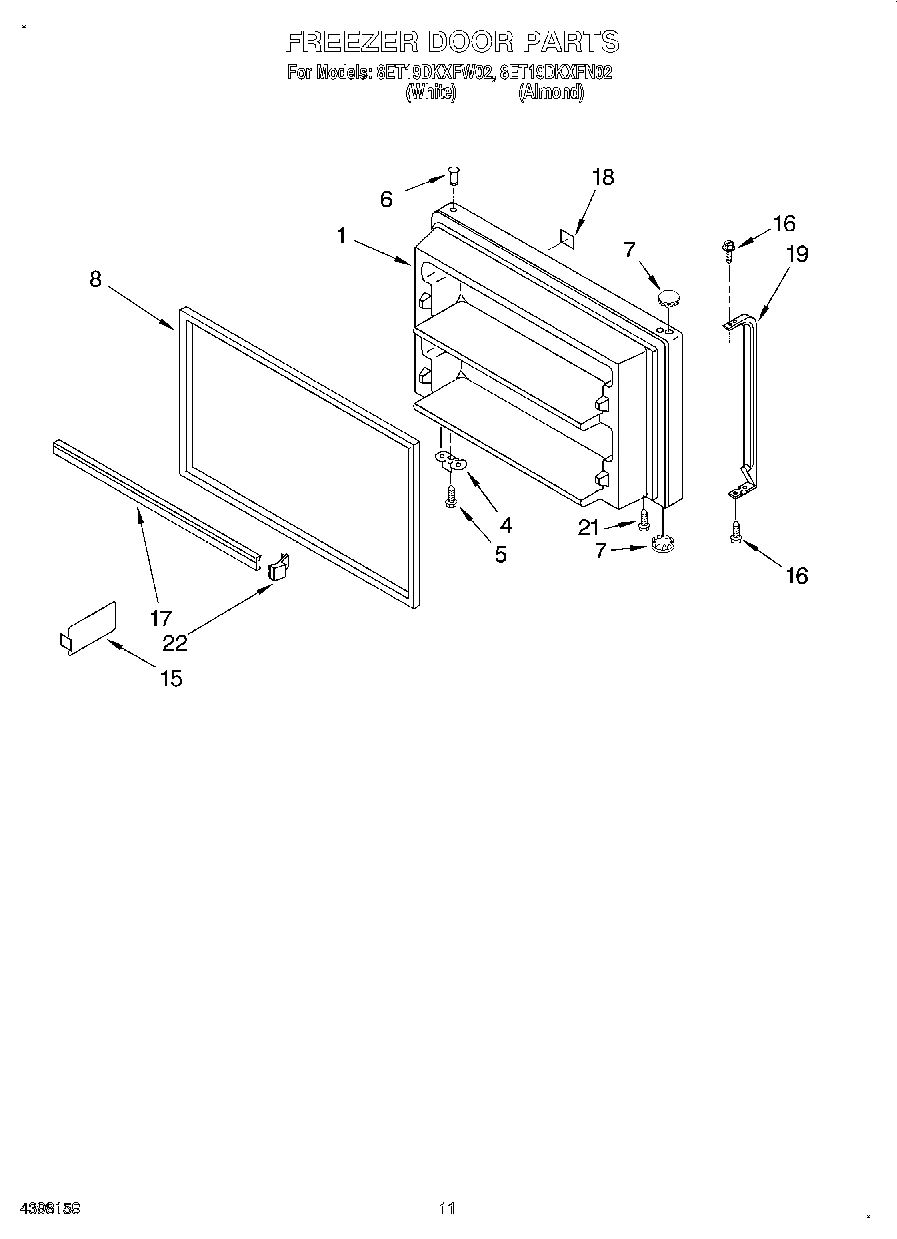

06 - FREEZER DOOR, LIT/OPTIONAL

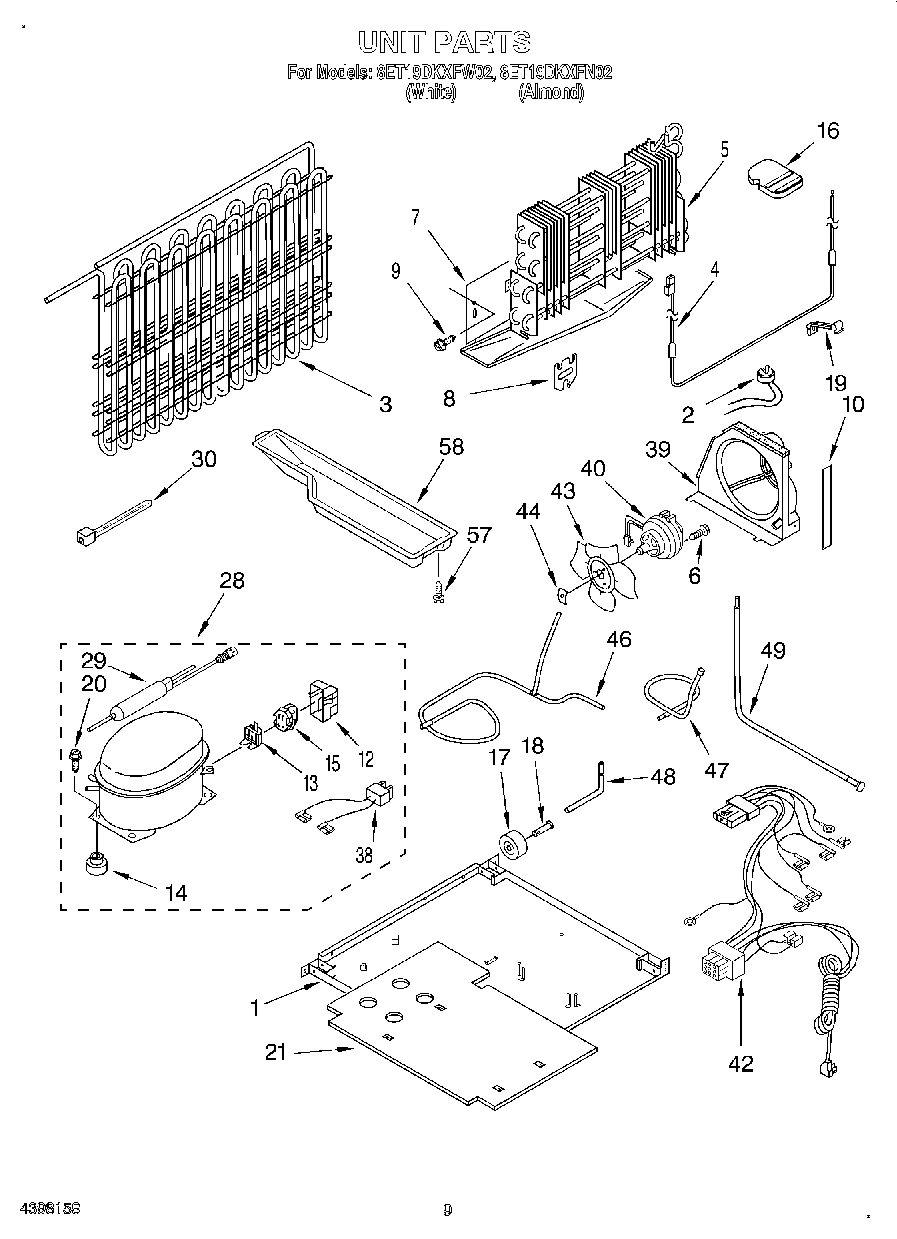

05 - UNIT

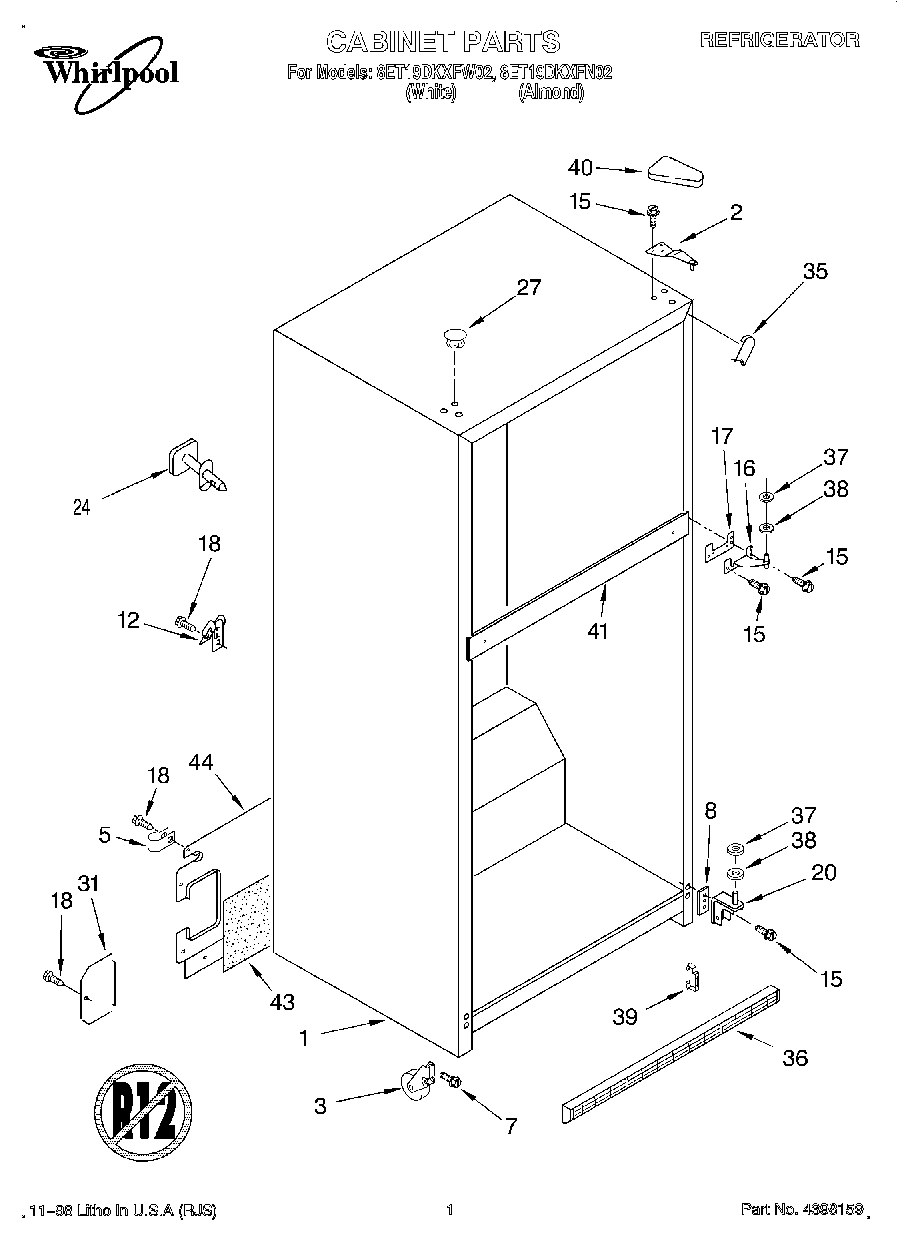

01 - CABINET
02 - LINER
Common parts from model Whirlpool 8ET19DKXFN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI18806A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18809A1 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Timer, Defrost WPL 2199008 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
8
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Extension, Air Baffle (Production Only) WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200830 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Support Block WPL 2176302 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Cover, Unit WPL 2198740 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI18807A3 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top WPL 2200793 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (Almond) WPL 2201010 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Sleeve WPL 2179712 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI18808A2 Contact Us For Availability
41
Wire Harness, Freezer light WPL 2198891 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Wire Assy. Unit WPL 2199117 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
46
Shield WPL 2190519 Contact Us For Availability
47
Tube, Suction WPL 2189161 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2201045 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
