Model Whirlpool 8ET19DKXFN00 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR DOOR
06 - FREEZER DOOR, LIT/OPTIONAL

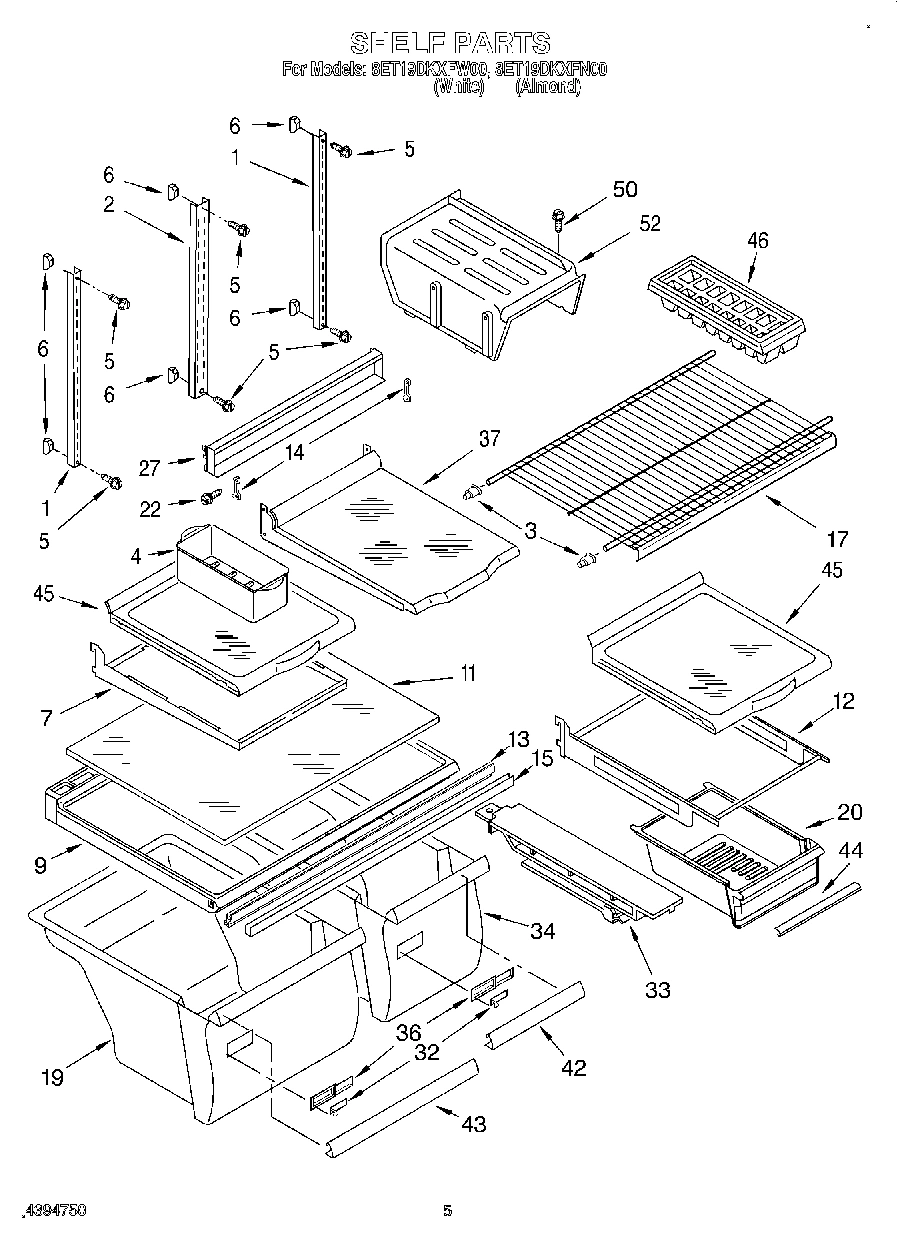

03 - SHELF

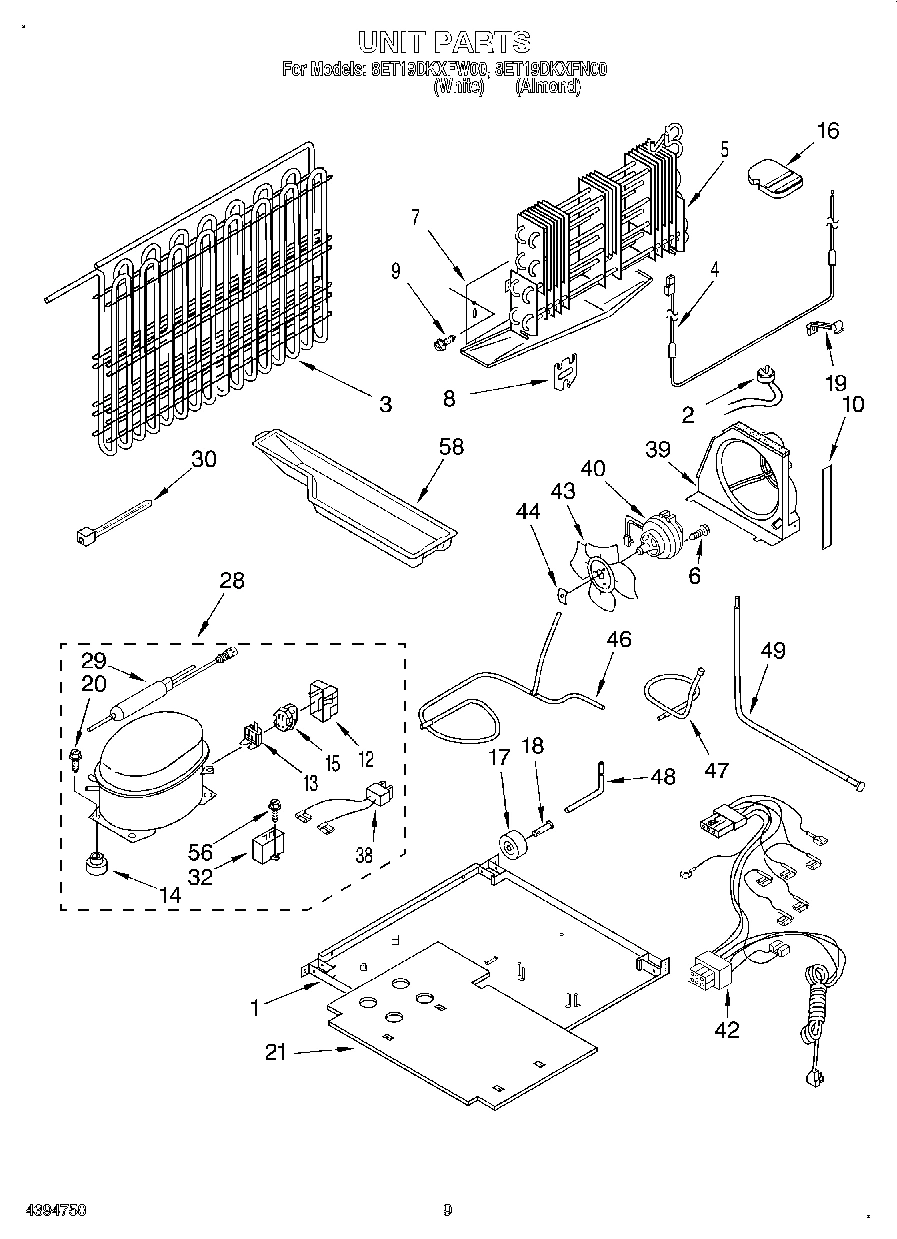

05 - UNIT

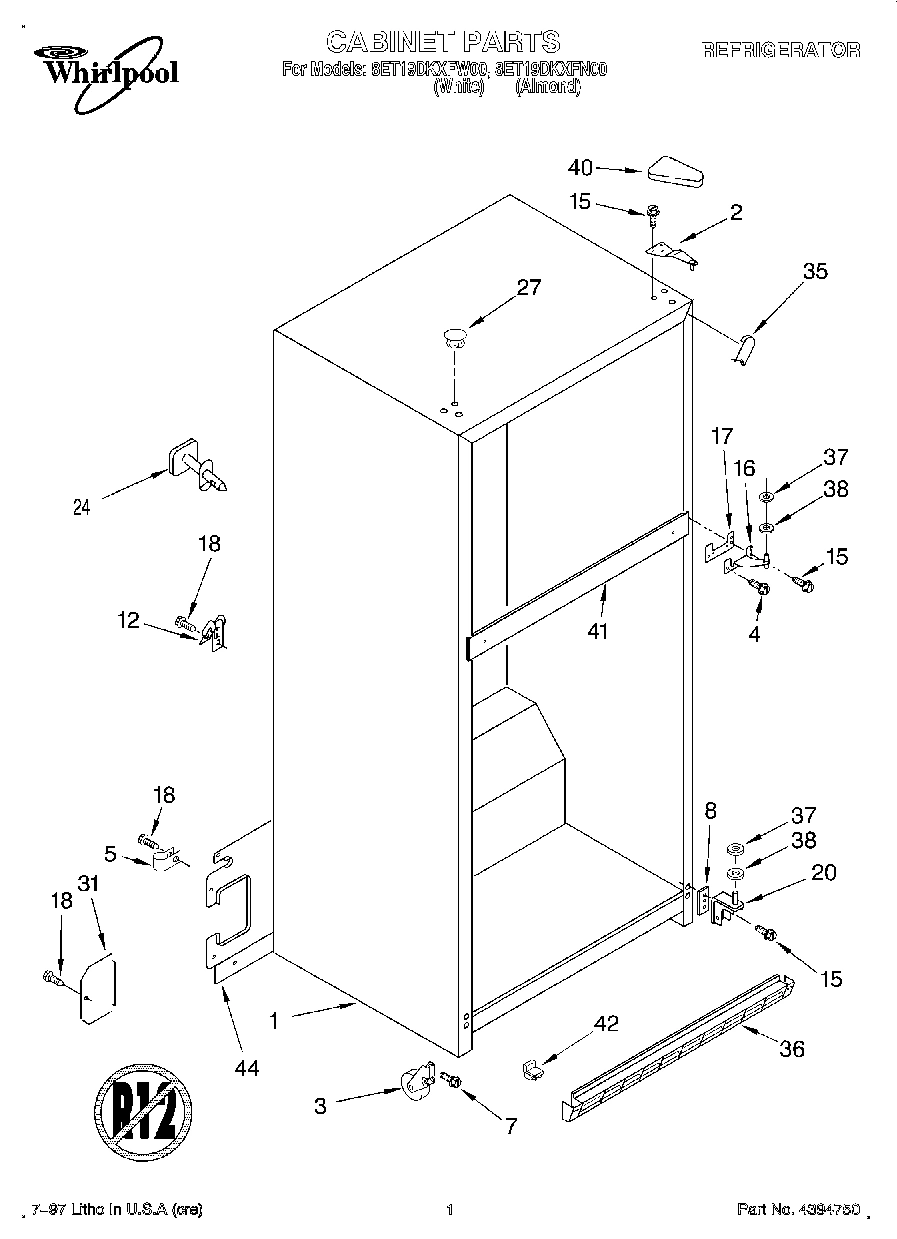

01 - CABINET

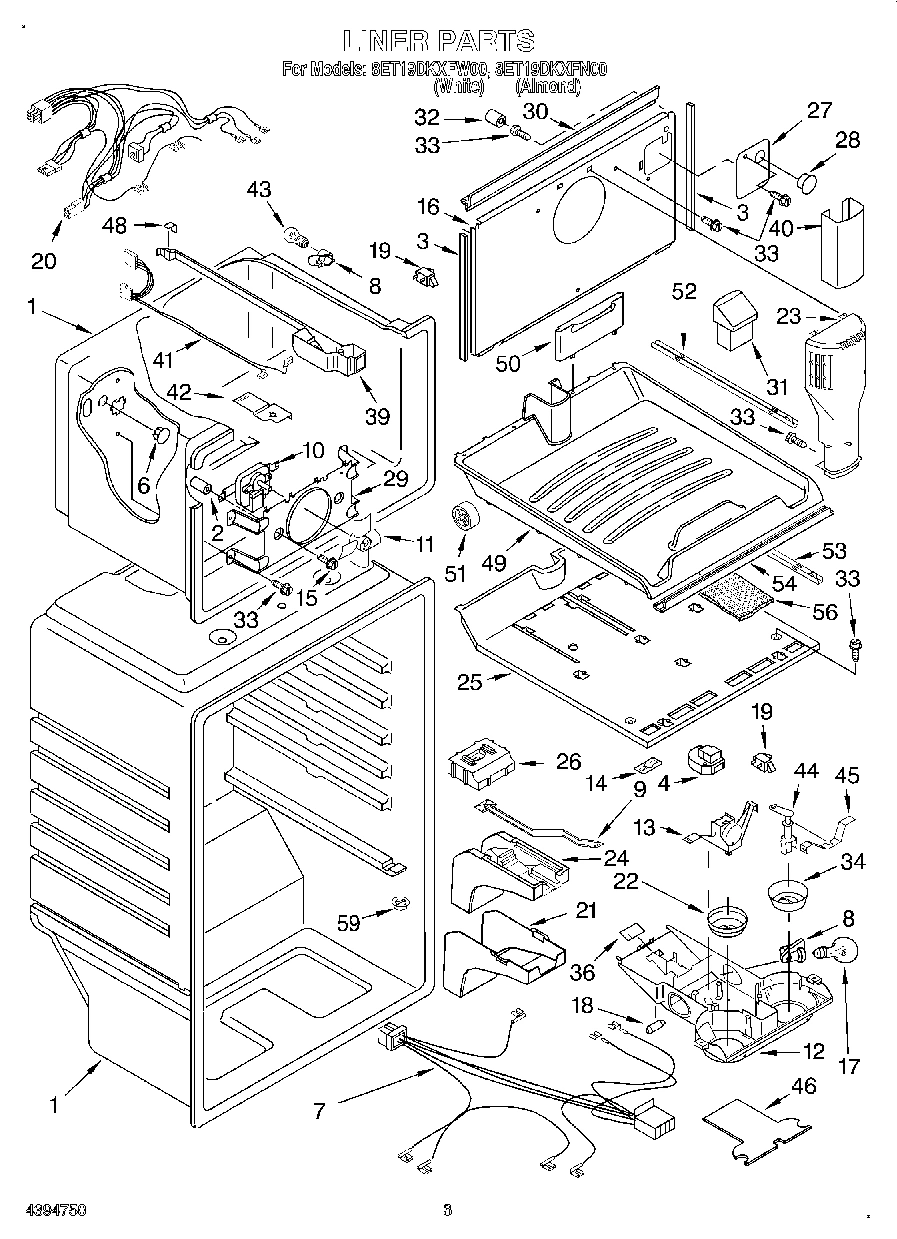

02 - LINER
Common parts from model Whirlpool 8ET19DKXFN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI18796A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18799A5 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
6
Screw Support WPL 2189314 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
8
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2195603 Contact Us For Availability
10
Extension, Air Baffle (Production Only) WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Relay (See Overload) WPL ARI18800A8 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Support Block WPL 2176302 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Cover, Unit WPL 2198740 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI18797A9 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2189157 Contact Us For Availability
36
Grille (Almond) WPL 2189158 Contact Us For Availability
37
Shelf Assembly, Spillguard WPL 2195348 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Sleeve WPL 2179712 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI18798A3 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2183993 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2183994 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Shelf Assembly, Spillguard (2) WPL 2195500 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
46
Shield WPL 2190519 Contact Us For Availability
47
Tube, Suction WPL 2189161 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2195483 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 4,7,12, 14,20,22,27,37,4 WPL 2197523 Contact Us For Availability
× ![]()
