Model Whirlpool 8ET19DKXDN01 REFRIGERATOR – Common Parts & Diagrams

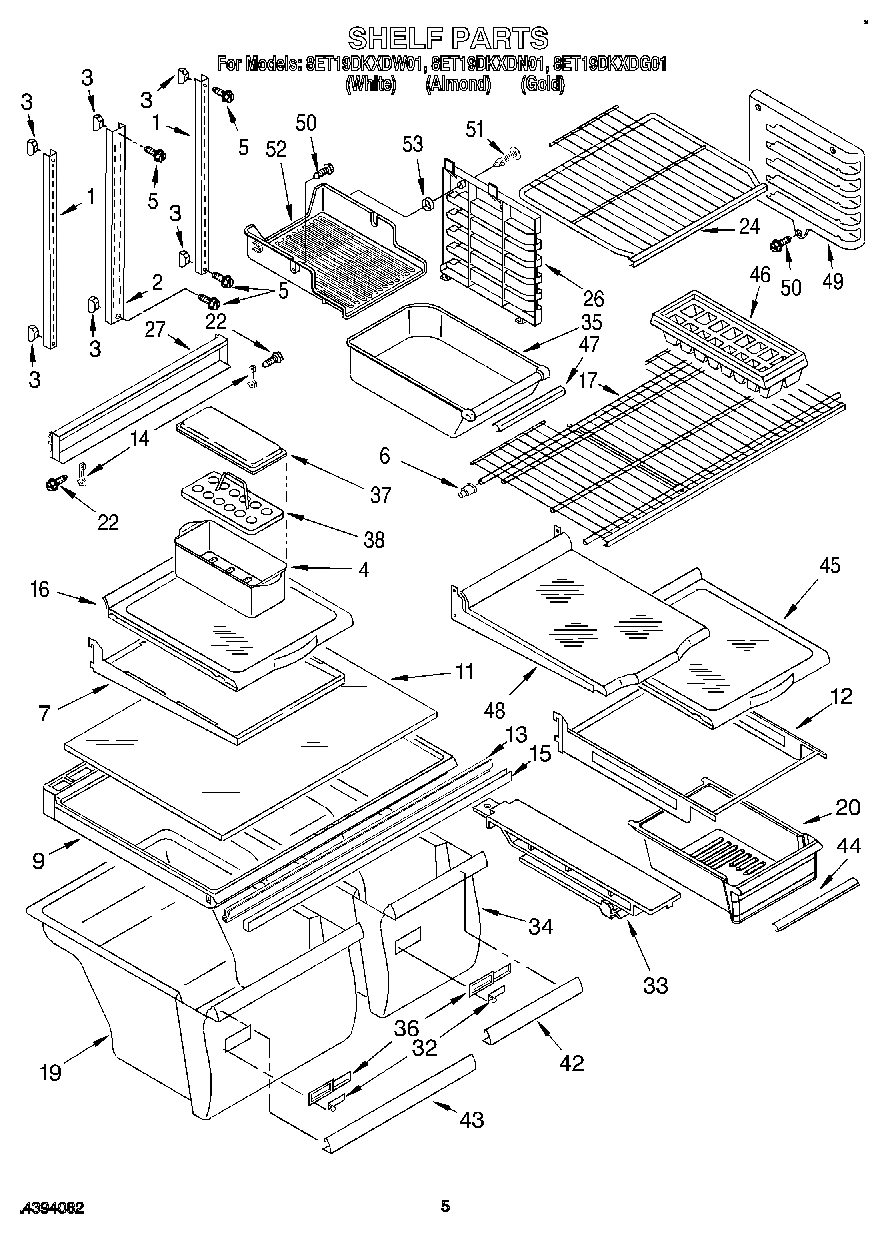

03 - SHELF

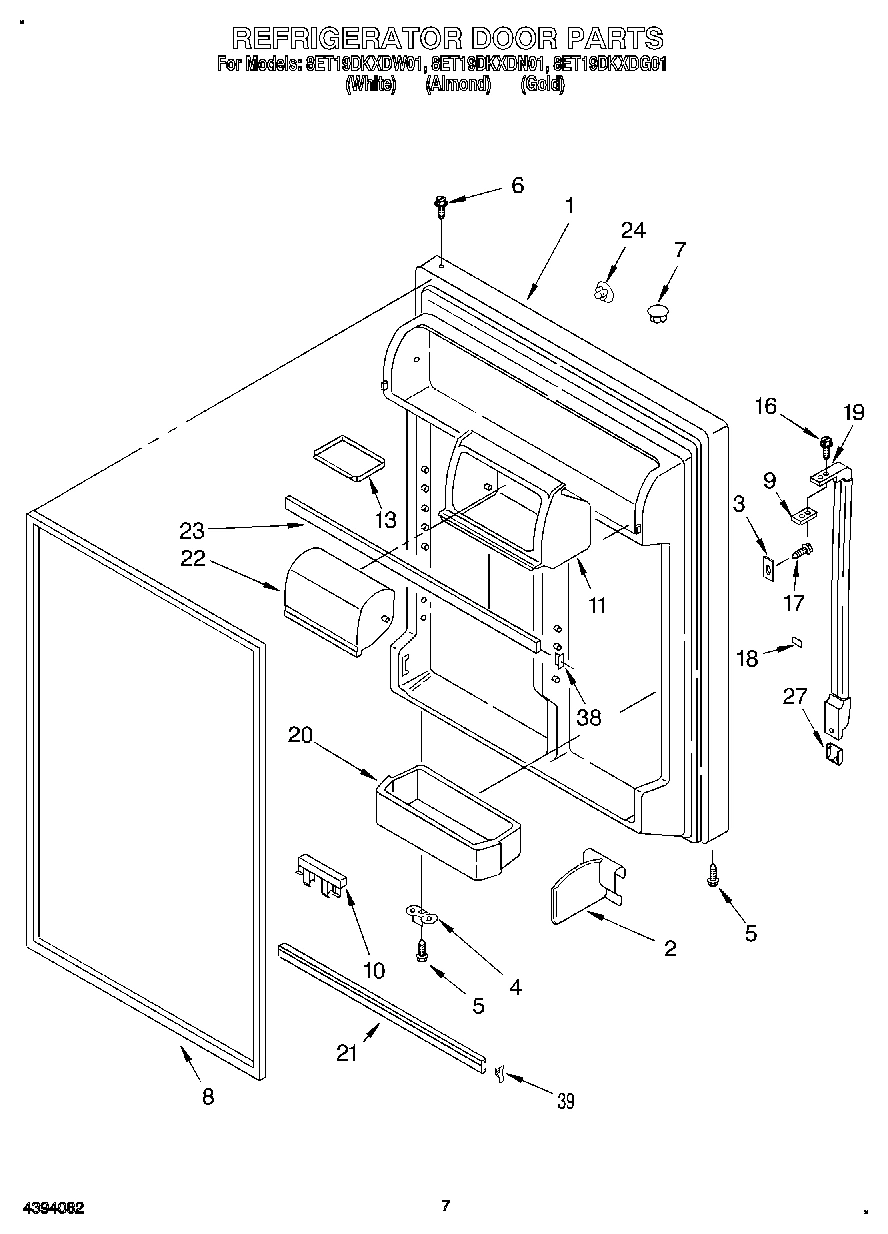

04 - REFRIGERATOR DOOR
01 - CABINET
06 - FREEZER DOOR, LIT/OPTIONAL
02 - LINER
05 - UNIT
Common parts from model Whirlpool 8ET19DKXDN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI18780A6 Contact Us For Availability
1
Freezer Door (Includes No.8) (Gold) WPL 2170475 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2171232 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2171234 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18783A3 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Control Box WPL 2174672 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2169406 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Module WPL 2169337 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171282 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Black) WPL 2180546 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2174003 Contact Us For Availability
19
Handle (Almond) WPL 2174004 Contact Us For Availability
19
Handle (Black) WPL 2174005 Contact Us For Availability
19
Handle (White) WPL 2174000 Contact Us For Availability
19
Handle (Almond) WPL 2174001 Contact Us For Availability
19
Handle (Black) WPL 2174002 Contact Us For Availability
20
Bin, Door Shelf (4) WPL 2179605 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Hole Plug (White) WPL 2174433 Contact Us For Availability
20
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
20
Hole Plug (Black) WPL 2174435 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2179823 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Screw WPL 489473 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK WPL 799344 Contact Us For Availability
22
Door Reversal Instructions WPL 2176379 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
23
Shim WPL 2172745 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Gold) WPL 1122694 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI18781A4 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability
35
Light Bar, R.S. WPL 2174627 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
36
Grille (Black) WPL 2182431 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Cover-Hinge (Gold) WPL 2176205 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI18782A9 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
Wire Assy., Unit WPL 2182379 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2179774 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
50
Evaporator Tray WPL 2163795 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
57
Light Bar, L.S. WPL 2174628 Contact Us For Availability
× ![]()
