Model Whirlpool 8ET17NKXBG00 REFRIGERATOR – Common Parts &amp; Diagrams

Use WPL LIT2166793 Contact Us For Availability

WPL LIT2169460 WPL LIT2169460 Contact Us For Availability

1

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

1

Support Plate, Compressor WPL 2176202 Contact Us For Availability

1

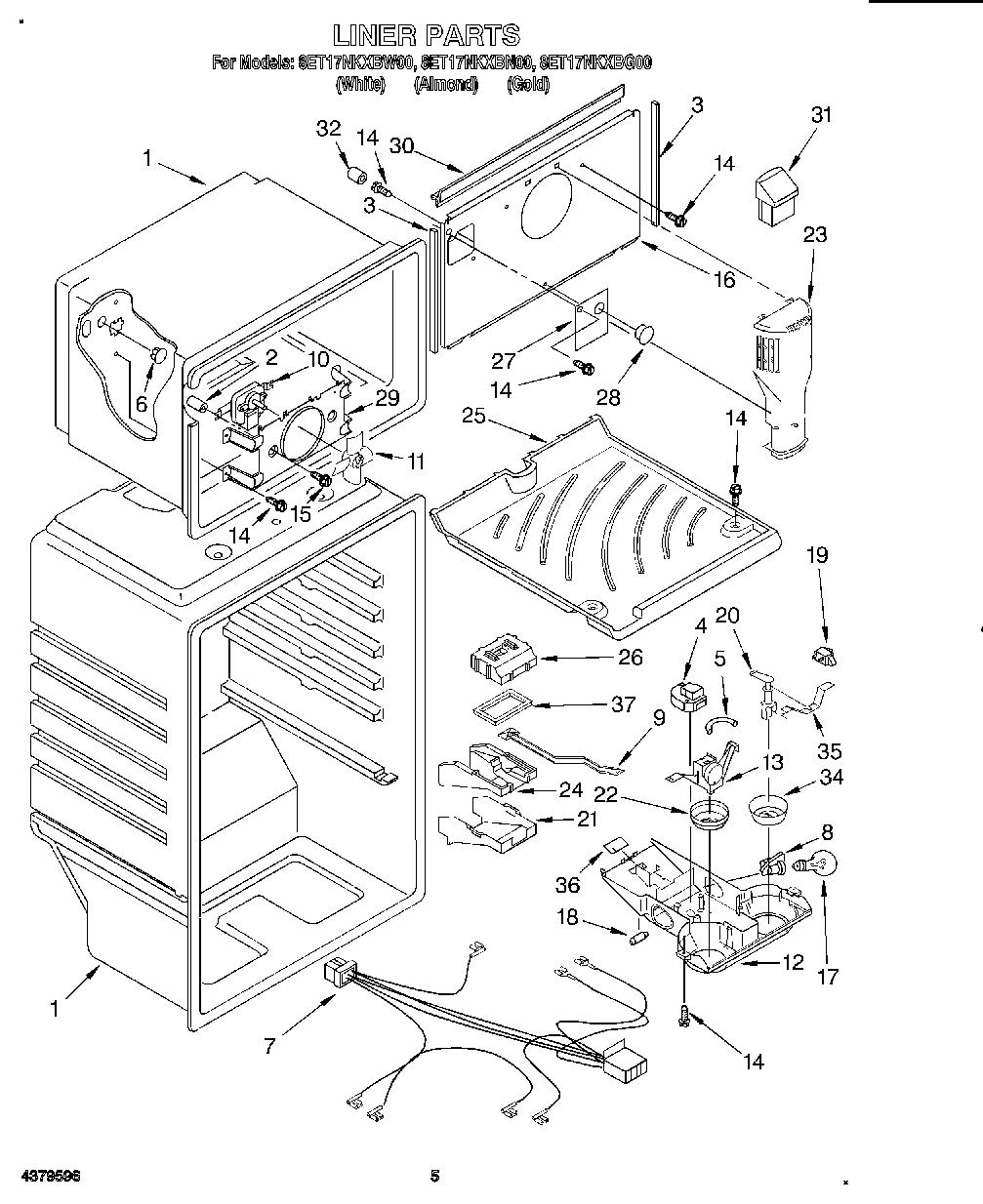

Liner (Not A Serviceable Part) WPL ARI18588A6 Contact Us For Availability

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

2

Grommet (2) WPL 531933 Contact Us For Availability

2

Shelf (2) WPL 2166147 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

WP2314548 Whirlpool Refrigerator Cover Backorder WPL WP2314548 $101.54

3

Condenser WPL 2172670 Contact Us For Availability

4

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $93.60

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $58.39

4

Timer, Defrost (8 Hr.) WPL 2172691 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

Evaporator Assy. WPL 2172669 Contact Us For Availability

6

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Screw WPL 489414 Contact Us For Availability

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Spacer WPL 943188 Contact Us For Availability

7

Heat Shield and Drain Pan WPL 2172618 Contact Us For Availability

7

Wire Assy. Control Box WPL 2172542 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

Shelf WPL 2163828 Contact Us For Availability

9

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $95.15

9

Damper, Air WPL 2172570 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf In Stock WPL WP2169921 $124.16

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

10

Fan Motor WPL 2163766 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $85.99

Clamp (Production) WPL 2162400 Contact Us For Availability

Clamp (Service) WPL 938384 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Cover, Screw (White) WPL 9791769 Contact Us For Availability

Cover, Screw (Almond) WPL 9791770 Contact Us For Availability

Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability

Control Box WPL 2172566 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly Backorder WPL 350956 $19.22

4387562 Whirlpool Refrigerator Thermostat Col In Stock WPL 4387562 $116.21

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cover, Meat Pan WPL 2163848 Contact Us For Availability

Cord, Service WPL 937360 Contact Us For Availability

Door Reversal Instructions WPL 2172516 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

14

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

15

8201547 Whirlpool Refrigerator Start Relay Backorder WPL 8201547 $77.99

15

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

15

Screw WPL 489412 Contact Us For Availability

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $26.33

16

Cover-Evaporator WPL 2163816 Contact Us For Availability

17

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

17

Shim, Hinge Center WPL 2163757 Contact Us For Availability

17

Roller (2) WPL 2163782 Contact Us For Availability

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

18

Weight, Thermal WPL 2163802 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

Screw WPL 489426 Contact Us For Availability

19

Clip, Heater WPL 2166244 Contact Us For Availability

20

Hinge Butt WPL 2172577 Contact Us For Availability

20

Post, Damper WPL 2163809 Contact Us For Availability

21

Nut (Not Serviced) WPL ARI18589A4 Contact Us For Availability

21

Cover, Air Diffuser WPL 2172560 Contact Us For Availability

22

Control Knob WPL 2163800 Contact Us For Availability

23

Shim, Bottom Hinge WPL 2172745 Contact Us For Availability

23

Air Tower WPL 2172574 Contact Us For Availability

24

Fitting, Water Tube (Not Serviced) WPL ARI18584A3 Contact Us For Availability

24

Air Diffuser, Bottom WPL 2172564 Contact Us For Availability

25

Freezer Floor WPL 2172679 Contact Us For Availability

26

Air Diffuser, Top WPL 2172563 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

Installation Kit WPL 482801 Contact Us For Availability

Seal, Front (Not Serviced) WPL ARI18585A7 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability

Bracket, Fan Motor WPL 2163827 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Seal, Rear (Not Serviced) WPL ARI18586A1 Contact Us For Availability

Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability

31

4388450 Whirlpool Refrigerator Insert Backorder WPL 4388450 $28.38

31

Cover, Water Valve WPL 2166251 Contact Us For Availability

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

32

Capacitor WPL 2169137 Contact Us For Availability

34

Knob, Dampener WPL 2163801 Contact Us For Availability

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability

Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

Grille (White) WPL 2163889 Contact Us For Availability

Grille (Almond) WPL 2166133 Contact Us For Availability

Grille (Black) WPL 2166134 Contact Us For Availability

37

Clip, Compressor WPL 2163787 Contact Us For Availability

37

Gasket, Air Diffuser WPL 2172594 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

WPL 943187 WPL 943187 Contact Us For Availability

39

Shim WPL 1123517 Contact Us For Availability

39

Air Baffle WPL 2172697 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability

41

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.72

41

Rail Center (Not Serviced) WPL ARI18587A6 Contact Us For Availability

Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability

Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability

Wire Assy., Unit WPL 2172600 Contact Us For Availability

43

Fan, Blade WPL 851732 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2163814 Contact Us For Availability

46

Tube, Discharge WPL 2172673 Contact Us For Availability

47

Tube, Suction WPL 2172677 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Evap. Tray WPL 2163795 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
