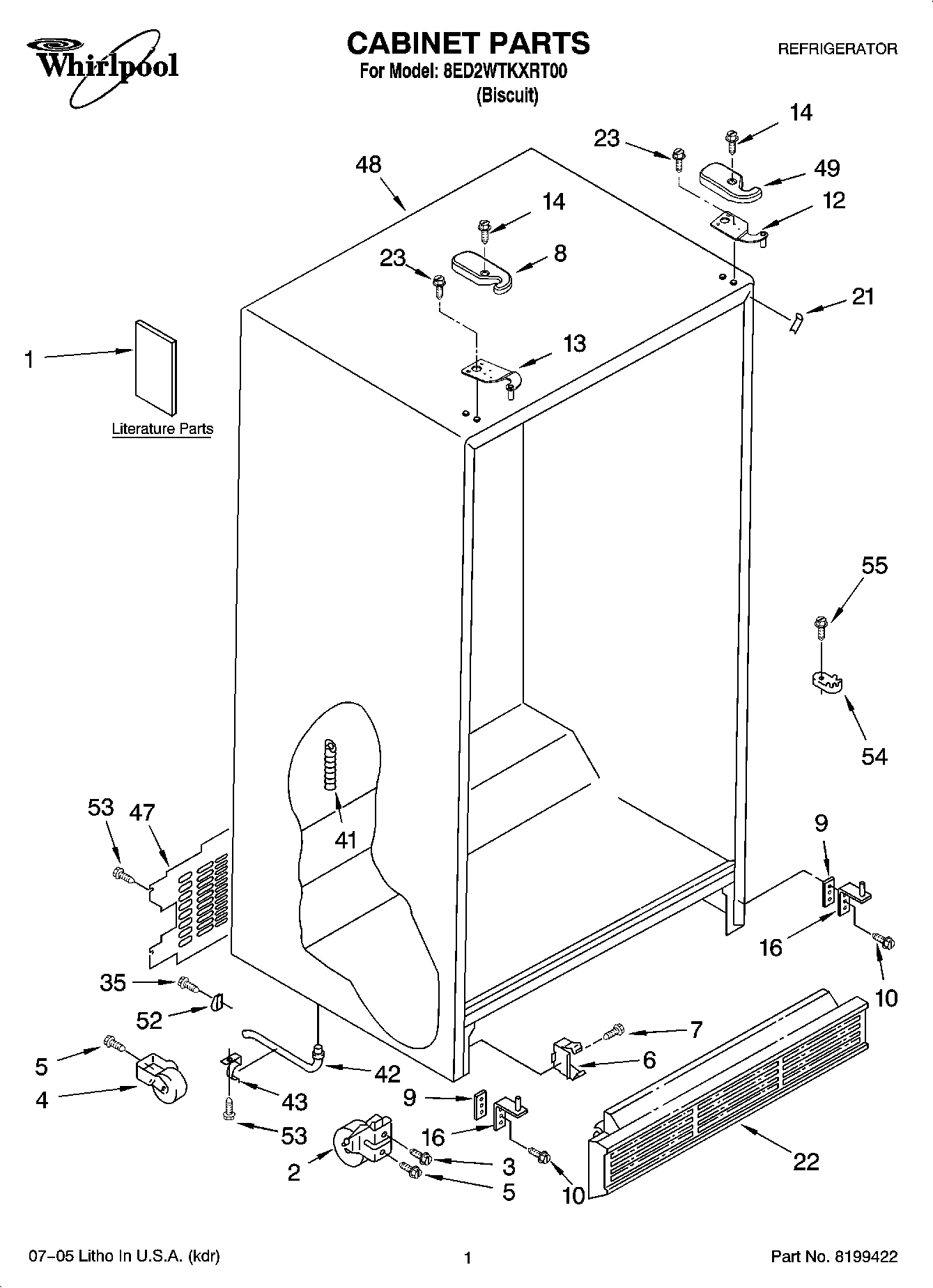

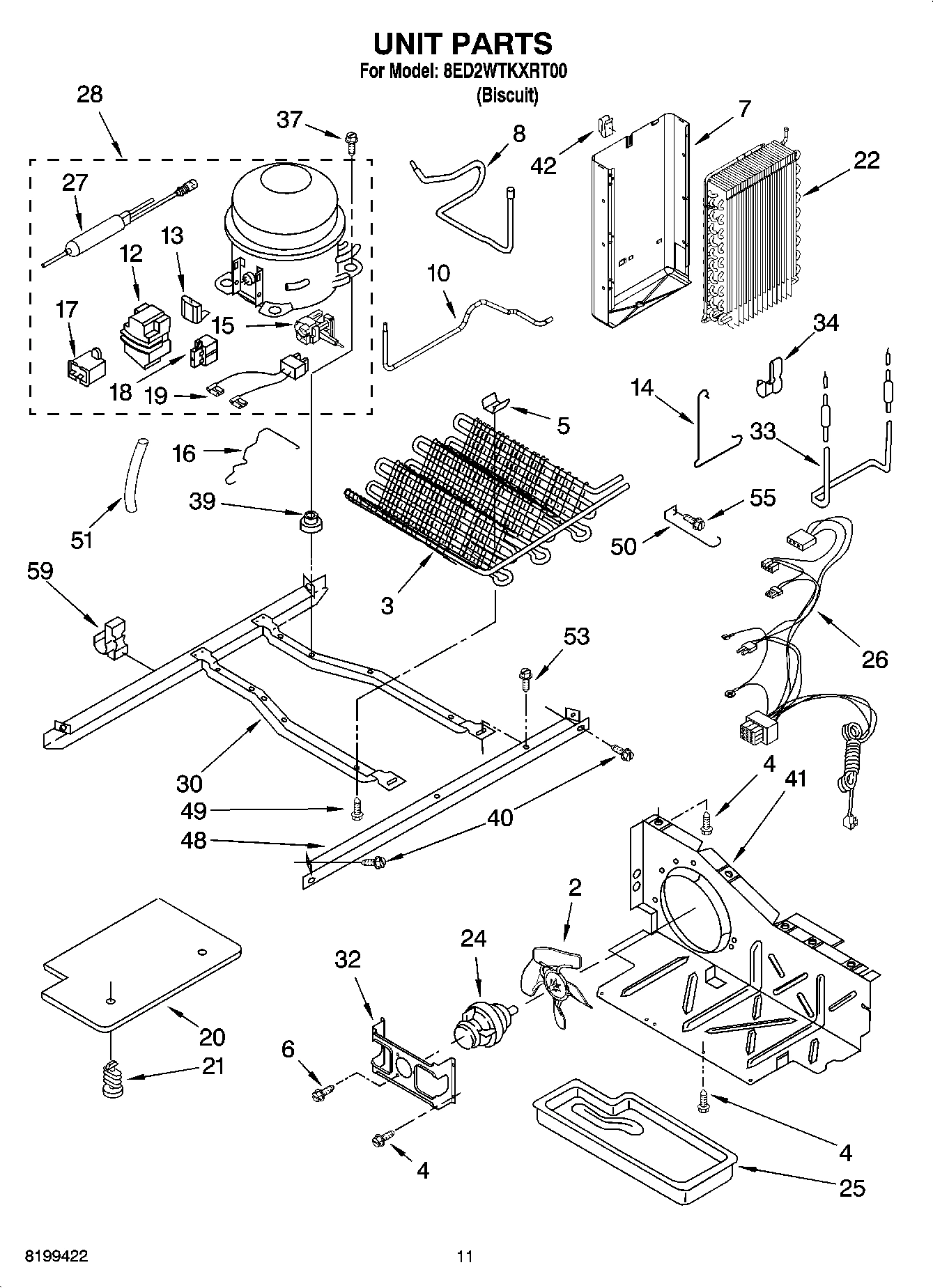

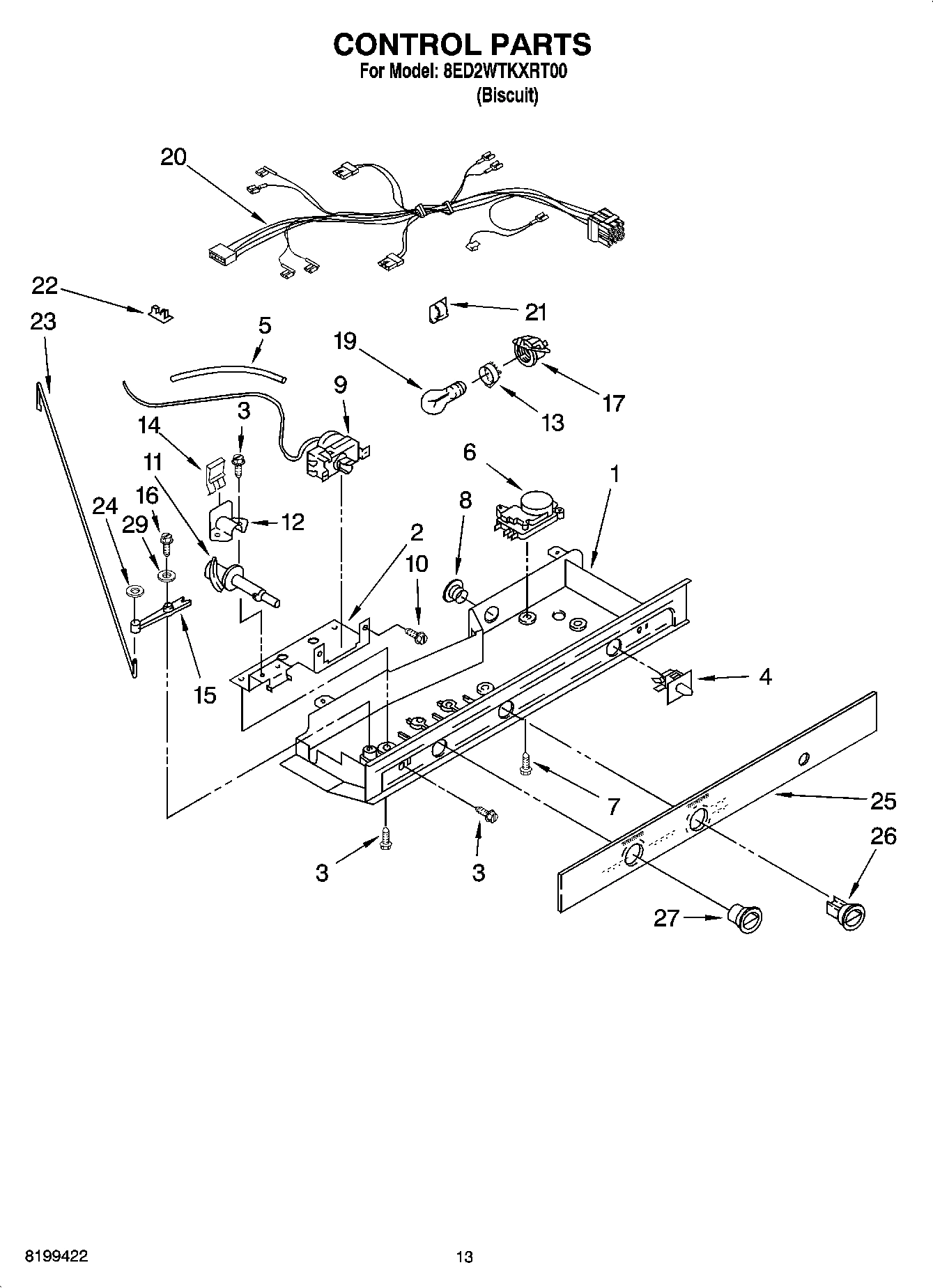

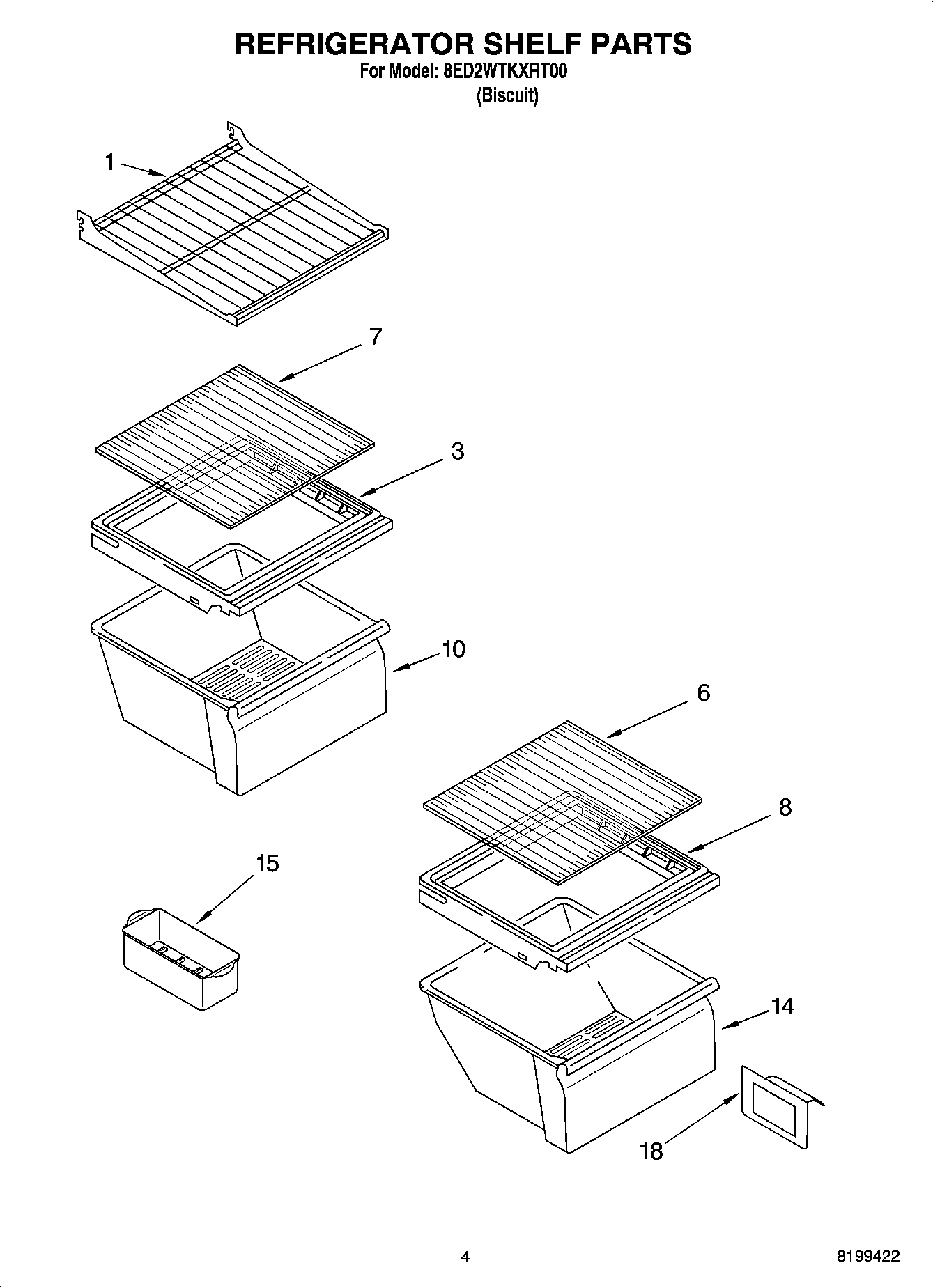

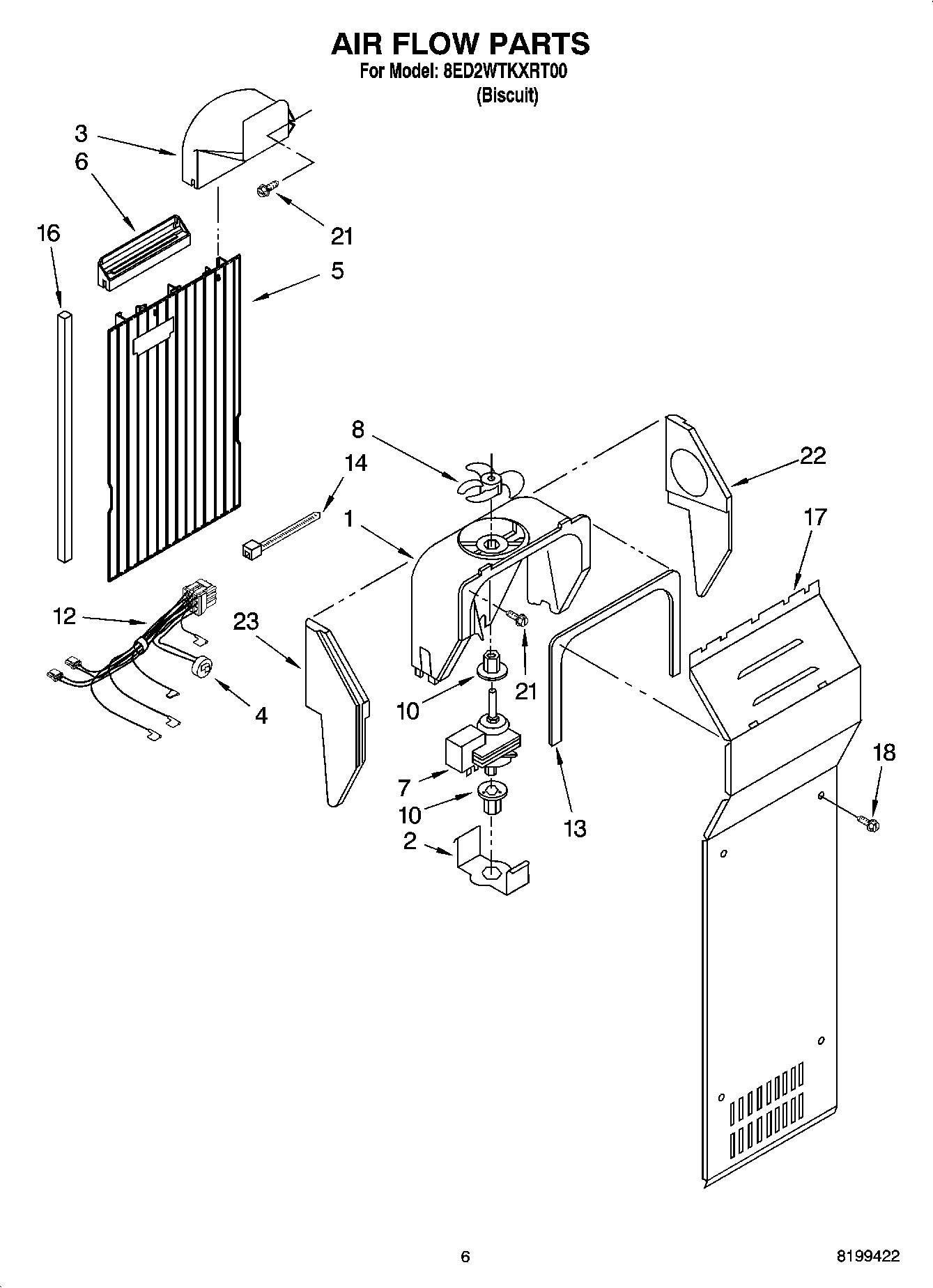

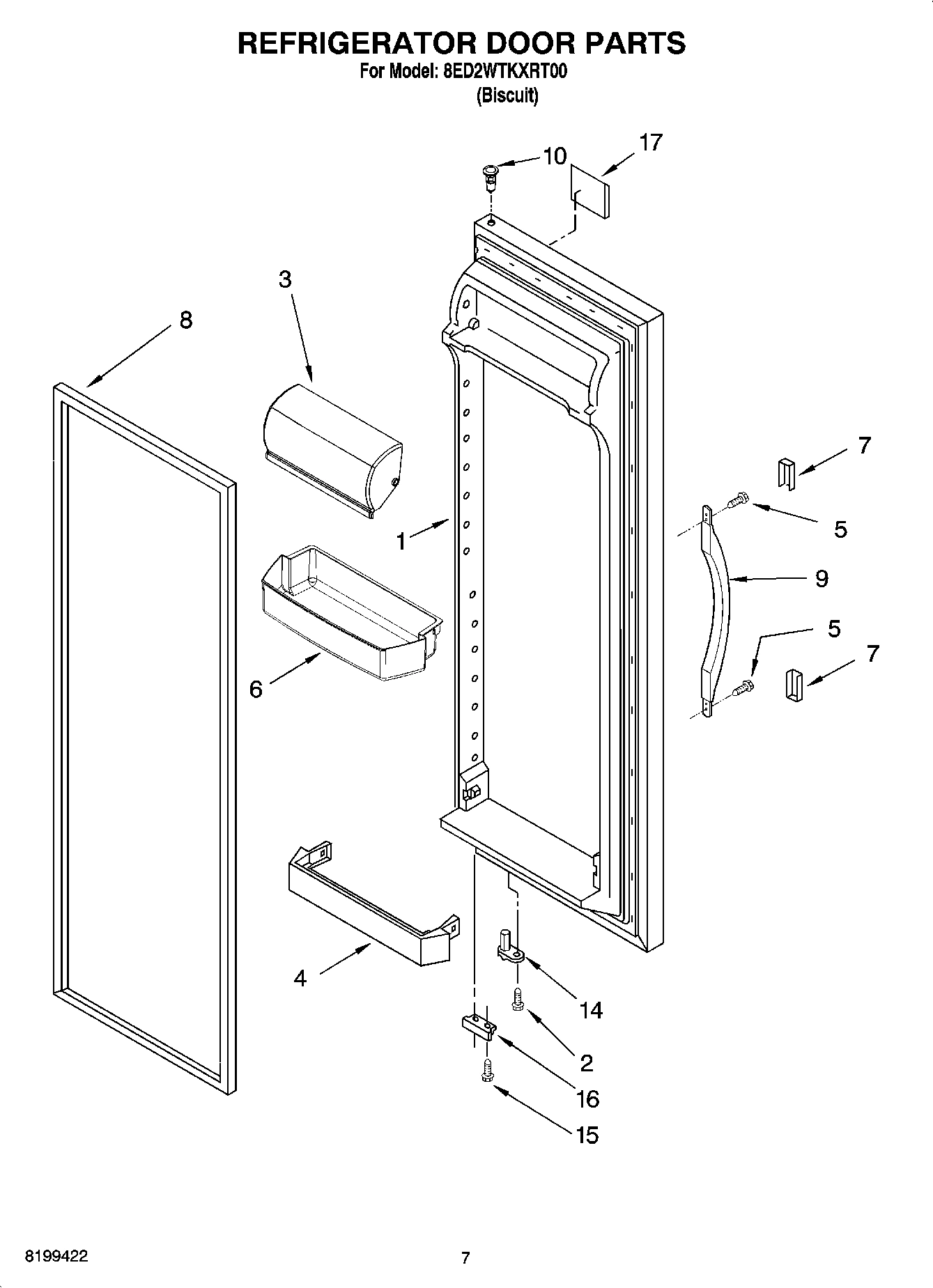

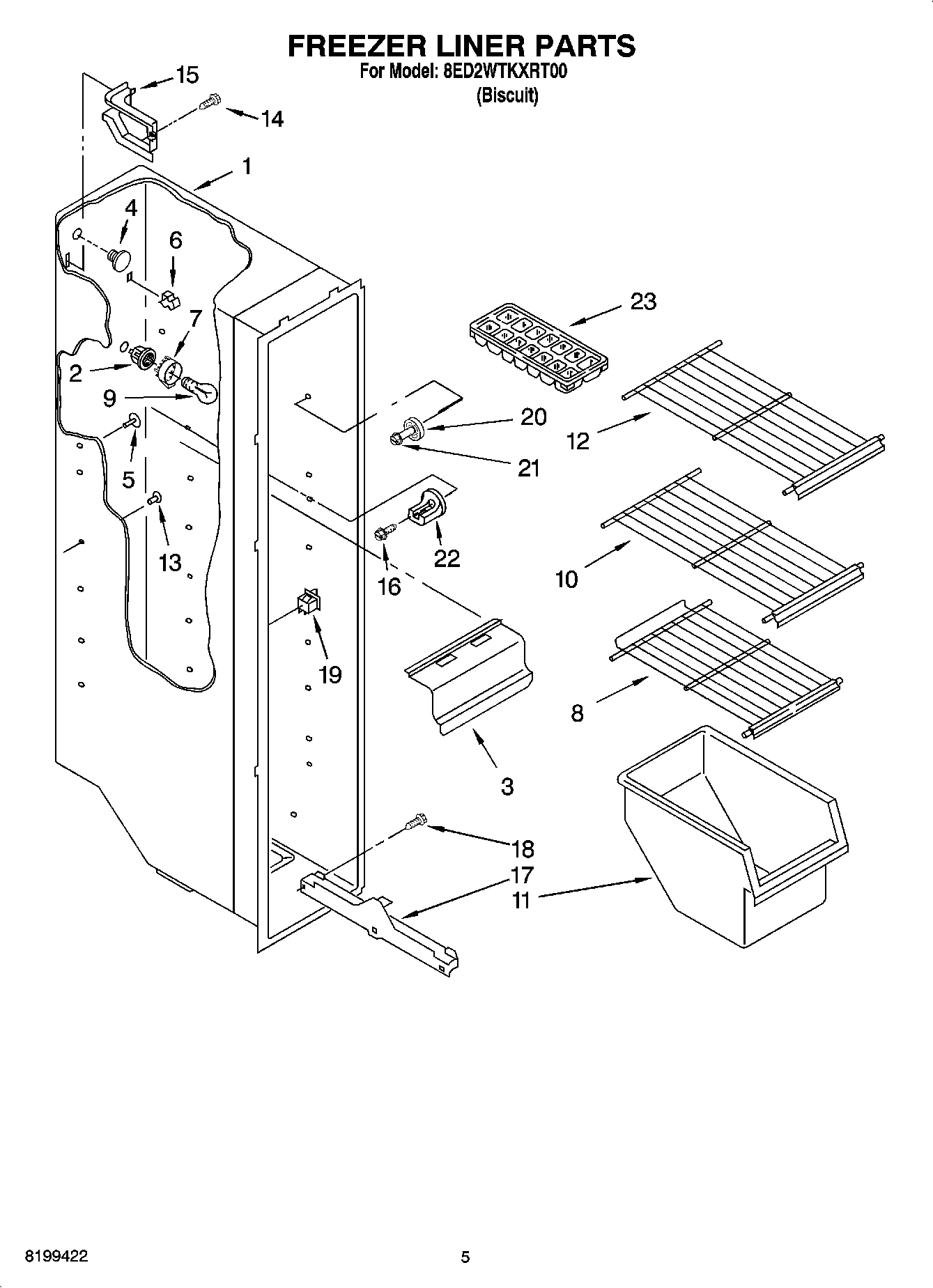

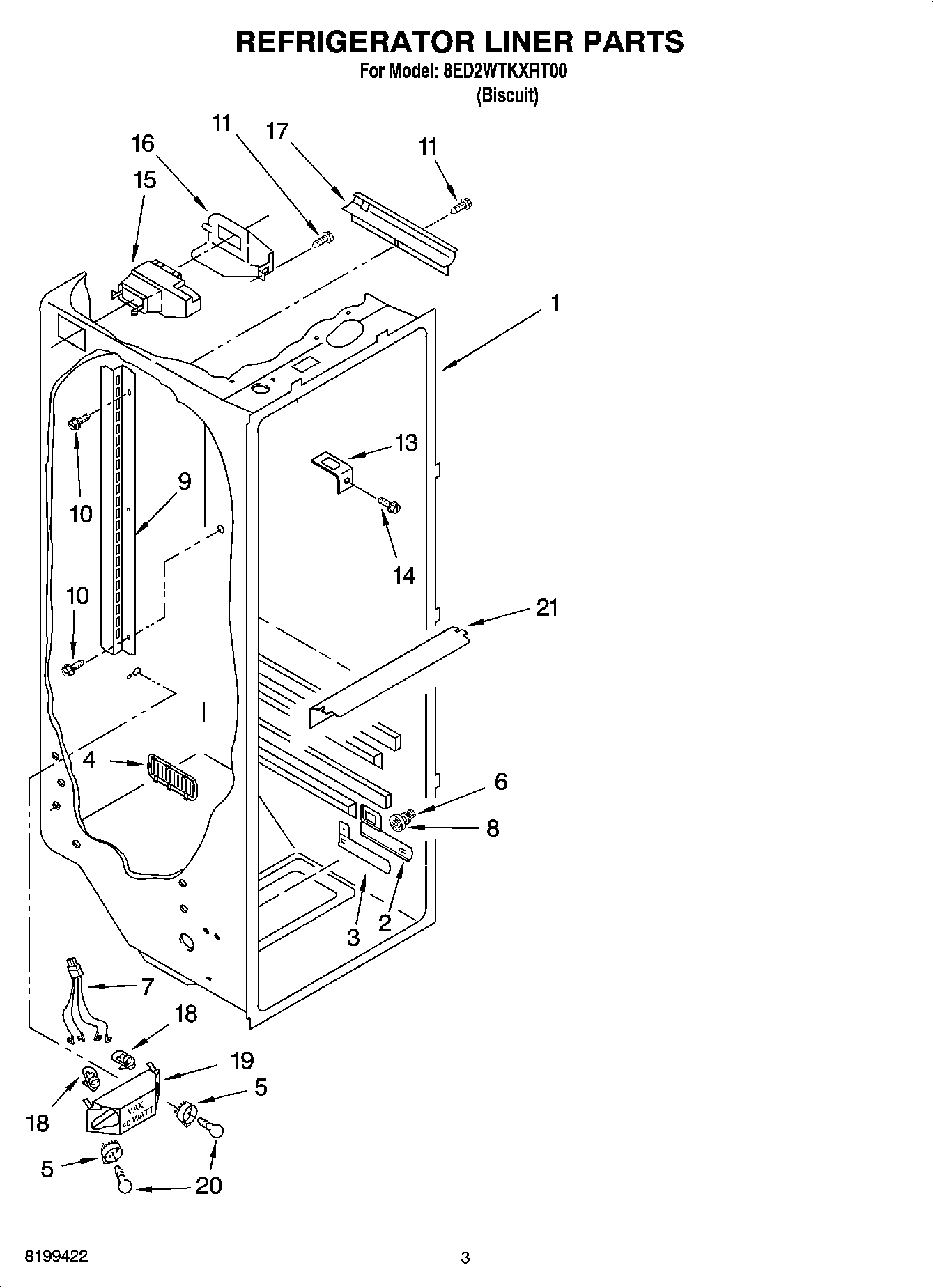

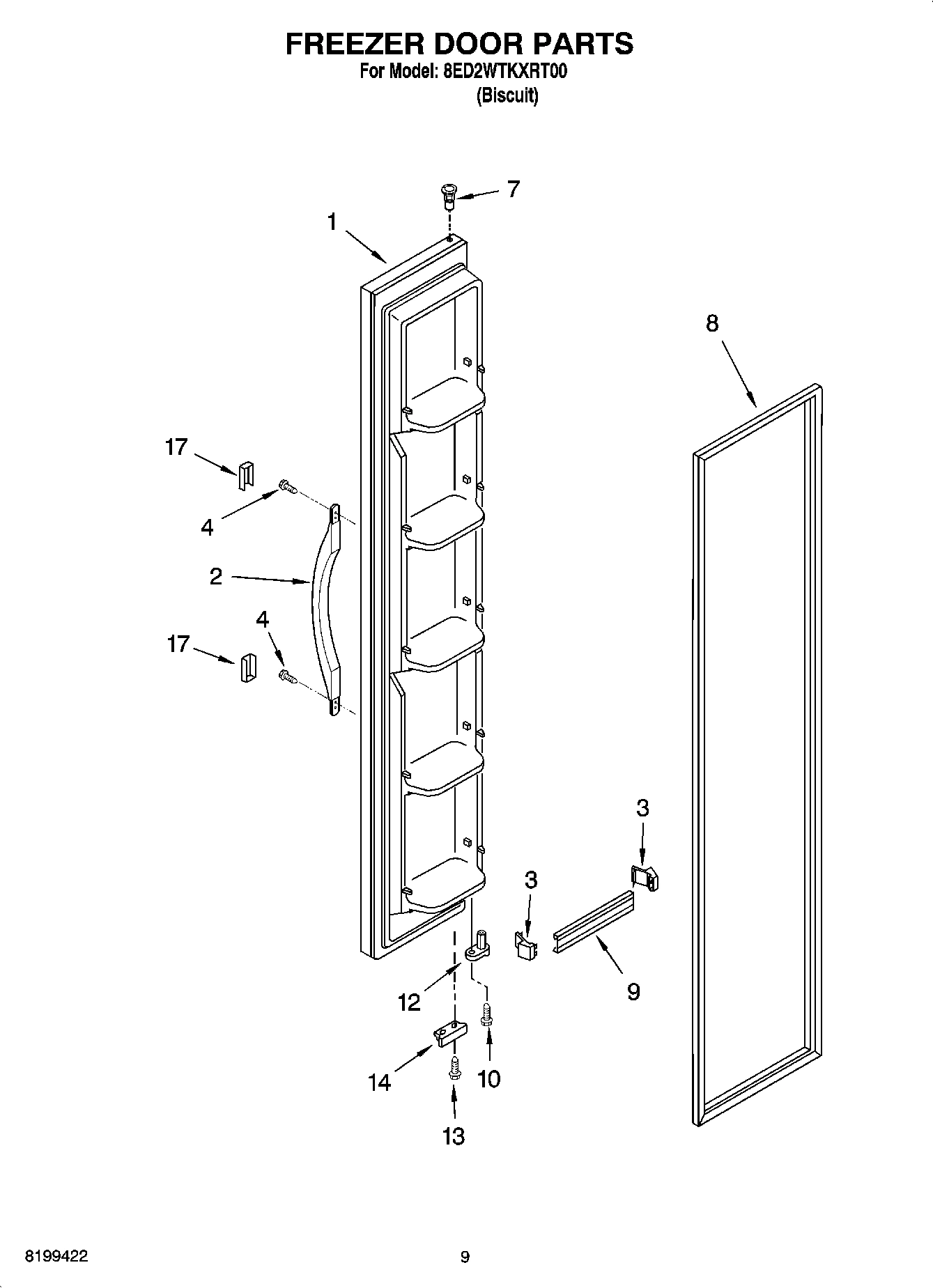

Model Whirlpool 8ED2WTKXRT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL ARI18527A5 WPL ARI18527A5 Contact Us For Availability

WPL ARI18528A9 WPL ARI18528A9 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Control Box WPL 2200137 Contact Us For Availability

1

Shelf Assembly (3) WPL 2163620 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI18518A7 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI18519A3 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

3

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4

2223173 Whirlpool Refrigerator Tube Plug Backorder WPL 2223173 $4.78

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $34.07

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $17.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

Shroud WPL 2167012 Contact Us For Availability

8

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

8

Shelf, Large (2) WPL 2174265K Contact Us For Availability

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

Shelf Ladder WPL 2206270 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Shelf WPL 2174266K Contact Us For Availability

11

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

Freezer Bin WPL 2171707 Contact Us For Availability

12

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

12

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

12

Shelf WPL 2179325K Contact Us For Availability

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Grommet WPL 2176134 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2188831 Whirlpool Refrigerator Start Device Backorder WPL WP2188831 $61.09

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Pivot Arm WPL 1110559 Contact Us For Availability

Wiring Cover WPL 2160912 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

17

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

17

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

17

Slide, Bin (Left Side) WPL 1115383 Contact Us For Availability

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

18

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

18

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

20

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Light Lens WPL 2209769 Contact Us For Availability

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

Stud, Rear (9) WPL 2196207 Contact Us For Availability

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

23

Connecting Rod WPL 1123960 Contact Us For Availability

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

Escutcheon, Control Box WPL 2305935 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

27

Knob, Air Control WPL 2197871 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
