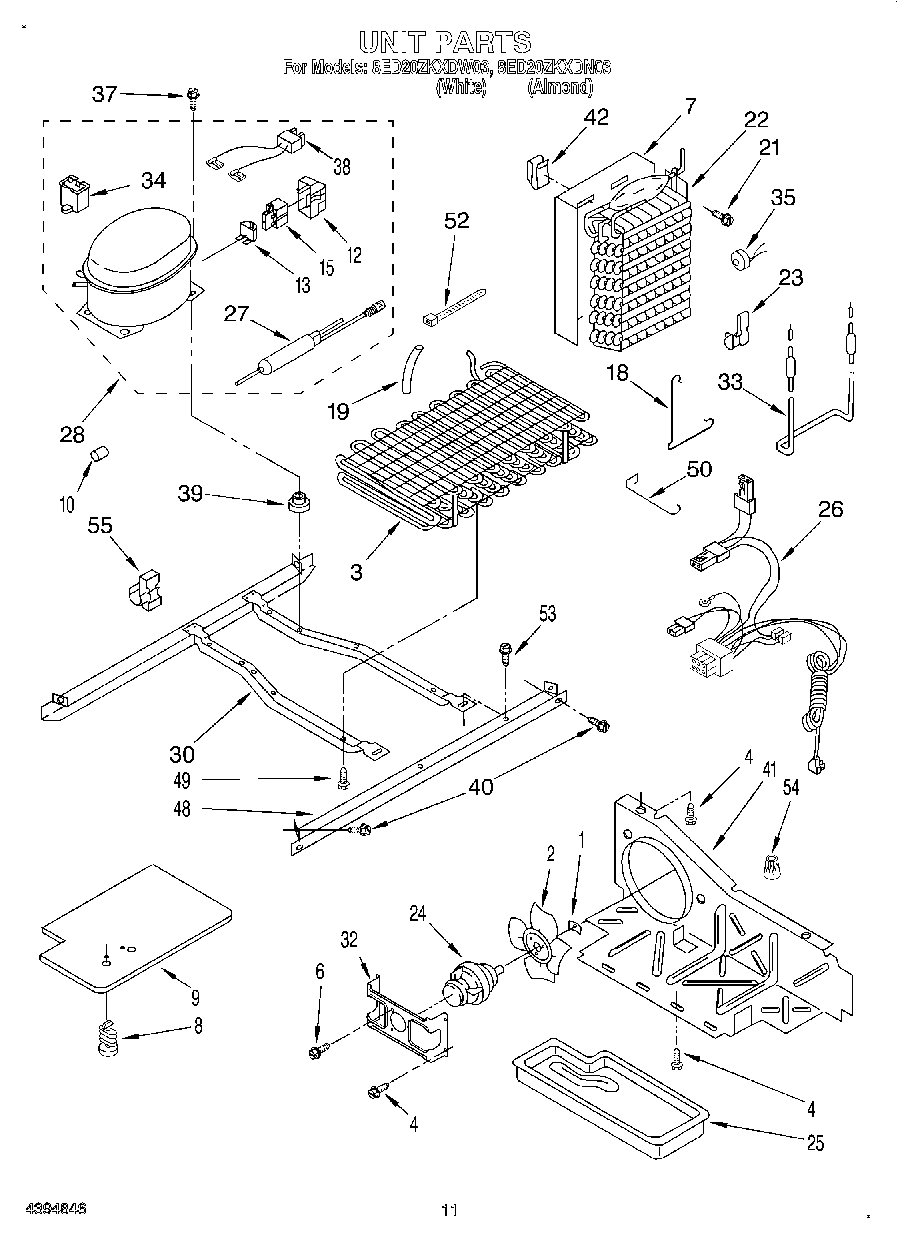

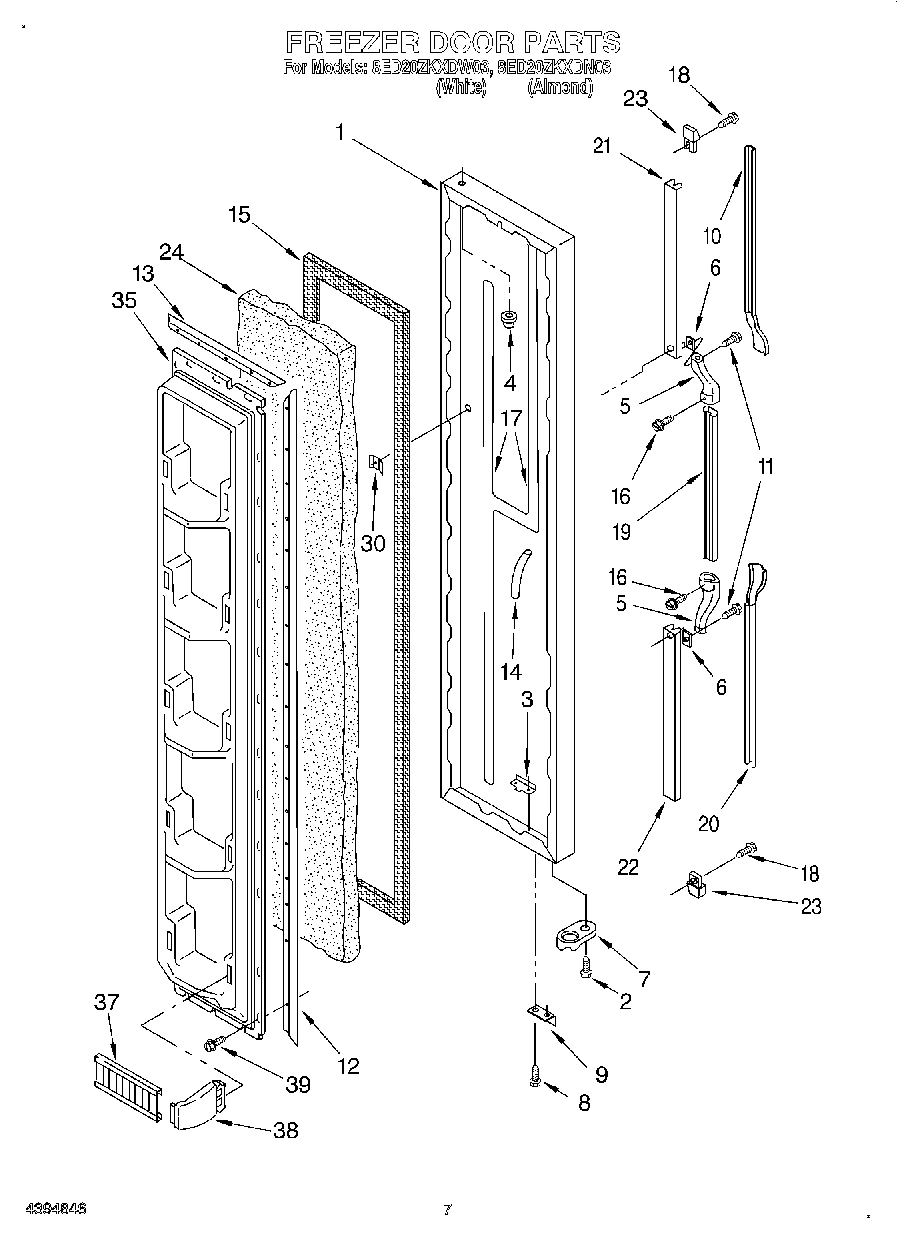

Model Whirlpool 8ED20ZKXDN03 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2182955 WPL LIT2182955 Contact Us For Availability

WPL LIT2198382 WPL LIT2198382 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI17999A7 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI17998A2 Contact Us For Availability

1

Refrigerator Door Panel (Almond (Also Order I WPL 2194995N Contact Us For Availability

1

Refrigerator Door Panel (White) WPL 2194995W Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $93.63

5

Bracket, Door Stop WPL 2195950 Contact Us For Availability

6

Shelf Ladder (2) WPL 2181796 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Shim WPL 935075 Contact Us For Availability

6

Defrost Timer WPL 2176648 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

7

Support, Stud (10) WPL 946355 Contact Us For Availability

7

End Cap (2) WPL 1119359 Contact Us For Availability

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Stud, Front (4) WPL 946356 Contact Us For Availability

8

Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability

8

Insert, Bottom (White) WPL 2194773W Contact Us For Availability

9

4388539 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388539 $9.30

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

9

Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (10) WPL 2176134 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $119.63

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Shelf WPL 2163612 Contact Us For Availability

Extension WPL 2179561 Contact Us For Availability

Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability

13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

13

Shelf, Cantilever WPL 2163617 Contact Us For Availability

13

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Shelf (1) WPL 2174269 Contact Us For Availability

Shelf (2) WPL 2174270 Contact Us For Availability

Handle, Center (Almond) WPL 2194767N Contact Us For Availability

Handle, Center (White) WPL 2194767W Contact Us For Availability

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

Pivot Arm WPL 1110559 Contact Us For Availability

Bin, Freezer WPL 2171707 Contact Us For Availability

Reinforcement, Shelf WPL 2152266 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

Screw WPL 489022 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

Screw Anchor WPL 941242 Contact Us For Availability

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

Insert, Top (Almond) WPL 2194774N Contact Us For Availability

Insert, Top (White) WPL 2194774W Contact Us For Availability

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Cover, Wiring WPL 2155401 Contact Us For Availability

Control Box Harness WPL 2198307 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Insert Retainer (Top) WPL 2194771 Contact Us For Availability

22

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

22

Insert Retainer (Bottom) WPL 2194770 Contact Us For Availability

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

End Cap (2) WPL 2156220 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP2182189 Whirlpool Door Shelf Bar In Stock WPL WP2182189 $53.69

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

Divider, Shelf WPL 2160050 Contact Us For Availability

Escutcheon, Control Box WPL 2170787 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Cover, Conduit WPL 2150330 Contact Us For Availability

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability

28

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2196189 Whirlpool Shelf Retainer Bar Backorder WPL WP2196189 $4.48

WP2196190 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196190 $4.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

Compartment Door WPL 2148289 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

Nameplate (White) WPL 2175383 Contact Us For Availability

36

Nameplate (Almond) WPL 2175384 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

Trim, Door Compartment WPL 2162896 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
