Model Whirlpool 8517L10 DISHWASHER – Common Parts & Diagrams
03 - PUMP AND MOTOR SPRAY ARM DETAIL
06 - CONTROL PANEL

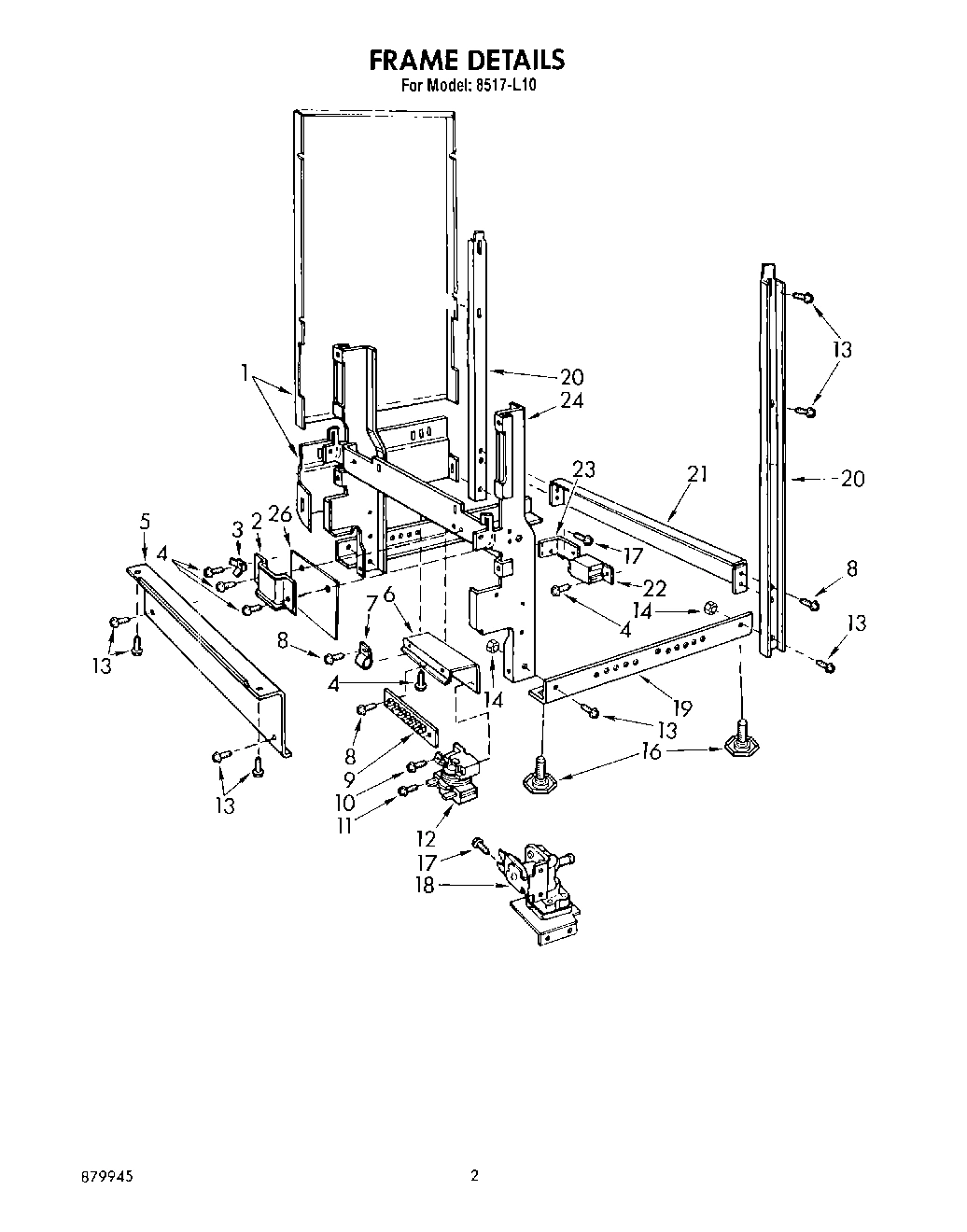

02 - FRAME

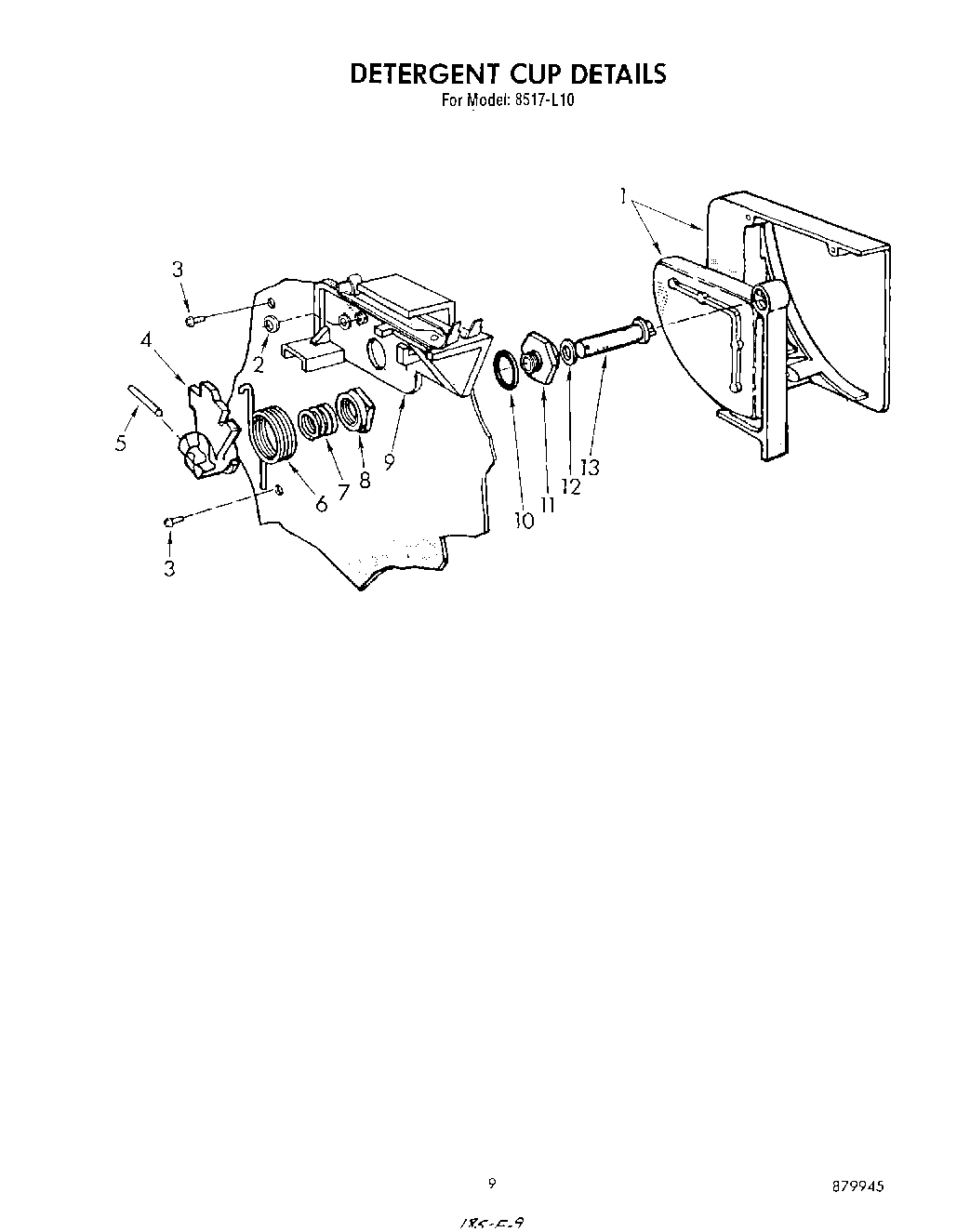

07 - DETERGENT CUP

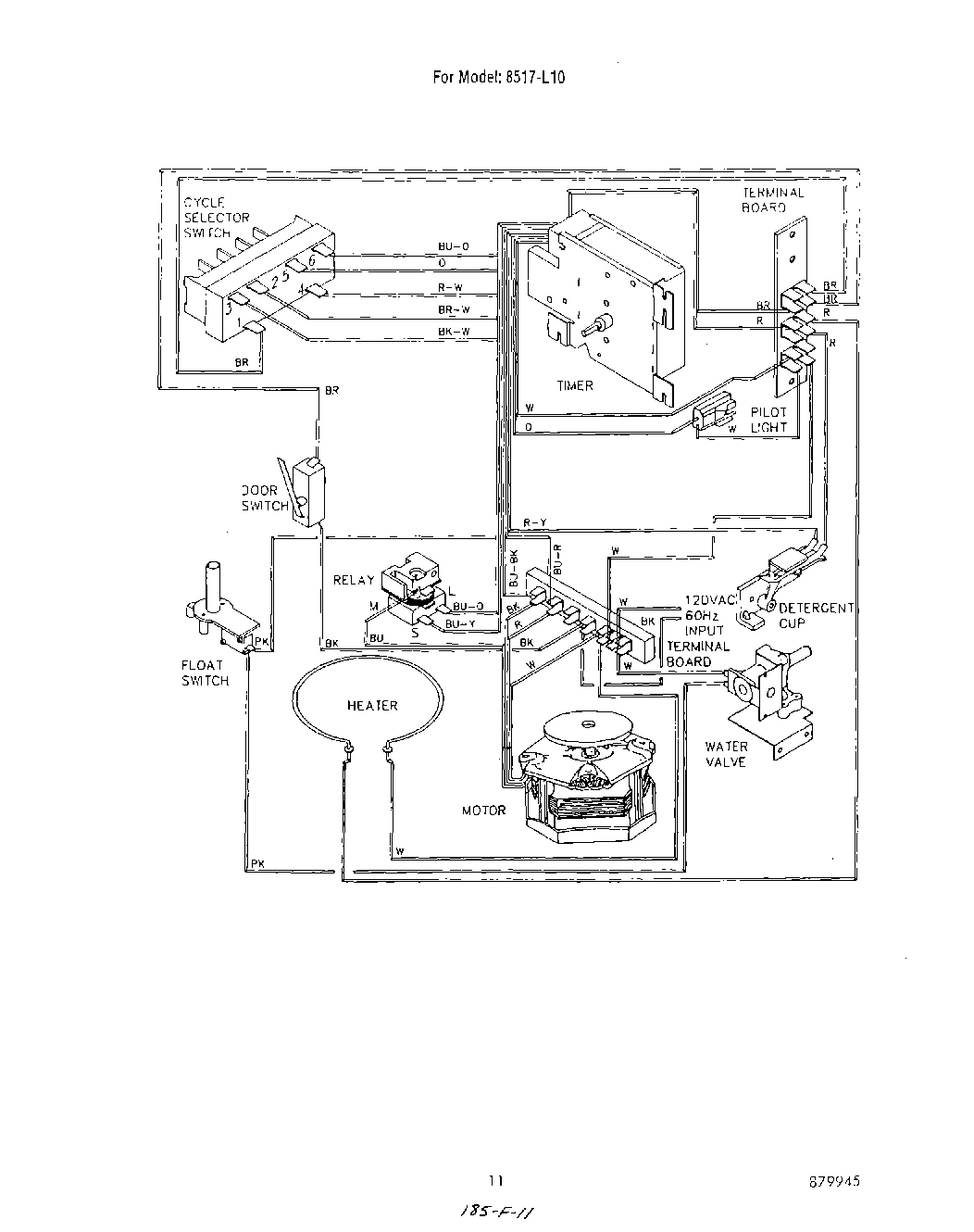

09 - WIRING DIAGRAM

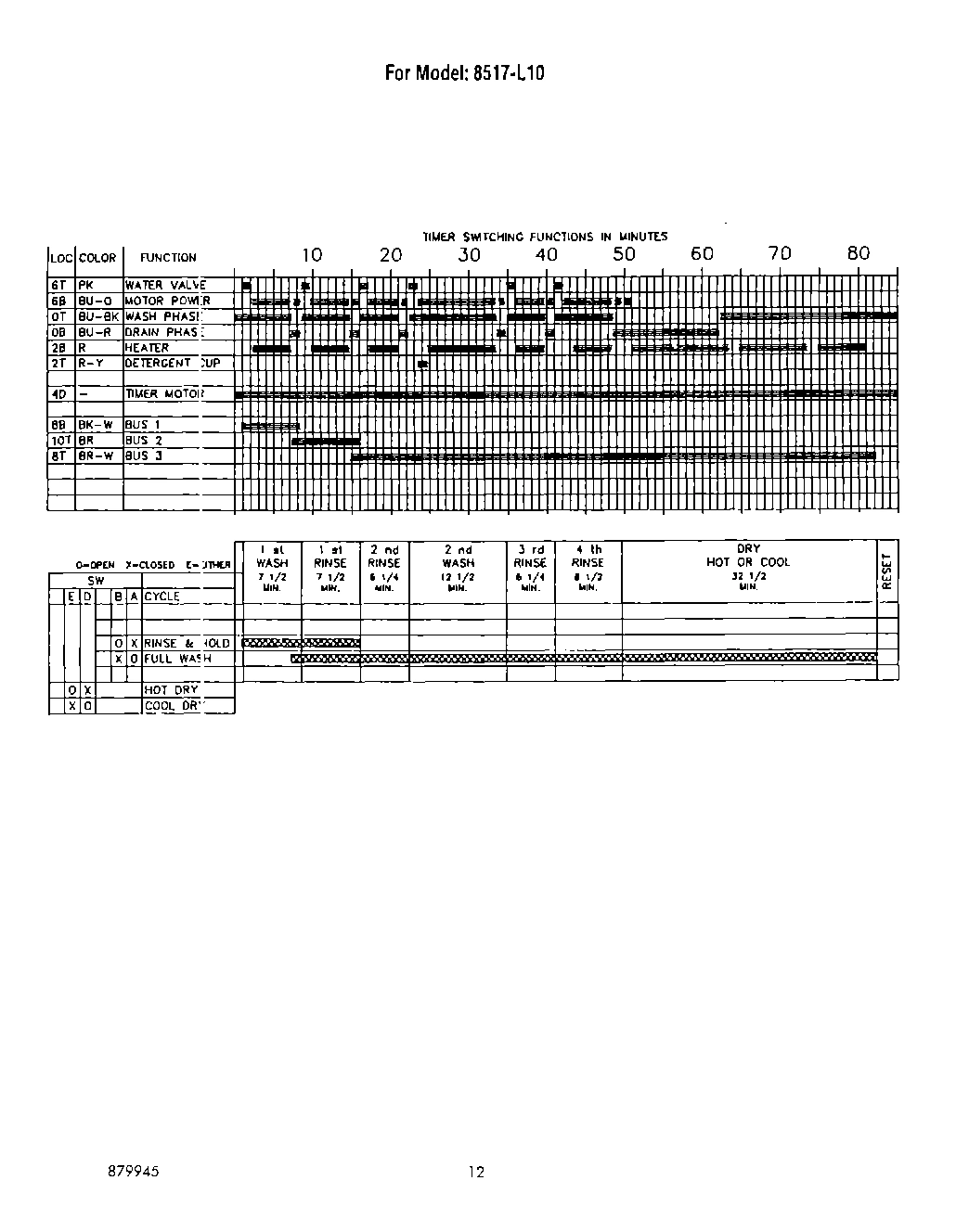

10 - SECTION

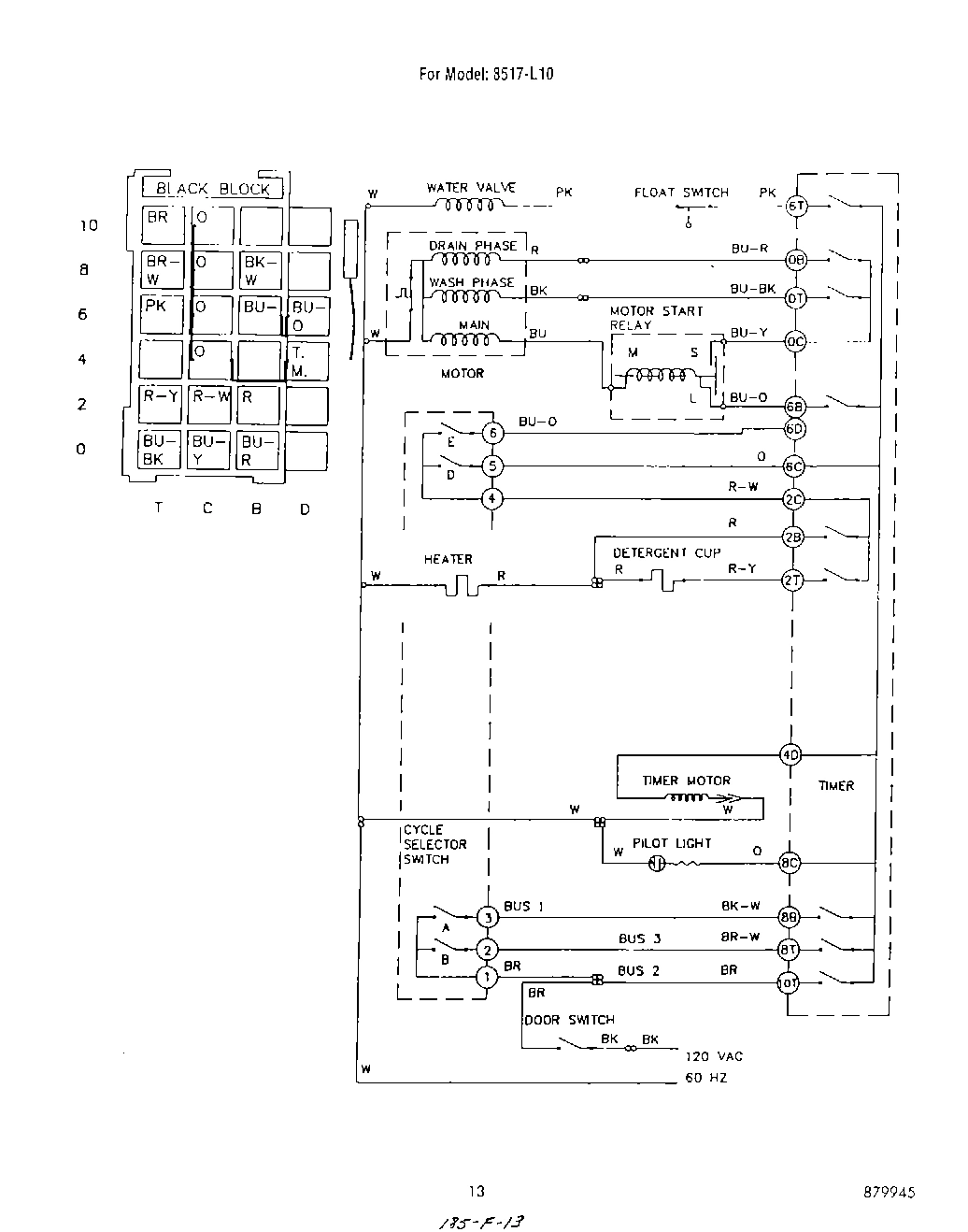

11 - SECTION

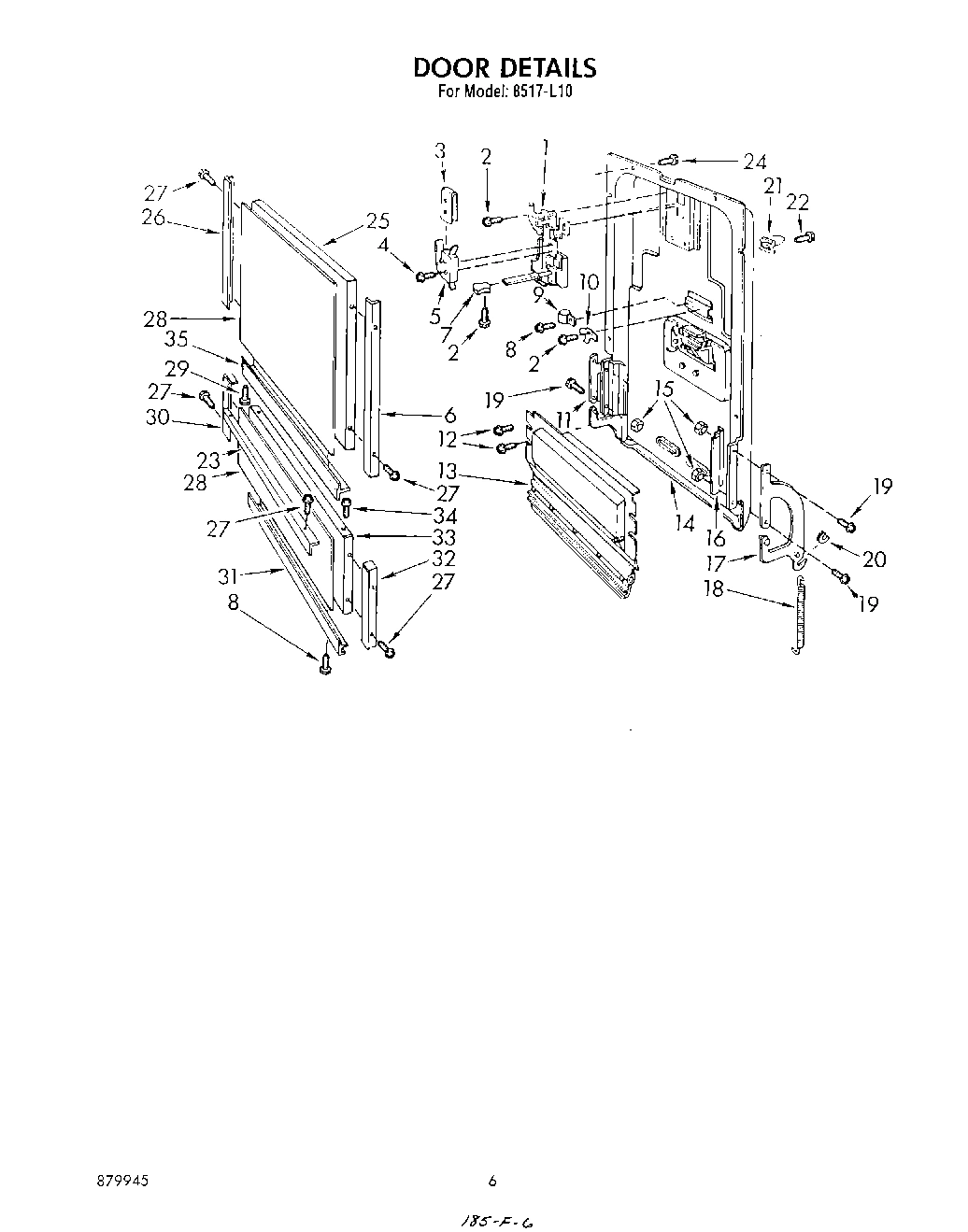

04 - DOOR

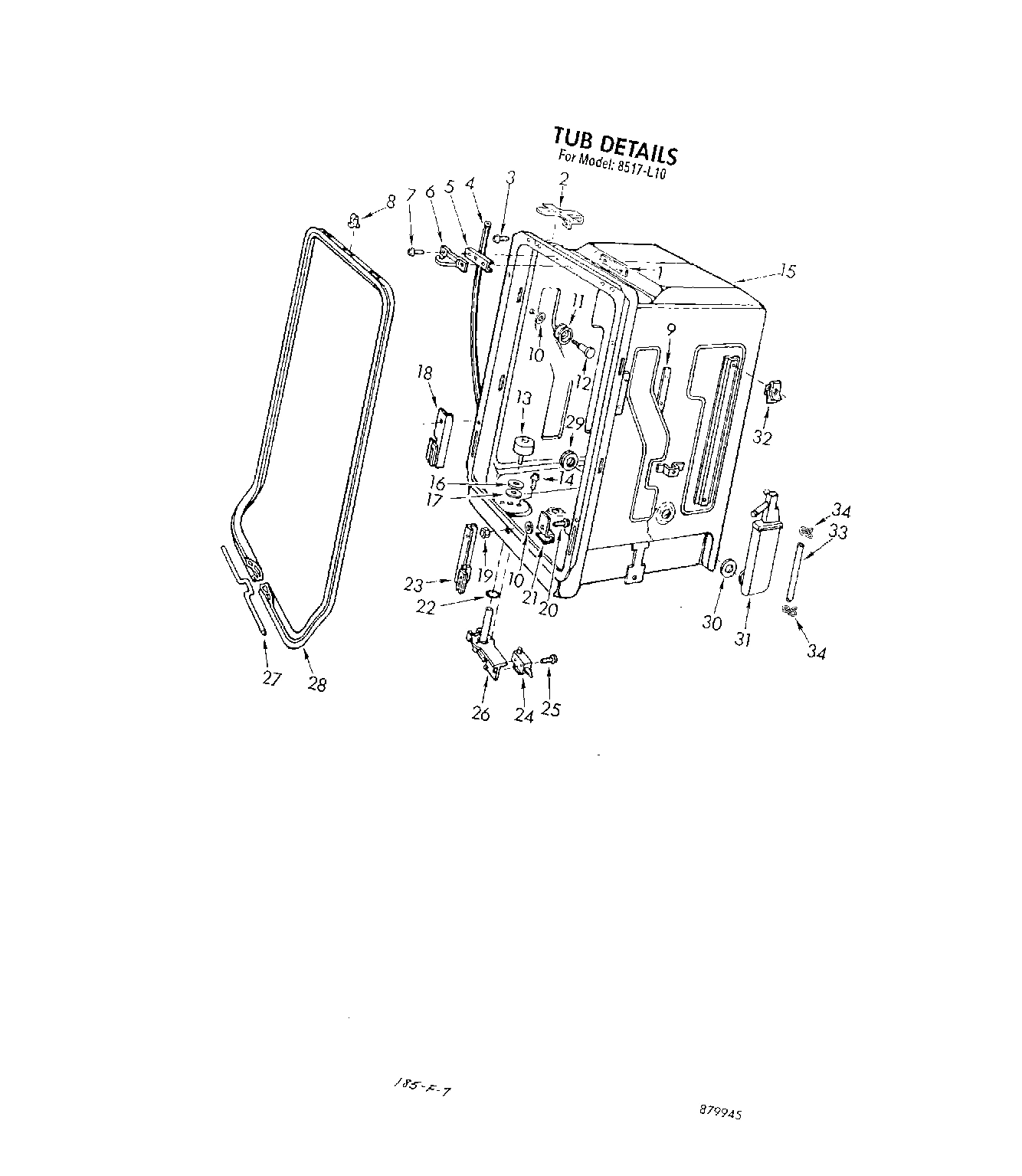

05 - TUB

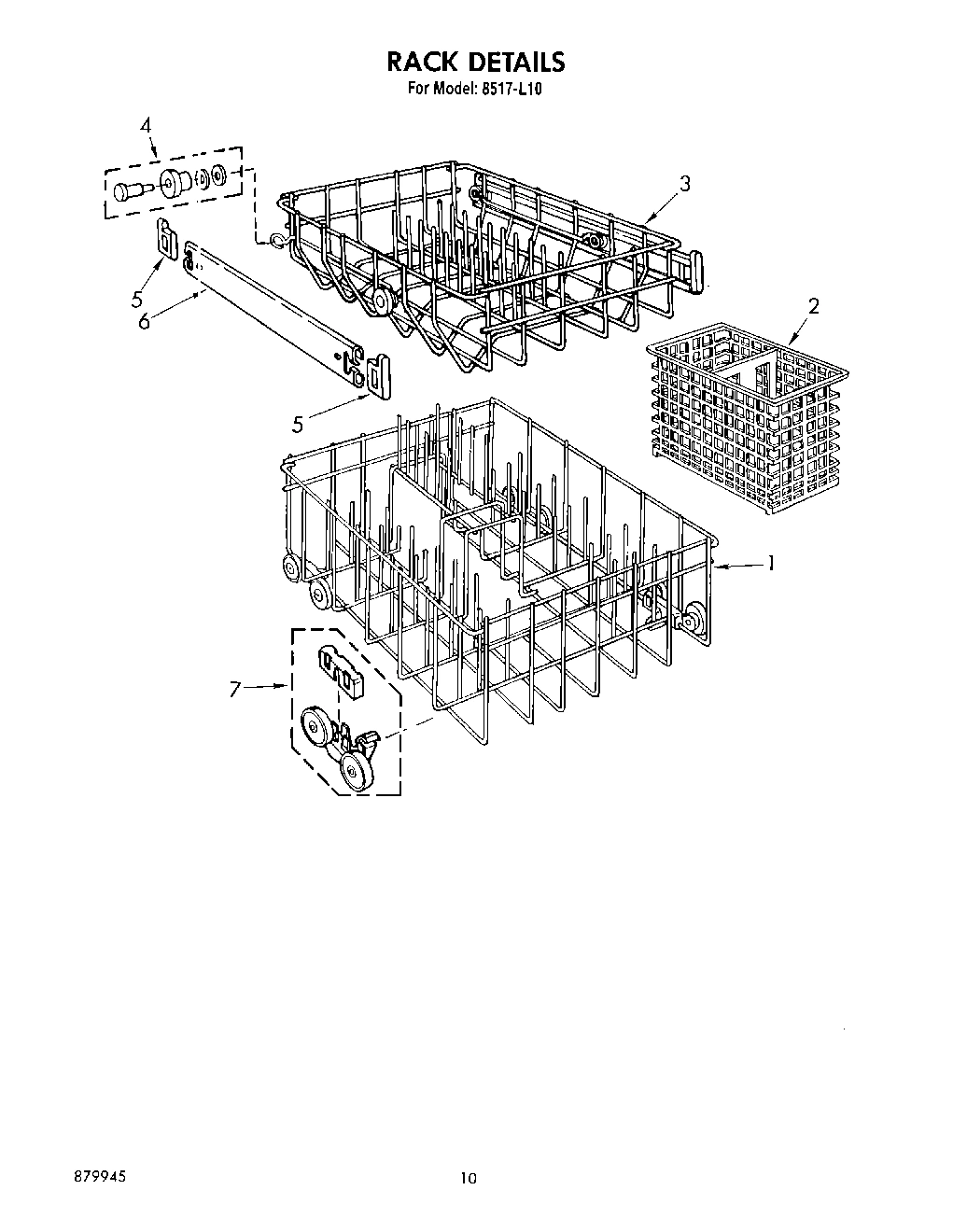

08 - RACK
Common parts from model Whirlpool 8517L10 DISHWASHER
Parts List WPL LIT879945 Contact Us For Availability
1
Screw, No.10-32 x 2 1/4 WPL 4340235 Contact Us For Availability
1
Screw, No.8 x 7/16 WPL 4340865 Contact Us For Availability
1
Side Panels (R.H. or L.H.) (White) WPL 4340779 Contact Us For Availability
1
Side Panels (R.H. or L.H.) (Coffee) WPL 4340780 Contact Us For Availability
1
Side Panels (R.H. or L.H.) (Avocado) WPL 4340781 Contact Us For Availability
1
Side Panels (R.H. or L.H.) (Wheat) WPL 4340782 Contact Us For Availability
1
Side Panels (R.H. or L.H.) (Almond) WPL 4340783 Contact Us For Availability
1
Detergent Cup & Cover WPL 4340394 Contact Us For Availability
1
Latch Assembly WPL 4340347 Contact Us For Availability
1
Latch Tapping Plate WPL 4340770 Contact Us For Availability
1
Lower Rack Assembly WPL 4340755 Contact Us For Availability
2
Washer WPL 4340098 Contact Us For Availability
2
End Cap (L.H) Black WPL 4340715 Contact Us For Availability
2
Wire Clamp WPL 4340283 Contact Us For Availability
2
O-Ring WPL 4340582 Contact Us For Availability
2
Screw, No.8-32 x 5/16 WPL 4320294 Contact Us For Availability
2
Attach Clip WPL 4340595 Contact Us For Availability
2
Silverware Basket WPL 4340754 Contact Us For Availability
3
Heater (Includes Keys 23 & 24) WPL 4340304 Contact Us For Availability
3
Push Buttons WPL 4340899 Contact Us For Availability
3
Switch Cover WPL 4340423 Contact Us For Availability
3
Upper Rack WPL 4340910 Contact Us For Availability
4
Upper Impeller WPL 4340815 Contact Us For Availability
4
Lens WPL 4340835 Contact Us For Availability
4
Cam WPL 4340260 Contact Us For Availability
4
Screw, No.6-32 x 1 WPL 4340692 Contact Us For Availability
4
Drain Hose, Corrugated WPL 4340853 Contact Us For Availability
4
Wheel Assembly WPL 4340876 Contact Us For Availability
5
Macerator Blade WPL 4340535 Contact Us For Availability
5
Vent Grille WPL 4340652 Contact Us For Availability
5
Toeplate WPL 4340449 Contact Us For Availability
5
Spiral Pin WPL 4340752 Contact Us For Availability
5
Switch WPL 4340356 Contact Us For Availability
5
Shim WPL 4340359 Contact Us For Availability
5
Rack Slide End Cap WPL 4340507 Contact Us For Availability
6
Impeller Shroud WPL 4340225 Contact Us For Availability
6
Speednut WPL 4340651 Contact Us For Availability
6
Terminal Board Bracket WPL 4340503 Contact Us For Availability
6
Cam Spring WPL 4340147 Contact Us For Availability
6
Door Panel Trim (R.H) WPL 4340811 Contact Us For Availability
6
Door Strike WPL 4340346 Contact Us For Availability
6
Rack Slide WPL 4340874 Contact Us For Availability
7
Pump Plate WPL 4340510 Contact Us For Availability
7
Cycle Indicator Knob WPL 4342579 Contact Us For Availability
7
Cam Compression Spring WPL 4340261 Contact Us For Availability
7
Latch Knob WPL 4340726 Contact Us For Availability
7
Screw, No.10 x 3/4 WPL 4340308 Contact Us For Availability
7
Wheel & Bracket Assembly WPL 4340343 Contact Us For Availability
8
Pump Gasket WPL 4340487 Contact Us For Availability
8
Clamp WPL 4355186 Contact Us For Availability
8
Detergent Cup Nut WPL 4340262 Contact Us For Availability
8
Tub Gasket Clip Kit (Includes Key No. 21) WPL 4340183 Contact Us For Availability
9
O-Ring WPL 4340254 Contact Us For Availability
9
Clamp WPL 4340643 Contact Us For Availability
9
Control Panel WPL 4340908 Contact Us For Availability
9
Terminal Block Assembly WPL 4340434 Contact Us For Availability
9
Bi-Metal Assembly Kit (Includes Key No. 11) WPL 4340660 Contact Us For Availability
9
Tapping Plate WPL 4340352 Contact Us For Availability
10
Pump Seal Kit (Includes Keys 2 4, 5, 9, 11 & WPL 4340855 Contact Us For Availability
10
End Cap (R.H) Black WPL 4340714 Contact Us For Availability
10
Grounding Terminal WPL 4340385 Contact Us For Availability
10
Washer WPL 4340092 Contact Us For Availability
10
Washer WPL 4340836 Contact Us For Availability
11
Water Seal WPL 4340106 Contact Us For Availability
11
Light Assembly WPL 4340888 Contact Us For Availability
11
Screw, No.8-32 x 1 1/4 WPL 4340123 Contact Us For Availability
11
Bushing WPL 4340167 Contact Us For Availability
11
Counterbal Arm Assembly (L.H) WPL 4340447 Contact Us For Availability
11
Tub Roller WPL 4340379 Contact Us For Availability
12
Gasket WPL 4340818 Contact Us For Availability
12
Motor Relay WPL 4340148 Contact Us For Availability
12
O-Ring WPL 4340274 Contact Us For Availability
12
Screw & Washer Kit (Includes Key 10) WPL 4340681 Contact Us For Availability
13
Vent Slot Shield WPL 4340683 Contact Us For Availability
13
Screw, No.1/4 x 1/2 WPL 4340339 Contact Us For Availability
13
Shaft Kit (Includes Keys 2 4, 5, 7, 8, 10, 11 WPL 4340278 Contact Us For Availability
13
Vent Plate Assembly WPL 4340624 Contact Us For Availability
13
Float WPL 4340124 Contact Us For Availability
14
Screw, 10 x 1 WPL 4340398 Contact Us For Availability
14
Housing, Pump WPL 4340842 Contact Us For Availability
14
Terminal Board Assembly WPL 4340654 Contact Us For Availability
14
Nut WPL 4342593 Contact Us For Availability
14
Porcelain Weld Assembly WPL 4340685 Contact Us For Availability
15
Clamp Ring WPL 4340490 Contact Us For Availability
15
Timer WPL 4342596 Contact Us For Availability
15
Nut WPL 4340649 Contact Us For Availability
15
Tub & Gasket Assembly WPL 4340872 Contact Us For Availability
16
Watershield Assembly WPL 4340897 Contact Us For Availability
16
Timer Terminal Housing WPL 4340884 Contact Us For Availability
16
Leveler WPL 4342591 Contact Us For Availability
16
Counterbalance Mounting Bracket WPL 4340282 Contact Us For Availability
16
Float Tube Assembly WPL 4340531 Contact Us For Availability
17
Screw, 10 x 1 WPL 4340828 Contact Us For Availability
17
Housing Terminal WPL 4340607 Contact Us For Availability
17
Counterbal. Arm Assembly WPL 4340446 Contact Us For Availability
17
Float Tube Gasket WPL 4340530 Contact Us For Availability
18
Motor Assembly, (Includes Keys 1,9,16 & 20) WPL 4340848 Contact Us For Availability
18
Switch WPL 4340890 Contact Us For Availability
18
Water Inlet Valve WPL 4340878 Contact Us For Availability
18
Door Spring WPL 4340444 Contact Us For Availability
18
Counterbal Arm Guide (L.H) WPL 4342600 Contact Us For Availability
19
Seal Installation Tool WPL 4340107 Contact Us For Availability
19
Side Base Angle Kit WPL 4342620 Contact Us For Availability
19
Screw, No.8 x 5/8 WPL 4340094 Contact Us For Availability
20
Seal Shim Gage WPL 4340362 Contact Us For Availability
20
Splash Pan WPL 4340420 Contact Us For Availability
20
Support Channel WPL 4340707 Contact Us For Availability
20
Spring Pad WPL 4340200 Contact Us For Availability
20
Screw, No.8-32 x 1/2 WPL 4340095 Contact Us For Availability
21
Tower Tip WPL 4340757 Contact Us For Availability
21
Switch Mounting Bracket WPL 4340267 Contact Us For Availability
21
Rear Brace WPL 4340452 Contact Us For Availability
21
Door Guide WPL 4340445 Contact Us For Availability
21
Dam Clip WPL 4340545 Contact Us For Availability
22
Screw, 6-30 x 3/8 WPL 4340369 Contact Us For Availability
22
Junction Box Cover WPL 4340087 Contact Us For Availability
22
Screw, No.8 x 5/8 WPL 4340736 Contact Us For Availability
22
O-Ring WPL 4340497 Contact Us For Availability
23
Heater Grommet WPL 4340295 Contact Us For Availability
23
Junction Box Bracket WPL 4340349 Contact Us For Availability
23
Access Panel Trim Top WPL 4340650 Contact Us For Availability
23
Counterbal Arm Guide (R.H) WPL 4340461 Contact Us For Availability
24
Heater Nut 1/2-20 Brass WPL 4340296 Contact Us For Availability
24
Hinge Weld Assembly WPL 4340873 Contact Us For Availability
24
Float Switch WPL 4340477 Contact Us For Availability
25
Door Panel WPL 4340598 Contact Us For Availability
25
Screw, No.4-40 x 5/8 WPL 4342581 Contact Us For Availability
26
Shield, Wire WPL 4340862 Contact Us For Availability
26
Door Panel Trim (L.H) WPL 4340812 Contact Us For Availability
26
Float Switch Kit (Includes Keys 16 17, 22, 24 WPL 4340476 Contact Us For Availability
27
Impeller Housing Kit (Includes Keys 6 & 7) WPL 4340856 Contact Us For Availability
27
Screw, No.6 x 1/4 WPL 4340403 Contact Us For Availability
27
Junction Rod WPL 4342601 Contact Us For Availability
28
Screw, No.10 x 3/4 WPL 4340412 Contact Us For Availability
28
Door & Access Panel Inserts (Almond) WPL 4340796 Contact Us For Availability
28
Door & Access Panel Inserts (Wheat) WPL 4340797 Contact Us For Availability
28
Door & Access Panel Inserts (Coffee) WPL 4340798 Contact Us For Availability
28
Door & Access Panel Inserts (Avocado) WPL 4340799 Contact Us For Availability
28
Door & Access Panel Inserts (Black) WPL 4340800 Contact Us For Availability
28
Tub Gasket & Wire Assembly (Includes Keys 8 & WPL 4340813 Contact Us For Availability
29
Bearing WPL 4340838 Contact Us For Availability
29
Nut WPL 4340170 Contact Us For Availability
30
Spray Arm Bolt WPL 4340825 Contact Us For Availability
30
Access Panel Trim (L.H) WPL 4340542 Contact Us For Availability
30
Water Inlet, Gasket WPL 4340103 Contact Us For Availability
31
Shield Bearing WPL 4340801 Contact Us For Availability
31
Access Panel Trim (Bottom) WPL 4340600 Contact Us For Availability
31
Water Inlet, Assembly WPL 4340246 Contact Us For Availability
32
Sprayarm Assembly WPL 4340756 Contact Us For Availability
32
Access Panel Trim (R.H) WPL 4340541 Contact Us For Availability
32
Cage Nut WPL 4340231 Contact Us For Availability
33
Tower Base WPL 4340562 Contact Us For Availability
33
Access Panel (White) WPL 4340601 Contact Us For Availability
33
Water Inlet Tubing (Includes Key 34) WPL 4340512 Contact Us For Availability
34
Tower Section WPL 4340566 Contact Us For Availability
34
Screw, No.8 x 3/8 WPL 4340701 Contact Us For Availability
34
Clamp WPL 4340499 Contact Us For Availability
35
Screw, No.8 x 3/4 WPL 4340857 Contact Us For Availability
35
Door Panel Trim (Bottom) WPL 4340603 Contact Us For Availability
× ![]()
