Model Whirlpool 7KFCC150S1 COMPACTOR – Common Parts & Diagrams

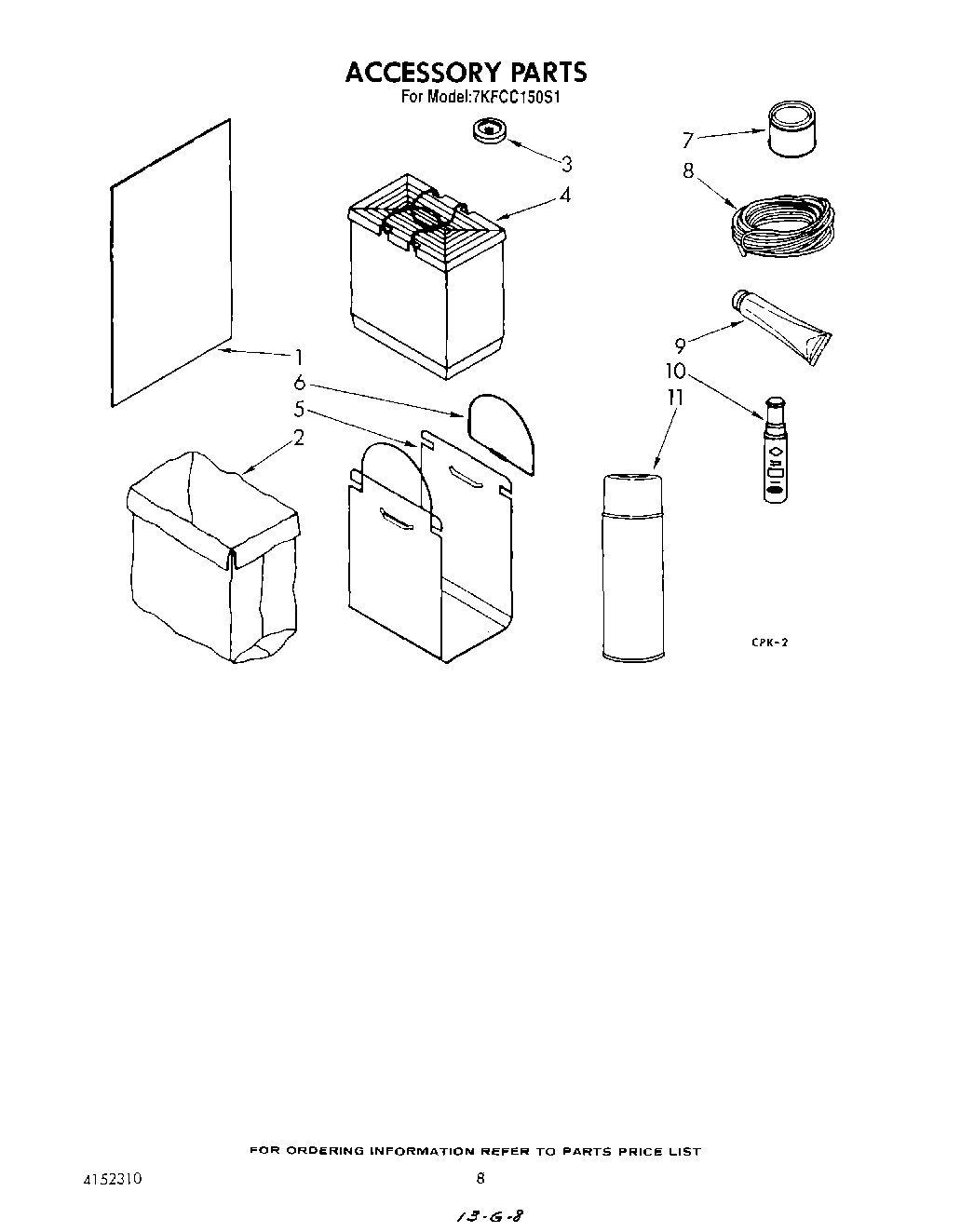

07 - ACCESSORY

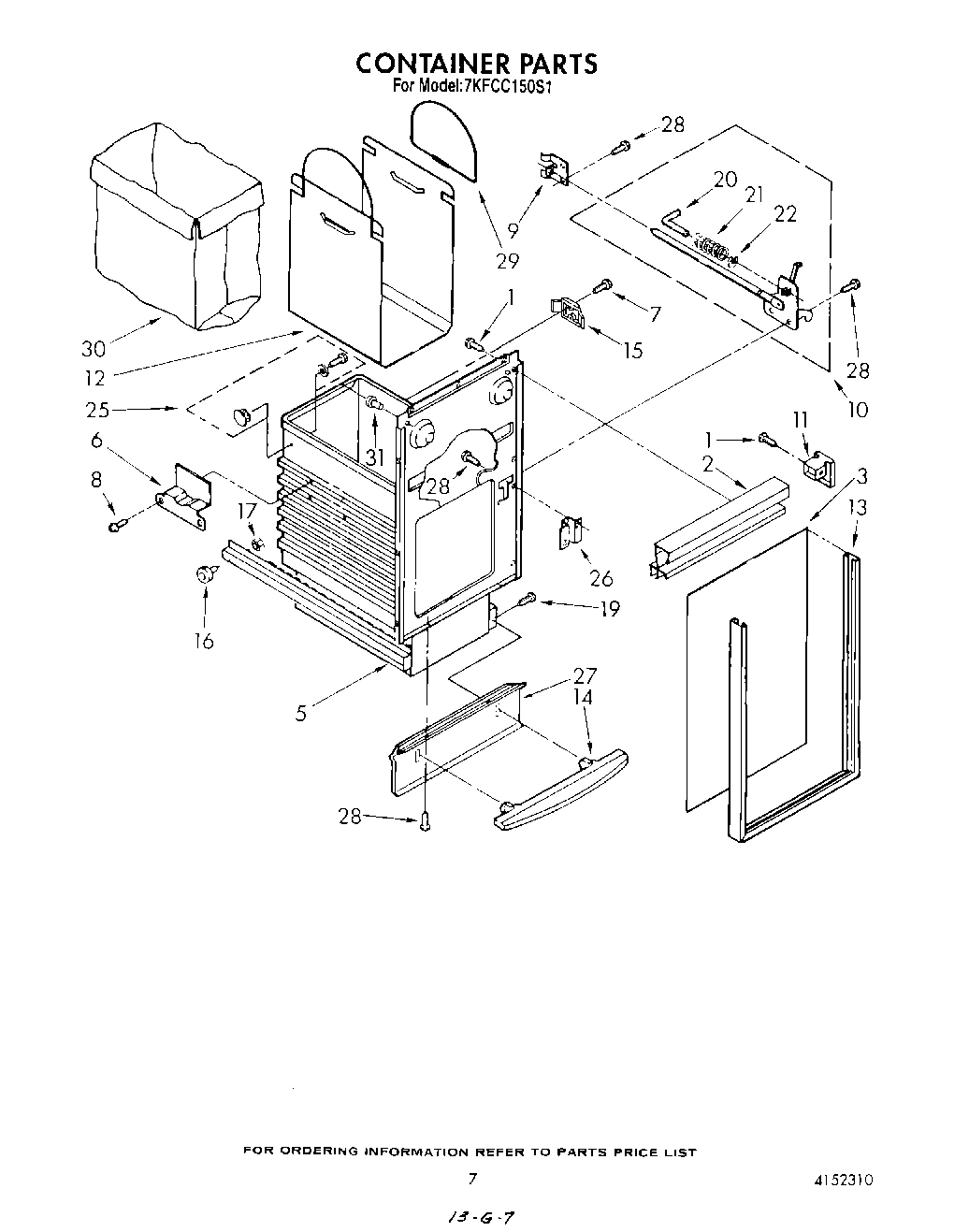

06 - CONTAINER

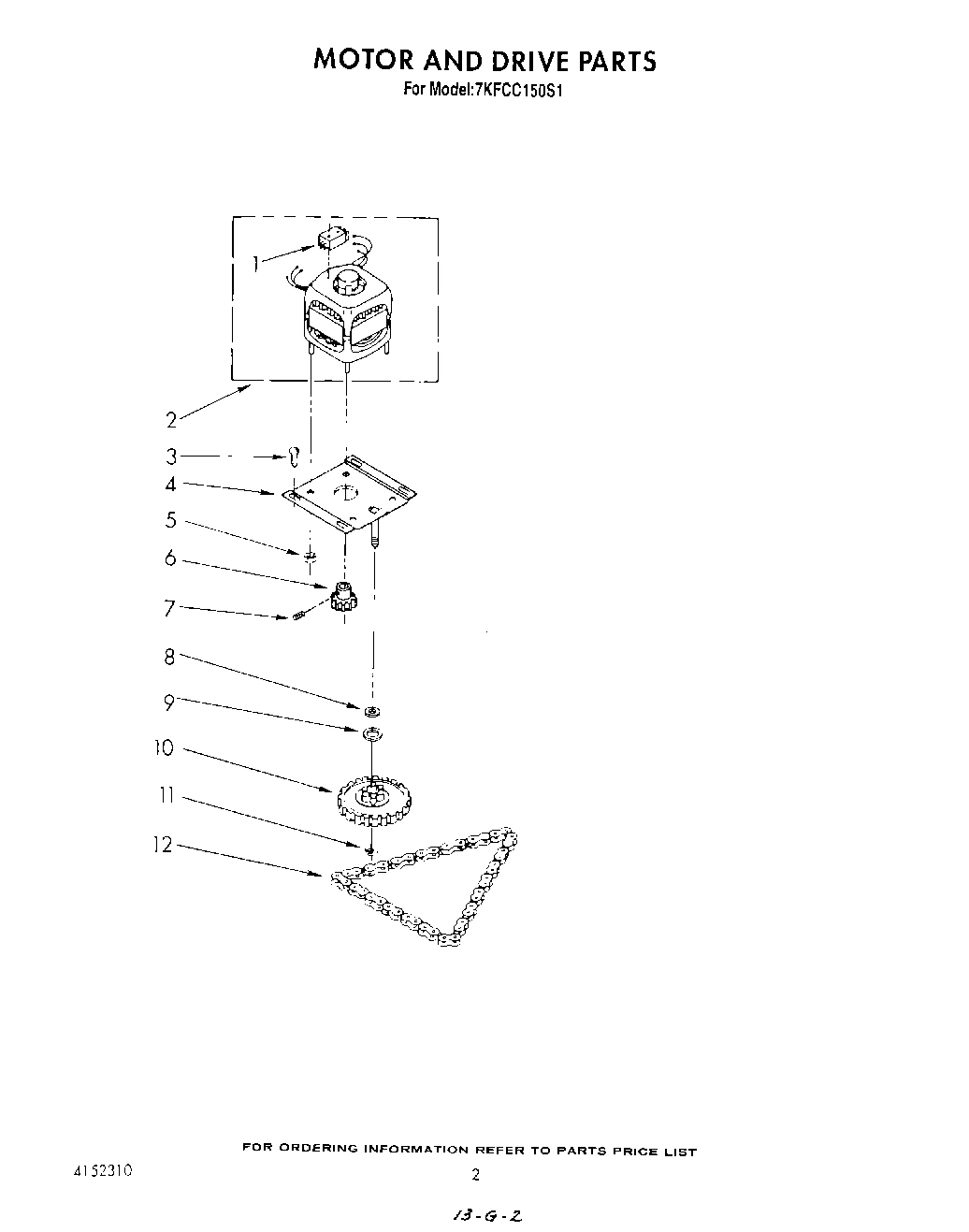

02 - MOTOR AND DRIVE

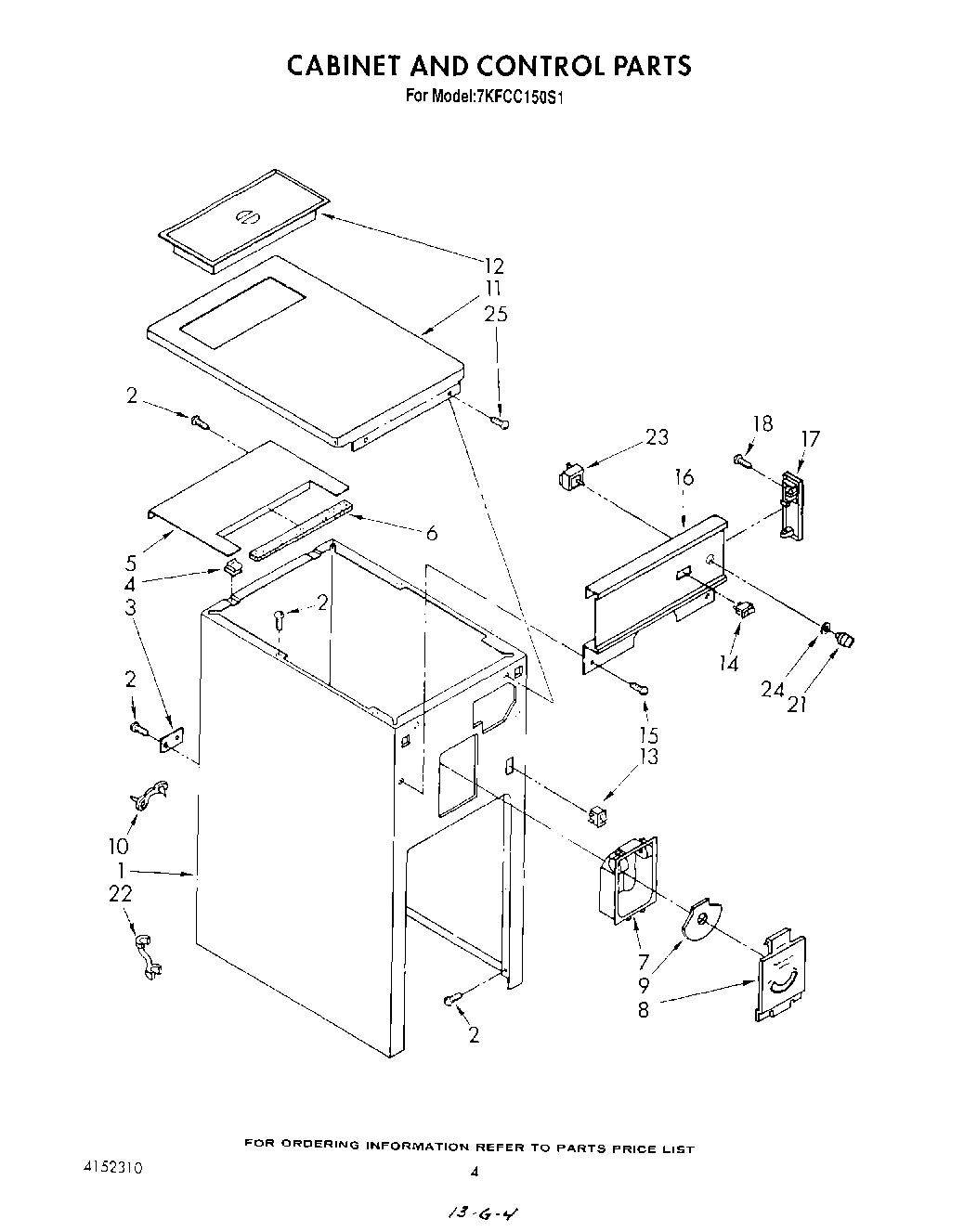

04 - CABINET AND CONTROL

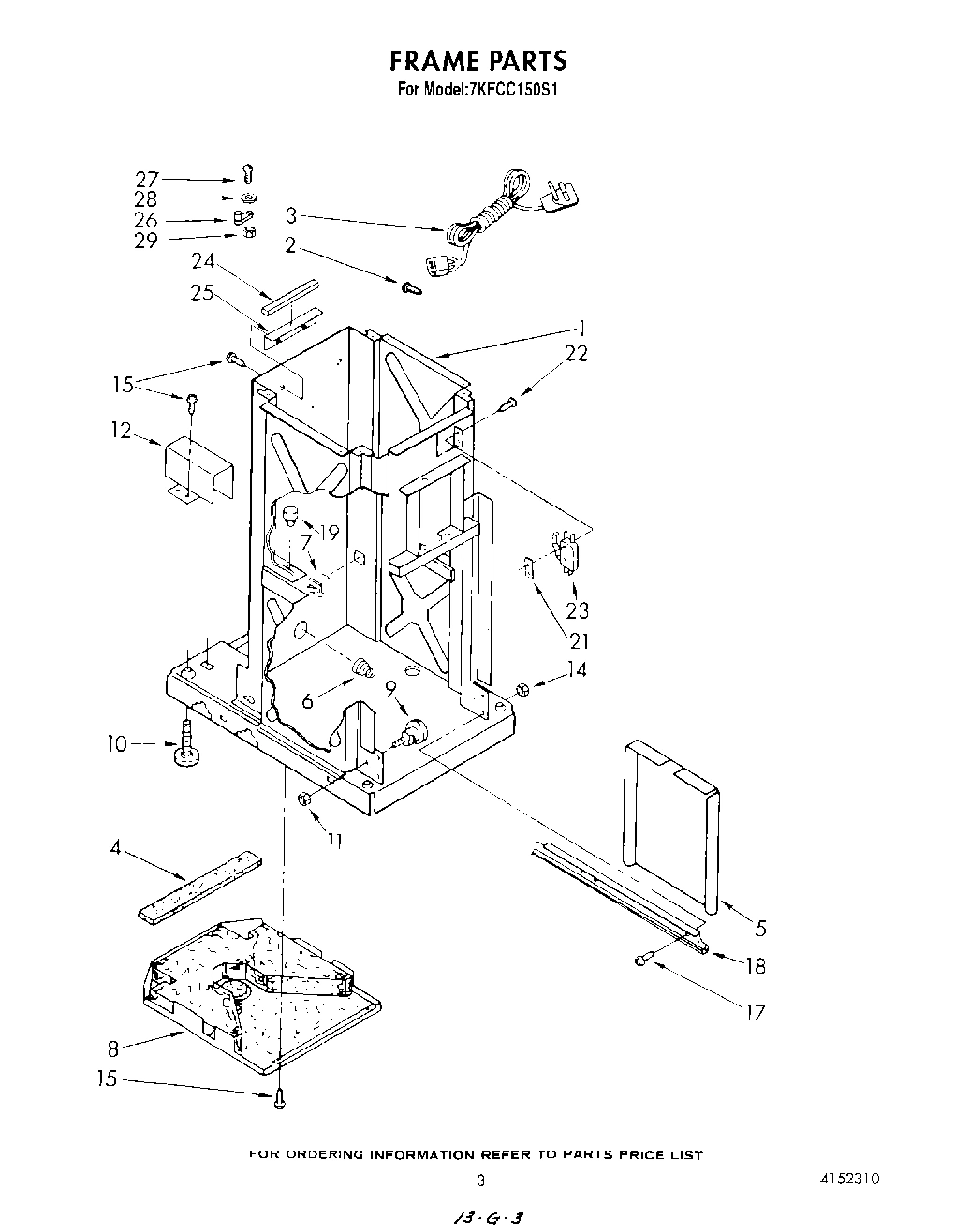

03 - FRAME

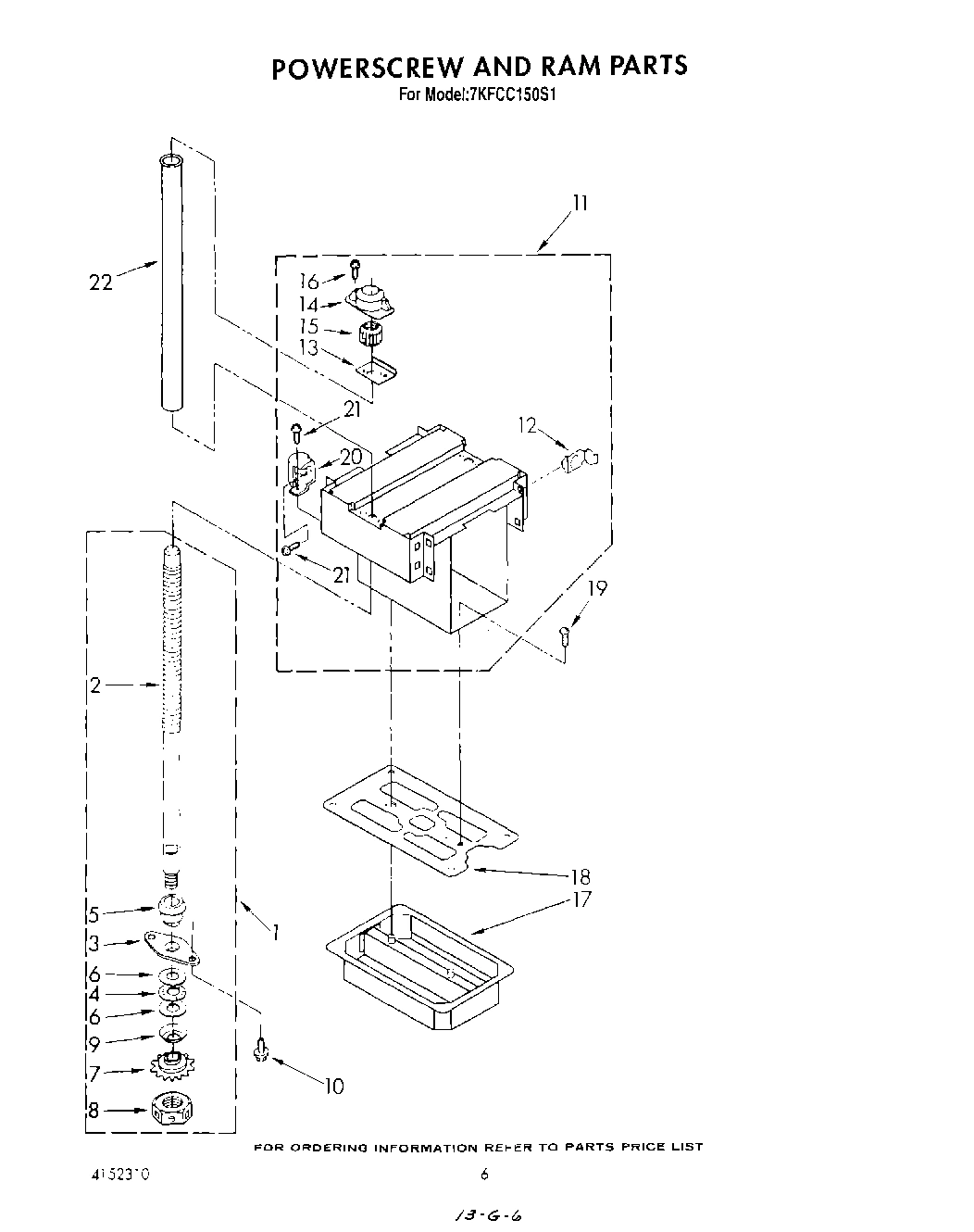

05 - POWERSCREW AND RAM
Common parts from model Whirlpool 7KFCC150S1 COMPACTOR
Guide, Use and Care WPL LIT4150371 Contact Us For Availability
Instructions, Installation WPL LIT4150372 Contact Us For Availability
List, Repair Parts WPL LIT4152310 Contact Us For Availability
Sheet, Tech (Service Information) WPL LIT780486 Contact Us For Availability
1
Cabinet WPL 779608 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI17634A3 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Motor, Drive (Includes Illus. 1) WPL 4150475 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI17635A6 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Plate, Power Cord WPL 608336 Contact Us For Availability
3
Cord, Power WPL 778583 Contact Us For Availability
4
Clip, Toe Mount WPL 776017 Contact Us For Availability
4
Barrier, Glass WPL 776780 Contact Us For Availability
5
Plate, Bag Storage WPL 780438 Contact Us For Availability
5
Insulation, Inner Panel WPL 780412 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Compartment, Air Flow WPL 777642 Contact Us For Availability
8
Cover, Air Flow WPL 4147744 Contact Us For Availability
9
Dail, Air Flow WPL 608782 Contact Us For Availability
10
Clamp, Wire WPL 777035 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Top, Cabinet WPL 608720 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Harness, Wiring (Complete) WPL 4152078 Contact Us For Availability
12
Lid, Bag Storage WPL 780081 Contact Us For Availability
12
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Nut, 6-32 WPL 776188 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
16
Escutcheon, Control WPL 4150373 Contact Us For Availability
17
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
17
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Bumper, Ram (4) WPL 775643 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
22
Bushing, Power Cord WPL 776519 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
24
Pad, Top Support WPL 776715 Contact Us For Availability
25
Retainer, Bag (Contains 5 Each) WPL 4163646 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
25
Angle, Top Support WPL 608038 Contact Us For Availability
26
Lug, Grounding WPL 236278 Contact Us For Availability
27
Screw, 10-24 x 1 WPL 776516 Contact Us For Availability
28
Washer WPL 138479 Contact Us For Availability
29
Nut WPL 776515 Contact Us For Availability
31
Bumper, Container (2) WPL 775785 Contact Us For Availability
× ![]()
