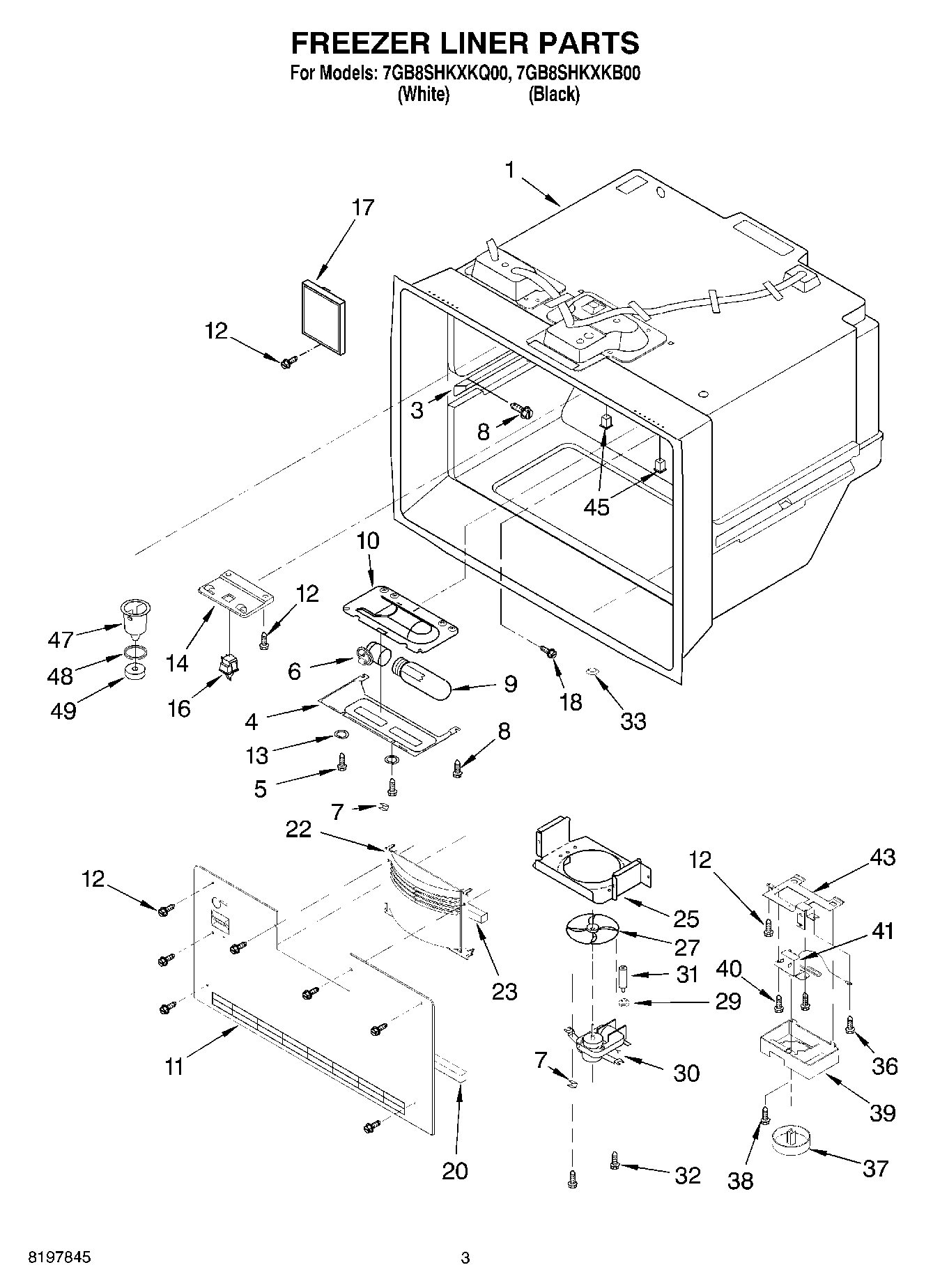

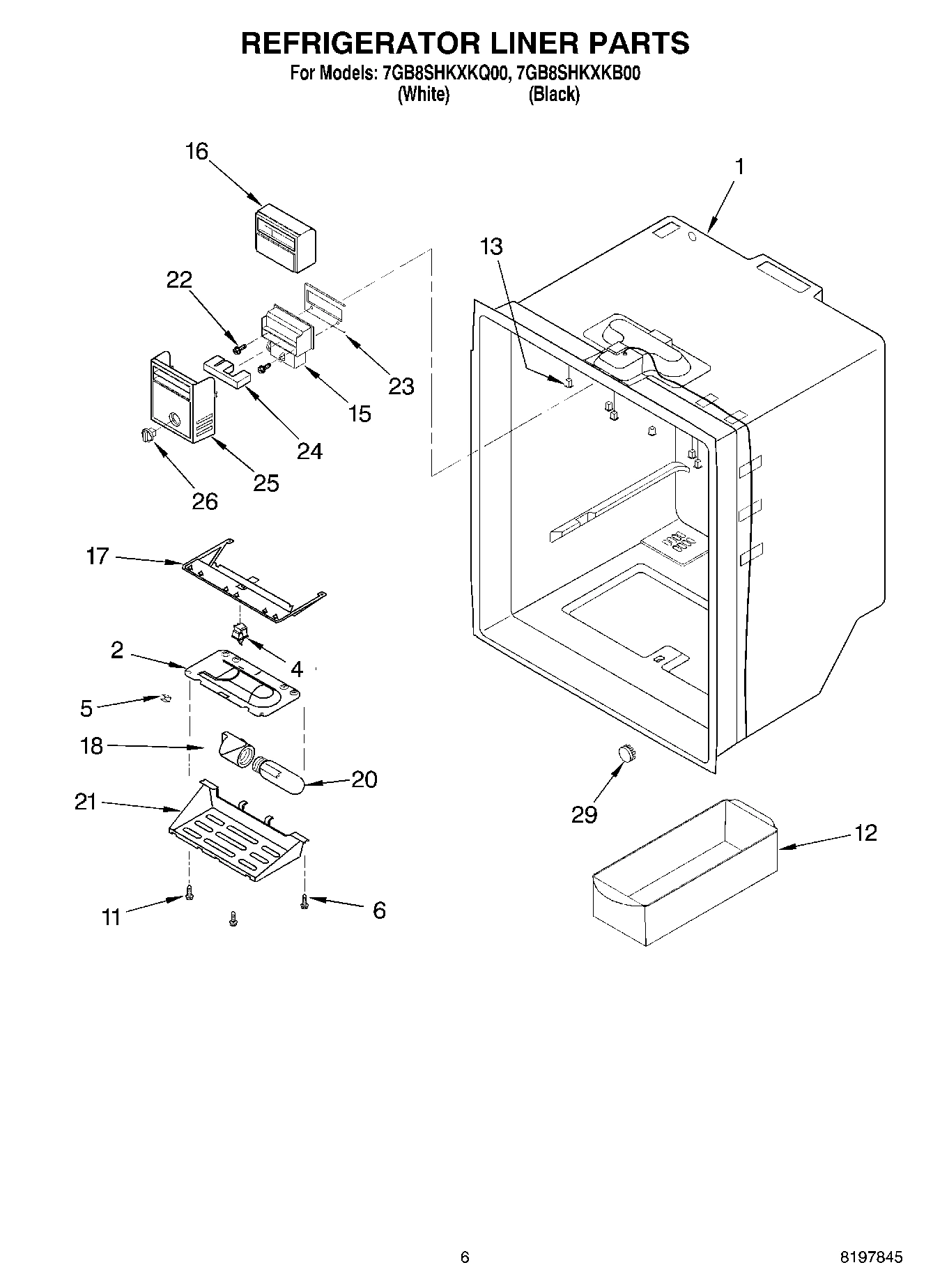

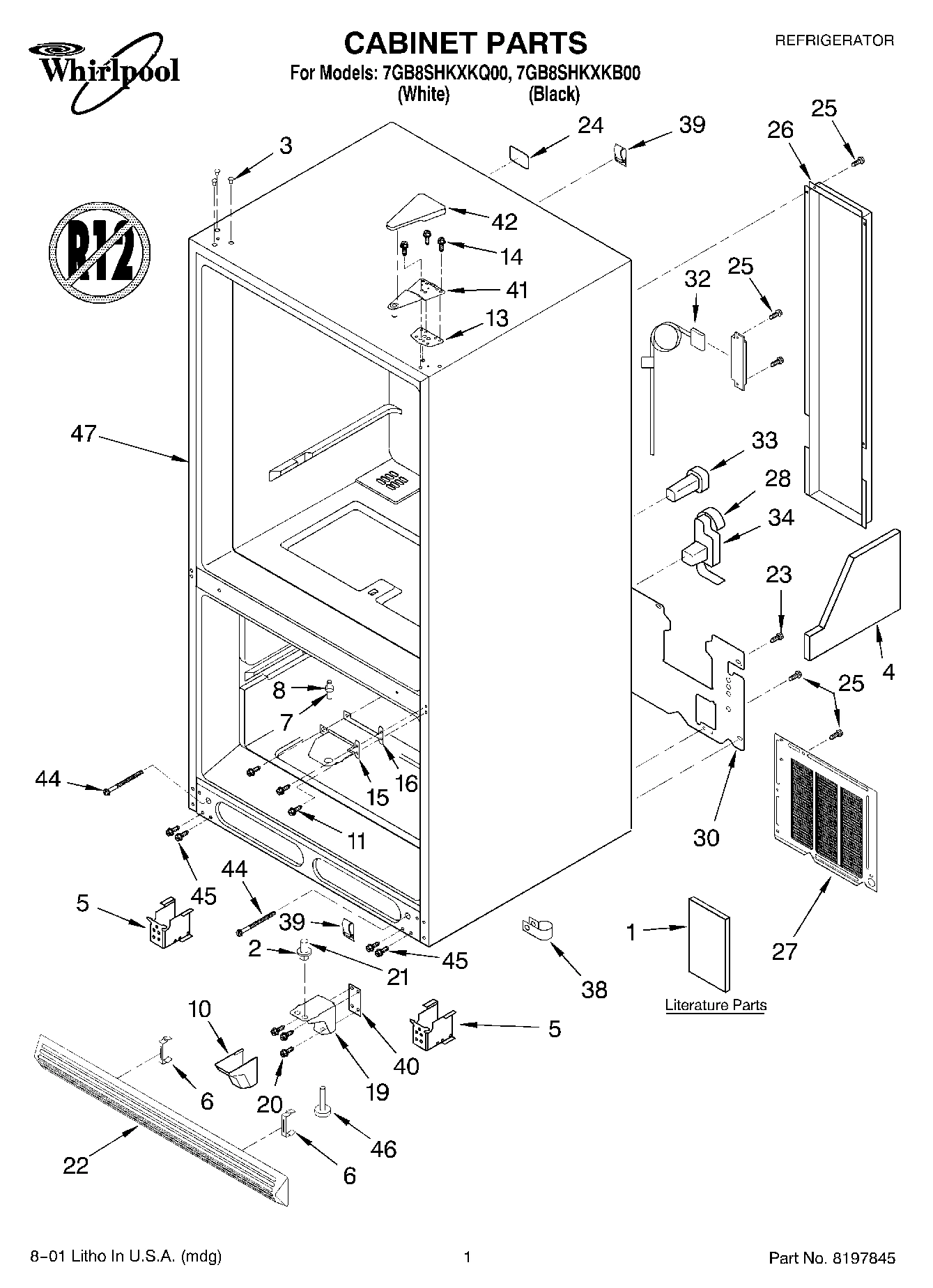

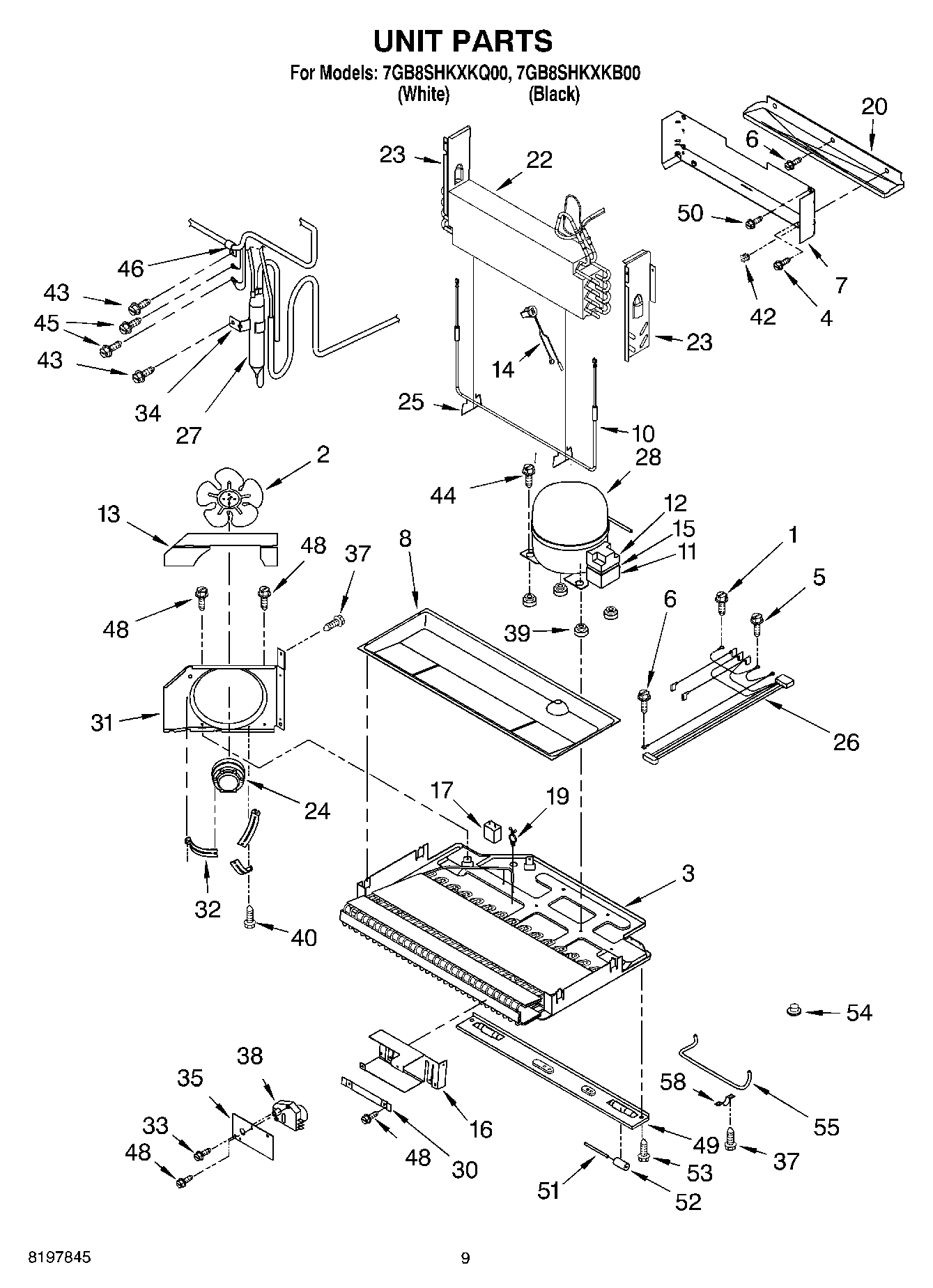

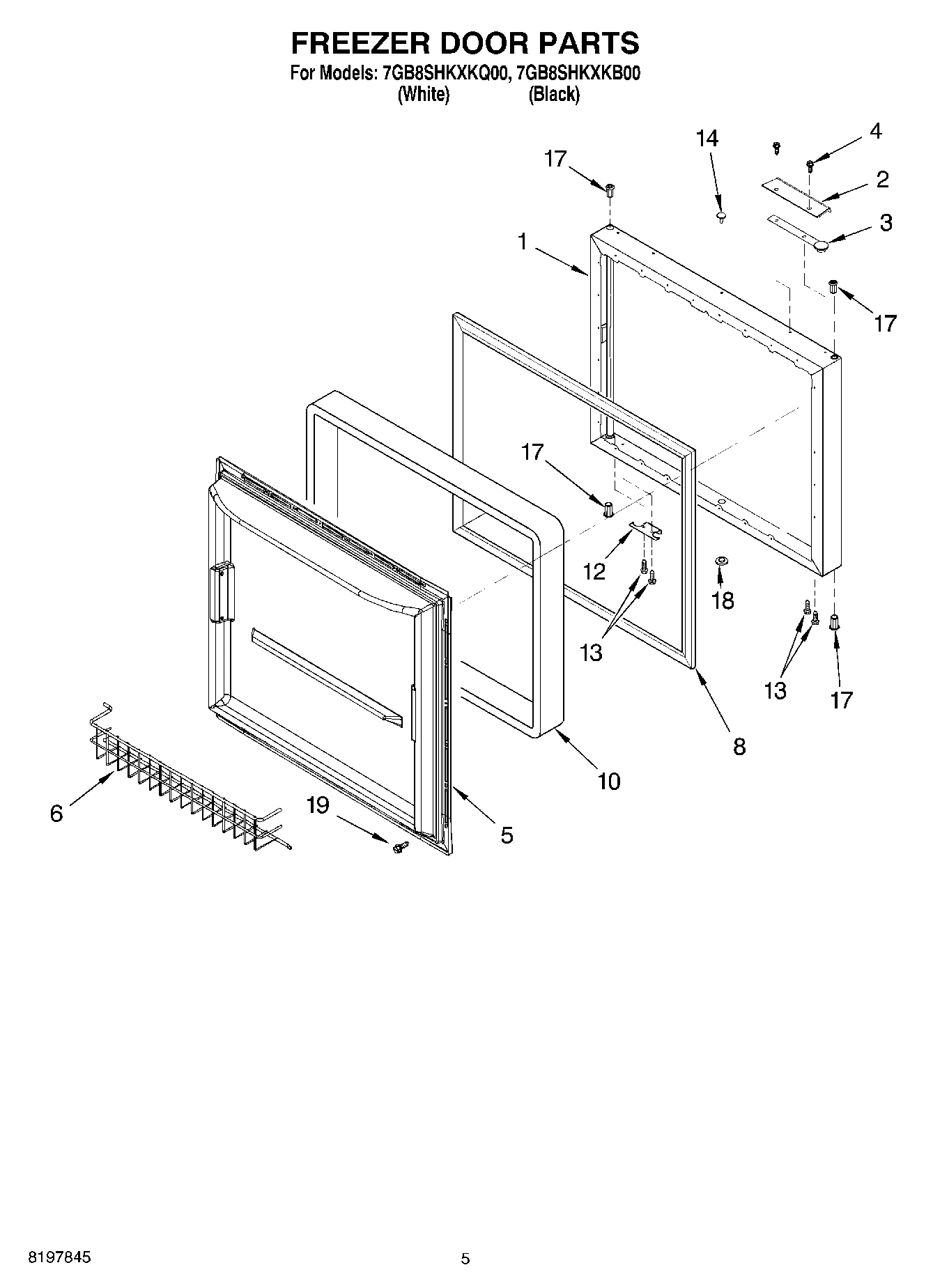

Model Whirlpool 7GB8SHKXKB00 REFRIGERATOR – Common Parts &amp; Diagrams

1

Roller WPL 4344093 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI16924A4 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI16923A5 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2221831 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2221871 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Bla WPL 8170587 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Whi WPL 8170589 Contact Us For Availability

2

Rack, Wine WPL 4344294 Contact Us For Availability

2

Fan, Blade WPL 4344271 Contact Us For Availability

2

Shim, Bottom Hinge (White) WPL 4344200 Contact Us For Availability

2

Shim, Bottom Hinge (Black) WPL 4344201 Contact Us For Availability

2

Handle (Black) WPL 4344160 Contact Us For Availability

2

Handle (White) WPL 4344162 Contact Us For Availability

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

Ice Bucket WPL 8170561 Contact Us For Availability

3

Condenser & Pan Assembly WPL 8170515 Contact Us For Availability

3

Glide, Shelf (Left Side) WPL 8170532 Contact Us For Availability

3

Glide, Shelf (Right Side) WPL 8170533 Contact Us For Availability

3

Plug, Button (Black) WPL 4344157 Contact Us For Availability

3

Plug, Button (White) WPL 4344159 Contact Us For Availability

4

Shelf, Frz. Wire WPL 8170563 Contact Us For Availability

4

Light Lens WPL 4344205 Contact Us For Availability

4

Insulation, Foot (Left Side) WPL 8170534 Contact Us For Availability

4

Insulation, Foot (Right Side) WPL 8170576 Contact Us For Availability

4

Screw WPL 8170396 Contact Us For Availability

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

Basket, Freezer WPL 8170564 Contact Us For Availability

5

Screw WPL 4344206 Contact Us For Availability

5

Roller, Front Assy. WPL 8170506 Contact Us For Availability

5

Interior Panel WPL 8170592 Contact Us For Availability

6

Handle, Basket WPL 8170565 Contact Us For Availability

6

Light Socket WPL 8170384 Contact Us For Availability

6

Clip, Grille WPL 4344155 Contact Us For Availability

6

Trim, Shelf WPL 8170590 Contact Us For Availability

7

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $3.70

7

Clip, Ground WPL 4343682 Contact Us For Availability

7

Heat Shield WPL 8170541 Contact Us For Availability

8

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

8

WP12550122Q Whirlpool Refrigerator Freezer Do Backorder WPL WP12550122Q $125.21

8

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $2.51

8

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $12.94

8

Drain Pan WPL 8170569 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 8170516 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

Meat Pan WPL 8170548 Contact Us For Availability

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP12219401 Whirlpool Refrigerator EV Heater Backorder WPL WP12219401 $64.69

Housing, Frz. Light WPL 8170381 Contact Us For Availability

Hinge Cover, Bottom (Black) WPL 8170572 Contact Us For Availability

Hinge Cover, Bottom (White) WPL 8170573 Contact Us For Availability

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Frame Assy, S/O WPL 8170687 Contact Us For Availability

Strap WPL 8170724 Contact Us For Availability

Cover, Evaporator WPL 8170666 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP12555902 Whirlpool Refrigerator Overload In Stock WPL WP12555902 $75.02

Shelf, S/G, S/O WPL 8170674 Contact Us For Availability

Screw WPL 4344167 Contact Us For Availability

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

Rack, Ice Tray WPL 8170562 Contact Us For Availability

Gasket WPL 4344275 Contact Us For Availability

Washer (2) WPL 4344211 Contact Us For Availability

Shim, Hinge Top WPL 8170540 Contact Us For Availability

WP10442411 Whirlpool Bimetal Defrost Thermost In Stock WPL WP10442411 $13.16

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Cover, Switch WPL 8170341 Contact Us For Availability

15

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $4.65

15

Control, Damper WPL 8170382 Contact Us For Availability

15

Hinge, Center WPL 8170535 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

Insulation, Damper WPL 8170531 Contact Us For Availability

Bracket, Timer WPL 4344278 Contact Us For Availability

Shim, Center Hinge (Grey) WPL 4344427 Contact Us For Availability

Shim, Center Hinge (Black) WPL 8170714 Contact Us For Availability

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $38.80

Pan, Crisper WPL 8170717 Contact Us For Availability

Shield, Light WPL 8170383 Contact Us For Availability

Cover, Plug WPL 4344166 Contact Us For Availability

Bushing (Black) WPL 4344361 Contact Us For Availability

Bushing (White) WPL 4344362 Contact Us For Availability

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $34.46

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

Plug, Button (White) WPL 4344227 Contact Us For Availability

Plug, Button (Black) WPL 4344364 Contact Us For Availability

Gasket WPL 8170555 Contact Us For Availability

Clip, Wire WPL 4343969 Contact Us For Availability

Hinge Bottom (Black) WPL 8170574 Contact Us For Availability

Hinge Bottom (White) WPL 8170575 Contact Us For Availability

Screw WPL 4343811 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.70

Cover, Pan WPL 8170558 Contact Us For Availability

Drain Pan WPL 8170542 Contact Us For Availability

Gasket, Bottom WPL 4344216 Contact Us For Availability

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $3.70

Glass, Crisper Cover WPL 8170560 Contact Us For Availability

Light Lens, Top WPL 8170386 Contact Us For Availability

Clamp WPL 8170567 Contact Us For Availability

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Ladder, Center WPL 8170721 Contact Us For Availability

Evaporator WPL 8170523 Contact Us For Availability

Cover, Fan Shroud WPL 4344388 Contact Us For Availability

Grille (Black) WPL 8170529 Contact Us For Availability

Grille (White) WPL 8170530 Contact Us For Availability

Ladder, Side WPL 8170722 Contact Us For Availability

Gasket, Damper WPL 4343681 Contact Us For Availability

Dam (Left Side) WPL 8170545 Contact Us For Availability

Dam (Right Side) WPL 8170546 Contact Us For Availability

Gasket WPL 4344587 Contact Us For Availability

Screw WPL 4344267 Contact Us For Availability

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

24

Insert WPL 4343650 Contact Us For Availability

24

Plug, I/M WPL 4344264 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

Nameplate (Black) WPL 4344575 Contact Us For Availability

Nameplate (White) WPL 4344577 Contact Us For Availability

Screw WPL 8170578 Contact Us For Availability

Cover, Control WPL 8170547 Contact Us For Availability

Screw WPL 4343759 Contact Us For Availability

Evap. Fan Shroud WPL 8170715 Contact Us For Availability

26

Knob, Control WPL 8170716 Contact Us For Availability

26

Harness, Unit WPL 8170703 Contact Us For Availability

26

Wire Cover WPL 4344257 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

Slide, Humidity Control WPL 8170556 Contact Us For Availability

Back Cover WPL 8170375 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

Body, Humidity Control WPL 8170557 Contact Us For Availability

28

Harness, Control WPL 8170702 Contact Us For Availability

29

Plug, Button WPL 4344210 Contact Us For Availability

29

Grommet WPL 8170388 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP12013211Q Whirlpool Refrigerator Evaporator In Stock WPL WP12013211Q $195.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 4343700 Contact Us For Availability

Screw WPL 4344094 Contact Us For Availability

AMKIT97 WPL 4344137 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Washer WPL 4344282 Contact Us For Availability

Cover, Unit WPL 8170718 Contact Us For Availability

31

Shroud WPL 4344554 Contact Us For Availability

31

Spacer WPL 8170390 Contact Us For Availability

32

Bracket, Fan Motor WPL 4344272 Contact Us For Availability

32

Screw (2) WPL 8170391 Contact Us For Availability

32

Power Cord WPL 4344263 Contact Us For Availability

33

Screw (2) WPL 4344395 Contact Us For Availability

33

Grommet WPL 8170566 Contact Us For Availability

34

Clip, Drier WPL 4343763 Contact Us For Availability

34

PLug WPL 4344260 Contact Us For Availability

35

Cover, Timer WPL 8170451 Contact Us For Availability

36

Screw WPL 4343860 Contact Us For Availability

37

Knob, Control WPL 4344214 Contact Us For Availability

38

R0131577 Whirlpool Defrost Timer In Stock WPL R0131577 $34.59

38

Screw WPL 4344224 Contact Us For Availability

38

Clip WPL 8170435 Contact Us For Availability

39

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

39

Grommet (4) WPL 4343845 Contact Us For Availability

39

Cover, Frz. Control WPL 8170392 Contact Us For Availability

Screw WPL 4344562 Contact Us For Availability

Screw WPL 4343861 Contact Us For Availability

Shim, Hinge (White) WPL 8170662 Contact Us For Availability

Shim, Hinge (Black) WPL 8170663 Contact Us For Availability

41

W10752646 Whirlpool Control Thermostat In Stock WPL W10752646 $96.04

41

Hinge Top WPL 8170539 Contact Us For Availability

42

Clip, Evaporator WPL 4344219 Contact Us For Availability

42

Hinge Cover (Black) WPL 8170711 Contact Us For Availability

42

Hinge Cover (White) WPL 8170712 Contact Us For Availability

43

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

43

Bracket, Control WPL 4344578 Contact Us For Availability

44

Screw WPL 4343847 Contact Us For Availability

44

Screw WPL 8170380 Contact Us For Availability

45

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

45

Grommet WPL 4344321 Contact Us For Availability

46

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

46

Clamp WPL 4343661 Contact Us For Availability

47

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

48

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

48

Screw WPL 4343749 Contact Us For Availability

49

Cabinet, Brace WPL 8170719 Contact Us For Availability

49

Gasket WPL 8170720 Contact Us For Availability

51

Axle-Roller WPL 4344289 Contact Us For Availability

52

Roller-Rear WPL 4344288 Contact Us For Availability

53

Screw WPL 4344292 Contact Us For Availability

54

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

55

Drain Tube WPL 8170570 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp, Tube WPL 4343777 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
