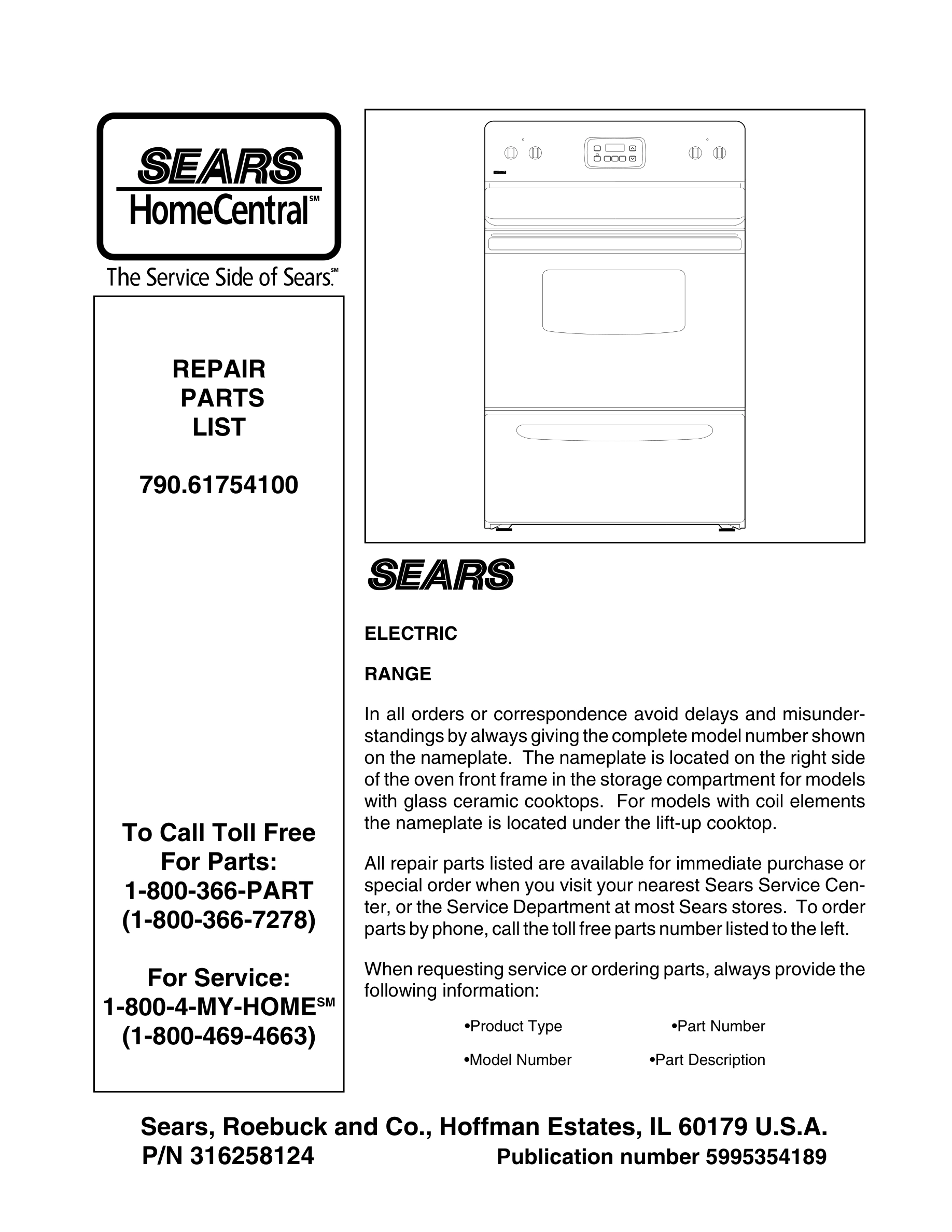

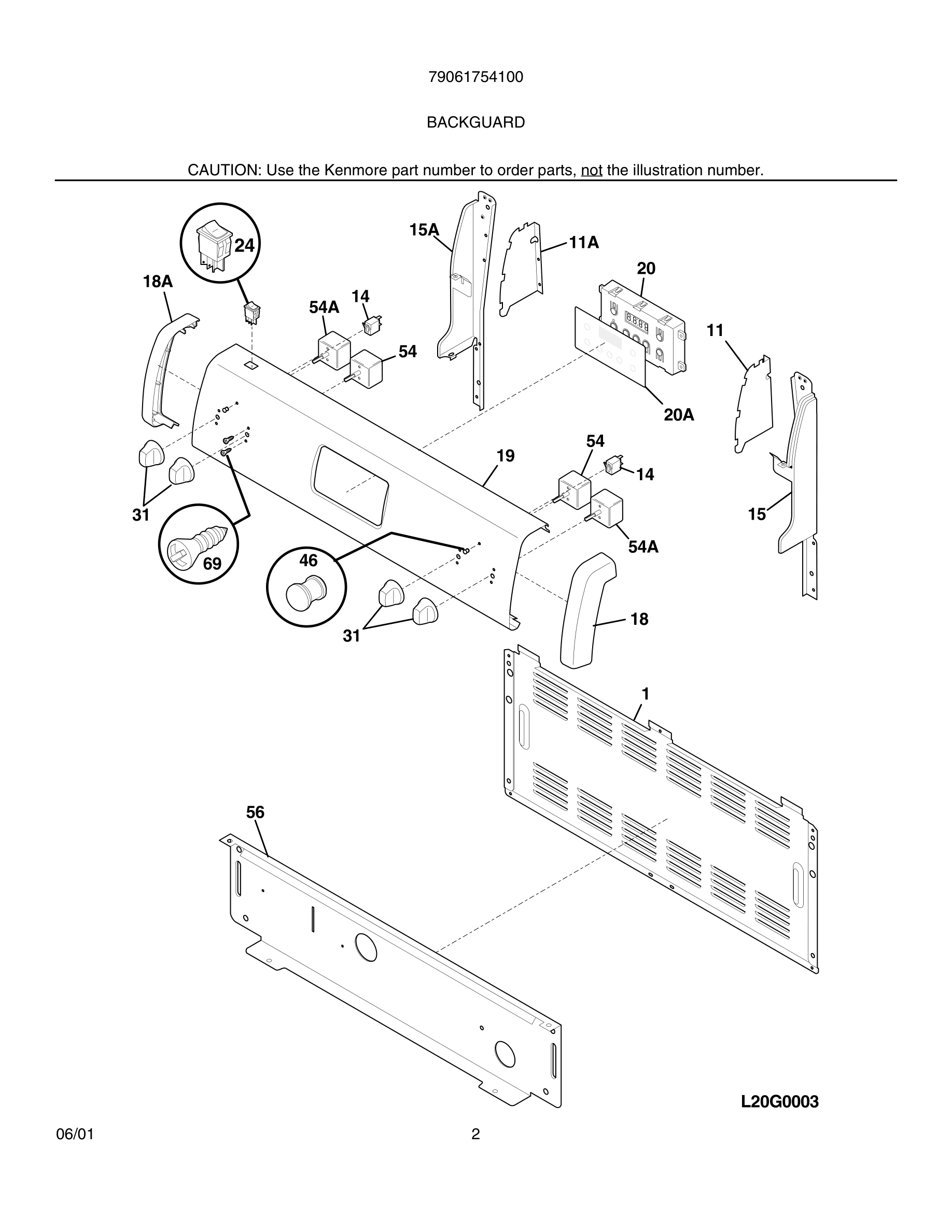

Model Kenmore 79061754100 RANGE – Common Parts & Diagrams

*
Screw,cup pt ,8-18 x 0.375 ,chrome
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
View on Model
*
Screw,wafer hd sq dr ,10-32 x 0.312
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
View on Model
*
Label,anti-tip
Label,anti-tip WCI 316071606 Contact Us For Availability
View on Model
*#
Wiring Harness,surface element
Wiring Harness,surface element WCI 316253501 Contact Us For Availability
View on Model
2
Liner,drawer
Liner,drawer WCI 316231500 Contact Us For Availability
View on Model
3
Trim kit-door,3 sided ,bisque ,w/tape and foi
Trim kit-door,3 sided ,bisque ,w/tape and foi WCI 5303935193 Contact Us For Availability
View on Model
4
Panel-drawer,bisque
Panel-drawer,bisque WCI 316231309 Contact Us For Availability
View on Model
4
Glass-door kit,bisque ,outer ,w/ foil tape
Glass-door kit,bisque ,outer ,w/ foil tape WCI 5303935205 Contact Us For Availability
View on Model
5
Screw-leveling,plastic ,with stop
Screw-leveling,plastic ,with stop WCI 316129200 Contact Us For Availability
View on Model
7
Insulation,oven door
Insulation,oven door WCI 316076401 Contact Us For Availability
View on Model
8
Glass-oven door,inner
Glass-oven door,inner WCI 316088600 Contact Us For Availability
View on Model
8
Panel-oven bottom,sump
Panel-oven bottom,sump WCI 316201501 Contact Us For Availability
View on Model
9
Pan-broiler
Pan-broiler WCI 316081900 Contact Us For Availability
View on Model
9
Liner-door,oven
Liner-door,oven WCI 316230604 Contact Us For Availability
View on Model
10
Insert-broiler pan
Insert-broiler pan WCI 316082000 Contact Us For Availability
View on Model
16
Main Top,bisque
Main Top,bisque WCI 316202309 Contact Us For Availability
View on Model
18
Hinge-main top,RH
Hinge-main top,RH WCI 316235900 Contact Us For Availability
View on Model
18A
Hinge-main top,LH
Hinge-main top,LH WCI 316235901 Contact Us For Availability
View on Model
19#
Pan-surface element,large ,chrome ,w/clip
Pan-surface element,large ,chrome ,w/clip WCI 318067055 Contact Us For Availability
View on Model
21
Spacer-bodyside
Spacer-bodyside WCI 3014099 Contact Us For Availability
View on Model
28
Medallion,stainless steel ,surf elem
Medallion,stainless steel ,surf elem WCI 3017801 Contact Us For Availability
View on Model
31
Knob,control ,bisque
Knob,control ,bisque WCI 316240803 Contact Us For Availability
View on Model
39
Handle-door,bisque
Handle-door,bisque WCI 316235503 Contact Us For Availability
View on Model
41
Cover-hinge,cutout ,RH
Cover-hinge,cutout ,RH WCI 316233400 Contact Us For Availability
View on Model
52
Cap-door trim,bisque
Cap-door trim,bisque WCI 316201007 Contact Us For Availability
View on Model
63
Plate-ground strap
Plate-ground strap WCI 5301145190 Contact Us For Availability
View on Model
71
Shield-rear wall,galv steel
Shield-rear wall,galv steel WCI 316015810 Contact Us For Availability
View on Model
