Model Kenmore 79061752100 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

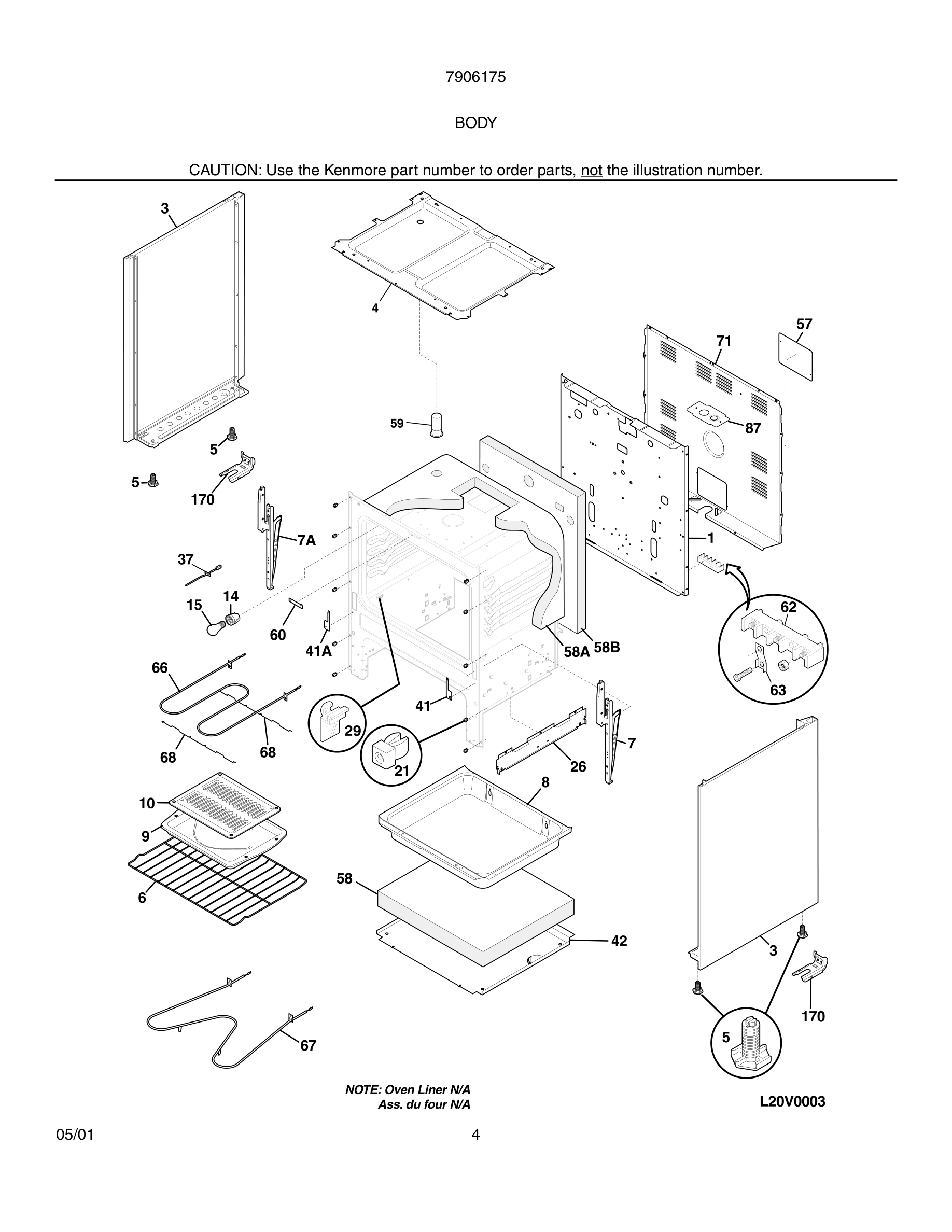

05 - BODY

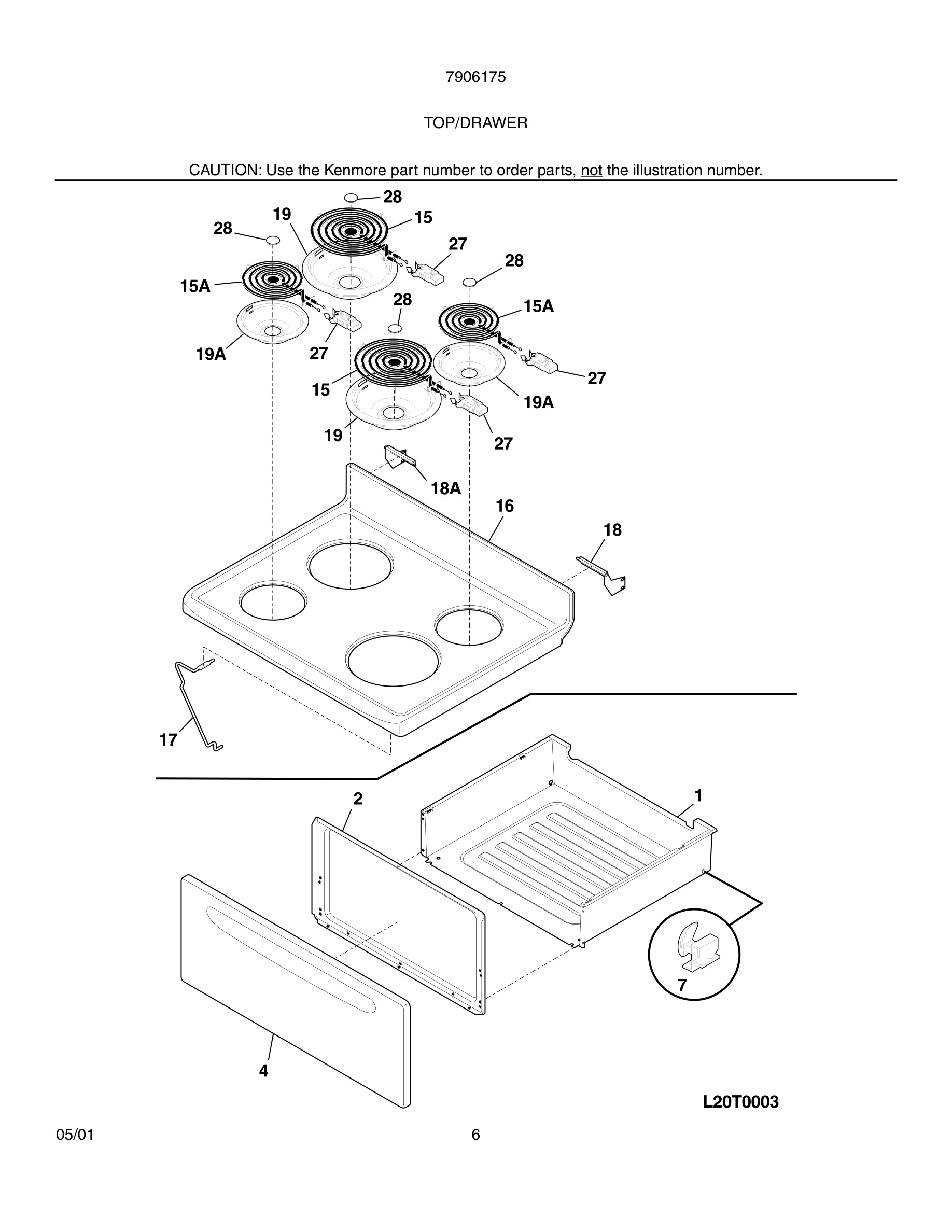

07 - TOP/DRAWER

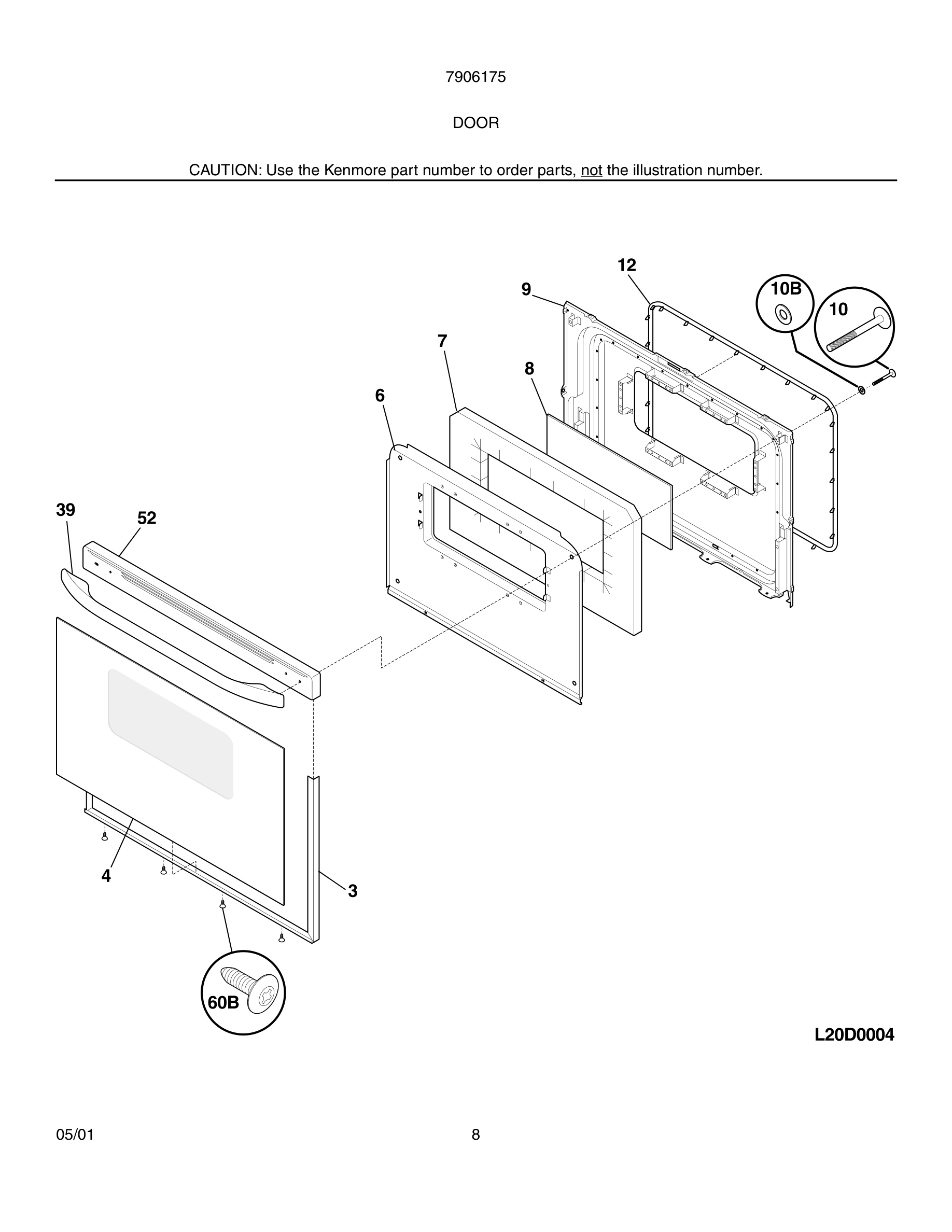

09 - DOOR

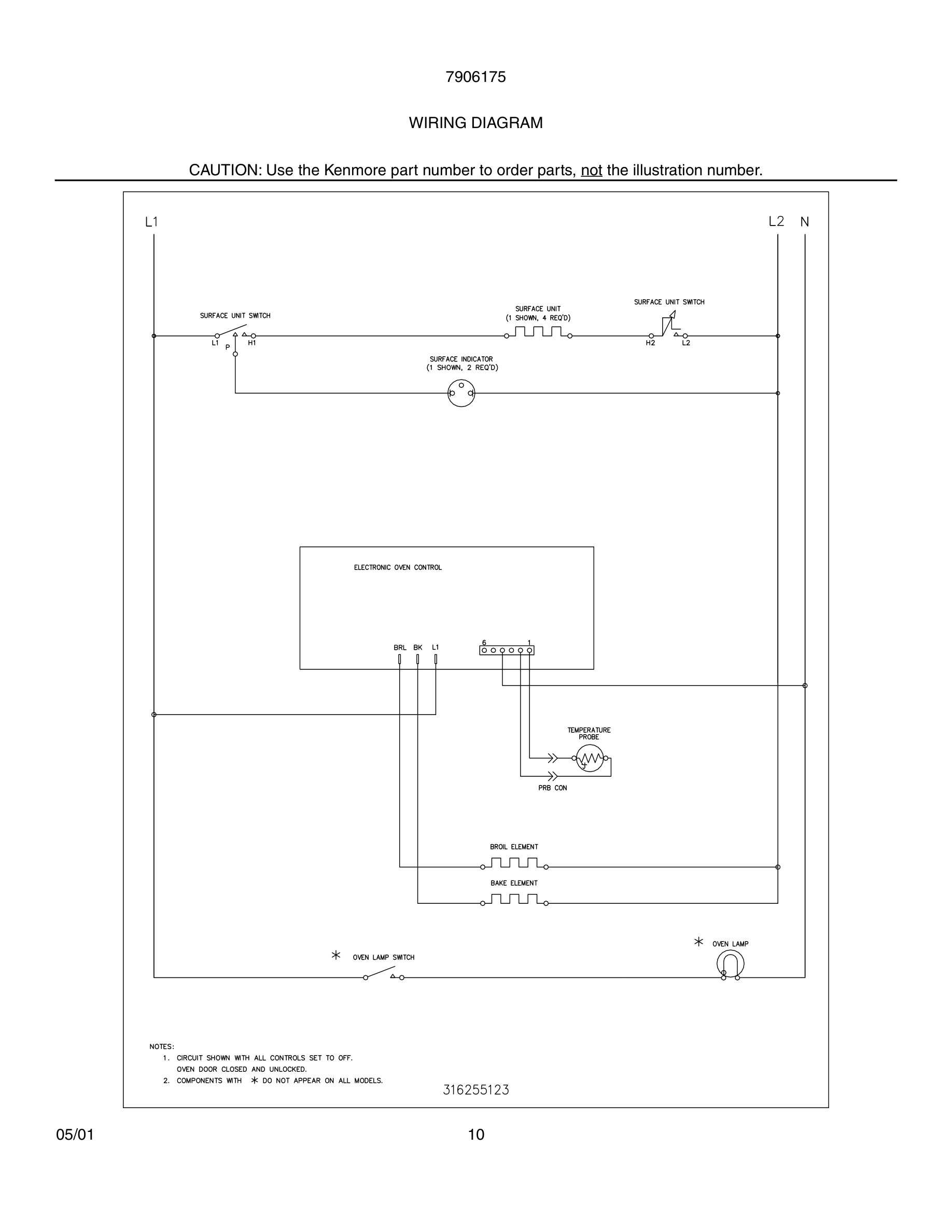

10 - WIRING DIAGRAM
Common parts from model Kenmore 79061752100 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*#
Wiring Harness,surface element WCI 316253501 Contact Us For Availability
1
Drawer-utility WCI 316011503 Contact Us For Availability
2
Liner,drawer WCI 316231501 Contact Us For Availability
3
Trim kit-door,3 sided ,white ,w/tape and foil WCI 5303935192 Contact Us For Availability
4
Panel-drawer,white WCI 316231305 Contact Us For Availability
5
Screw-leveling,plastic ,with stop WCI 316129200 Contact Us For Availability
7
Insulation,oven door WCI 316076401 Contact Us For Availability
8
Glass-oven door,inner WCI 316088600 Contact Us For Availability
8
Panel-oven bottom,sump WCI 316201501 Contact Us For Availability
9
Pan-broiler WCI 316081900 Contact Us For Availability
9
Liner-door,oven WCI 316230604 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
18
End Cap,white ,RH WCI 316240900 Contact Us For Availability
18
Hinge-main top,RH WCI 316235900 Contact Us For Availability
18A
End Cap,white ,LH WCI 316240901 Contact Us For Availability
18A
Hinge-main top,LH WCI 316235901 Contact Us For Availability
19#
Pan-surface element,large ,chrome ,w/clip WCI 318067055 Contact Us For Availability
21
Spacer-bodyside WCI 3014099 Contact Us For Availability
28
Medallion,stainless steel ,surf elem WCI 3017801 Contact Us For Availability
31
Knob,control ,white WCI 316240800 Contact Us For Availability
41
Cover-hinge,cutout ,RH WCI 316233400 Contact Us For Availability
52
Cap-door trim,white WCI 316201003 Contact Us For Availability
× ![]()
