Model Electrolux 790.95919200 Electric Range (Kenmore 79095919200) – Common Parts & Diagrams
BACKGUARD

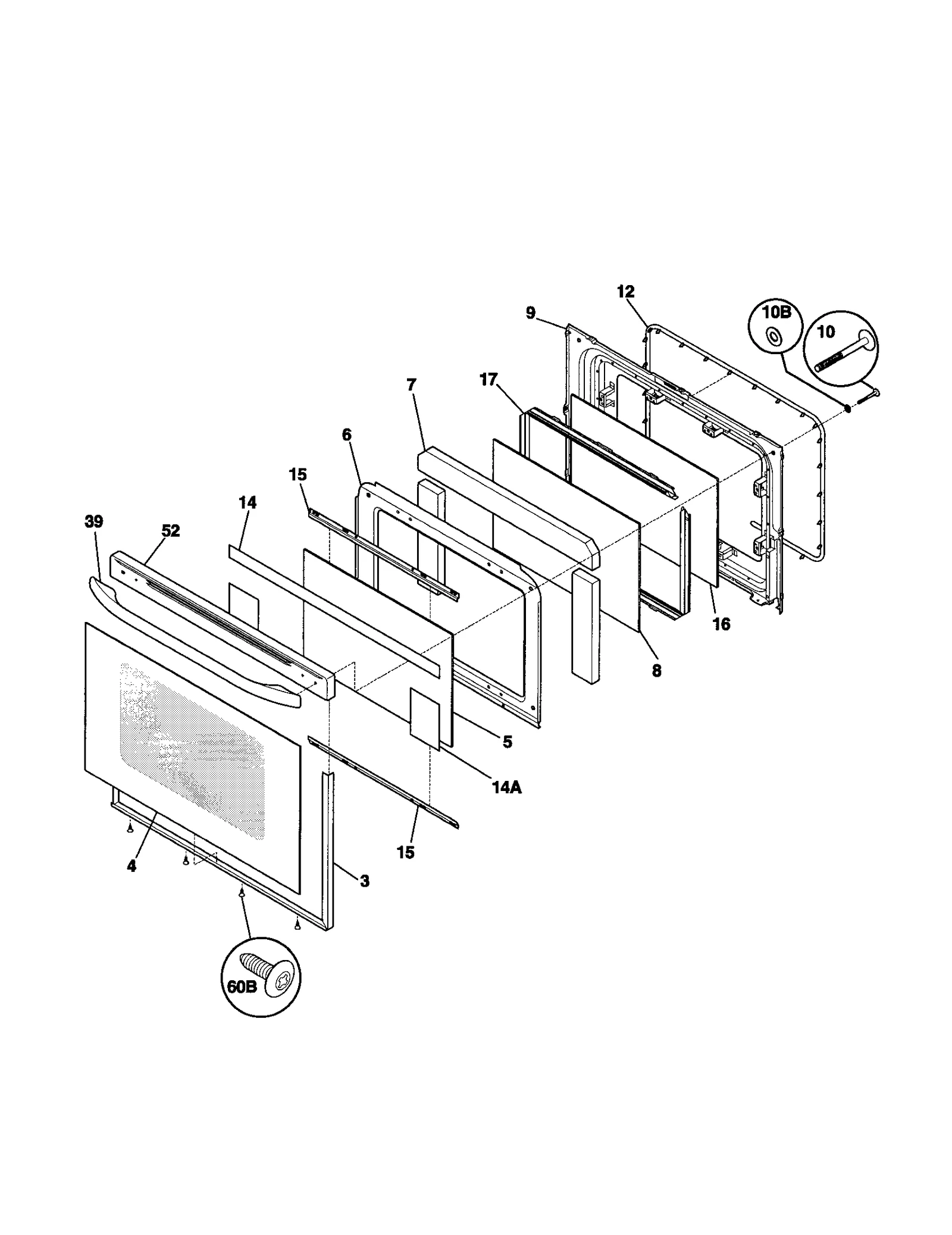

DOOR
All Parts
TOP/DRAWER
BODY
Common parts from model Electrolux 790.95919200 Electric Range (Kenmore 79095919200)
1
Main Back WCI 316201300 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Gibson Panel WCI 316230114 Contact Us For Availability
3A
Gibson Panel WCI 316230115 Contact Us For Availability
3B
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3B
Panel WCI 316230118 Contact Us For Availability
3C
Panel WCI 316230119 Contact Us For Availability
3D
Panel WCI 316230116 Contact Us For Availability
3E
Panel WCI 316230117 Contact Us For Availability
3F
Screw WCI 316021131 Contact Us For Availability
3G
Screw WCI 316021133 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4A
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
6A
Range Oven Rack WCI 316262900 Contact Us For Availability
6B
Shelf WCI 318219500 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Hinge WCI 316212901 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Oven Switch WCI 316027700 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13
Light Rod WCI 316238800 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
20
Range Oven Control Board WCI 316207600 Contact Us For Availability
20AB
Range Oven Control Overlay WCI 316243314 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
26
Main Shield WCI 316211800 Contact Us For Availability
26A
BRACKET, CHASSIS SUPPORT, REAR WCI 316099200 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31A
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
33A
Rear Shield WCI 316231600 Contact Us For Availability
39
Handle-dra WCI 316235401 Contact Us For Availability
39A
Handle-dra WCI 316235403 Contact Us For Availability
39B
Handle-dra WCI 316235400 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Wool Cover Shield WCI 316206200 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 316132601 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58
Insulation WCI 316240300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Oven Insulation WCI 316240102 Contact Us For Availability
58C
Insulation WCI 316240400 Contact Us For Availability
62A
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
72
Range Oven Light Switch Rod End Cap WCI 316234500 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Motor WCI 316136300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI05
Range Screw WCI 316021108 Contact Us For Availability
NI09
Bisq Paint WCI 5304414035 Contact Us For Availability
NI13
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
