Model Electrolux 790.95768000 Electric Range (Kenmore 79095768000) – Common Parts & Diagrams
DOOR
TOP/DRAWER

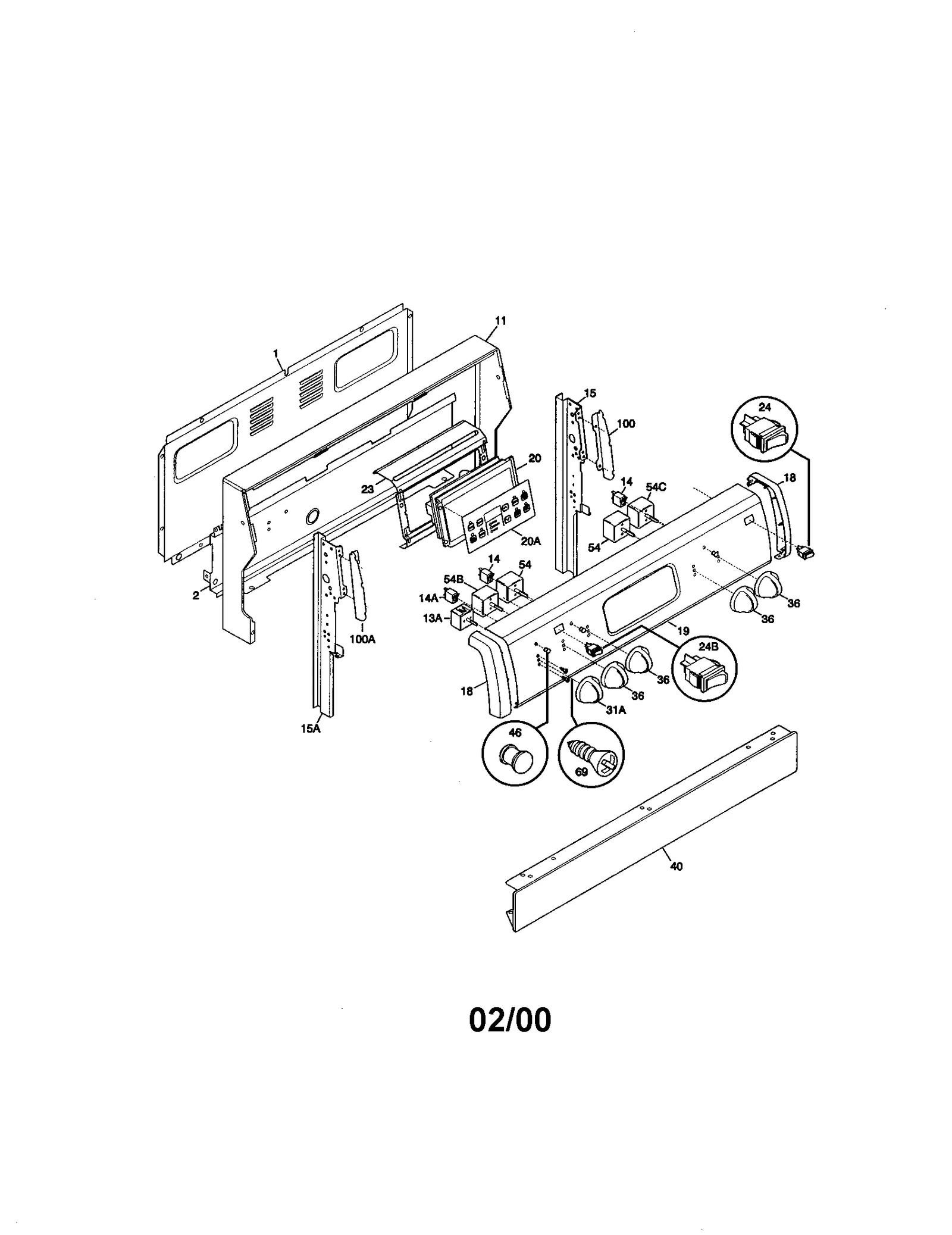

BACKGUARD
All Parts

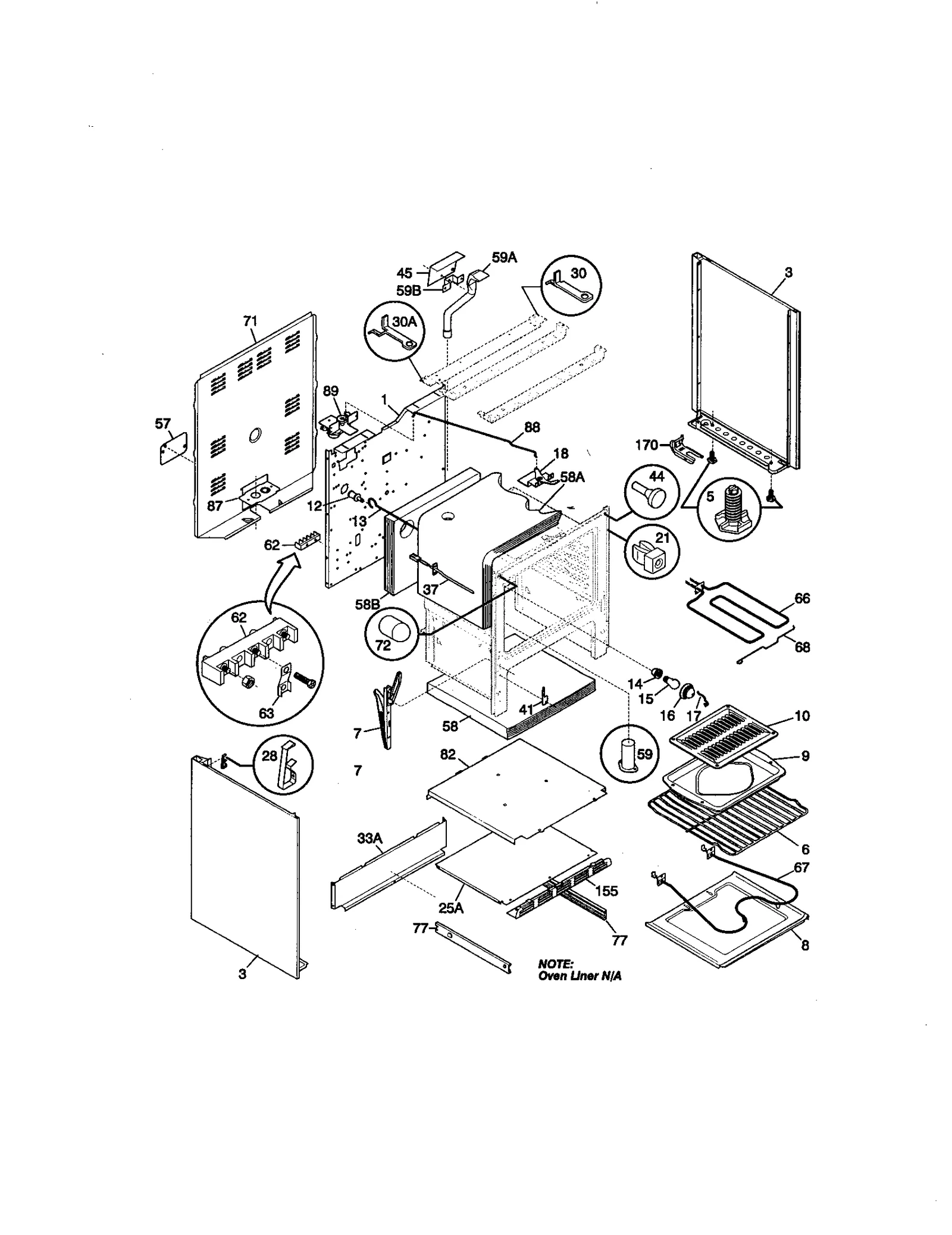

BODY
Common parts from model Electrolux 790.95768000 Electric Range (Kenmore 79095768000)
1
Plate WCI 316081601 Contact Us For Availability
1
Main WCI 316080804 Contact Us For Availability
2
Backing Shield WCI 316015905 Contact Us For Availability
3
Rh Wh Panel WCI 316081034 Contact Us For Availability
3A
Panel WCI 316081035 Contact Us For Availability
3B
Panel WCI 316081036 Contact Us For Availability
3C
Panel WCI 316081037 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Level Leg WCI 316107300 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
11
TRIM-WRAPPER, TEXTURED, BLACK WCI 316001851 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 5303935174 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
19
Cnt.pnl Blk WCI 316123622 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket-time WCI 316131501 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
33A
Rear Shield WCI 316095301 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
45
Wire Shield WCI 316066100 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
54C
Switch-simme WCI 316132600 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
59
Oven Ve Tube WCI 316073602 Contact Us For Availability
59A
Oven Ve Tube WCI 316023600 Contact Us For Availability
59B
Mounting Bracket WCI 316040100 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028107 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
100
Backing Shield WCI 316128300 Contact Us For Availability
100A
Backing Shield WCI 316128301 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
HARNESS ASSEMBLY-MAIN WCI 316001575 Contact Us For Availability
NI
HARNESS ASSEMBLY-SURFACE ELEMENTS WCI 316001753 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Wire Harness WCI 316001918 Contact Us For Availability
NI
Wiring Diagram WCI 316002699 Contact Us For Availability
NI
Range Installation WCI 316003025 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Parts Catalog WCI 5995331153 Contact Us For Availability
× ![]()
