Model Electrolux 790.95741990 Electric Range (Kenmore 79095741990) – Common Parts & Diagrams
TOP/DRAWER
All Parts
DOOR

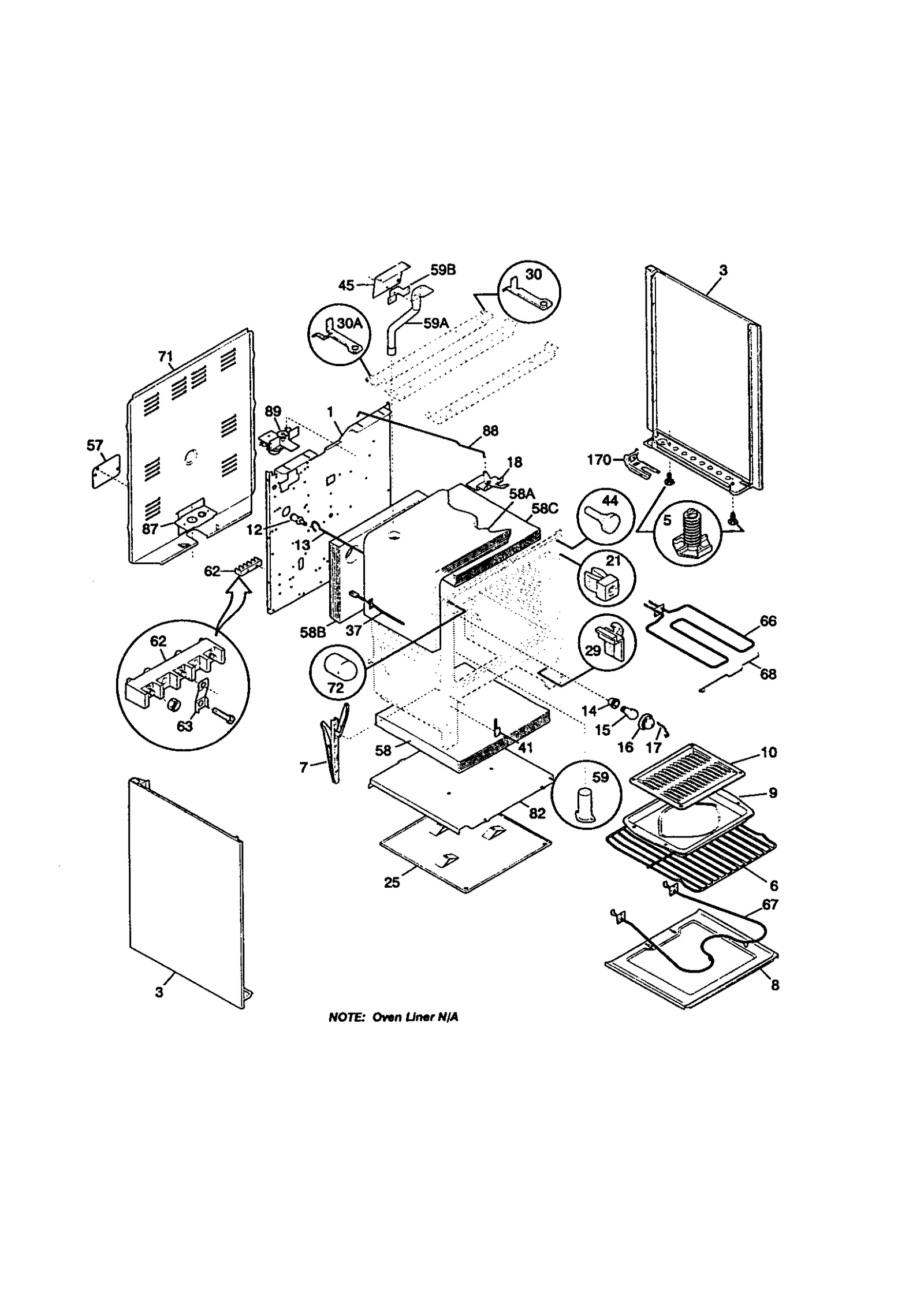

BODY

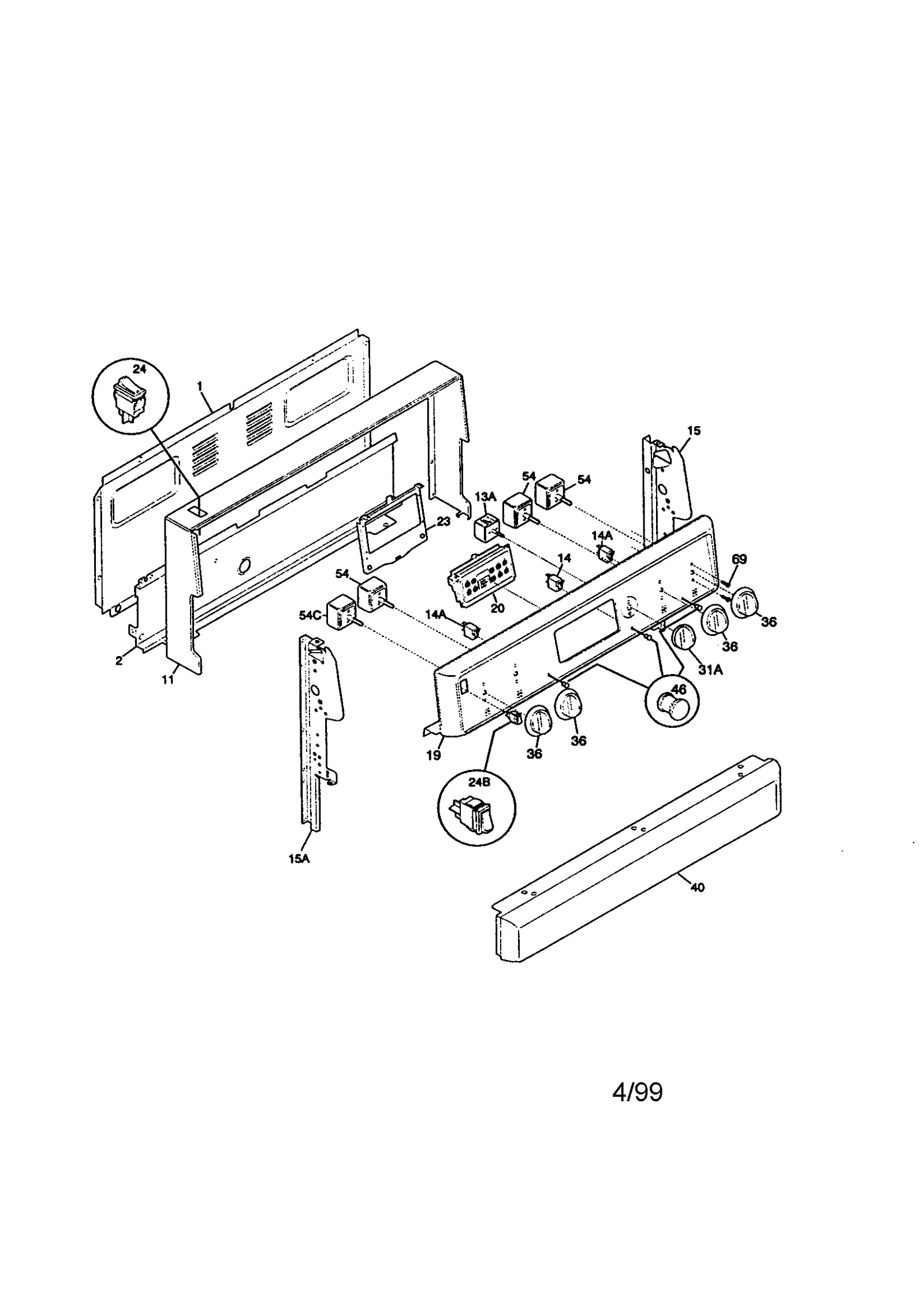

BACKGUARD
Common parts from model Electrolux 790.95741990 Electric Range (Kenmore 79095741990)
1
Main WCI 316080804 Contact Us For Availability
1
Plate WCI 316081601 Contact Us For Availability
3
Rh Wh Panel WCI 316081034 Contact Us For Availability
3A
Panel WCI 316081035 Contact Us For Availability
3B
Panel WCI 316081036 Contact Us For Availability
3C
Panel WCI 316081037 Contact Us For Availability
4A
Glass-oven D WCI 316089005 Contact Us For Availability
4B
Oven Door Glass WCI 316089004 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Level Leg WCI 316107300 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
11
Wrapper Trim WCI 316083719 Contact Us For Availability
11A
Wrapper Trim WCI 316083721 Contact Us For Availability
11B
Wrapper Trim WCI 316083720 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
14AA
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
19
Console WCI 316100509 Contact Us For Availability
19A
Control Panel (White) WCI 316100551 Contact Us For Availability
19B
Control Panel WCI 316100552 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20B
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20C
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket Clock WCI 316100300 Contact Us For Availability
24BA
Rocker Switch WCI 316086901 Contact Us For Availability
24BB
Rocker Switch WCI 316086902 Contact Us For Availability
24C
Rocker Switch WCI 316005608 Contact Us For Availability
25
Shield WCI 3200848 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
31AA
Oven Knob WCI 316109100 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
36
Range Surface Burner Knob WCI 316108902 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316108900 Contact Us For Availability
36B
Range Surface Burner Knob WCI 316108901 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
39A
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
40A
Manifold Panel WCI 316025808 Contact Us For Availability
40B
Manifold Panel WCI 316025809 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
45
Wire Shield WCI 316066100 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
52A
Oven Shield WCI 316081301 Contact Us For Availability
52B
Oven Shield WCI 316081302 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073602 Contact Us For Availability
59A
Oven Ve Tube WCI 316023601 Contact Us For Availability
59B
Mounting Bracket WCI 316040100 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Range Light Transformer WCI 316099800 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028101 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
