Model Electrolux 790.95738890 Electric Range (Kenmore 79095738890) – Common Parts & Diagrams
BACKGUARD
TOP/DRAWER
All Parts

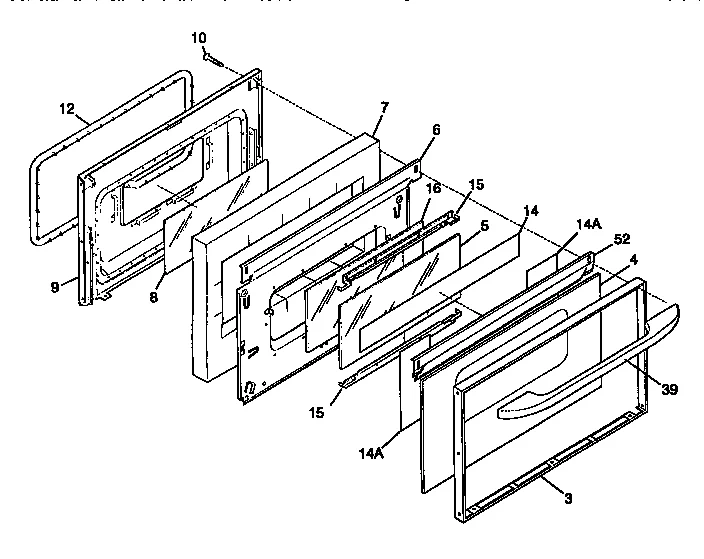

DOOR

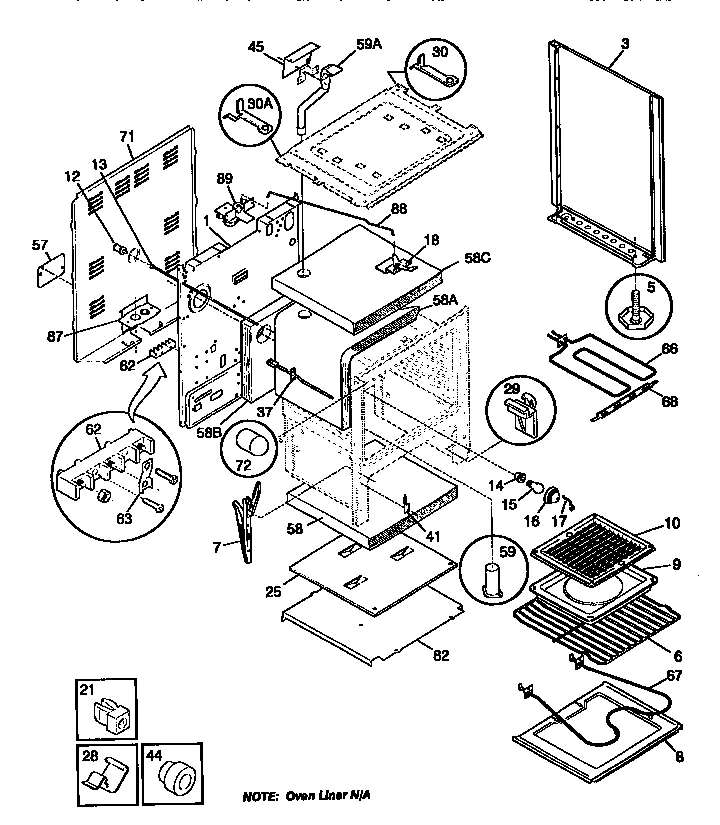

BODY
Common parts from model Electrolux 790.95738890 Electric Range (Kenmore 79095738890)
1
Main WCI 316080801 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3
Body Panel WCI 316081028 Contact Us For Availability
3A
Body Panel WCI 316081030 Contact Us For Availability
3B
Body Panel WCI 316081029 Contact Us For Availability
3C
Body Panel WCI 316081031 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
5C
Nut WCI 5303288460 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Handle Screw WCI 316001008 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
15
Glass Bracket WCI 316081401 Contact Us For Availability
16
Glass-oven D WCI 316085700 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25
Shield WCI 3200848 Contact Us For Availability
28
Wire Clip WCI 316045000 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
36
Range Surface Burner Knob WCI 316108902 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
45
Wire Shield WCI 316066100 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073602 Contact Us For Availability
59A
Oven Ve Tube WCI 316023601 Contact Us For Availability
59B
Mounting Bracket WCI 316040100 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028101 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Handle Spacer WCI 316089600 Contact Us For Availability
NI
Vent Shield WCI 316101600 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Cooktop Cleaner WCI 5309951550 Contact Us For Availability
NI
Part Catalog WCI 5995303053 Contact Us For Availability
× ![]()
