Model Electrolux 790.95731890 Electric Range (Kenmore 79095731890) – Common Parts & Diagrams
All Parts

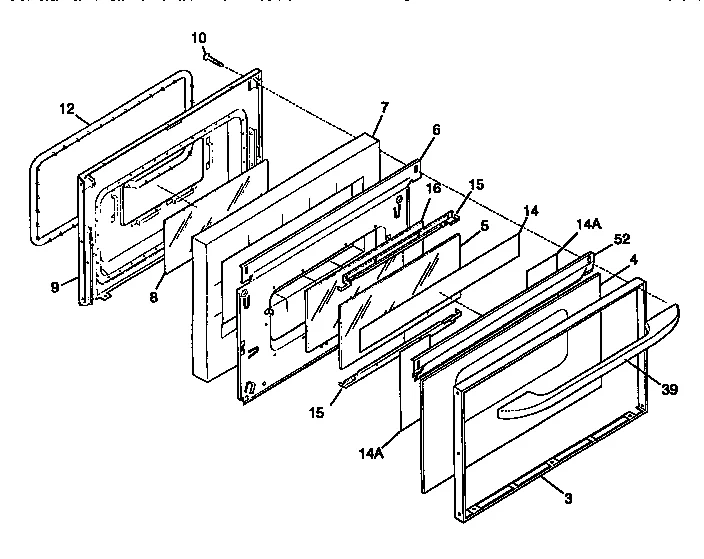

DOOR

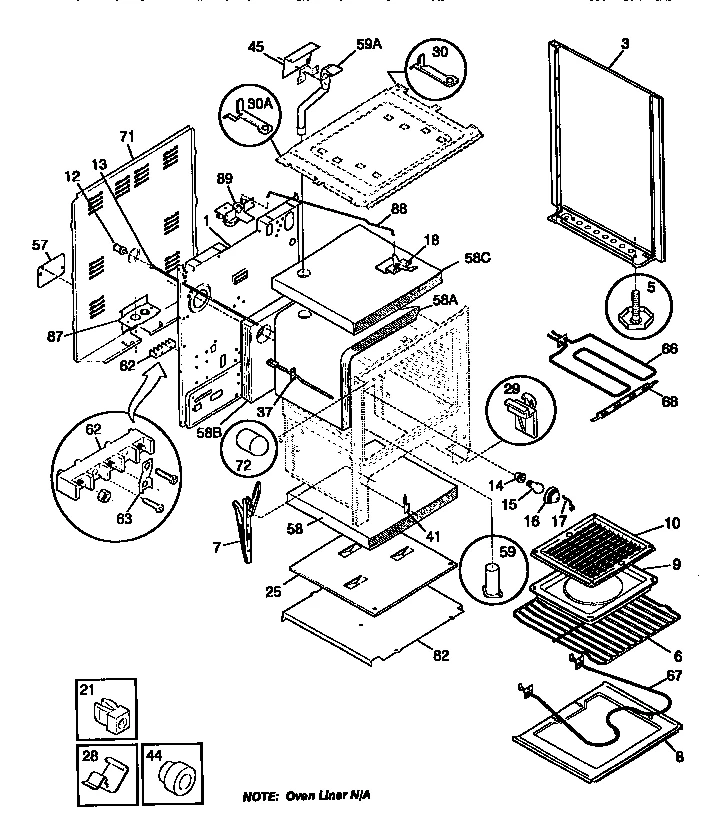

BODY

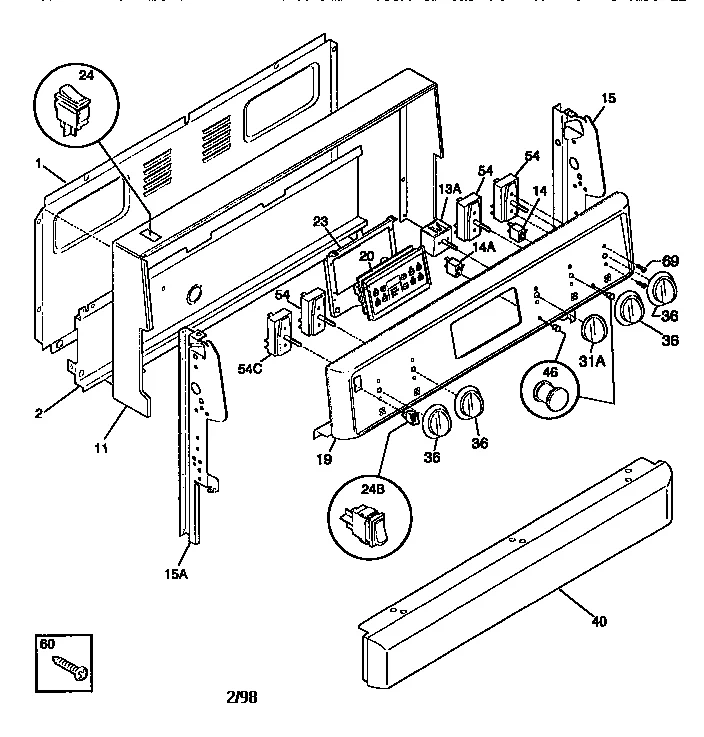

BACKGUARD

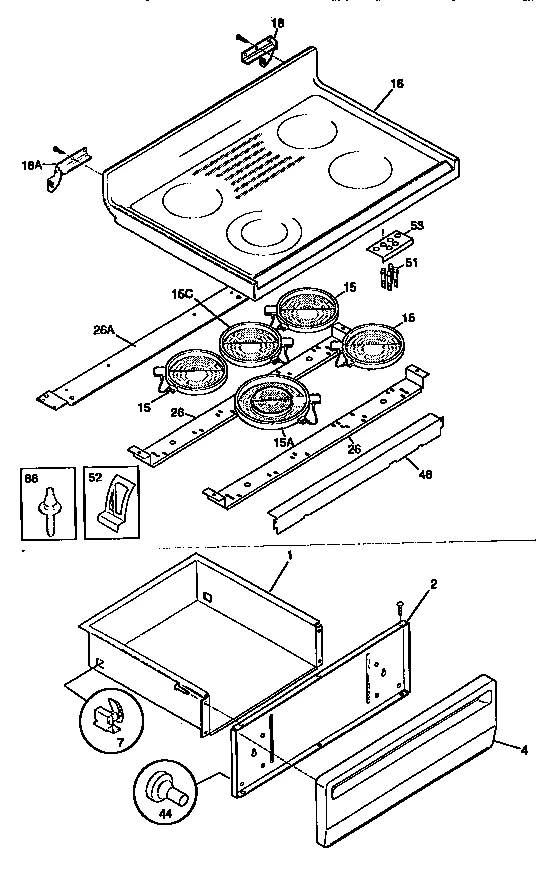

TOP/DRAWER
Common parts from model Electrolux 790.95731890 Electric Range (Kenmore 79095731890)
1
Plate WCI 316081601 Contact Us For Availability
1
Util Drawer WCI 316011501 Contact Us For Availability
2
Backing Shield WCI 316015905 Contact Us For Availability
2
Shield Panel WCI 3131975 Contact Us For Availability
4
Drawer Panel WCI 316084407 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
11
Wrapper Trim WCI 316083705 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
15C
Warming Element WCI 316098200 Contact Us For Availability
16
Main WCI 316098131 Contact Us For Availability
16A
Main WCI 316098132 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
19
Console WCI 316100509 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket Clock WCI 316100300 Contact Us For Availability
25
Shield WCI 3200848 Contact Us For Availability
26
Channel Support WCI 316099101 Contact Us For Availability
26A
Bracket Support WCI 316099201 Contact Us For Availability
28
Wire Clip WCI 316045000 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
36
Range Surface Burner Knob WCI 316108902 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
45
Wire Shield WCI 316066100 Contact Us For Availability
48
Range Surface Element Wire Harness Shield WCI 316100200 Contact Us For Availability
51
Indicator Light WCI 316105103 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
53
Indicator Light WCI 316099300 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073602 Contact Us For Availability
59A
Oven Ve Tube WCI 316023601 Contact Us For Availability
59B
Mounting Bracket WCI 316040100 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028101 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
