Model Electrolux 790.95599100 Electric Range (Kenmore 79095599100) – Common Parts & Diagrams
TOP/DRAWER
BODY

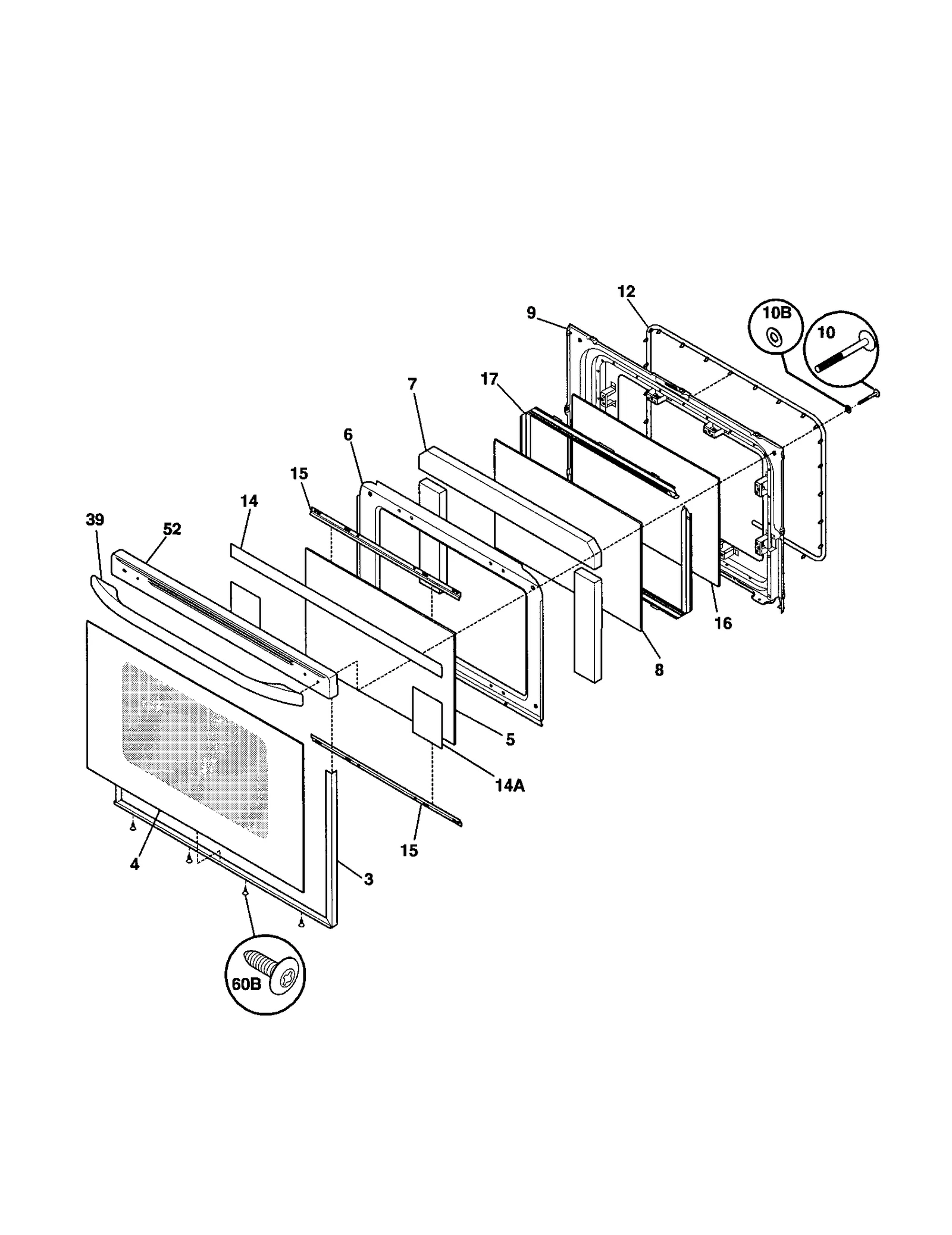

DOOR
All Parts

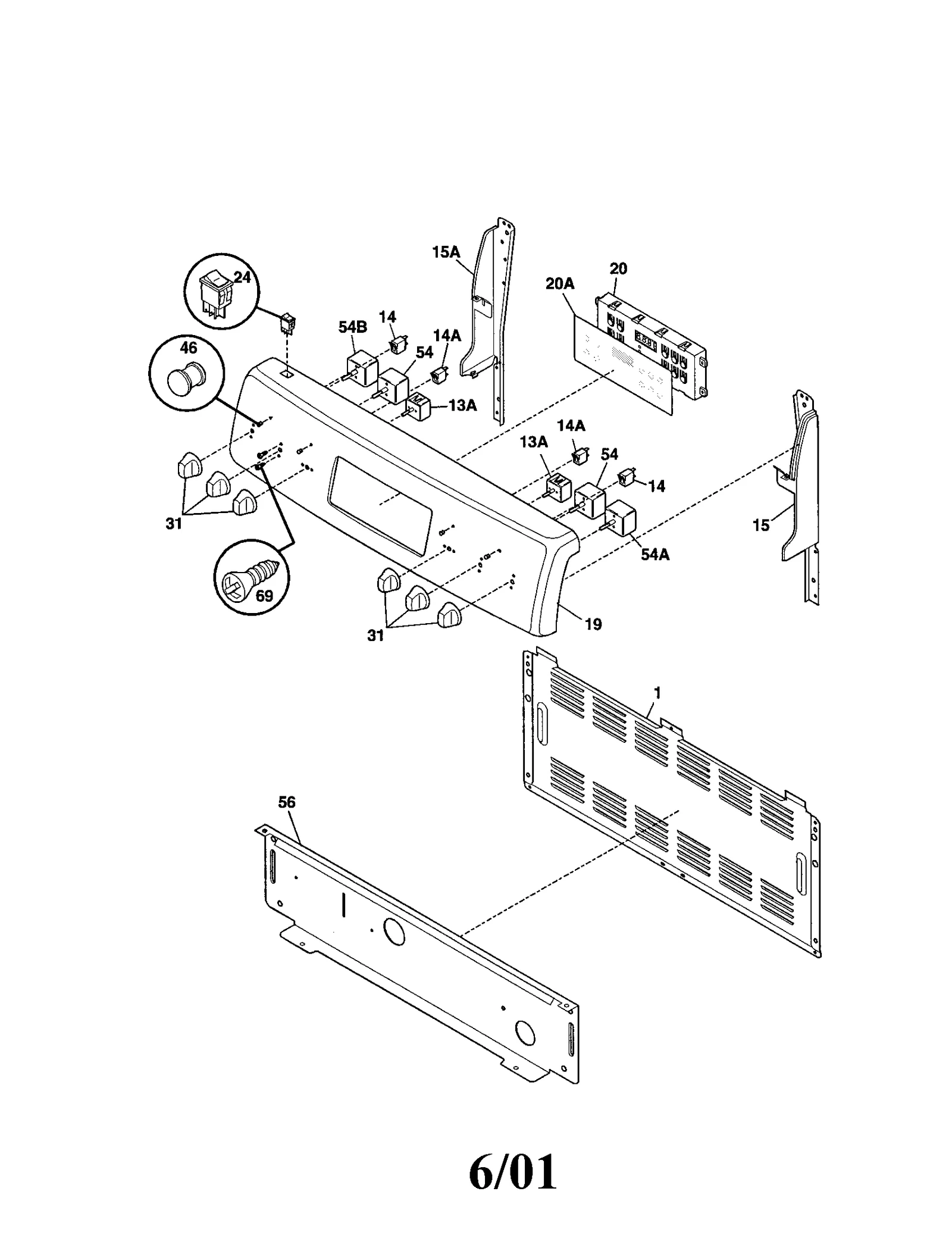

BACKGUARD
Common parts from model Electrolux 790.95599100 Electric Range (Kenmore 79095599100)
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
1A
Kenmore Elite Spacer WCI 316248900 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3A
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
3B
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4A
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15
Support-ba WCI 316220202 Contact Us For Availability
15A
Support-ba WCI 316220203 Contact Us For Availability
15AB
Support-ba WCI 316220209 Contact Us For Availability
15AC
Support-ba WCI 316220205 Contact Us For Availability
15B
Support-ba WCI 316220208 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
15C
Support-ba WCI 316220204 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
19
Panel WCI 316246230 Contact Us For Availability
19A
Panel WCI 316246232 Contact Us For Availability
19B
Range Panel WCI 316246231 Contact Us For Availability
20
Clock and Timer WCI 316222902 Contact Us For Availability
20AB
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
24A
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31A
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
39A
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
39B
Door Handle WCI 316235500 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52A
Cap-door T WCI 316201009 Contact Us For Availability
52B
Cap-door T WCI 316201005 Contact Us For Availability
56
Shield-bac WCI 316234001 Contact Us For Availability
56A
Shield-bac WCI 316234004 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
62A
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
72
Range Oven Light Switch Rod End Cap WCI 316234500 Contact Us For Availability
89A
Latch Bracket WCI 316245800 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Wiring Harness WCI 316253204 Contact Us For Availability
NI
Range Cooktop Wire Harness WCI 316253504 Contact Us For Availability
NI
Harness-ma WCI 316253600 Contact Us For Availability
NI
Wiring Diagram WCI 316255117 Contact Us For Availability
NI
Range Owner's Manual WCI 316257909 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Parts List WCI 5995352365 Contact Us For Availability
× ![]()
