Model Electrolux 790.93778100 Electric Range (Kenmore 79093778100) – Common Parts & Diagrams

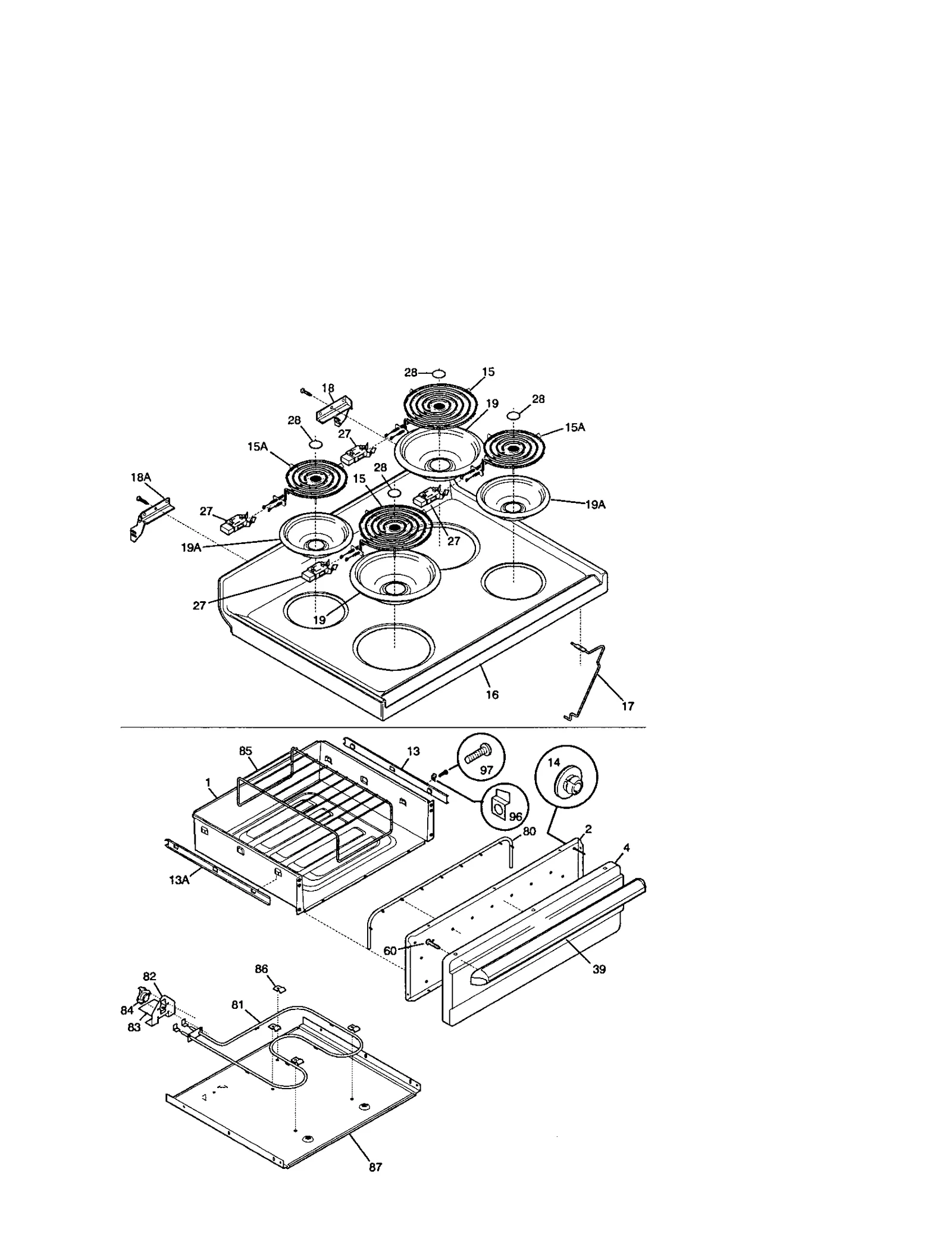

TOP/DRAWER

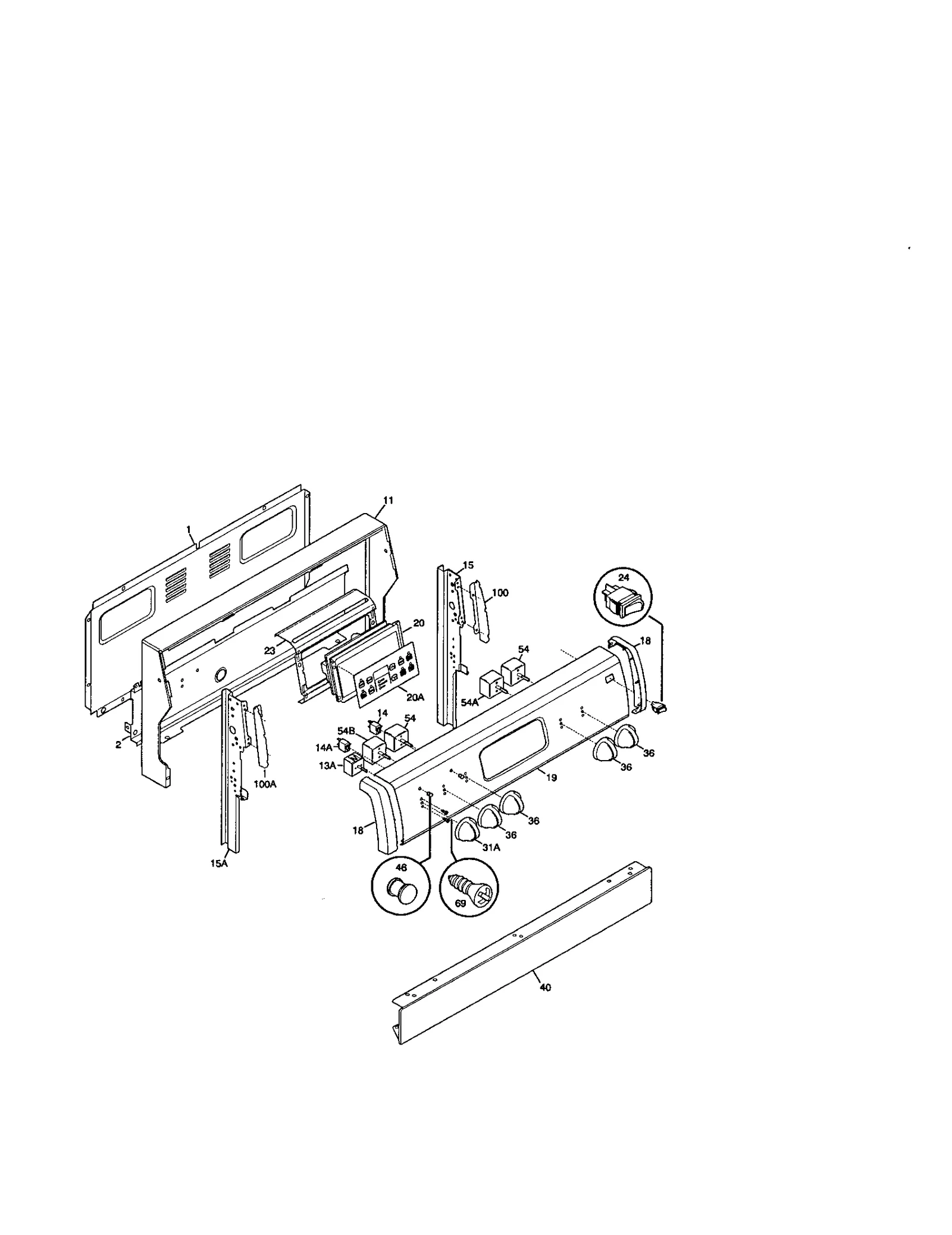

BACKGUARD
All Parts
DOOR
BODY
Common parts from model Electrolux 790.93778100 Electric Range (Kenmore 79093778100)
1
Main WCI 316080804 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3
Rh Wh Panel WCI 316081034 Contact Us For Availability
3A
Oven Door Trim WCI 316067803 Contact Us For Availability
3A
Panel WCI 316081035 Contact Us For Availability
3B
Drive Trim WCI 316067804 Contact Us For Availability
3B
Panel WCI 316081036 Contact Us For Availability
3C
Panel WCI 316081037 Contact Us For Availability
4
Oven Glass WCI 316089012 Contact Us For Availability
4
Burner Box WCI 5303271756 Contact Us For Availability
4A
Out Drive Glass WCI 316089014 Contact Us For Availability
4B
Otr Dr.gl Wh WCI 316089013 Contact Us For Availability
5
Center Drive Glass WCI 316117601 Contact Us For Availability
5
Range Level Leg WCI 316107300 Contact Us For Availability
6
Shield WCI 316091404 Contact Us For Availability
7
Oven Hinge WCI 316007005 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Liner-oven D WCI 316066617 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 316102204 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
14AA
Door Reflector WCI 316102203 Contact Us For Availability
15
Glass Bracket WCI 316081405 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
20
Range Oven Control Board WCI 316131601 Contact Us For Availability
20AA
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20AB
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20AC
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket-time WCI 316131501 Contact Us For Availability
24B
Rocker Switch WCI 316005608 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
31AA
Oven Knob WCI 316109100 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
33A
Rear Shield WCI 316095301 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
39A
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
40A
Manifold Panel WCI 316025808 Contact Us For Availability
40B
Manifold Panel WCI 316025809 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
52A
Oven Shield WCI 316081302 Contact Us For Availability
52B
Oven Shield WCI 316081303 Contact Us For Availability
54B
Switch-simme WCI 316132600 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
59
Oven Ve Tube WCI 316073600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89A
Latch Motor WCI 316028103 Contact Us For Availability
100
Backing Shield WCI 316128300 Contact Us For Availability
100A
Backing Shield WCI 316128301 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Owner's Manual WCI 316000967 Contact Us For Availability
NI
Wiring WCI 316001725 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Wiring Diagram WCI 316002697 Contact Us For Availability
NI
Range Installation WCI 316003025 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Edge Gasket WCI 316071902 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Repair Parts List WCI 5995347928 Contact Us For Availability
× ![]()
