Model Electrolux 790.93754101 Range (Kenmore 79093754101) – Common Parts & Diagrams
DOOR
BODY

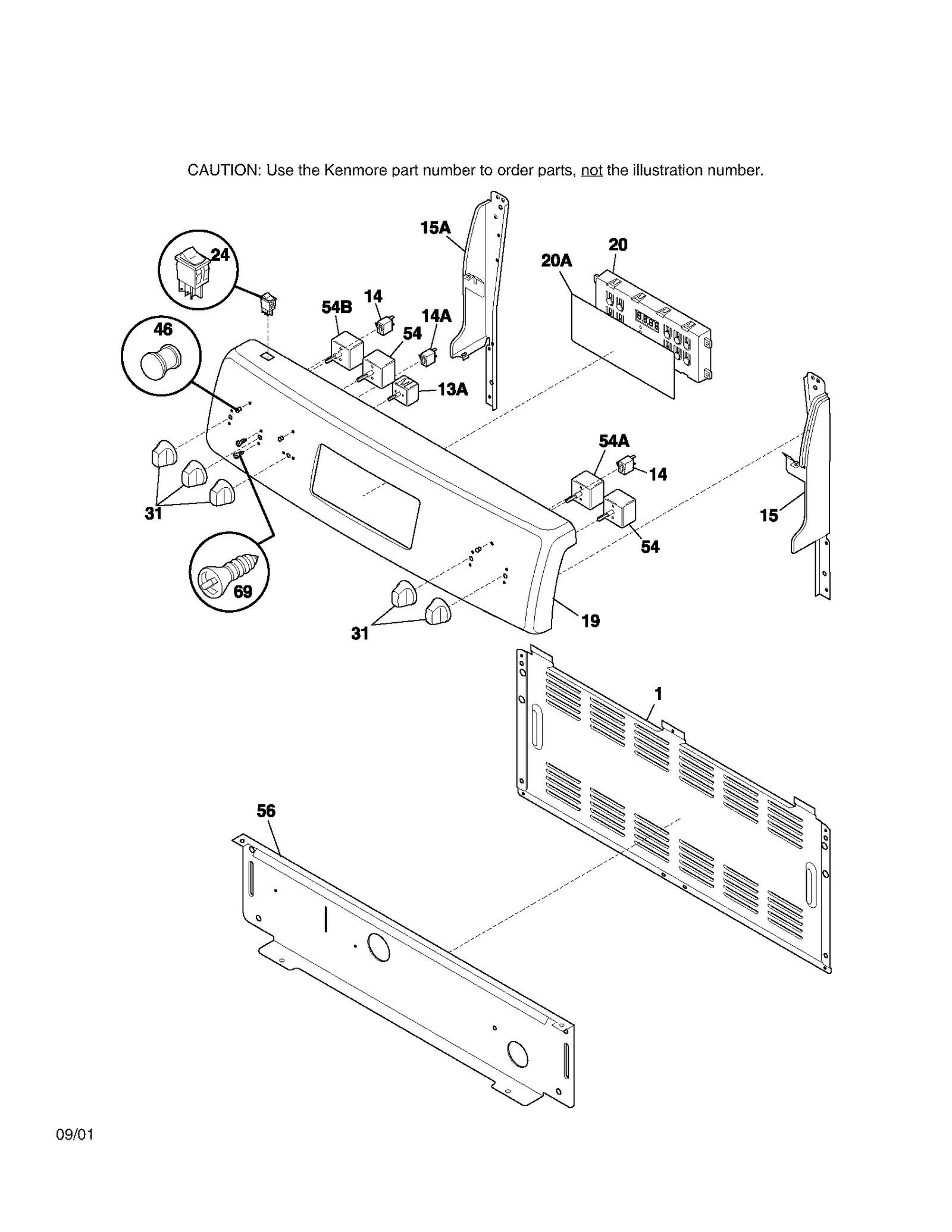

BACKGUARD

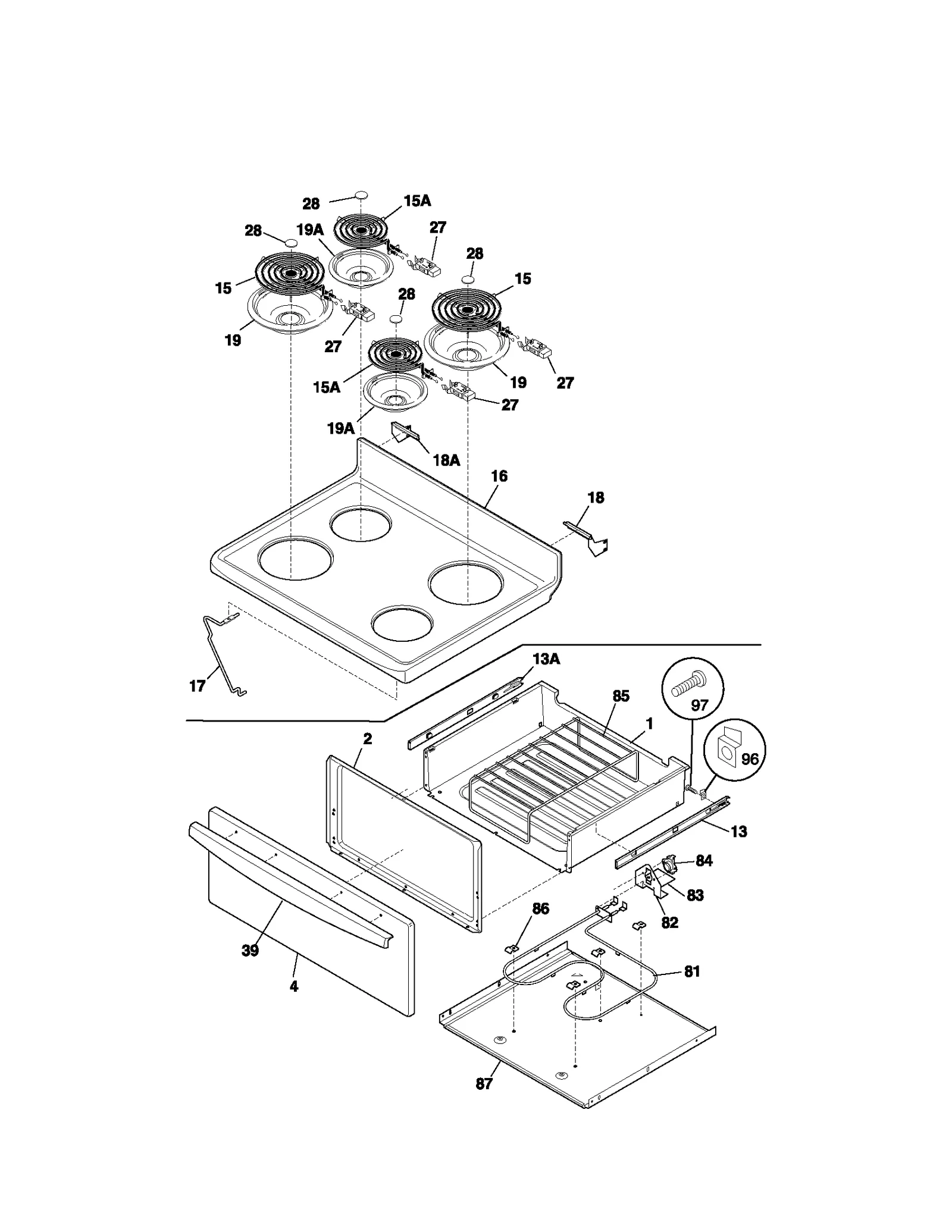

TOP/DRAWER
Common parts from model Electrolux 790.93754101 Range (Kenmore 79093754101)
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
1
Warming Drawer WCI 316115901 Contact Us For Availability
2
Liner WCI 316231503 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
4
Drawer Panel WCI 316231301 Contact Us For Availability
4
Drawer Panel WCI 316231308 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support-ba WCI 316220202 Contact Us For Availability
15
Support-ba WCI 316220208 Contact Us For Availability
15A
Support-ba WCI 316220203 Contact Us For Availability
15A
Support-ba WCI 316220209 Contact Us For Availability
16
Main WCI 316202309 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
19
Panel WCI 316246255 Contact Us For Availability
19
Panel WCI 316246257 Contact Us For Availability
19
Pan-white 8" WCI 318067053 Contact Us For Availability
19
Surface Pan WCI 318067057 Contact Us For Availability
19A
Pan- Gray 6" WCI 318067043 Contact Us For Availability
19A
Surface Pan WCI 318067047 Contact Us For Availability
20
Clock and Timer WCI 316222902 Contact Us For Availability
20A
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
24
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
28
Medallion WCI 3017801 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
39
Handle-dra WCI 316235401 Contact Us For Availability
39
Handle-dra WCI 316235403 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 316132601 Contact Us For Availability
56
Shield-bac WCI 316234007 Contact Us For Availability
56
Shield-bac WCI 316234009 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
59
Oven Tube WCI 316073604 Contact Us For Availability
81
Range Warming Drawer Element WCI 316239200 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Wiring Harness WCI 316253214 Contact Us For Availability
NI
Wiring Diagram WCI 316255115 Contact Us For Availability
NI
Range Owner's Manual WCI 316257907 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Parts List WCI 5995358545 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Wiring Harness WCI 316253501 Contact Us For Availability
NI
Harness-ma WCI 316253600 Contact Us For Availability
× ![]()
