Model Electrolux 790.93752104 Electric Range (Kenmore 79093752104) – Common Parts & Diagrams
DOOR
TOP/DRAWER

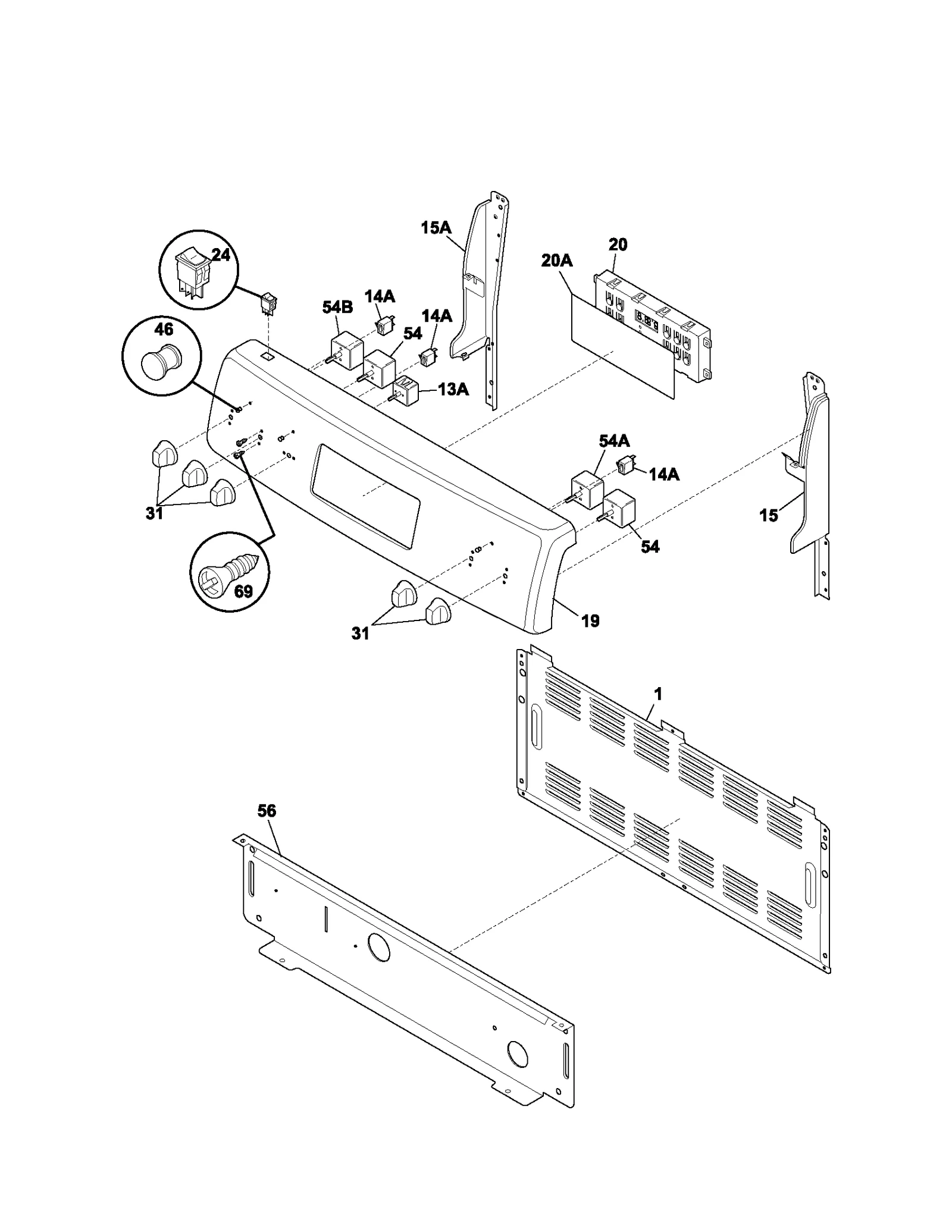

BACKGUARD

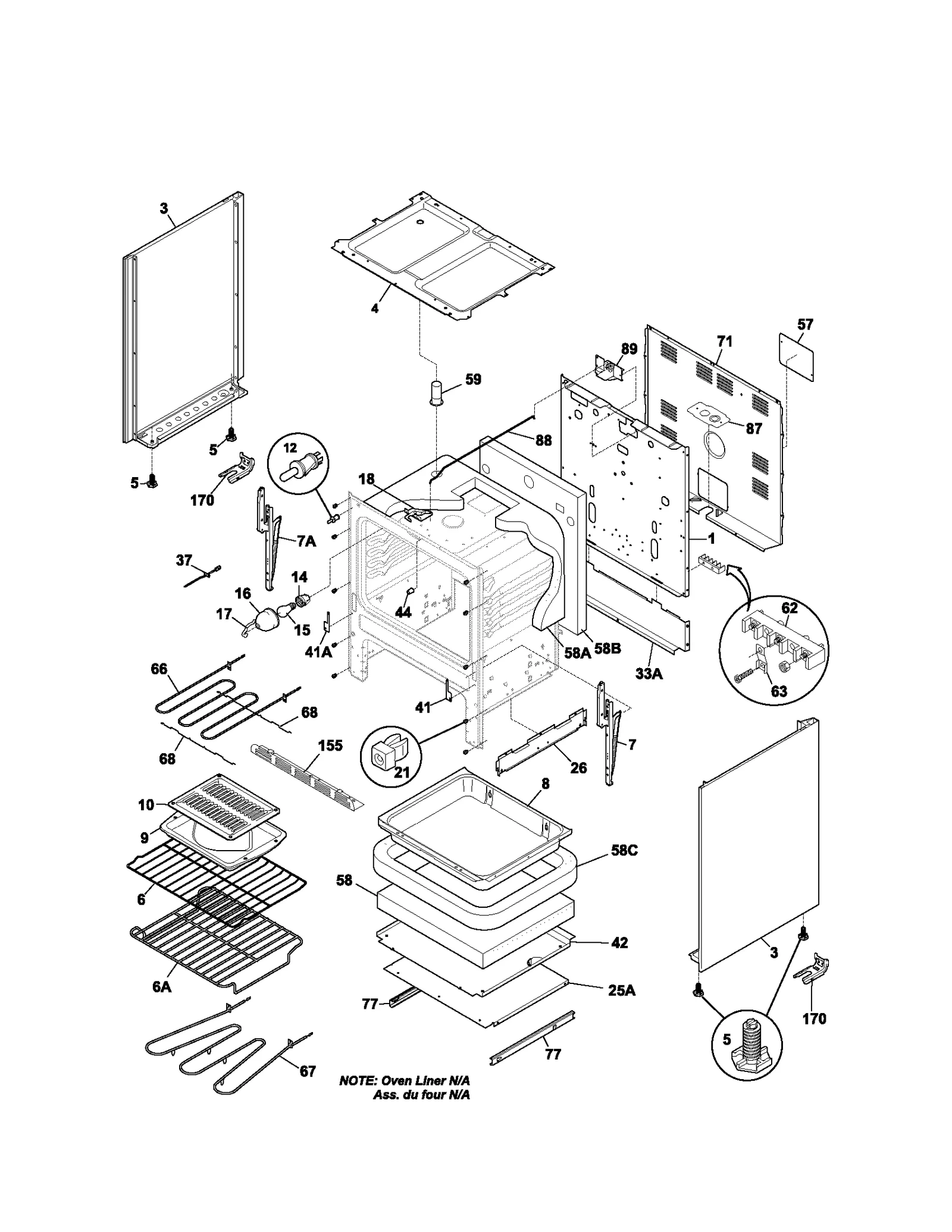

BODY
Common parts from model Electrolux 790.93752104 Electric Range (Kenmore 79093752104)
1
Main Back WCI 316201300 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Gibson Panel WCI 316230114 Contact Us For Availability
3
Gibson Panel WCI 316230115 Contact Us For Availability
3
Panel WCI 316230118 Contact Us For Availability
3
Panel WCI 316230119 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
6A
Range Oven Rack WCI 316262900 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Hinge WCI 316212901 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20
Range Main Control Board with Digital Clock WCI 316207502 Contact Us For Availability
20A
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
24
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
26
Main Shield WCI 316211800 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
33A
Rear Shield WCI 316231600 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Wool Cover Shield WCI 316206200 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 316132601 Contact Us For Availability
56
Shield-bac WCI 316234001 Contact Us For Availability
56
Shield-bac WCI 316234004 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58
Insulation WCI 316240300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58C
Insulation WCI 316240400 Contact Us For Availability
59
Oven Tube WCI 316073604 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Service Data Sheet WCI 316218507 Contact Us For Availability
NI
Wiring Diagram WCI 316255185 Contact Us For Availability
NI
Range Owner's Manual WCI 316257907 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Parts List WCI 5995383154 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Wiring Harness WCI 316253260 Contact Us For Availability
× ![]()
