Model Electrolux 790.92884301 Electric Range (Kenmore 79092884301) – Common Parts & Diagrams
BACKGUARD
BACKGUARD

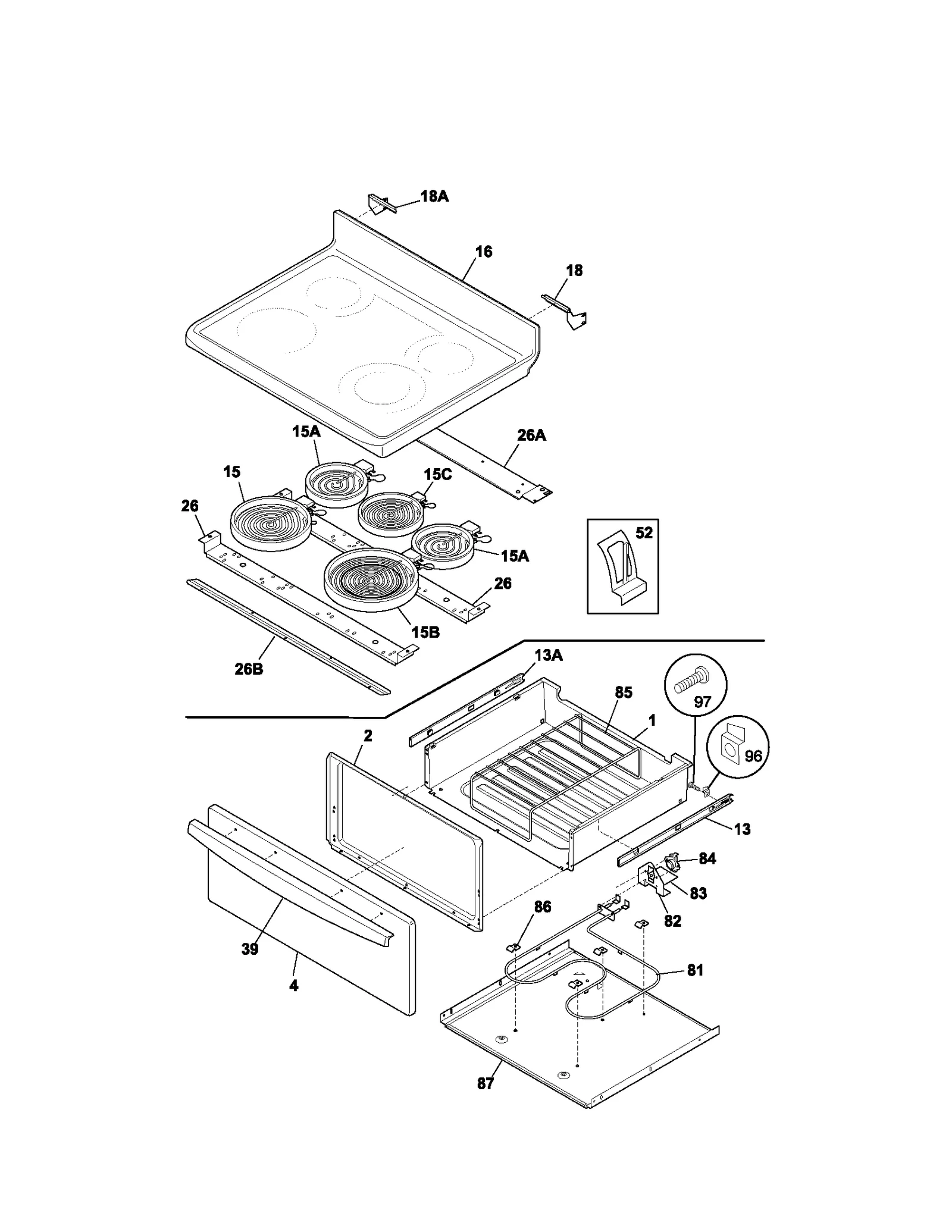

TOP/DRAWER
TOP/DRAWER

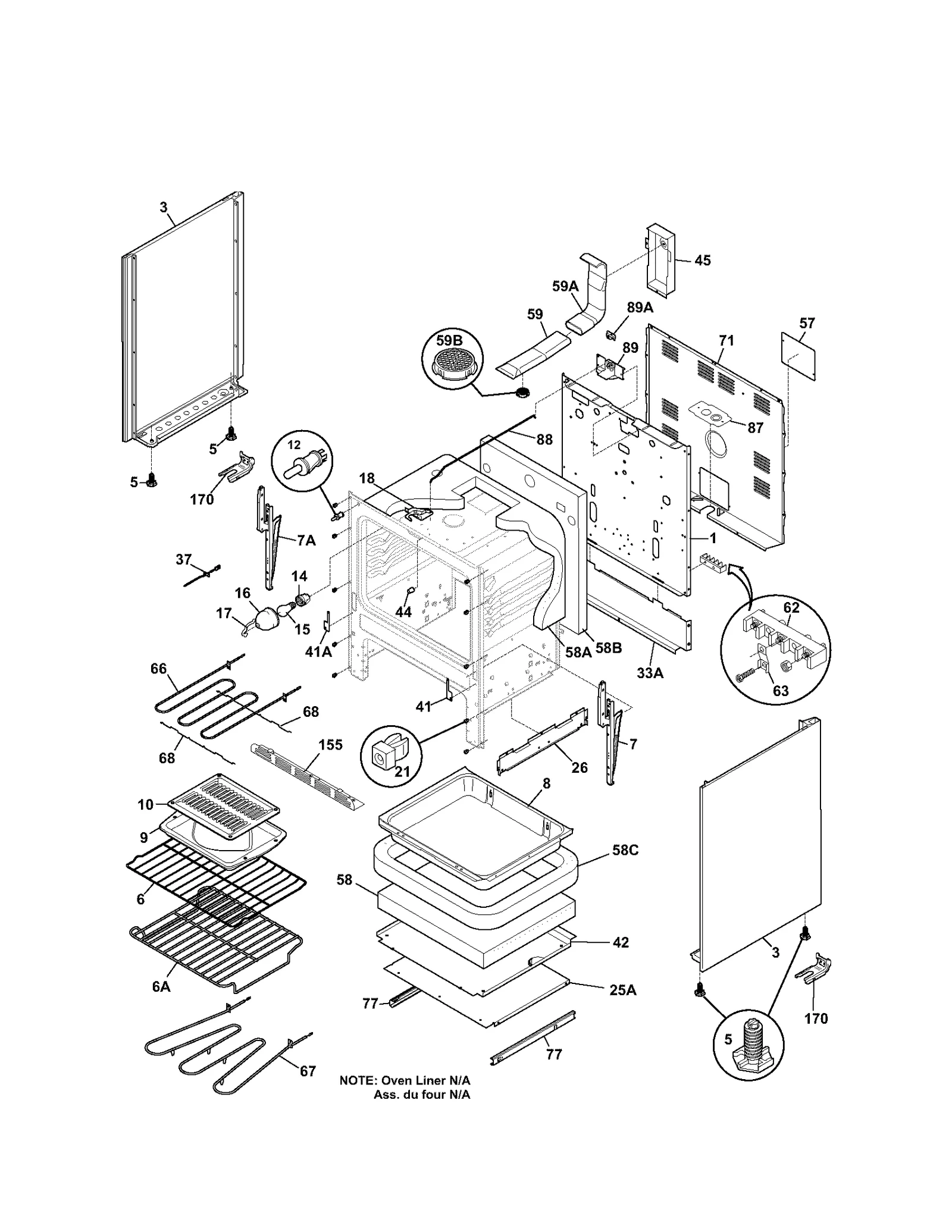

BODY
BODY

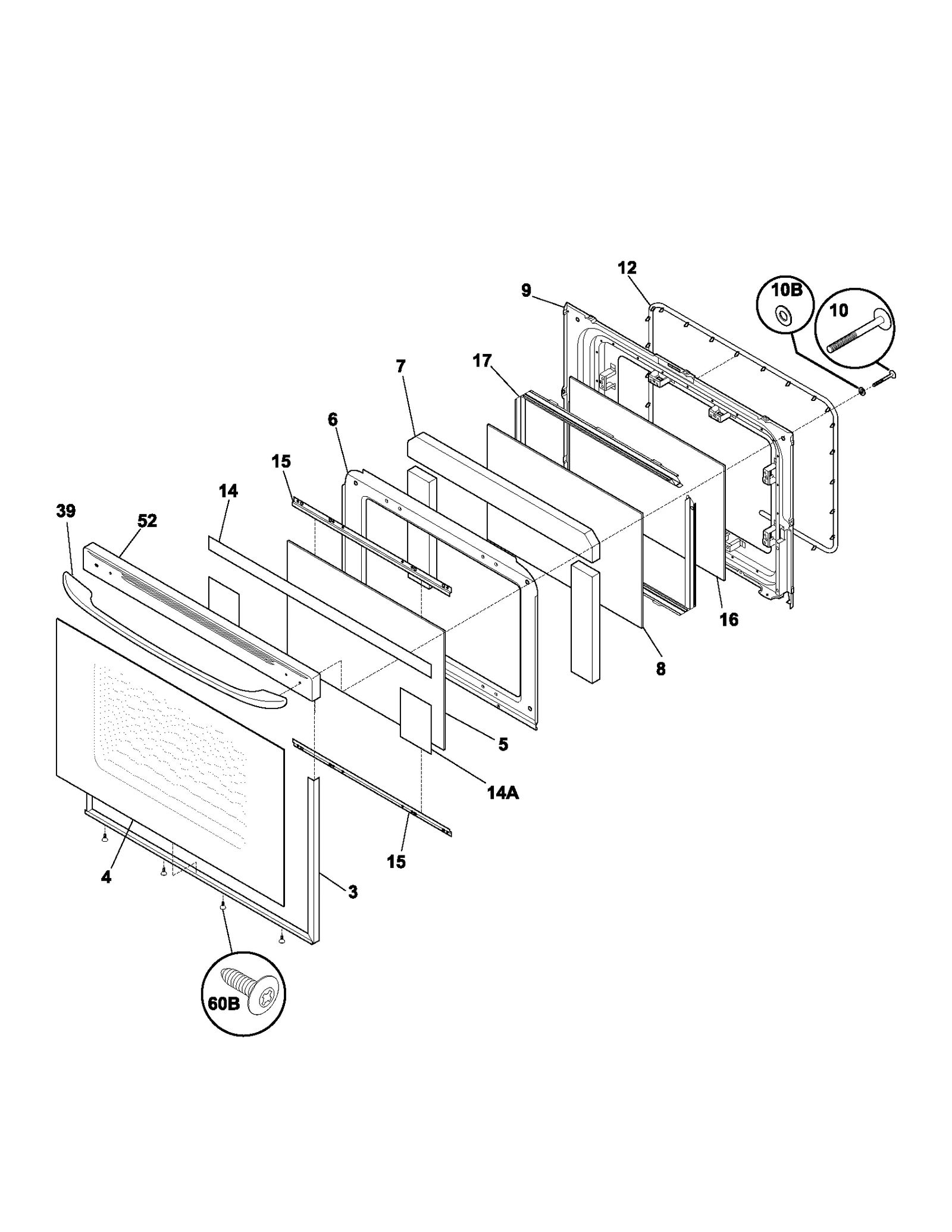

DOOR
DOOR
Common parts from model Electrolux 790.92884301 Electric Range (Kenmore 79092884301)
1
Main Back WCI 316201300 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Body Panel WCI 316216402 Contact Us For Availability
3
Left Side Panel WCI 316216403 Contact Us For Availability
3
Panel WCI 316216404 Contact Us For Availability
3
Panel WCI 316216405 Contact Us For Availability
3
Body Panel WCI 316216406 Contact Us For Availability
3
Body Panel WCI 316216407 Contact Us For Availability
3
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Bl WCI 5303935216 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935214 Contact Us For Availability
4
Range Oven Door Outer Panel (Bisque) WCI 5303935215 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
6A
Range Oven Rack WCI 316262900 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Range Oven Door Hinge, Left WCI 316216501 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Liner WCI 316230617 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20
Frigidaire Range Oven Control Board WCI 316207511 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
26
Main Shield WCI 316211800 Contact Us For Availability
27
Range Simmer Select Switch and Bezel (Black) WCI 5303935218 Contact Us For Availability
27
Range Simmer Select Switch and Bezel (White) WCI 5303935217 Contact Us For Availability
27
Range Simmer Select Switch and Bezel WCI 5303935219 Contact Us For Availability
28
Range Simmer Select Switch Button (Black) WCI 316219301 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208100 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208102 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316208104 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316208103 Contact Us For Availability
31A
Range Warming Drawer Knob (Bisque) WCI 316208105 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316208110 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316208111 Contact Us For Availability
31C
Range Surface Burner Knob WCI 316208106 Contact Us For Availability
31C
Range Surface Element Knob WCI 316208107 Contact Us For Availability
33A
Rear Shield WCI 316231600 Contact Us For Availability
39
Oven Handle WCI 316209701 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Wool Cover Shield WCI 316206200 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58
Insulation WCI 316240300 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58C
Insulation WCI 316240400 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
71
Rear Shield WCI 316015810 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
89A
Latch Bracket WCI 316245800 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Range Wire Harness WCI 316269513 Contact Us For Availability
NI
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
× ![]()
