Model Kenmore 790.92202017 RANGE – Common Parts & Diagrams

*
Pad, cleaning
Pad, cleaning WCI 316459400 Contact Us For Availability
View on Model
4

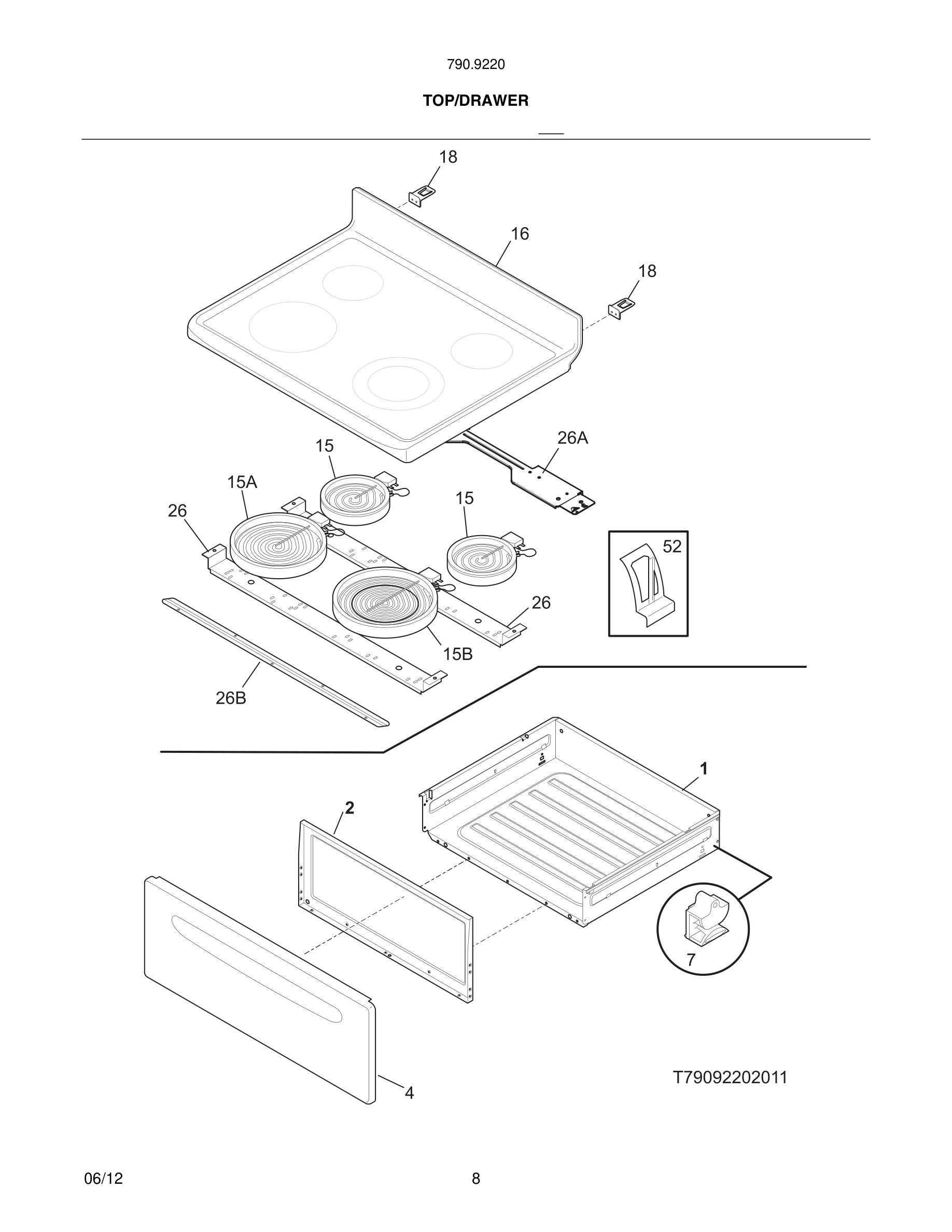

Panel, drawer front, black
Panel, drawer front, black WCI 316403502 Contact Us For Availability
View on Model
4
Panel, drawer front, white
Panel, drawer front, white WCI 316403501 Contact Us For Availability
View on Model
4

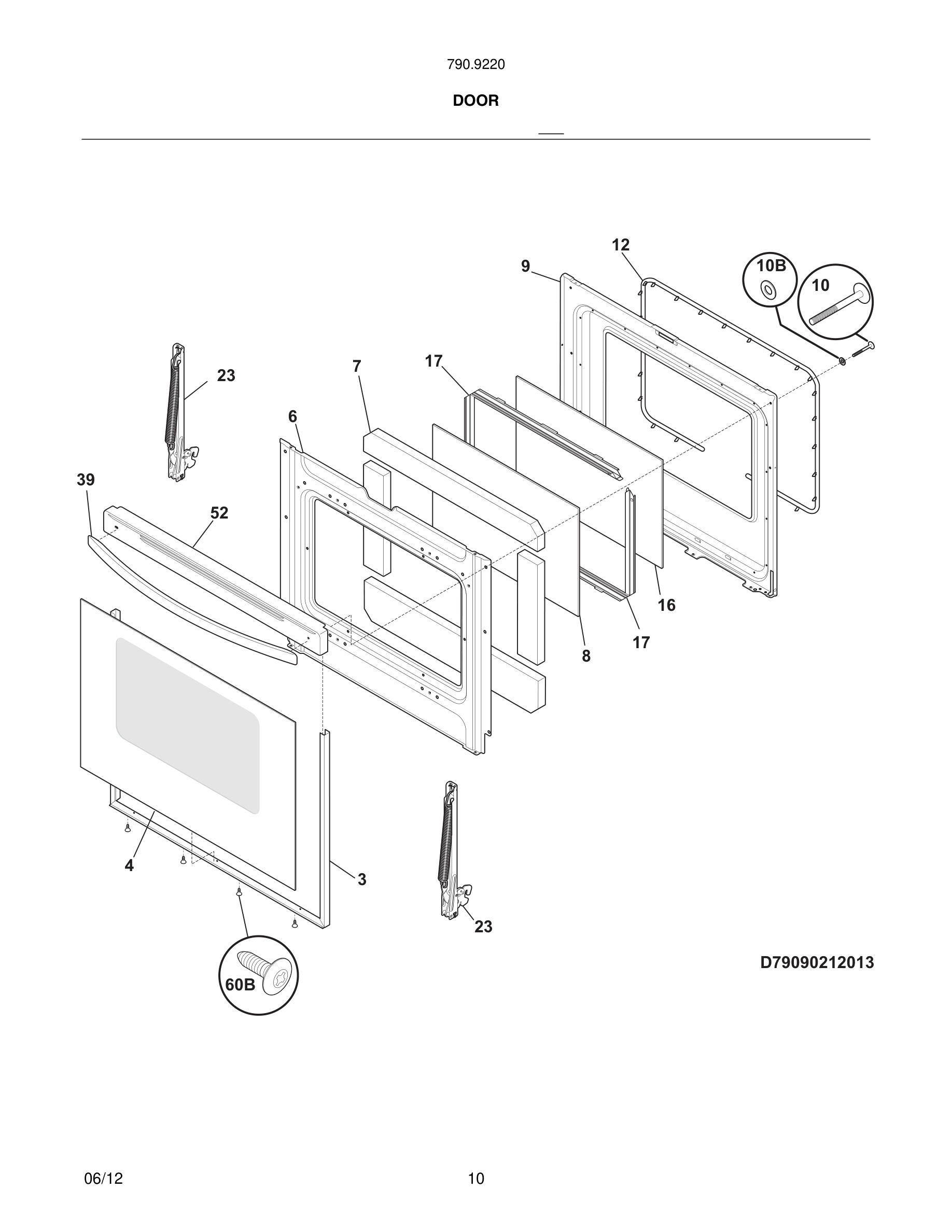

Glass, door, bisque, outer
Glass, door, bisque, outer WCI 316552705 Contact Us For Availability
View on Model
8

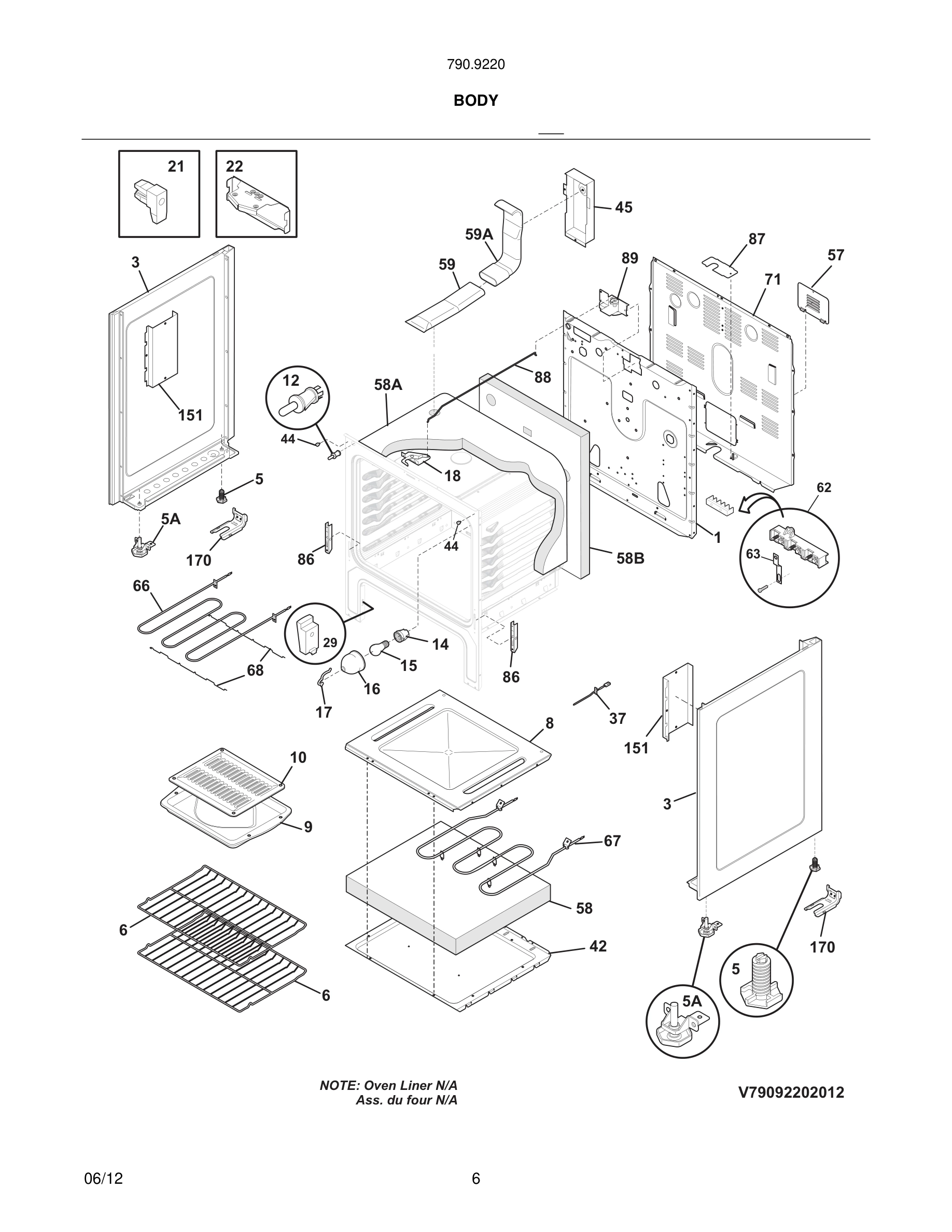

Panel, oven bottom
Panel, oven bottom WCI 316400601 Contact Us For Availability
View on Model
9
Pan, broiler OPTIONAL ACCESS0RY
Pan, broiler OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 316423701 Contact Us For Availability
View on Model
10
Insert, broiler pan OPTIONAL ACCESS0RY
Insert, broiler pan OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
15

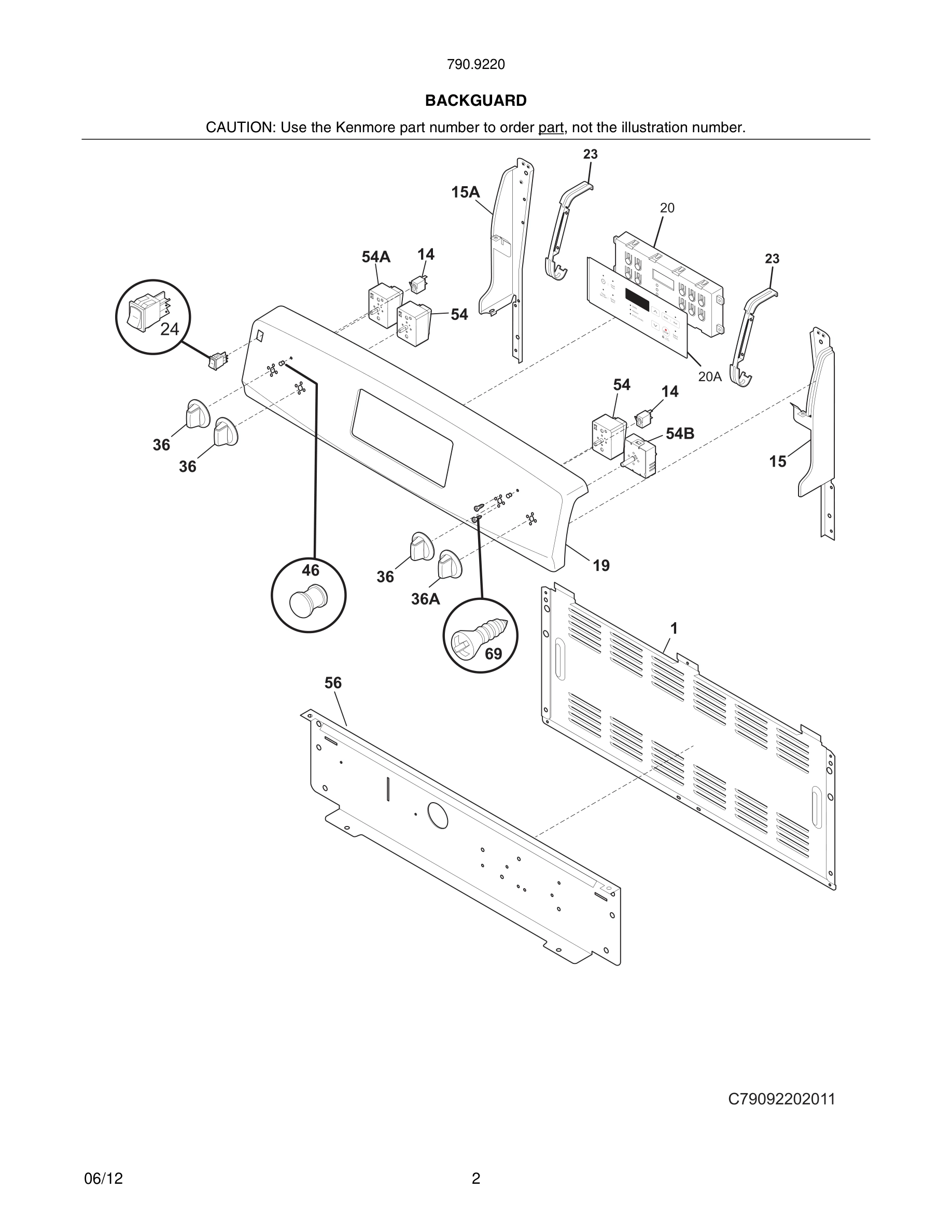

Support, backguard, black, RH
Support, backguard, black, RH WCI 316411405 Contact Us For Availability
View on Model
15
Support, backguard, white, RH
Support, backguard, white, RH WCI 316411403 Contact Us For Availability
View on Model
15A
Support, backguard, black, LH
Support, backguard, black, LH WCI 316411404 Contact Us For Availability
View on Model
15A
Support, backguard, white, LH
Support, backguard, white, LH WCI 316411402 Contact Us For Availability
View on Model
16
Maintop Assembly, glass/smoothtop, white
Maintop Assembly, glass/smoothtop, white WCI 316282913 Contact Us For Availability
View on Model
19
Control Panel, white
Control Panel, white WCI 316448482 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES305
Clock/Timer, electronic, ES305 WCI 316557118 Contact Us For Availability
View on Model
20A
Overlay, clock, bisque, ES305
Overlay, clock, bisque, ES305 WCI 316352003 Contact Us For Availability
View on Model
23
Hinge, oven door, black, (2)
Hinge, oven door, black, (2) WCI 316456309 Contact Us For Availability
View on Model
26B
Bracket, chassis support, front
Bracket, chassis support, front WCI 316214202 Contact Us For Availability
View on Model
36
Knob, switch, white, single
Knob, switch, white, single WCI 316352800 Contact Us For Availability
View on Model
36
Knob, switch, bisque, single
Knob, switch, bisque, single WCI 316352802 Contact Us For Availability
View on Model
36A
Knob, switch, white, dual
Knob, switch, white, dual WCI 316352804 Contact Us For Availability
View on Model
36A
Knob, switch, black, dual
Knob, switch, black, dual WCI 316352805 Contact Us For Availability
View on Model
39
Handle, door/drawer, bisque
Handle, door/drawer, bisque WCI 316356202 Contact Us For Availability
View on Model
52
Cap, door trim, bisque
Cap, door trim, bisque WCI 316575502 Contact Us For Availability
View on Model
