Model Electrolux 790.90154305 Electric Range (Kenmore 79090154305) – Common Parts & Diagrams
DOOR
BACKGUARD

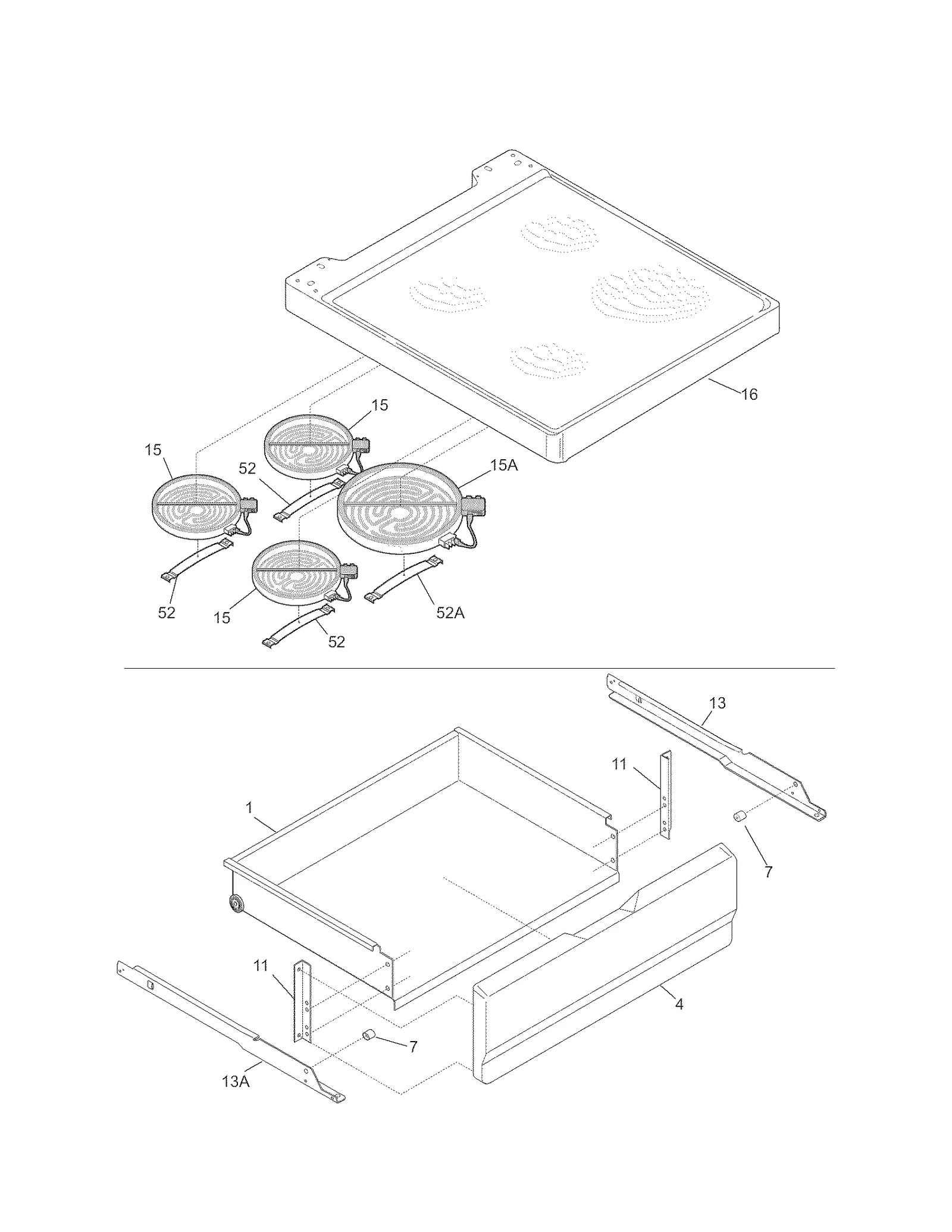

TOP/DRAWER

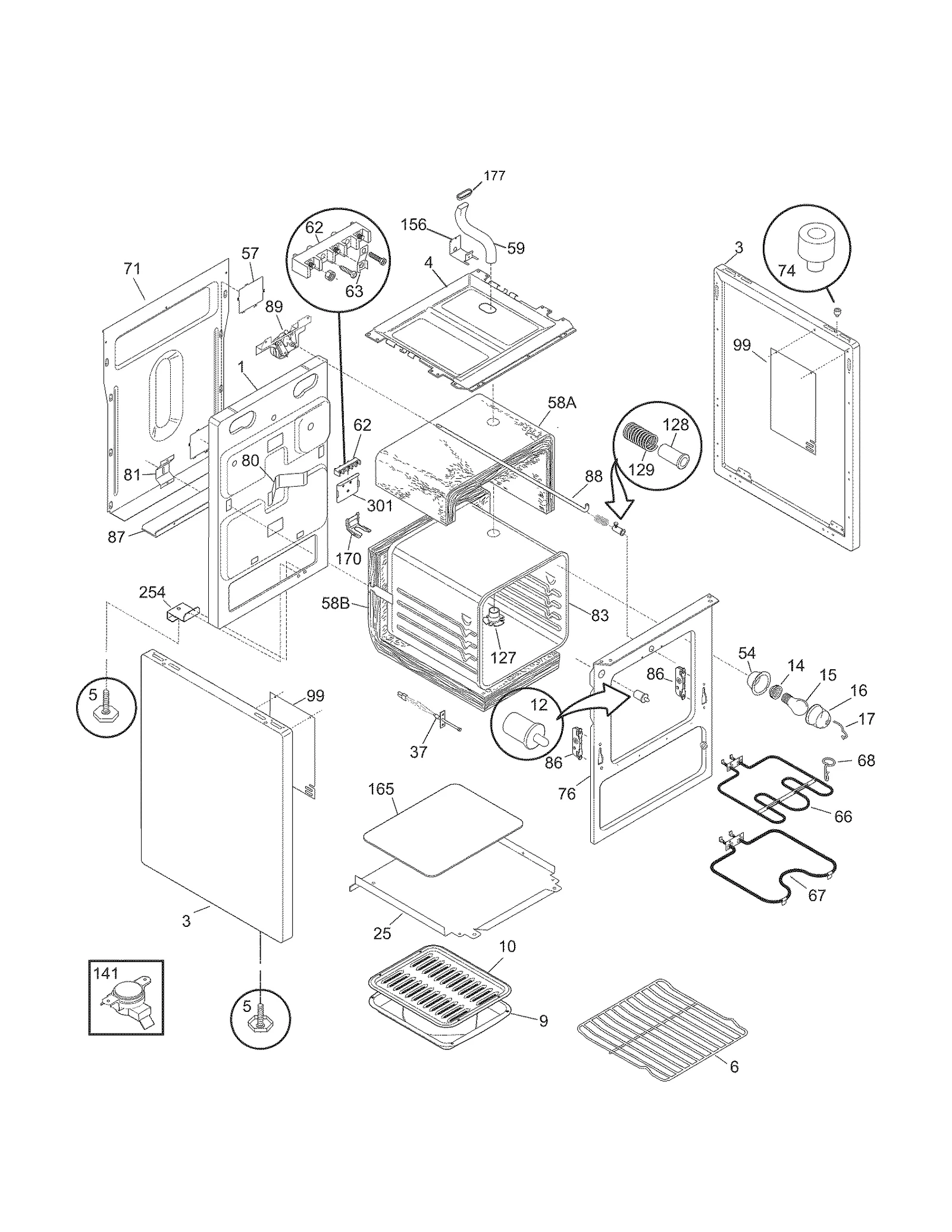

BODY
Common parts from model Electrolux 790.90154305 Electric Range (Kenmore 79090154305)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
1
Range Panel WCI 318095002 Contact Us For Availability
3
Range Trim WCI 318415501 Contact Us For Availability
3
Range Side Panel WCI 318159721 Contact Us For Availability
3
Panel WCI 318159722 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 5303325035 Contact Us For Availability
4
Range Main Top Burner Box WCI 318126510 Contact Us For Availability
5
Screw WCI 318175508 Contact Us For Availability
6
Range Oven Rack WCI 318345201 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Range Main Top (Black and White) WCI 318228700 Contact Us For Availability
16
Range Main Top Assembly WCI 318228701 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Gasket WCI 318293500 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185832 Contact Us For Availability
20
Range Oven Control Board and Overlay (Bisque) WCI 318185833 Contact Us For Availability
21
Range Control Panel Trim, Upper (White) WCI 318350801 Contact Us For Availability
25
Shield WCI 5303325069 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316109106 Contact Us For Availability
39
Cooking Appliance Oven Door Handle (White) WCI 318362820 Contact Us For Availability
39
Handle Assembly WCI 318362821 Contact Us For Availability
52A
Spring WCI 318122007 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
57
Range Access Panel WCI 318407100 Contact Us For Availability
58A
Insulation WCI 318285019 Contact Us For Availability
58B
Insulation WCI 318285038 Contact Us For Availability
59
Tube WCI 318072555 Contact Us For Availability
71
Range Panel WCI 318086508 Contact Us For Availability
74
Oven Bumper WCI 318147412 Contact Us For Availability
76
Range Frame WCI 318123104 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Liner WCI 318089601 Contact Us For Availability
87
Plate WCI 318111815 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
99
Panel WCI 5303324441 Contact Us For Availability
128
Range Latch Rod Bushing WCI 318563000 Contact Us For Availability
156
Bracket WCI 318221900 Contact Us For Availability
165
Plate WCI 318003101 Contact Us For Availability
170
Bracket WCI 5304413730 Contact Us For Availability
177
Gasket WCI 318053810 Contact Us For Availability
254
Support WCI 318175601 Contact Us For Availability
301
Plate WCI 318161700 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Harness WCI 318199904 Contact Us For Availability
NI
Range Wire Harness WCI 318199514 Contact Us For Availability
NI
Range Wire Harness WCI 318231809 Contact Us For Availability
NI
Range Screw, #8-18 x 0.5-in WCI 5303323133 Contact Us For Availability
× ![]()
