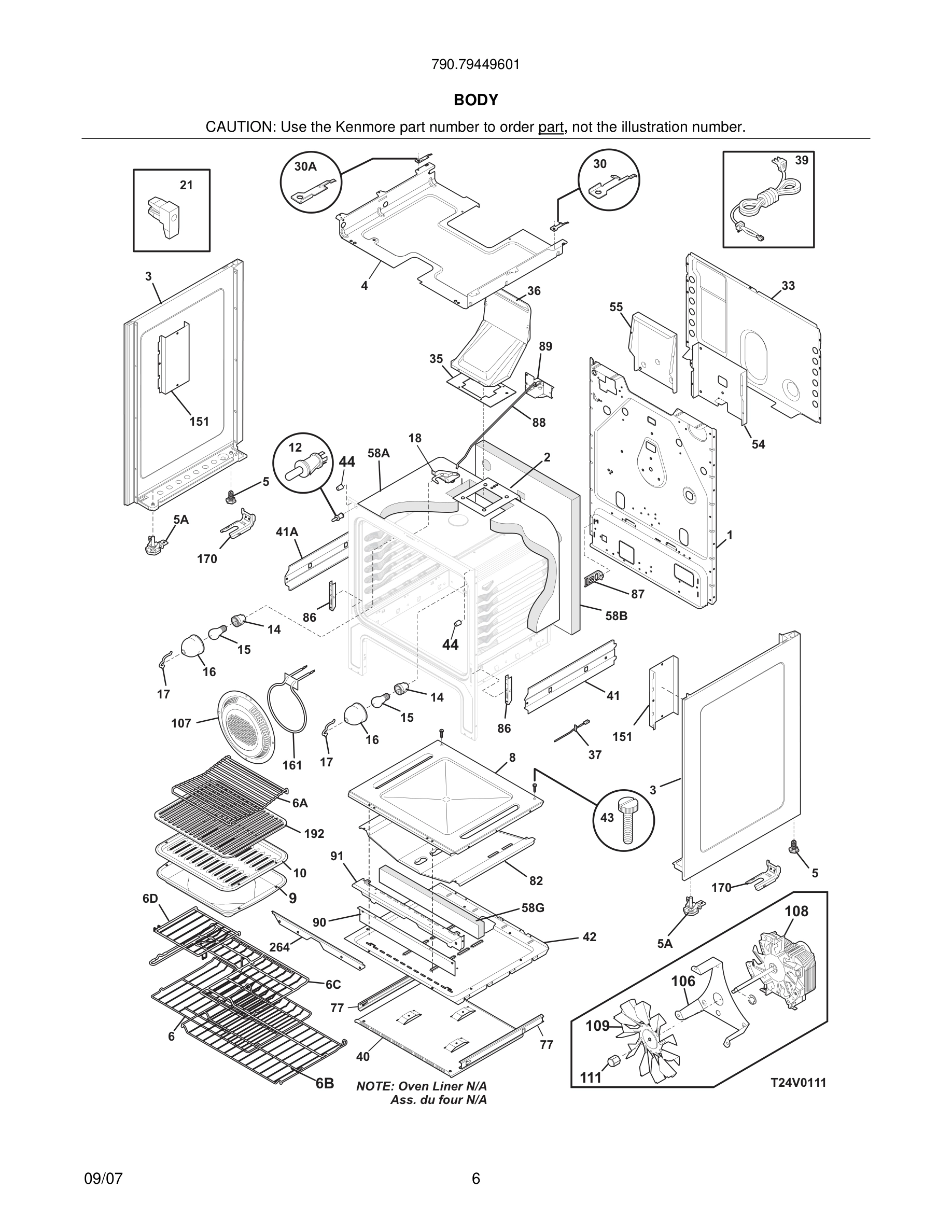

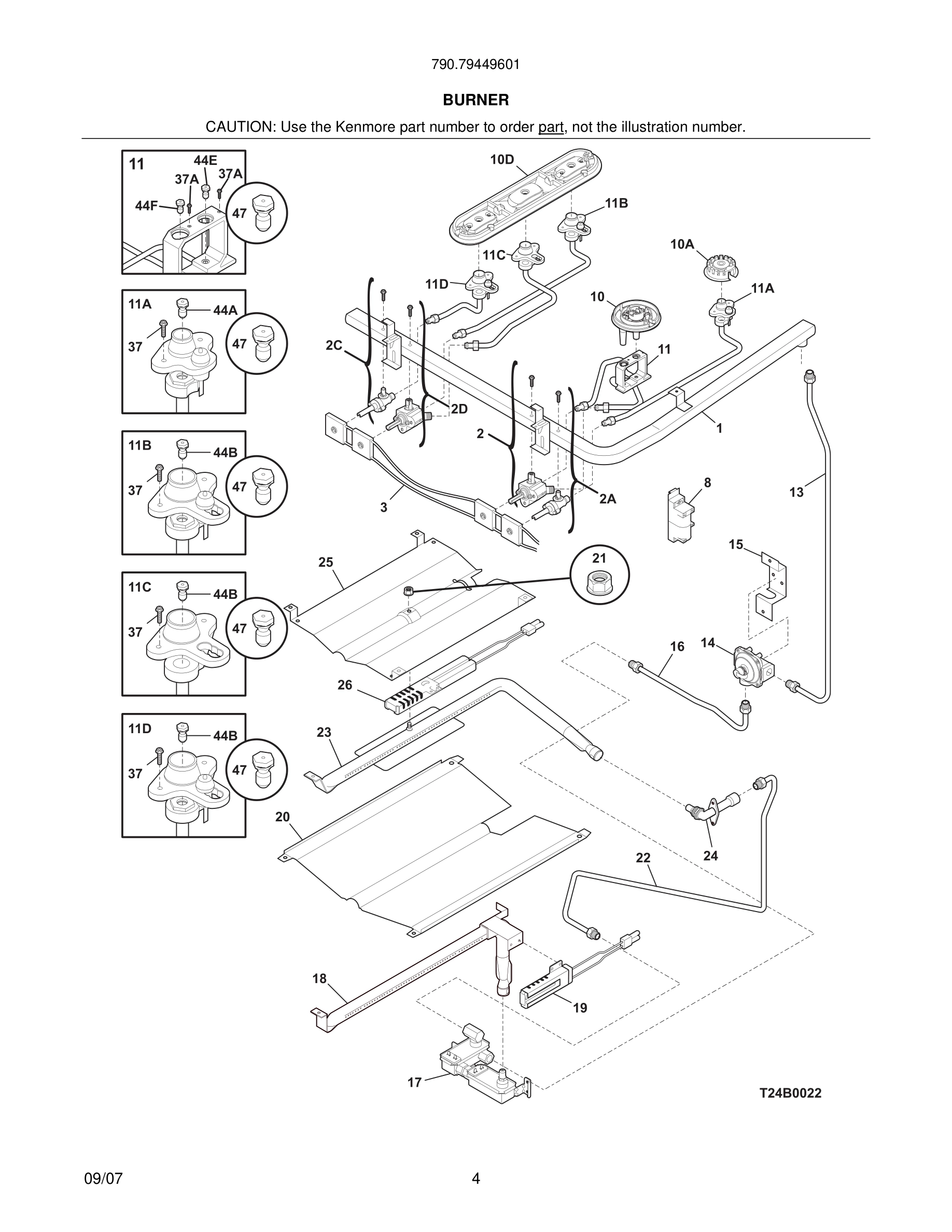

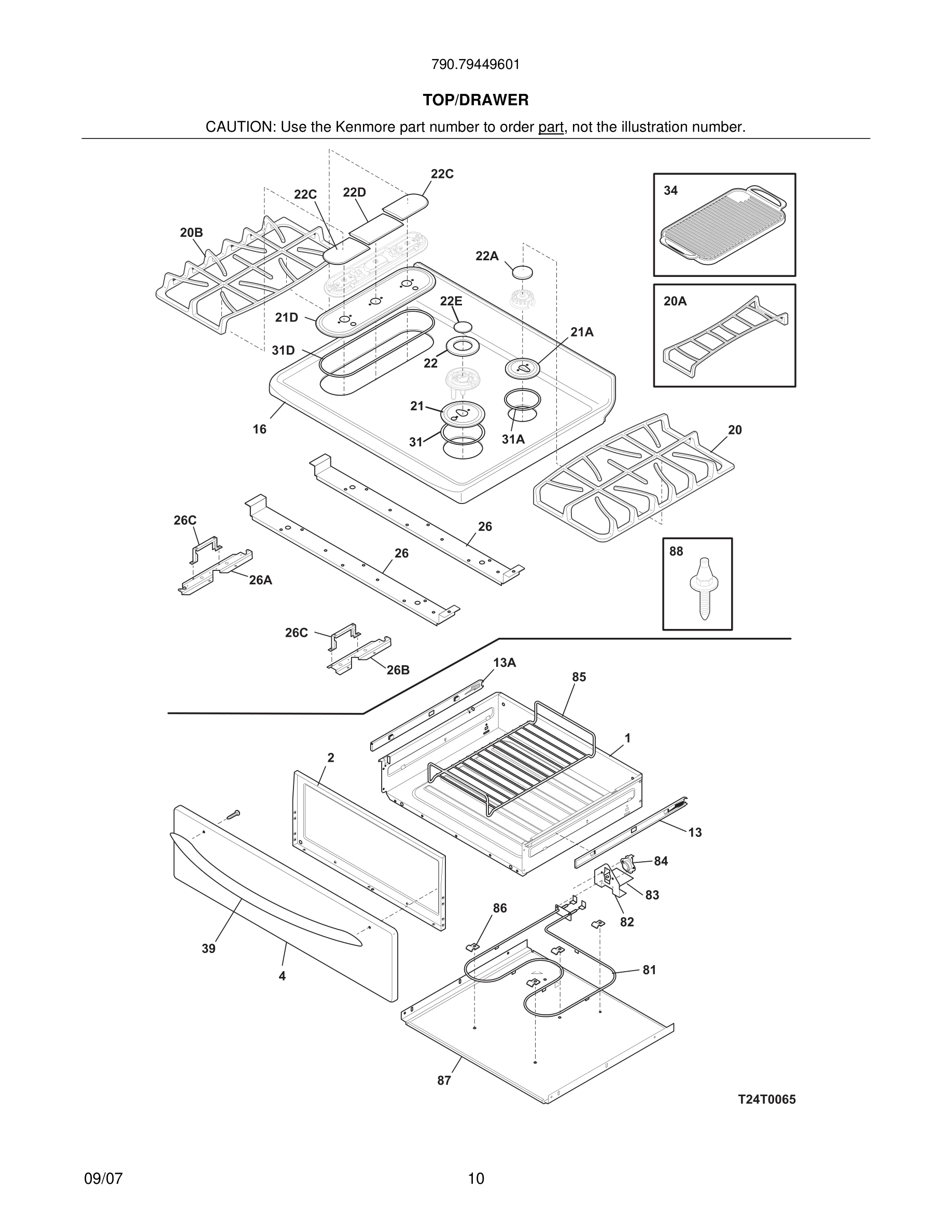

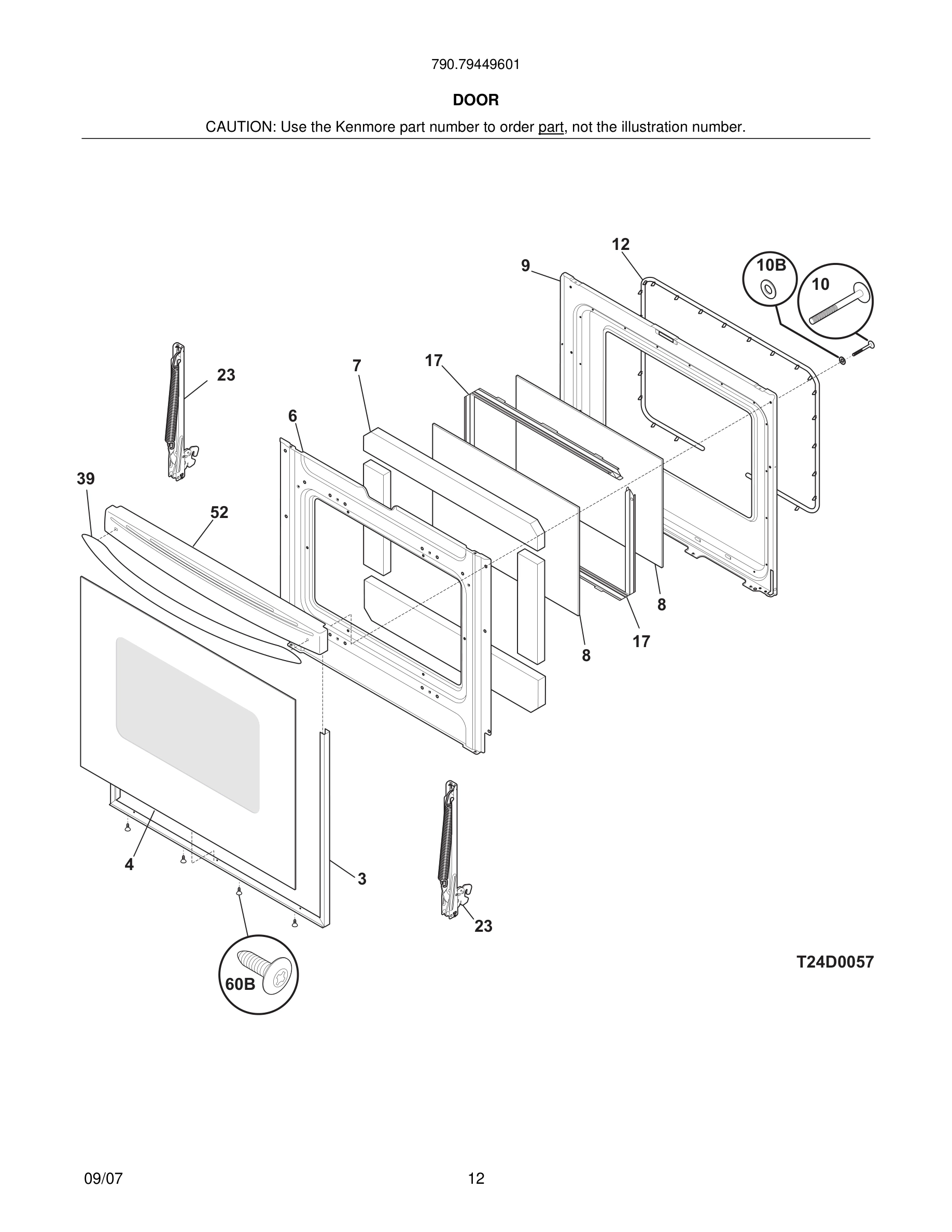

Model Kenmore 790.79449601 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
2#
Valve, top burner, dual port, 3K/13K
Valve, top burner, dual port, 3K/13K WCI 316412505 Contact Us For Availability
View on Model
2A#
Valve, 5K burner, w/mtg screw
Valve, 5K burner, w/mtg screw WCI 5303935235 Contact Us For Availability
View on Model
2D#
Valve, top burner, dual port, 3K/13K
Valve, top burner, dual port, 3K/13K WCI 316412501 Contact Us For Availability
View on Model
3#
Wiring Harness, w/igntr switch
Wiring Harness, w/igntr switch WCI 316219007 Contact Us For Availability
View on Model
4
Glass, oven door, black, outer
Glass, oven door, black, outer WCI 316427201 Contact Us For Availability
View on Model
4
Panel, drawer, black, front
Panel, drawer, black, front WCI 316403406 Contact Us For Availability
View on Model
9
Pan, broiler
Pan, broiler WCI 316081900 Contact Us For Availability
View on Model
10
Insert, broiler pan
Insert, broiler pan WCI 316082000 Contact Us For Availability
View on Model
10#
Burner, sealed, 3K/13K, w/ignitor
Burner, sealed, 3K/13K, w/ignitor WCI 316495600 Contact Us For Availability
View on Model
11#
Extrusion/orifice Assy., double burner, 3K/13
Extrusion/orifice Assy., double burner, 3K/13 WCI 316459500 Contact Us For Availability
View on Model
11A#
Ignitor/orifice assy., top burner, rear, 5K,
Ignitor/orifice assy., top burner, rear, 5K, WCI 316434201 Contact Us For Availability
View on Model
20#
Controller, electronic, ES525
Controller, electronic, ES525 WCI 316462851 Contact Us For Availability
View on Model
21
Skirt, 3K/13K, black
Skirt, 3K/13K, black WCI 316460603 Contact Us For Availability
View on Model
21A
Skirt, 5K burner, black
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
View on Model
21D
Skirt, bridge burner, black
Skirt, bridge burner, black WCI 316411703 Contact Us For Availability
View on Model
22#
Tube, valve to mixer
Tube, valve to mixer WCI 316405401 Contact Us For Availability
View on Model
22A
Cap, 5K burner, black
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
View on Model
22D
Cap, 9.5K burner, black, black, center
Cap, 9.5K burner, black, black, center WCI 316462103 Contact Us For Availability
View on Model
23
Hinge, oven door, red titan, (2)
Hinge, oven door, red titan, (2) WCI 316456302 Contact Us For Availability
View on Model
23#
Burner, broiler
Burner, broiler WCI 316404300 Contact Us For Availability
View on Model
25
Baffle, broil burner
Baffle, broil burner WCI 316401301 Contact Us For Availability
View on Model
31
Seal, 3K/13K burner
Seal, 3K/13K burner WCI 316242005 Contact Us For Availability
View on Model
31D
Seal, bridge burner
Seal, bridge burner WCI 316428300 Contact Us For Availability
View on Model
36
Knob, top valve, black
Knob, top valve, black WCI 316121838 Contact Us For Availability
View on Model
37A
Screw, burner mnt., triple ring
Screw, burner mnt., triple ring WCI 316470500 Contact Us For Availability
View on Model
44A
Orifice, top burner, 5K
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
View on Model
44B
Orifice, top burner, 9K
Orifice, top burner, 9K WCI 316237911 Contact Us For Availability
View on Model
44E
Orifice, double burner, 3K
Orifice, double burner, 3K WCI 316467400 No Longer Available
View on Model
44F
Orifice, double burner, 13K
Orifice, double burner, 13K WCI 316467401 No Longer Available
View on Model
58B
Insulation, oven back
Insulation, oven back WCI 316403600 Contact Us For Availability
View on Model
84
Thermo disc, warmer drawer
Thermo disc, warmer drawer WCI 316093501 Contact Us For Availability
View on Model
97B#
Board Assembly, power
Board Assembly, power WCI 316448901 Contact Us For Availability
View on Model
