Model Electrolux 790.77476790 Gas Range (Kenmore 79077476790) – Common Parts & Diagrams

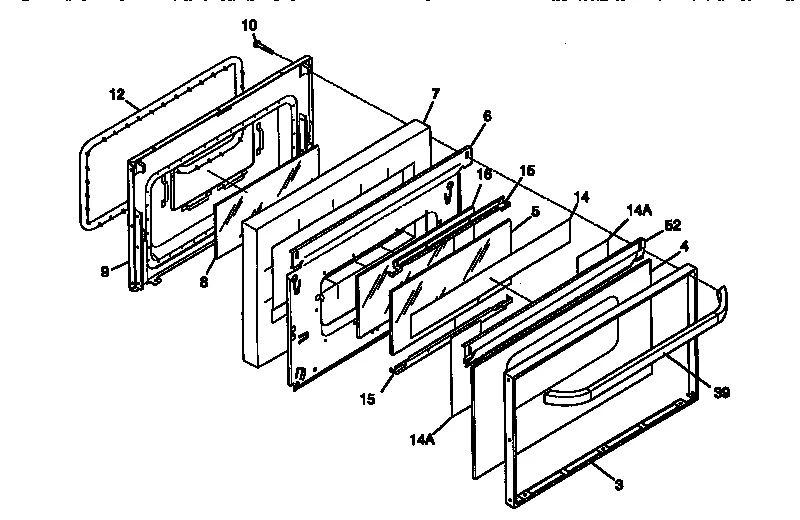

DOOR

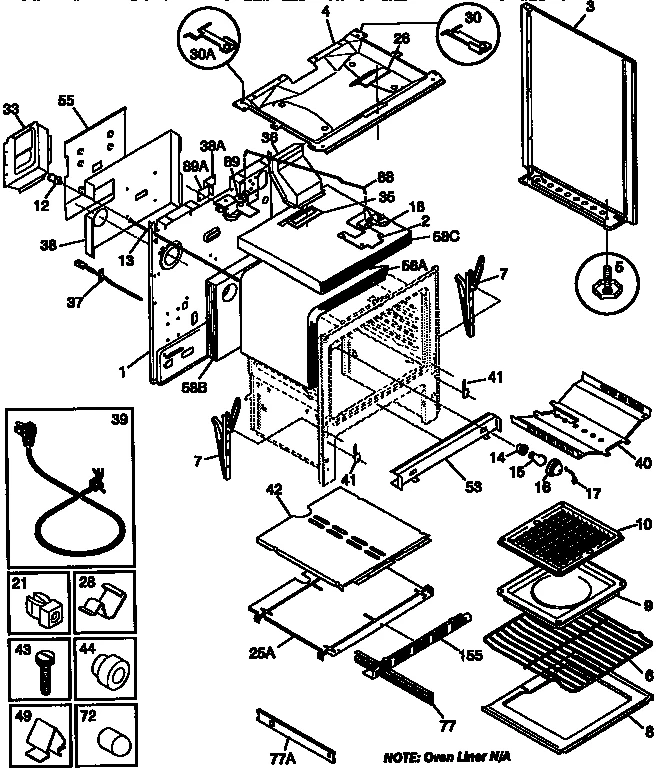

BODY
BODY
All Parts
BURNER
BACKGUARD
TOP/DRAWER
Common parts from model Electrolux 790.77476790 Gas Range (Kenmore 79077476790)
1
Manifold Pipe WCI 316066201 Contact Us For Availability
1
Backing Shield WCI 316028701 Contact Us For Availability
1
Warming Drawer WCI 316094601 Contact Us For Availability
2
Range Surface Burner Valve WCI 5303935130 Contact Us For Availability
2
Backing Shield WCI 316051601 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2A
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
3
Range Surface Burner Igniter Switch WCI 316032000 Contact Us For Availability
3A
Switch Harness WCI 5303935040 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Store Drawer WCI 316056206 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
5B
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8A
Range Spark Module Wire Harness WCI 5303289034 Contact Us For Availability
10
Range Oven Door Handle Screw WCI 5303280308 Contact Us For Availability
10
Range Sealed Surface Burner WCI 5303935025 Contact Us For Availability
11
Wrapper Trim WCI 316061848 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
13
Drawer Channel WCI 316096500 Contact Us For Availability
13A
Drawer Channel WCI 316096501 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
16
Main Top-alm WCI 5303301547 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
19
Control Panel WCI 316082639 Contact Us For Availability
19
Pan-almond S WCI 316011410 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20
Range Oven Control Board WCI 316080102 Contact Us For Availability
20
Grate WCI 316085202 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap (Gray) WCI 316010903 Contact Us For Availability
23
Broil Burner WCI 316087900 Contact Us For Availability
23
Bracket Clock WCI 316079002 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
24
Rocker Switch WCI 316005608 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
28
Clock Button WCI 316015105 Contact Us For Availability
28A
Range Timer Knob Shaft WCI 316080600 Contact Us For Availability
31A
Oven Knob WCI 316025110 Contact Us For Availability
36
Surface Knob WCI 316049309 Contact Us For Availability
39
Range Oven Door Handle (Almond) WCI 316091116 Contact Us For Availability
39
Drawer Handle WCI 316026104 Contact Us For Availability
39A
Washer Handle WCI 316008400 Contact Us For Availability
40
Manifold Panel WCI 316086839 Contact Us For Availability
40A
Screw-heat S WCI 5303288570 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
42
Vent Trim WCI 316083300 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
44A
Orifice WCI 316010802 Contact Us For Availability
45
Igniter Screw WCI 316011100 Contact Us For Availability
46
Range Surface Burner Head Bracket WCI 316074700 Contact Us For Availability
47
Lp-conversio WCI 316039602 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
55
Shield-flue WCI 316052601 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
60
Screw WCI 5303288574 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
80
Door Seal WCI 316093000 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
89A
Insulator WCI 316097000 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Owner's Manual WCI 316000923 Contact Us For Availability
NI
Wiring Harness WCI 316001457 Contact Us For Availability
NI
Wiring Diagram WCI 316002143 Contact Us For Availability
NI
Plate WCI 316065303 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Parts Catalg WCI 5995297131 Contact Us For Availability
× ![]()
